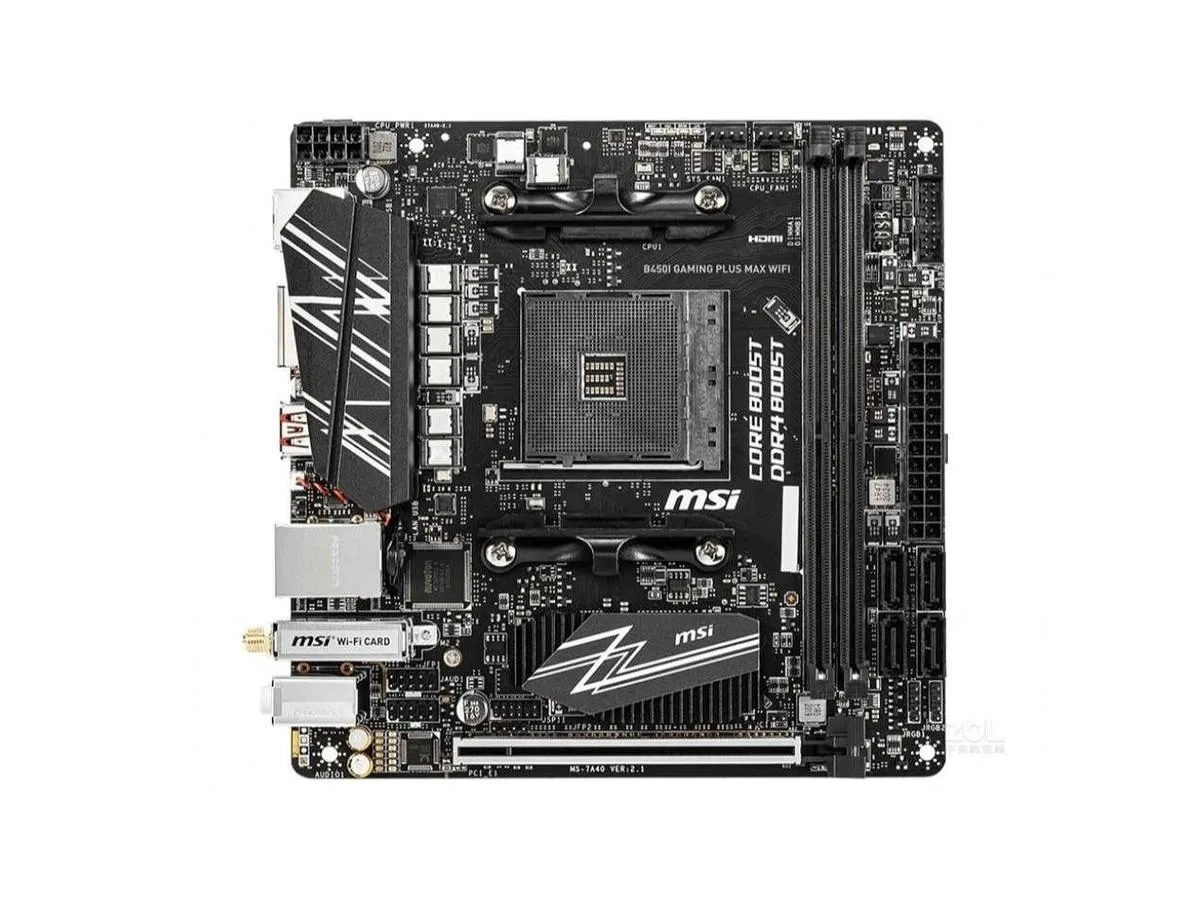

Compact Mini-ITX motherboard in matte black with silver heatsinks and integrated I/O shield

MSI

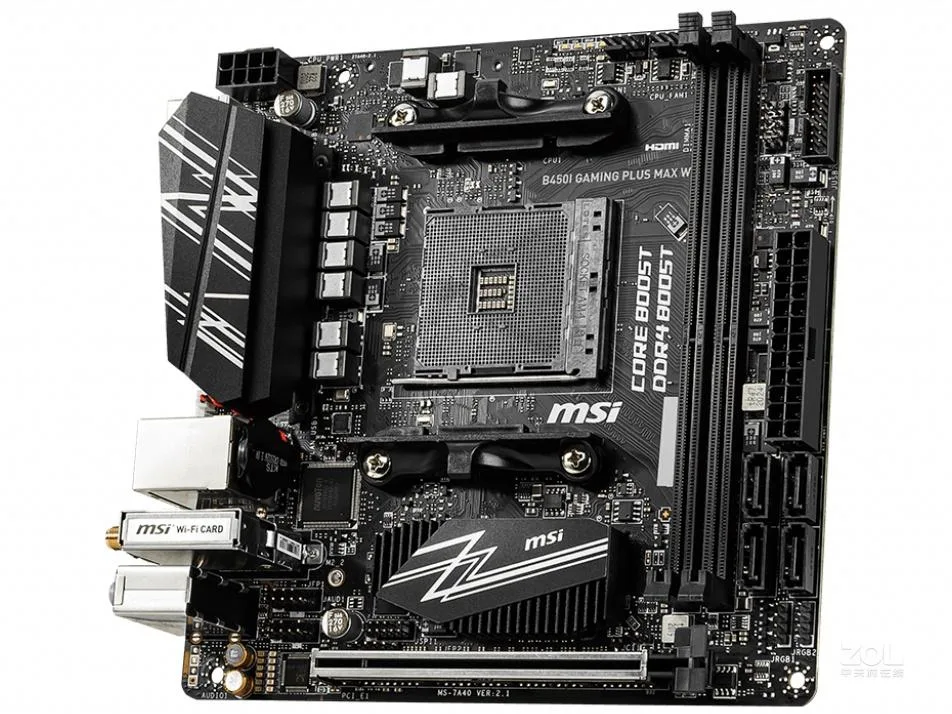

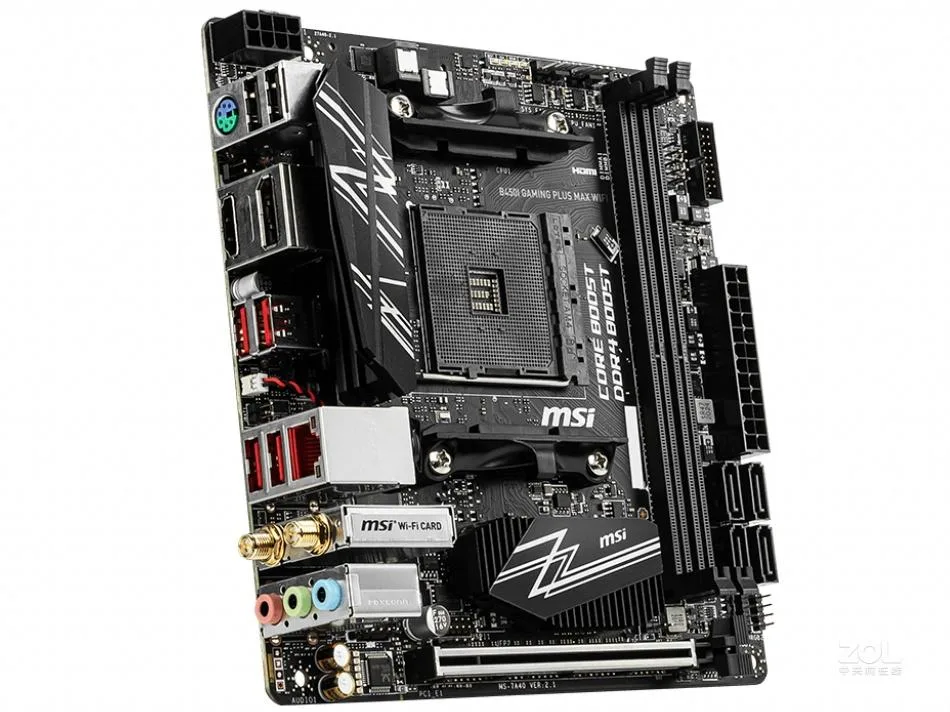

MSI B450I GAMING PLUS MAX WIFI AMD motherboard

SKU CH-X71M-XK6GF

Mini-ITX AMD B450 board for Socket AM4 Ryzen CPUs with dual-channel DDR4 up to 64 GB, 7.1 audio, Gigabit LAN and Wi-Fi

  • CPU Socket TypeSocket AM4
  • CPU TypeSupport AMD Ryzen 1st, 2nd, and 3rd Gen/Ryzen with Radeon Ve
  • ChipsetAMD B450
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported64GB
  • PCI Slots1 PCIe 3.0 x16 slot Supports x16 speed with AMD Ryzen 1st, 2
  • Compact Mini-ITX board fits small builds
  • Socket AM4 supports Ryzen 1st, 2nd and 3rd Gen CPUs
  • Dual-channel DDR4 up to 3466 MHz with 64 GB capacity
  • Realtek ALC887 delivers 7.1 channel high fidelity audio
  • Realtek 8111H Gigabit LAN plus built-in Wi-Fi module

Socket AM4 Mini-ITX Board

This MSI B450I Gaming Plus Max Wifi motherboard fits the Mini-ITX form factor and uses the AMD B450 chipset. It is built for compact systems that run AMD Ryzen or Athlon processors with Radeon Vega graphics. The board supports dual-channel DDR4 memory up to 64GB capacity. Integrated Wi-Fi and a Realtek 8111H Gigabit LAN controller handle networking.

CPU Generation and Memory Speed

Verify which Ryzen or Athlon generation you plan to install because the primary PCIe 3.0 x16 slot runs at x16 speed with 1st, 2nd and 3rd Gen Ryzen, at x8 speed with Ryzen and Radeon Vega Graphics processors, and at x4 speed with Athlon and Radeon Vega graphics processors. Confirm your DDR4 modules match one of the listed frequencies from 1866 through 3466 MHz. Ensure your case and power supply provide the required connectors for a Mini-ITX layout.

Included Back Panel and Antenna

The package supplies a chassis I/O back panel, one SATA cable and a CMOS battery. A Wi-Fi antenna is included because the board has a built-in Wi-Fi module. No additional cables, brackets or driver discs are provided. The Realtek ALC887 codec delivers 7.1 channel audio through the rear ports.

Highlights

  • Compact Mini-ITX board fits small builds
  • Socket AM4 supports Ryzen 1st, 2nd and 3rd Gen CPUs
  • Dual-channel DDR4 up to 3466 MHz with 64 GB capacity
  • Realtek ALC887 delivers 7.1 channel high fidelity audio
  • Realtek 8111H Gigabit LAN plus built-in Wi-Fi module

Specifications

BrandMSI
SeriesMSI B450I GAMING PLUS MAX WIFI
ModelMSI B450I GAMING PLUS MAX WIFI
CPU Socket TypeSocket AM4
CPU TypeSupport AMD Ryzen 1st, 2nd, and 3rd Gen/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors for Socket AM4
ChipsetAMD B450
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466MHz memory
Maximum Memory Supported64GB
PCI Slots1 PCIe 3.0 x16 slot
Supports x16 speed with AMD Ryzen 1st, 2nd, and 3rd generation processors
Supports x8 speed with AMD Ryzen and Radeon Vega Graphics processors
Support x4 speed with AMD Athlon and Radeon Vega graphics processing units
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC887 Codec
7.1 channel high fidelity audio
LAN Chipset1 Realtek 8111H Gigabit LAN Controller
Onboard USBAMD B450 chipset
2 USB 3.2 Gen1 [ultra-fast USBl Type-A ports on the backplane]
4 USB 2.0 [high-speed USB] ports [2 Type-A ports on the backplane, 2 ports provided via internal USB 2.0 connectors]
AMD Central Processor
4 USB 3.2 Gen1 [SuperSpeed USB] ports [2 Type-A ports on the backplane, 2 ports available via the onboard USB 3.2 Gen1 interface]

Questions about this item

What accessories come in the box and what must I buy separately?

The box contains the motherboard, a CMOS battery, one SATA cable, the rear I/O back panel and the Wi-Fi antenna. You will need to purchase the CPU, DDR4 memory, storage drives, power supply, case and CPU cooler separately.

Which memory speed should I choose for this board?

The board supports dual-channel DDR4 from 1866 up to 3466 MHz. Pick a kit that matches the speed your Ryzen processor officially supports; the board will run it at the highest common frequency.

What does the single PCIe 3.0 x16 slot mean for my graphics card?

With a Ryzen 1st, 2nd or 3rd Gen CPU the slot runs at x16 speed, with a Ryzen or Athlon APU it drops to x8 or x4 respectively, so your graphics card bandwidth depends on which processor you install.
