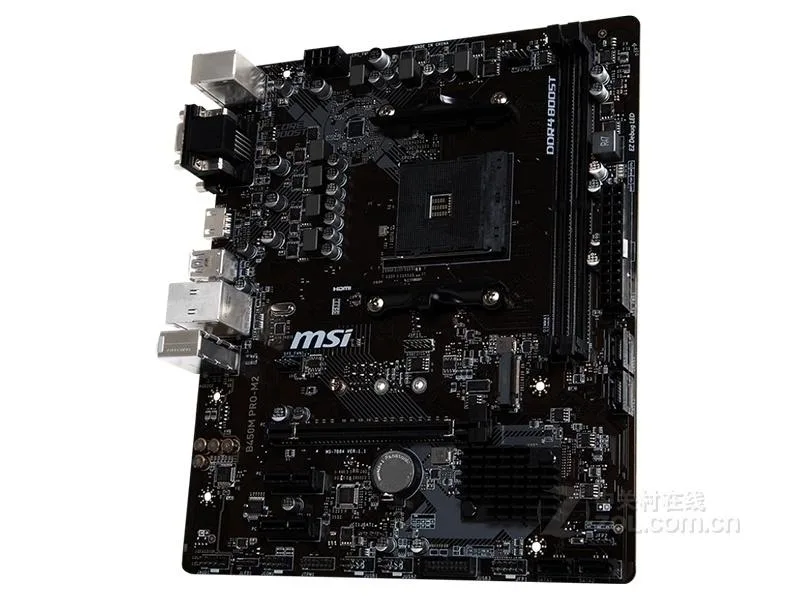

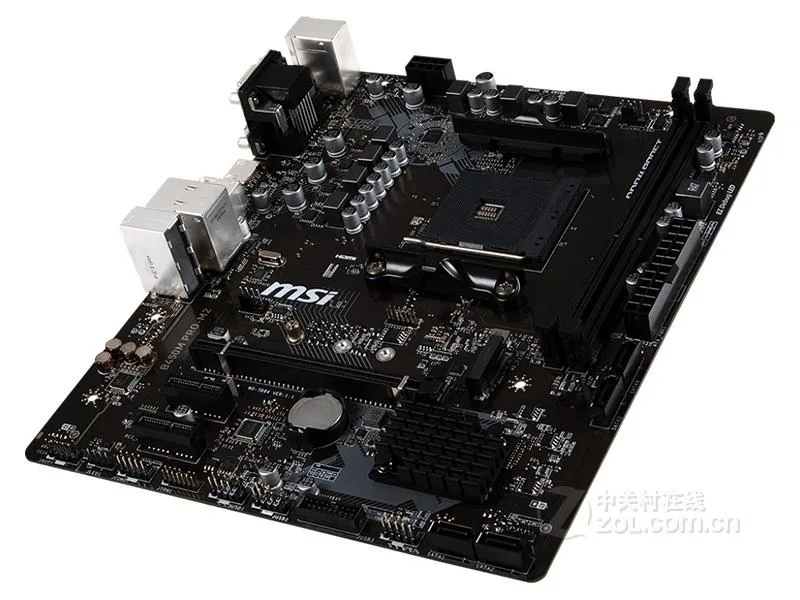

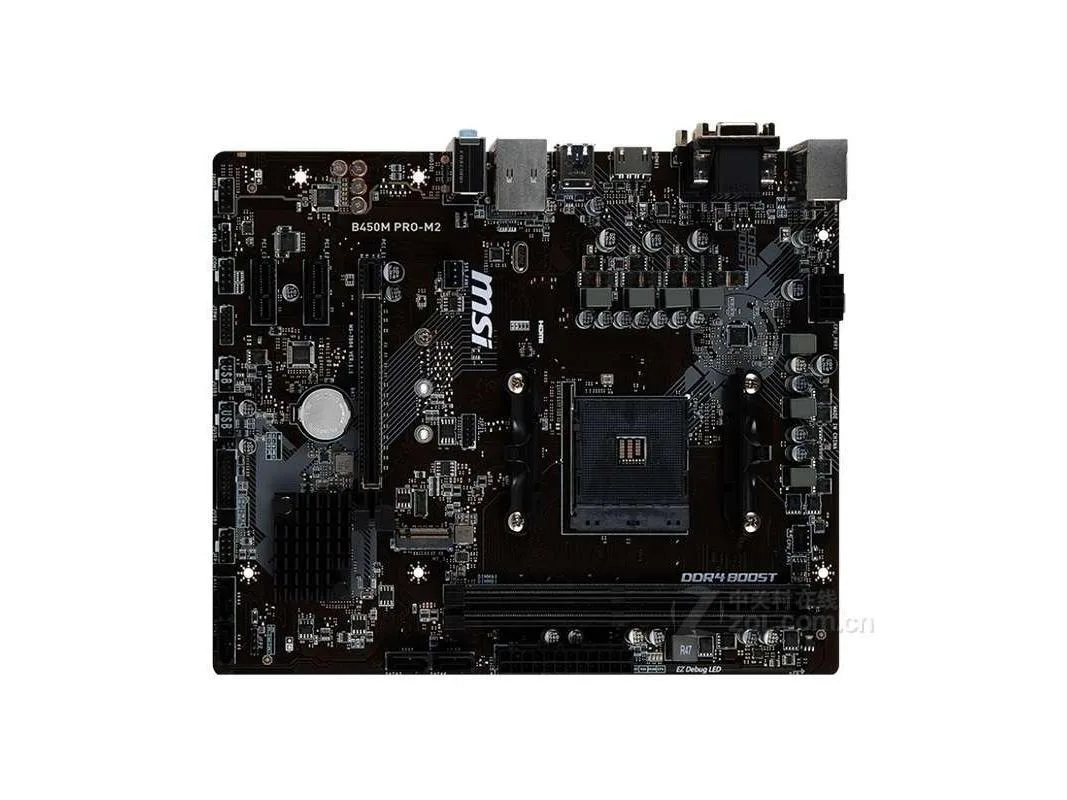

MSI B450M PRO-M2 AMD B450 motherboard

Socket AM4 DDR4 Micro-ATX board

The MSI B450M PRO-M2 is a micro-ATX motherboard built around the AMD B450 chipset for Socket AM4 processors. It supports first- and second-generation AMD Ryzen CPUs and runs dual-channel DDR4 memory up to 3466 MHz with a maximum capacity of 32 GB. A single PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots handle expansion, while four SATA III ports and one M.2 interface provide storage connectivity. Realtek ALC887 audio delivers 7.1-channel sound and a Realtek 8111H controller supplies gigabit LAN.

Builders on a tight platform budget

This board suits builders assembling a cost-conscious system around a Socket AM4 processor who need basic expansion and up to 32 GB of DDR4 memory. It is not for buyers who want more storage bandwidth than a single M.2 interface and four SATA ports can provide. It is not for builders who need a second full-length graphics card or additional PCIe x16 slots. It is not for users requiring integrated Wi-Fi or Bluetooth connectivity, as the specifications list only wired gigabit Ethernet.

32 GB DDR4 ceiling decides the build

The hard limit of 32 GB of dual-channel DDR4 memory determines whether this motherboard fits the intended workload. If the planned applications or multitasking demand more than 32 GB, this board cannot meet the requirement and a different platform must be chosen. If 32 GB is sufficient, the supported memory speeds up to 3466 MHz and the available expansion slots become the next factors to evaluate.
