Green Micro ATX motherboard with black heatsinks and silver CPU socket

MSI

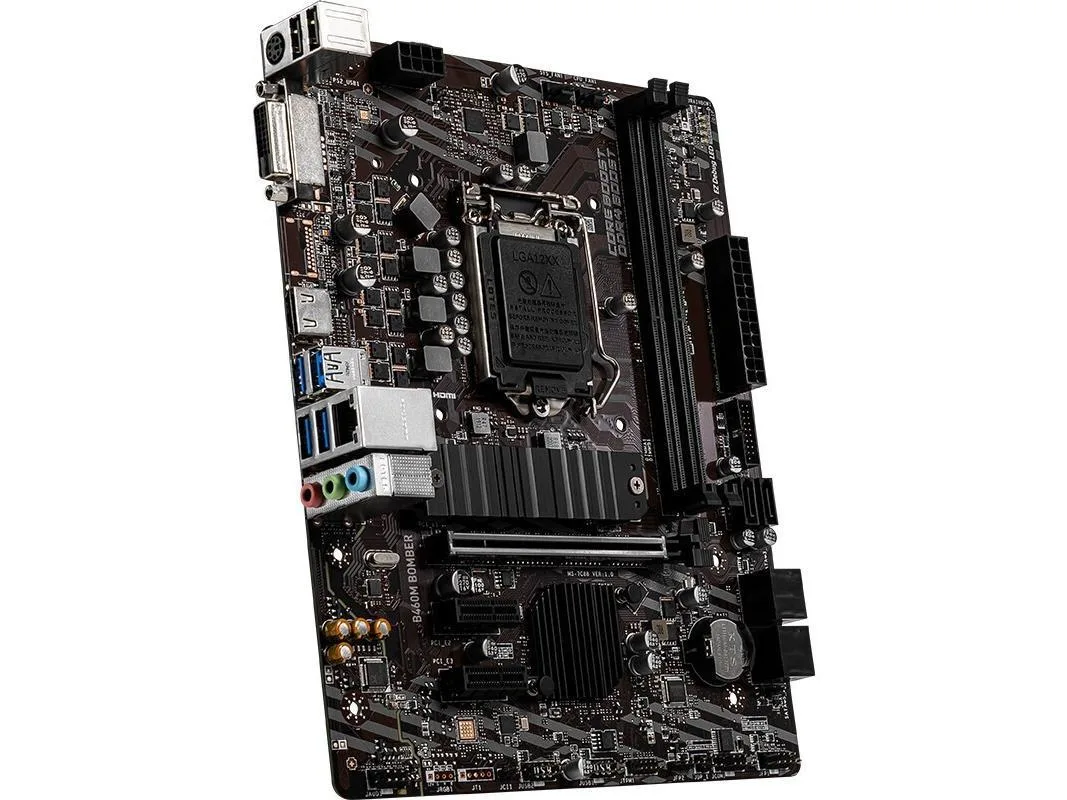

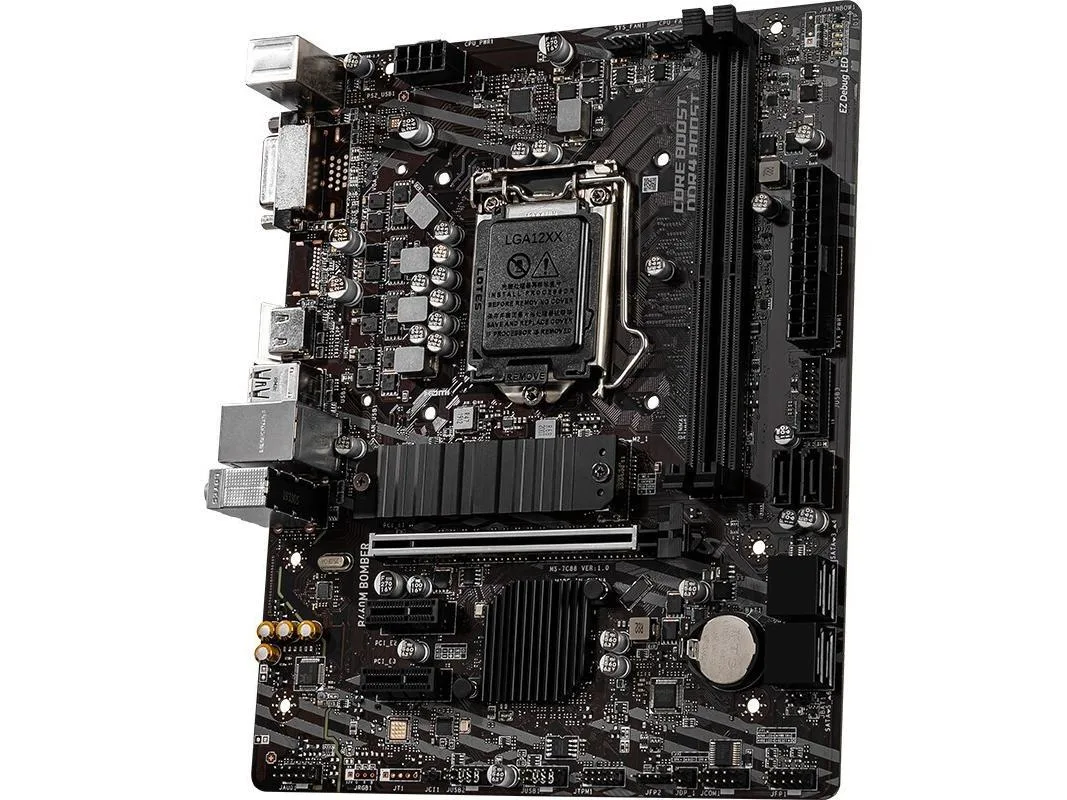

MSI B460M BOMBER Intel motherboard

SKU CH-918R-Z2WJ5

Micro-ATX board for LGA 1200 CPUs with dual-channel DDR4 2933MHz up to 64GB, one PCIe 3.0 x16 slot, two PCIe 3.0 x1 slots, six SATA III ports, one M.2 interface.

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th generation Intel Core and Pentium Gold/Celeron
  • ChipsetIntel B460
  • Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
  • Maximum Memory Supported64GB
  • PCI Slots1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots
  • Supports 10th generation Intel Core and Pentium Gold/Celeron processors for LGA 1200 slots
  • Dual-channel DDR4 2933MHz memory with up to 64GB capacity
  • 1 PCIe 3.0 x16 slot plus 2 PCIe 3.0 x1 slots for expansion
  • Realtek ALC892/ALC897 codecs delivering 7.1 channel high fidelity audio
  • Realtek 8111H Gigabit LAN Controller for wired networking

Intel B460 Micro ATX Board for 10th Gen CPUs

This Micro ATX motherboard uses the Intel B460 chipset and an LGA 1200 socket to support 10th generation Intel Core and Pentium Gold or Celeron processors. It is built for compact systems that need dual-channel DDR4 memory up to 2933MHz and a maximum capacity of 64GB across two slots. The board provides one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots for expansion cards.

Verify Socket Chipset Memory and Case Clearance

Confirm that your processor is a 10th generation Intel Core or Pentium Gold and Celeron model designed for the LGA 1200 socket. Check that your chassis accepts a Micro ATX board measuring 23.6 by 20.0 centimetres and that the CPU cooler fits the socket keep-out zone. Ensure you have DDR4 modules only, as other generations will not fit the slots.

Bundled I/O Shield SATA Cable and Battery Only

The package includes the motherboard a metal battery one SATA cable and the chassis I/O back panel. No additional cables manuals driver discs or mounting screws are supplied. The single SATA cable limits you to one drive connection unless you source more cables separately. The I/O shield simplifies rear port installation in the case.

Highlights

  • Supports 10th generation Intel Core and Pentium Gold/Celeron processors for LGA 1200 slots
  • Dual-channel DDR4 2933MHz memory with up to 64GB capacity
  • 1 PCIe 3.0 x16 slot plus 2 PCIe 3.0 x1 slots for expansion
  • Realtek ALC892/ALC897 codecs delivering 7.1 channel high fidelity audio
  • Realtek 8111H Gigabit LAN Controller for wired networking

Specifications

BrandMSI
SeriesMSI B460M BOMBER
ModelMSI B460M BOMBER
CPU Socket TypeLGA 1200
CPU TypeSupports 10th generation Intel Core and Pentium Gold/Celeron processors for LGA 1200 slots
ChipsetIntel B460
Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
Maximum Memory Supported64GB
PCI Slots1 PCIe 3.0 x16 slot
2 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892/ALC897 Codecs
7.1 channel high fidelity audio
LAN Chipset1 Realtek 8111H Gigabit LAN Controller
Onboard USBIntel B460 chipset
6 USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the backplane, 2 via internal USB 3.2 Gen 1 5Gbps connectors)
6 USB 2.0 ports (2 Type-A ports on the backplane, 4 ports provided via internal USB 2.0 connectors)
