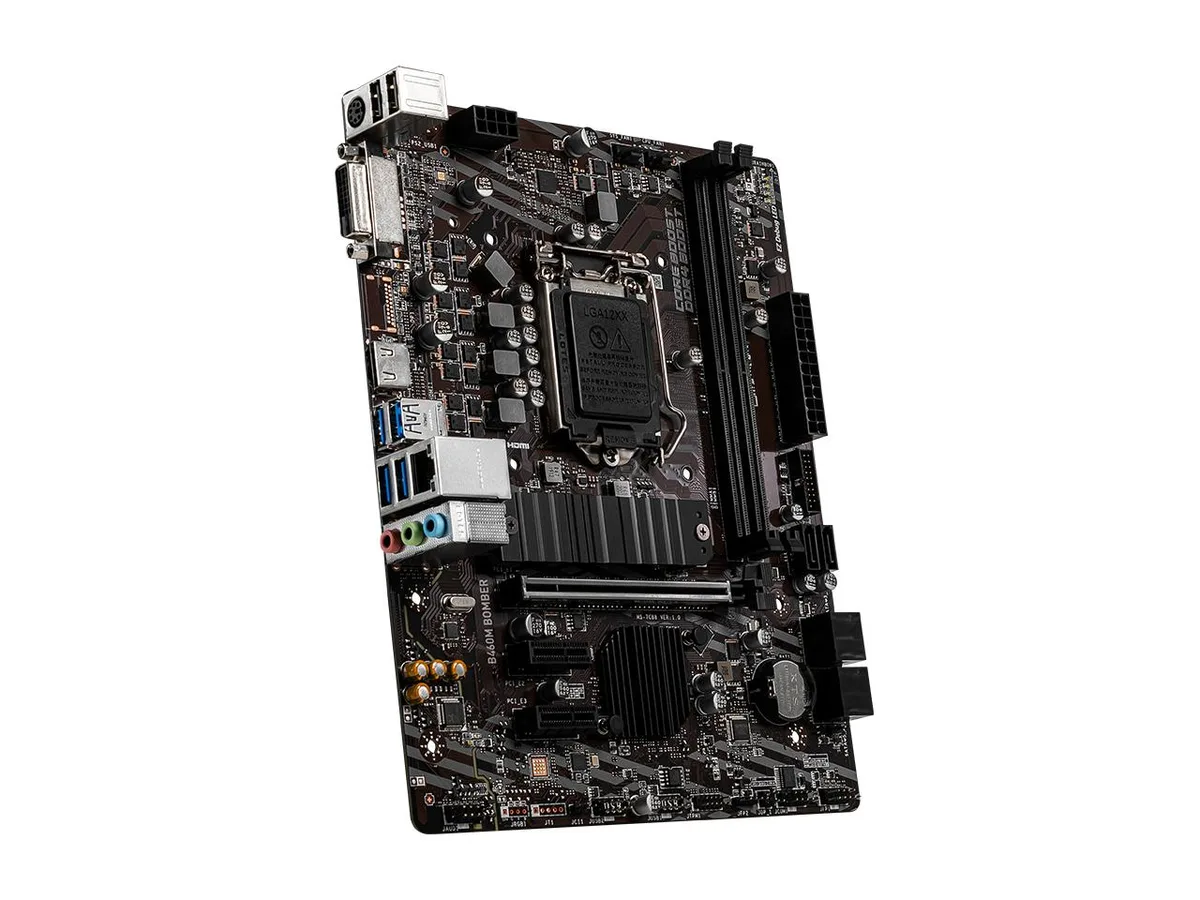

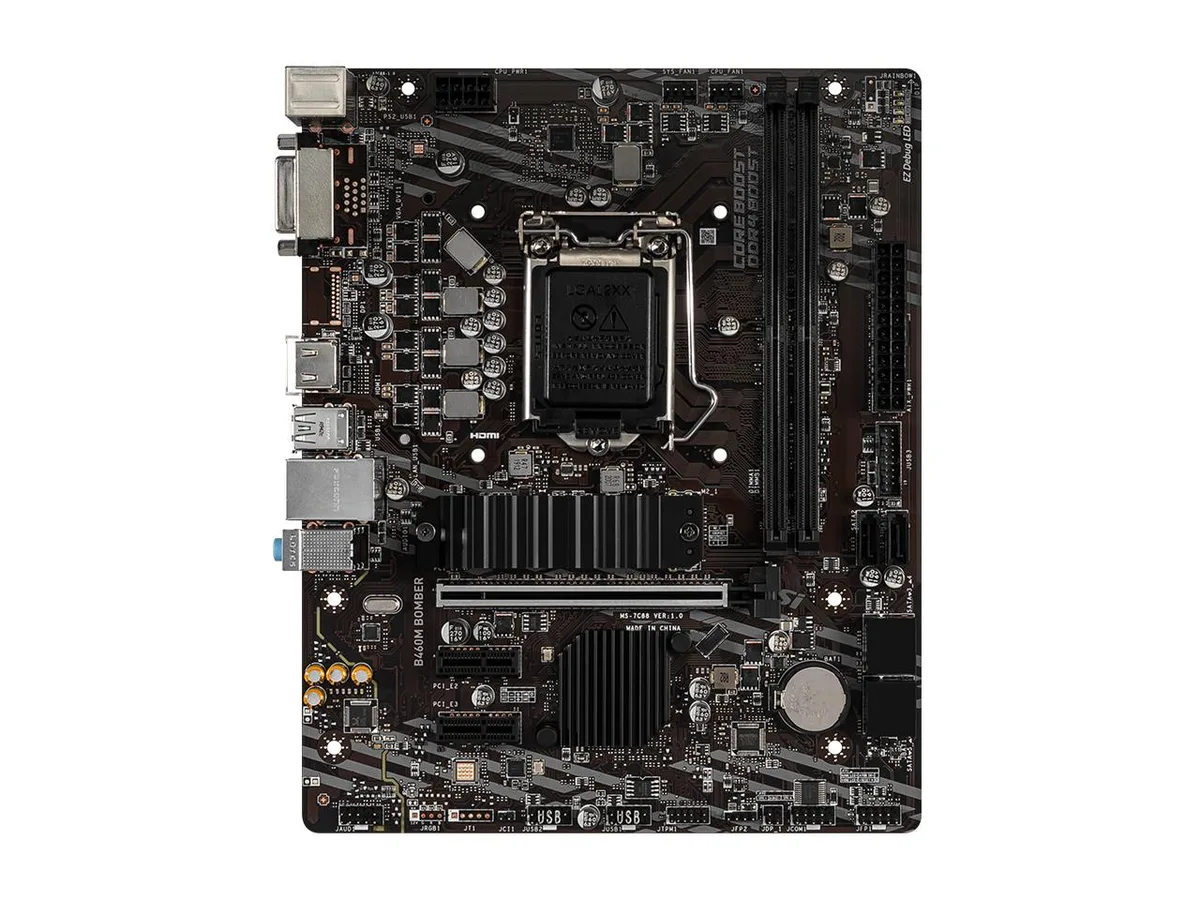

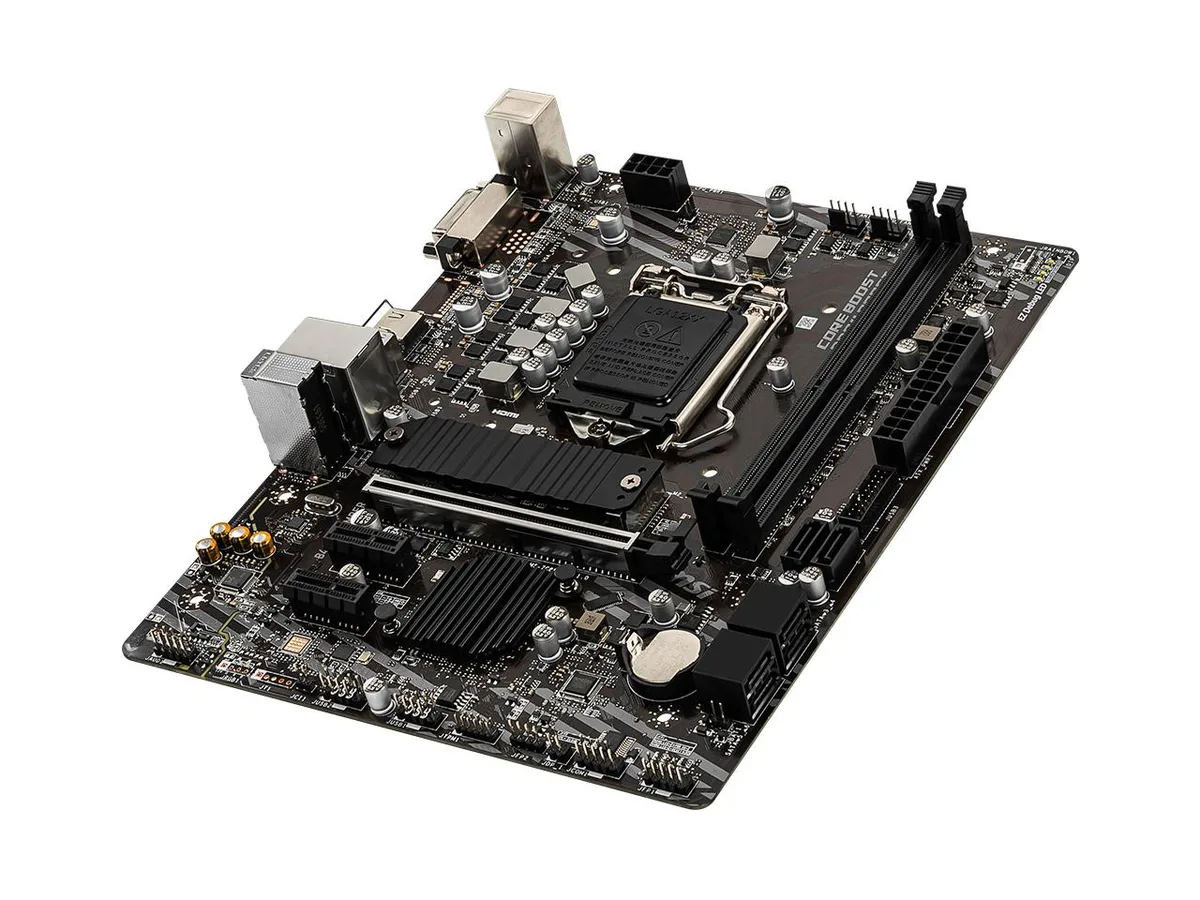

Dark green micro ATX motherboard with silver heatsinks, black PCB and rear I/O shield visible

MSI

MSI B460M Bomber LGA 1200 Micro ATX Intel Motherboard

SKU CH-4DR5-CFWR8

Micro ATX board with LGA 1200 socket, two DDR4 slots up to 64 GB, PCIe 3.0 x16 graphics slot, HDMI 1.4 and DVI-D video outputs, plus four USB 3.2 Gen 1 ports and M.2 thermal shielding

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Up to 64 GB DDR4 memory across two slots
  • PCI-E 3.0 x16 graphics slot plus two x1 expansion slots
  • HDMI 1.4 and DVI-D video outputs for integrated graphics
  • Four USB 3.2 Gen 1 Type-A ports and two USB 2.0/1.1 ports

Micro ATX board for 10th Gen Intel LGA 1200

This micro ATX motherboard uses the Intel B460 chipset and the LGA 1200 socket. It accepts 10th Generation Intel Core, Pentium and Celeron processors up to Core i5. The board provides two DDR4 memory slots with a maximum capacity of 64 GB. It is aimed at compact system builds that need basic expandability.

Simple slot layout with limited M.2 cooling

Installation follows the standard micro ATX pattern with one PCI-E 3.0 x16 slot and two PCI-E 3.0 x1 slots. The single M.2 slot is covered by the M.2 Shield Frozr and M.2 Frost Armor heatsinks, which require removing a screw and thermal pad before inserting the drive. Builders often forget to reinstall the pad, leaving the SSD without thermal contact.

Two DDR4 slots cap memory at 64 GB

The board provides only two DDR4 DIMM slots, so the absolute memory ceiling is 64 GB and dual-channel operation stops at two modules. Buyers who want more storage lanes, four memory slots or a second full-size graphics card should look at larger ATX platforms.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Up to 64 GB DDR4 memory across two slots
  • PCI-E 3.0 x16 graphics slot plus two x1 expansion slots
  • HDMI 1.4 and DVI-D video outputs for integrated graphics
  • Four USB 3.2 Gen 1 Type-A ports and two USB 2.0/1.1 ports

Specifications

No published specifications for this item yet.

Questions about this item

How can I confirm the DDR4 Boost technology is active after I install memory?

Enter the BIOS and verify the memory frequency and timings match the kit's rated speed; the DDR4 Boost circuitry is designed to deliver stable signals up to the board's 64 GB limit.

Which cables or brackets are included and which must be purchased separately?

The retail box contains the motherboard, I/O shield, SATA cables and driver disc; M.2 mounting screws and any additional case standoffs are not included.

Should I choose a 10th Gen Core i5 or a Pentium/Celeron for this LGA 1200 socket?

The socket accepts 10th Gen Intel Core, Pentium and Celeron processors; select a Core i5 for higher thread counts or a Pentium/Celeron for basic workloads.
