Green micro-ATX board with silver heatsinks, black slots, rear I/O shield and antenna connectors

MSI

MSI B460M PRO-VDH WIFI Intel motherboard

SKU CH-10AG-6T29N

Micro-ATX board with LGA 1200 socket for 10th Gen Intel CPUs, four DDR4 slots up to 128 GB, one PCIe 3.0 x16 slot, four SATA ports, two M.2 sockets, Realtek 7.1 audio and gigabit LAN

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core / Pentium Gold / Celeron proces
  • ChipsetIntel B460
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4-2933 (Max.) (Intel Core i7/ i9) DDR4-2666 (Max.) (Intel
  • Supports 10th Gen Intel Core, Pentium Gold and Celeron processors for broad CPU choice
  • LGA 1200 socket matches 10th Gen Intel desktop CPUs without adapter hassle
  • Four DDR4 slots accept up to 128 GB dual-channel memory for heavy multitasking
  • Two M.2 slots take 2242, 2260, 2280 and 22110 drives with PCIe 3.0 x4 speed
  • Realtek ALC892/ALC897 delivers 7.1-channel audio for immersive sound

Socket LGA 1200 micro-ATX board

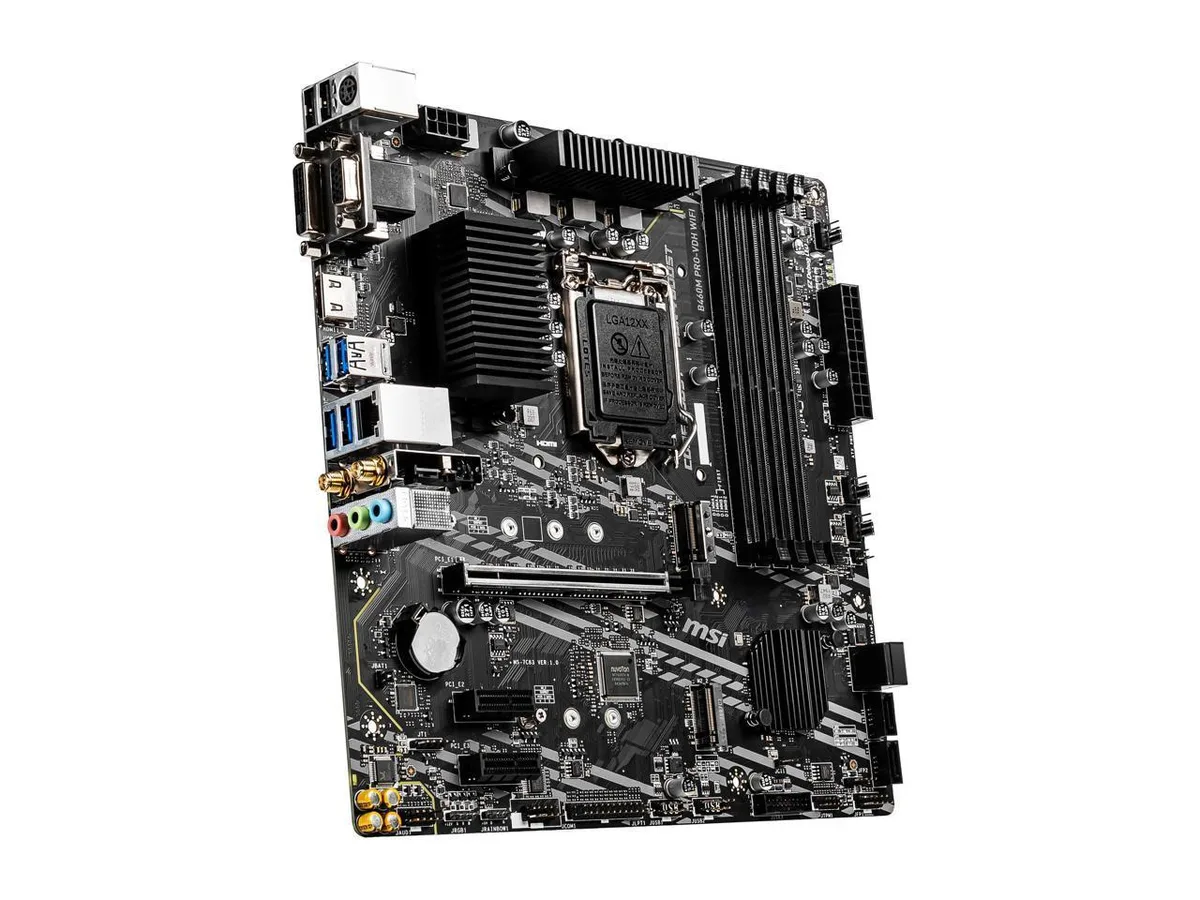

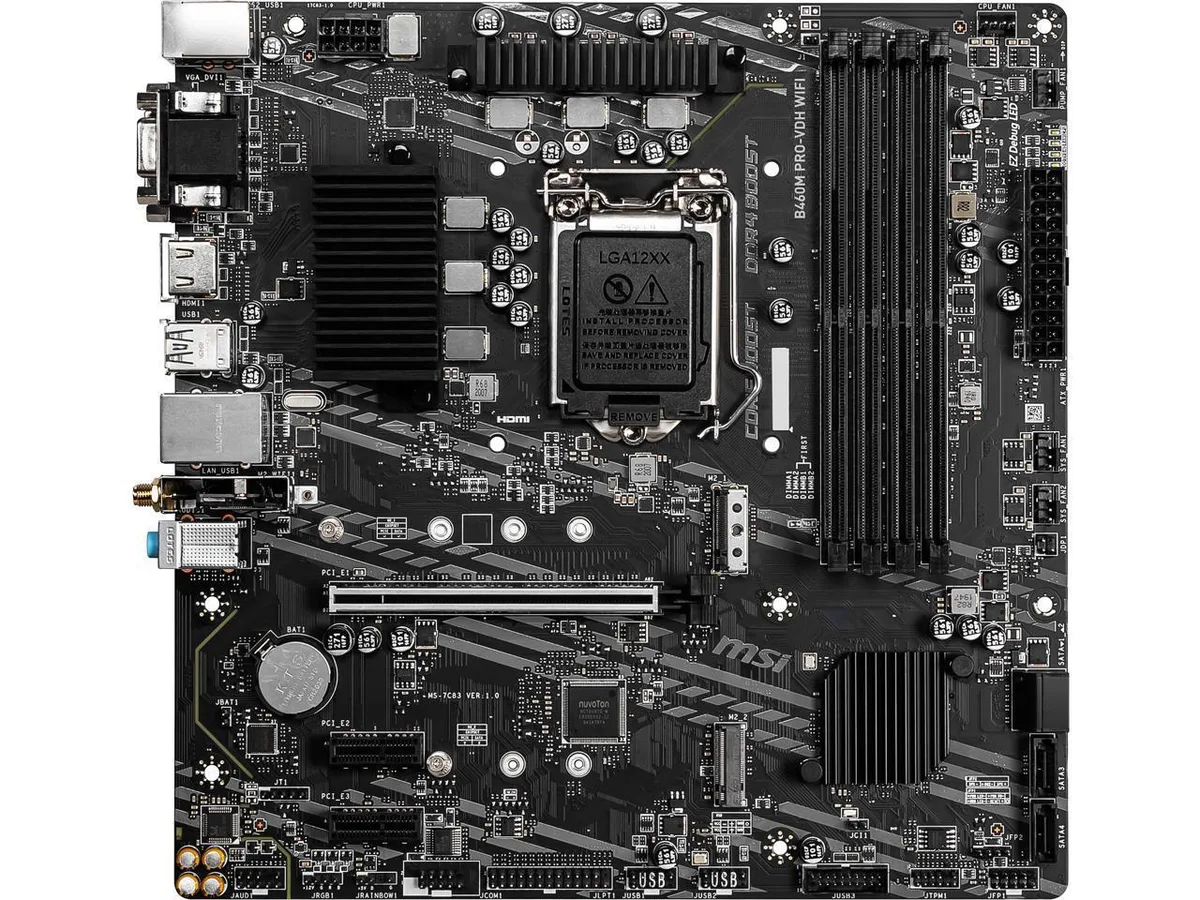

The MSI B460M PRO-VDH WIFI is a micro-ATX motherboard built around the Intel B460 chipset for LGA 1200 processors. It supports 10th Gen Intel Core, Pentium Gold and Celeron CPUs with integrated graphics. Four DDR4 slots accept up to 128 GB in dual-channel mode, running at 2933 MT/s with Core i7 or i9 and 2666 MT/s with Core i5 or lower. Onboard video outputs work only when the installed processor includes graphics.

Straightforward drop-in install

The board fits standard micro-ATX mounting points and uses a 24-pin ATX plus 8-pin EPS power connector layout familiar to most builders. Two full-size PCIe 3.0 x16 and x1 slots leave room for a graphics card and an add-in card. Four SATA 6Gb/s ports and two M.2 Key M sockets (2242, 2260, 2280, plus 22110 on the first slot) cover storage. Common issues are forgetting to seat the 8-pin CPU power cable and leaving the I/O shield out of the case before mounting the board.

Steady throughput on B460

The B460 chipset links the CPU and peripherals over PCIe 3.0 lanes, so sustained storage traffic on the M.2 slots and SATA array stays consistent without throttling. Realtek RTL8111H 1 Gbps LAN and Realtek ALC892/897 7.1-channel audio handle long sessions without driver resets. VRM cooling is passive, so airflow from the case fans keeps temperatures stable during extended compile, render or backup workloads.

Highlights

  • Supports 10th Gen Intel Core, Pentium Gold and Celeron processors for broad CPU choice
  • LGA 1200 socket matches 10th Gen Intel desktop CPUs without adapter hassle
  • Four DDR4 slots accept up to 128 GB dual-channel memory for heavy multitasking
  • Two M.2 slots take 2242, 2260, 2280 and 22110 drives with PCIe 3.0 x4 speed
  • Realtek ALC892/ALC897 delivers 7.1-channel audio for immersive sound

Specifications

BrandMSI
ModelB460M PRO-VDH WIFI
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core / Pentium Gold / Celeron processors
* Please go to intel.com for compatibility information.
* Onboard graphics output are disabled when using the F SKU processors.
ChipsetIntel B460
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4-2933 (Max.) (Intel Core i7/ i9)
DDR4-2666 (Max.) (Intel Core i5 (Below))
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2 slots (Key M):
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices *
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready for the M2_2 slot only **
Supports Intel Smart Response Technology for Intel Core processors
* SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892/ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
Wireless LANIntel 3168NGW
802.11 a/b/g/n/ac
BluetoothBluetooth 4.2
Back I/O Ports1 x D-Sub
1 x DVI-D
1 x HDMI
1 x LAN (RJ45)
2 x Antenna Bracket
3 x Audio Jacks
1 x PS/2 Keyboard/Mouse Combo
2 x USB 2.0/1.1
4 x USB 3.2 Gen 1
Onboard USB1 x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water pump connector
2 x 4-pin system fan connectors
1 x front panel audio connector
2 x system panel connectors
1 x parallel port connector
1 x serial port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x 4-pin RGB LED connector
1 x 3-pin RAINBOW LED connector
1 x TPM module connector
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933(Max) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Questions about this item

Will this board run a 10th Gen Intel Core i5 at its rated memory speed?

Yes, a 10th Gen Core i5 supports DDR4 up to 2666 on this board.

Can I install a 22110 length M.2 drive in the second M.2 slot?

No, the second M.2 slot only accepts 2242, 2260 and 2280 lengths.

Does the board provide 7.1 channel audio through the rear panel?

The Realtek ALC892/897 codec delivers 7.1 channel audio output.
