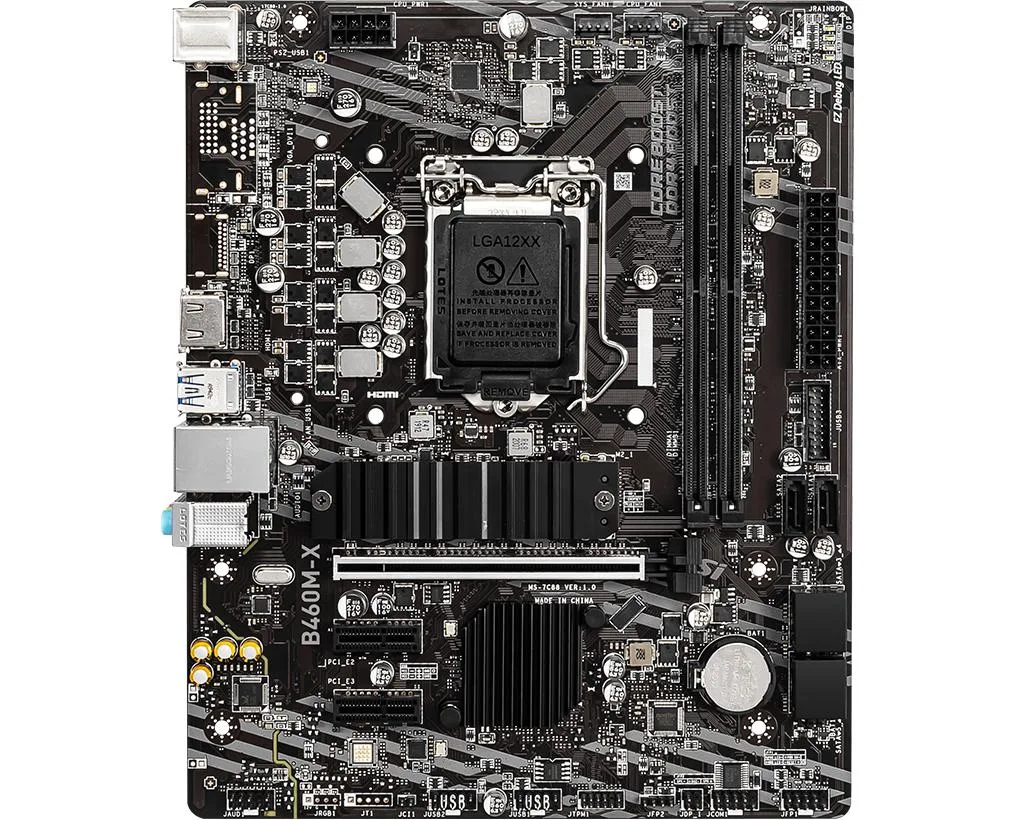

MSI B460M-X Micro ATX motherboard, dark finish with silver heatsinks

MSI

MSI B460M-X Intel B460 LGA 1200 DDR4 Micro ATX Motherboard

SKU CH-N74K-PEA5M

Micro ATX board for LGA 1200 CPUs with dual-channel DDR4 up to 2933 MHz and 64 GB capacity, one PCIe 3.0 x16 slot, six SATA III ports, Realtek 8111H Gigabit LAN and 7.1-channel audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core and Pentium Gold / Celeron proc
  • ChipsetIntel B460
  • Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe 3.0 x16 slot 2x PCIe 3.0 x1 slots
  • Supports 10th Gen Intel Core and Pentium Gold / Celeron processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MHz with 64 GB maximum capacity
  • 1-channel high-definition audio driven by Realtek ALC892 codec
  • Gigabit LAN connectivity through Realtek 8111H controller
  • Micro ATX form factor measuring 23.6 x 20.0 cm for compact builds

B460 Chipset LGA 1200 Micro ATX Board

This MSI B460M-X motherboard uses the Intel B460 chipset and an LGA 1200 socket. It accepts 10th Gen Intel Core, Pentium Gold and Celeron processors. The board supports dual-channel DDR4 memory up to 2933 MHz and a maximum capacity of 64 GB. Its Micro ATX form factor measures 23.6 by 20.0 cm.

Suits 10th Gen Intel Builds Only

The socket and chipset limit this board to 10th Gen Intel CPUs; it will not work with newer or older processor families. Builders needing PCIe 4.0 lanes, CPU overclocking or Wi-Fi should choose a different platform. The single PCIe 3.0 x16 slot and two x1 slots cover basic graphics and add-in cards.

64 GB DDR4 2933 MHz Memory Ceiling

Four DDR4 slots top out at 64 GB running at 2933 MHz in dual-channel mode. Faster modules will downclock to this speed, so buying higher-rated RAM adds no benefit. Confirm your kit matches this limit before purchasing.

Highlights

  • Supports 10th Gen Intel Core and Pentium Gold / Celeron processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MHz with 64 GB maximum capacity
  • 1-channel high-definition audio driven by Realtek ALC892 codec
  • Gigabit LAN connectivity through Realtek 8111H controller
  • Micro ATX form factor measuring 23.6 x 20.0 cm for compact builds

Specifications

BrandMSI
SeriesMSI B460M-X
ModelMSI B460M-X
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
ChipsetIntel B460
Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
Maximum Memory Supported64GB
PCI Slots1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Realtek 8111H Gigabit LAN controller
Onboard USBIntel B460 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

Questions about this item

What size case cut-out does the 23.6 × 20.0 cm micro-ATX board need?

The board follows the standard micro-ATX footprint of 23.6 cm by 20.0 cm and uses the regular six mounting holes, so any case with a micro-ATX tray will accept it.

Which cables must be connected during installation so the system actually posts?

Seat the CPU, latch the DDR4 modules until the clips click, plug the 24-pin ATX and the 8-pin EPS power connectors, attach the front-panel header wires to the JFP1 pins, and connect a display to the graphics card in the PCIe 3.0 x16 slot.

What will need replacement first during the board's service life?

The onboard button cell that keeps the real-time clock and CMOS settings will eventually run down; when the date resets or BIOS settings disappear, replace that cell to restore normal operation.
