Green Micro ATX motherboard with silver heatsinks and black slots

MSI

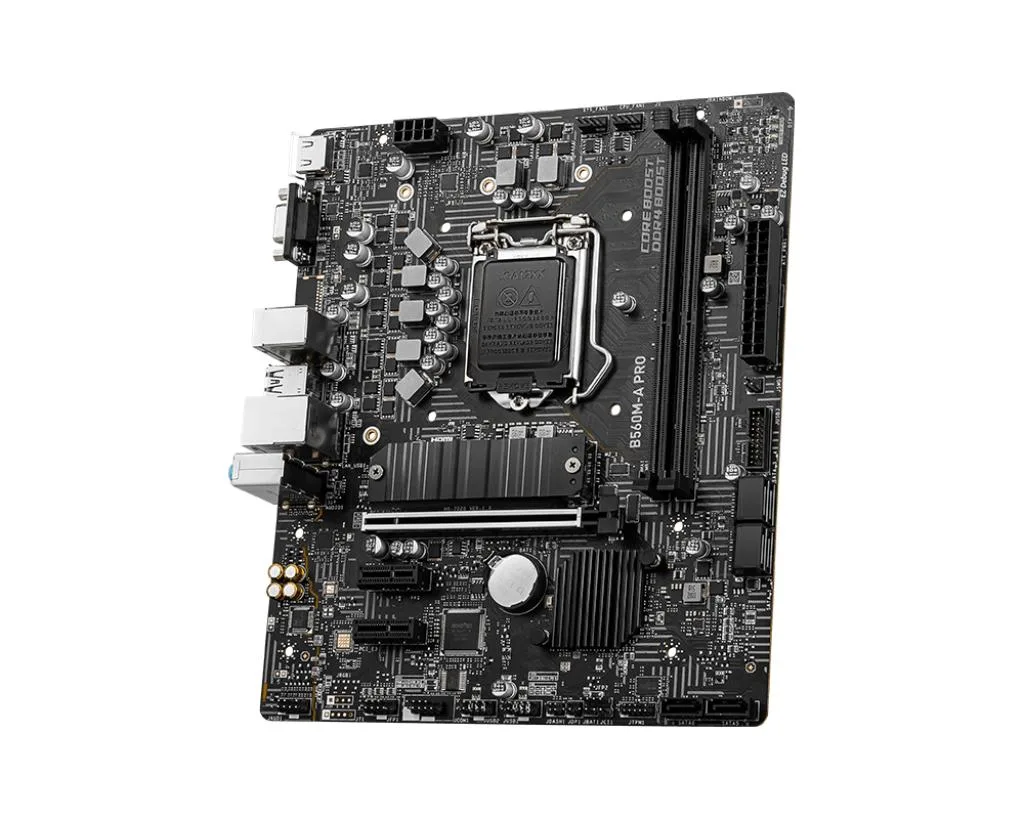

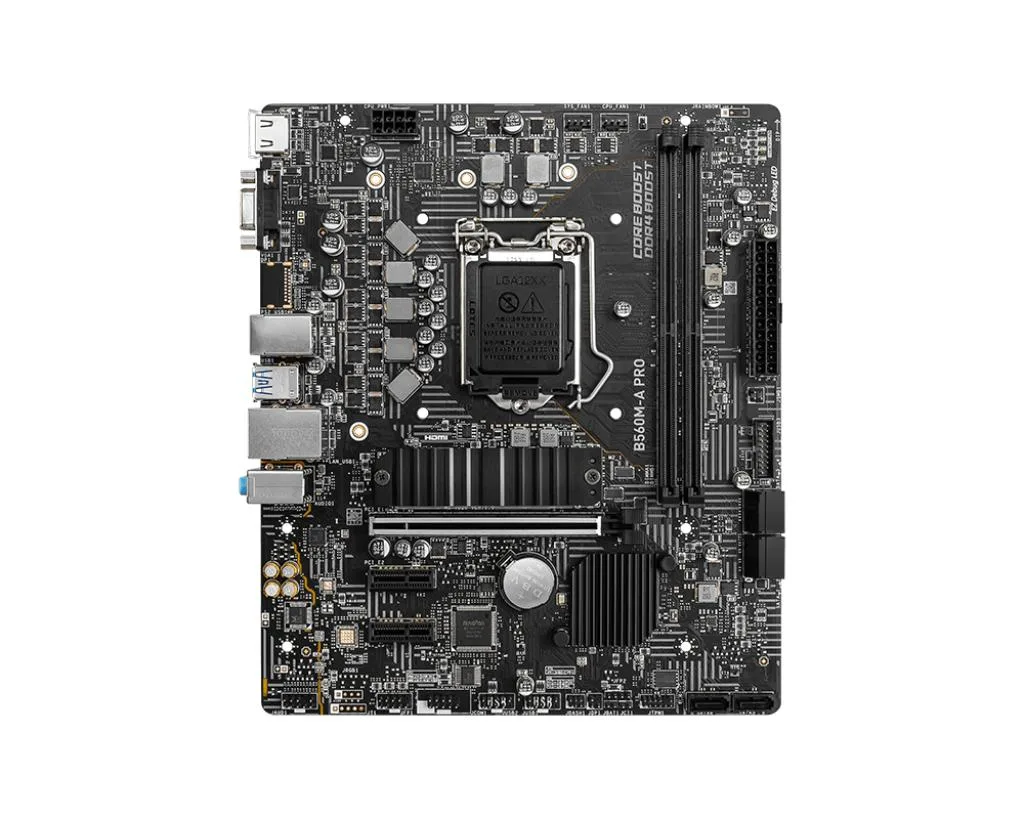

MSI B560M-A PRO Intel B560 LGA 1200 DDR4 Micro ATX Motherboard

SKU CH-6W7A-PQD84

A Micro ATX motherboard for 10th and 11th Gen Intel CPUs on LGA 1200, supporting dual-channel DDR4 up to 64GB, a PCIe 4.0 x16 slot with 11th Gen, six SATA III ports, 2.5Gbps LAN and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel B560
  • Memory StandardSupport dual-channel DDR4 5200 (OC)/5066 (OC)/5000 (OC)/4800
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th
  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 up to 5200 (OC) with 64 GB maximum capacity
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 x16 for 10th Gen
  • Realtek 8125B 2.5 Gbps LAN for fast wired networking
  • Realtek ALC897 7.1-channel high-definition audio for immersive sound

B560 Chipset Micro ATX Board

This MSI B560M-A PRO motherboard uses the Intel B560 chipset on a Micro ATX form factor. It accepts 10th and 11th Gen Intel Core processors plus Pentium Gold and Celeron CPUs in the LGA 1200 socket. The board targets mainstream desktop builds that need a compact layout with current connectivity.

Check Socket And Memory Limits

Verify your processor is an LGA 1200 model from the supported 10th or 11th Gen families. The board provides four DDR4 slots with a maximum capacity of 64 GB and supports overclocked speeds up to 5200. Ensure your power supply includes the required CPU and main board connectors for this platform.

Sustained Load Behaviour

The VRM design and extended heatsink aim to maintain stable power delivery during prolonged workloads. The Realtek 8125B 2.5 Gbps LAN controller handles continuous network traffic without thermal throttling. Audio output via the ALC897 codec remains consistent across long sessions at 7.1 channel quality.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 up to 5200 (OC) with 64 GB maximum capacity
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 x16 for 10th Gen
  • Realtek 8125B 2.5 Gbps LAN for fast wired networking
  • Realtek ALC897 7.1-channel high-definition audio for immersive sound

Specifications

BrandMSI
SeriesMSI B560M-A PRO
ModelMSI B560M-A PRO
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors1
Processor socket LGA1200
ChipsetIntel B560
Memory StandardSupport dual-channel DDR4 5200 (OC)/5066 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 chpiset)
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Realtek 8125B 2.5Gbps LAN controller
Onboard USB6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector)

Questions about this item

What comes in the box with the MSI B560M-A PRO motherboard?

The package includes the motherboard, a CMOS battery, one SATA cable and a chassis I/O back panel.

Should I pick DDR4 5200 (OC) or a lower speed such as DDR4 3600 for this board?

DDR4 3600 runs natively with 11th Gen Intel Core processors, while 5200 (OC) requires overclocking and compatible modules.

What does the 2.5 Gbps LAN figure mean for everyday networking?

The Realtek 8125B controller provides up to 2.5 Gbps wired throughput, so large file transfers are faster than standard 1 Gbps LAN when the rest of the network supports it.
