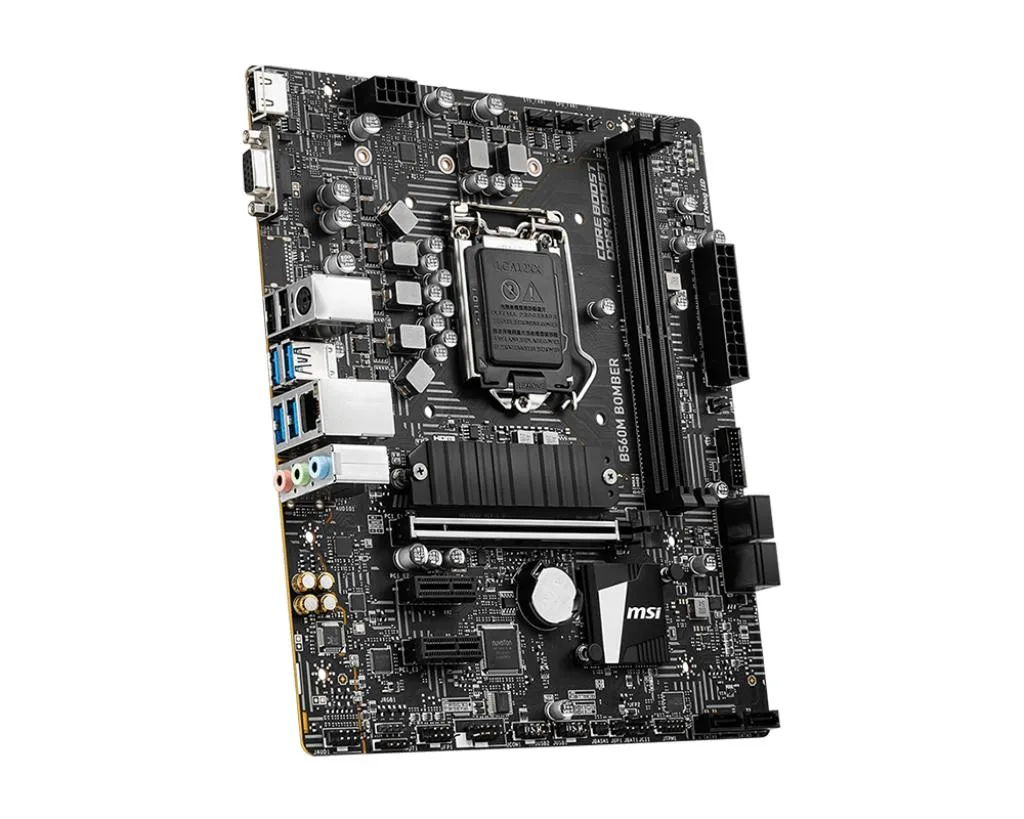

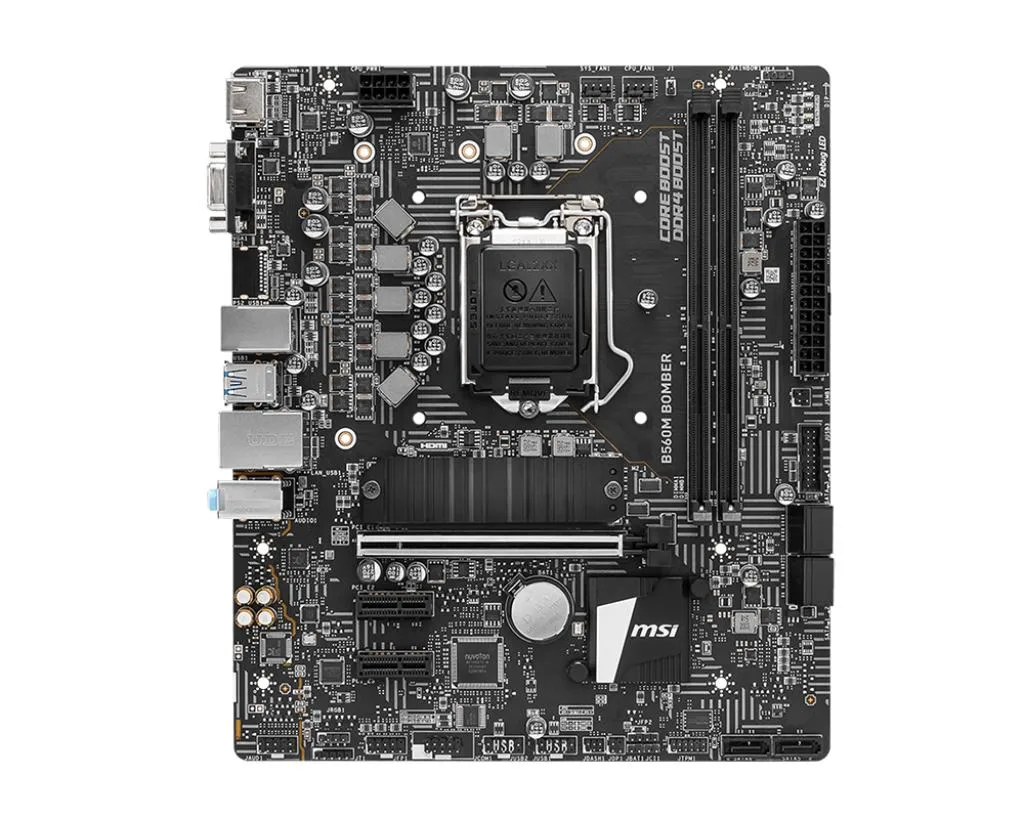

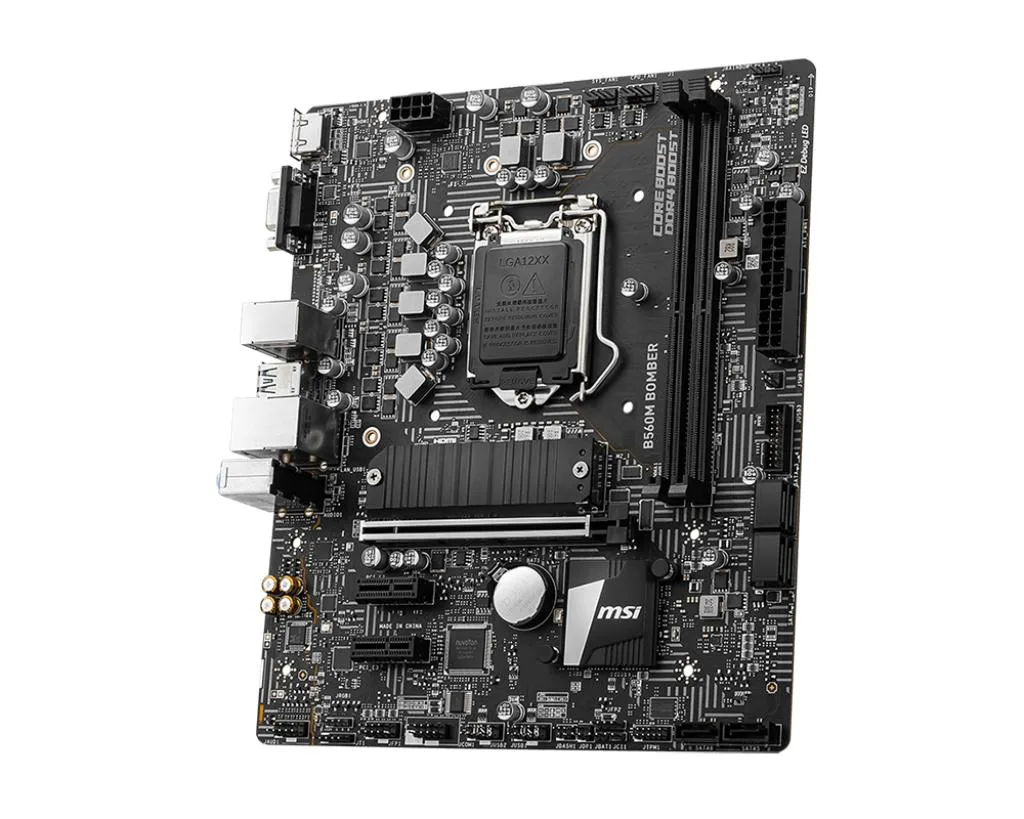

A rectangular micro-ATX board in dark grey and black with a metal shield covering the rear I/O and a large heatsink over the M.2 slot

MSI

MSI B560M BOMBER Intel motherboard

SKU CH-4EXA-WYEZE

Micro-ATX board for 10th and 11th Gen Intel CPUs with DDR4 up to 5200 MHz, PCIe 4.0 M.2, 2.5 Gbps LAN and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Core 11th Gen (LGA 1200)
  • ChipsetIntel B560
  • Memory StandardSupports dual-channel DDR4 5200 (OC) MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th
  • Supports 10th and 11th generation Intel processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 5200 MHz overclocked with 64 GB maximum capacity
  • PCIe 4.0 graphics slot and Lightning Gen4 x4 M.2 for high-speed storage
  • 5 Gbps LAN and 7.1-channel Realtek ALC897 audio for fast networking and studio-grade sound
  • Reinforced steel-armored PCIe slot and M.2 heatsink armor for durable component protection

Socket & generation

The MSI B560M BOMBER uses the LGA 1200 socket and accepts 10th and 11th generation Intel Core, Pentium and Celeron processors. It is built on the Intel B560 chipset and provides a micro-ATX form factor for compact builds. The board delivers a digital power design intended to support multi-core operation.

Memory & PCIe limits

Dual-channel DDR4 memory runs up to 5200 MHz when overclocked, with a maximum capacity of 64 GB. The primary PCIe x16 slot operates at 4.0 with an 11th generation CPU and falls back to 3.0 with a 10th generation CPU. Two additional PCIe 3.0 x1 slots are wired from the chipset.

Storage, LAN & USB checklist

One M.2 slot and six SATA III ports handle storage, while a Realtek 8125B controller provides 2.5 Gbps Ethernet. Rear I/O includes two USB 2.0 Type-A ports and four USB 3.2 Gen 1 5 Gbps Type-A ports; internal headers add four USB 2.0 and two USB 3.2 Gen 1 connections. Audio uses the Realtek ALC897 codec for 7.1-channel output. The package supplies the motherboard, one SATA cable and an I/O shield only.

Highlights

  • Supports 10th and 11th generation Intel processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 5200 MHz overclocked with 64 GB maximum capacity
  • PCIe 4.0 graphics slot and Lightning Gen4 x4 M.2 for high-speed storage
  • 5 Gbps LAN and 7.1-channel Realtek ALC897 audio for fast networking and studio-grade sound
  • Reinforced steel-armored PCIe slot and M.2 heatsink armor for durable component protection

Specifications

BrandMSI
SeriesMSI B560M BOMBER
ModelMSI B560M BOMBER
CPU Socket TypeLGA 1200
CPU TypeIntel Core 11th Gen (LGA 1200)
ChipsetIntel B560
Memory StandardSupports dual-channel DDR4 5200 (OC) MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 chpiset)
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Realtek 8125B 2.5Gbps LAN controller
Onboard USB6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector)

Questions about this item

Should I pick the 10th or 11th Gen Intel Core for this LGA 1200 board?

Both generations fit the socket. An 11th Gen CPU enables PCIe 4.0 on the x16 slot and the M.2, while a 10th Gen CPU limits those to PCIe 3.0.

What does DDR4 5200 (OC) MHz mean once the board is built?

It is the maximum overclocked memory speed the board can reach with compatible DDR4 modules; default speeds will be lower unless you enable the XMP profile in BIOS.

How fast is the Lightning Gen4 x4 M.2 interface in practice?

With an 11th Gen CPU the M.2 runs at PCIe 4.0 x4 speeds; with a 10th Gen CPU it drops to PCIe 3.0 x4, halving the theoretical bandwidth.
