Green Micro ATX motherboard with black PCIe slots and silver heatsinks

MSI

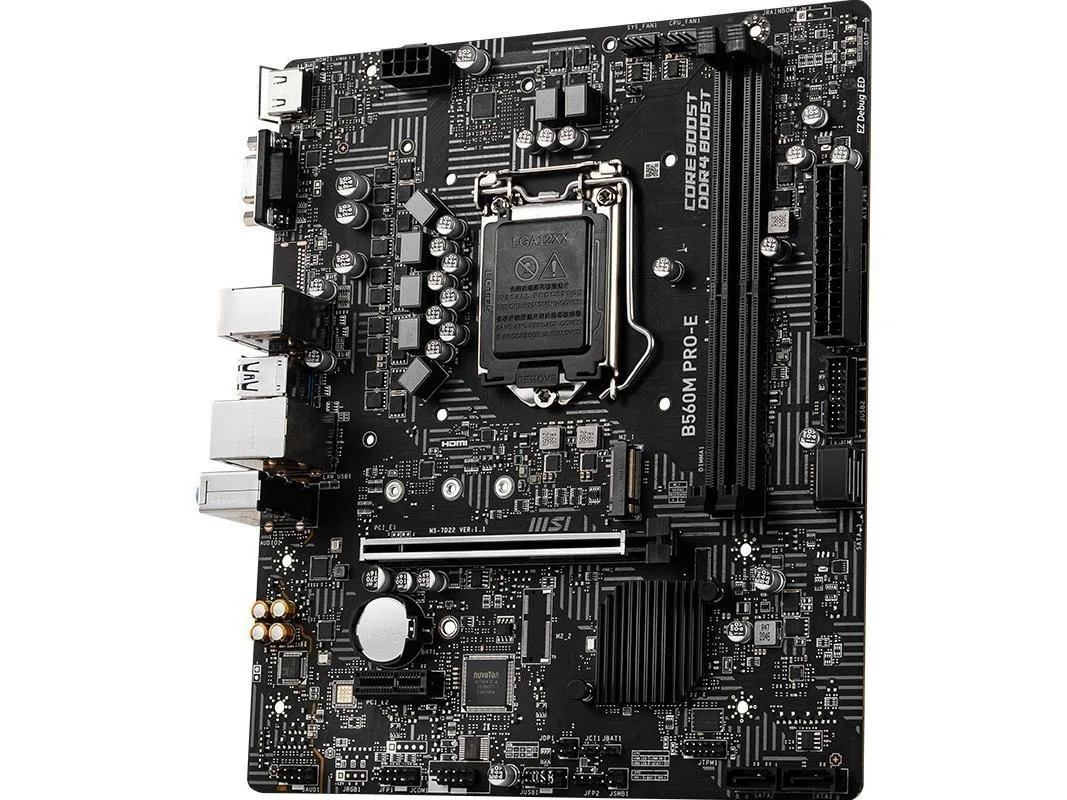

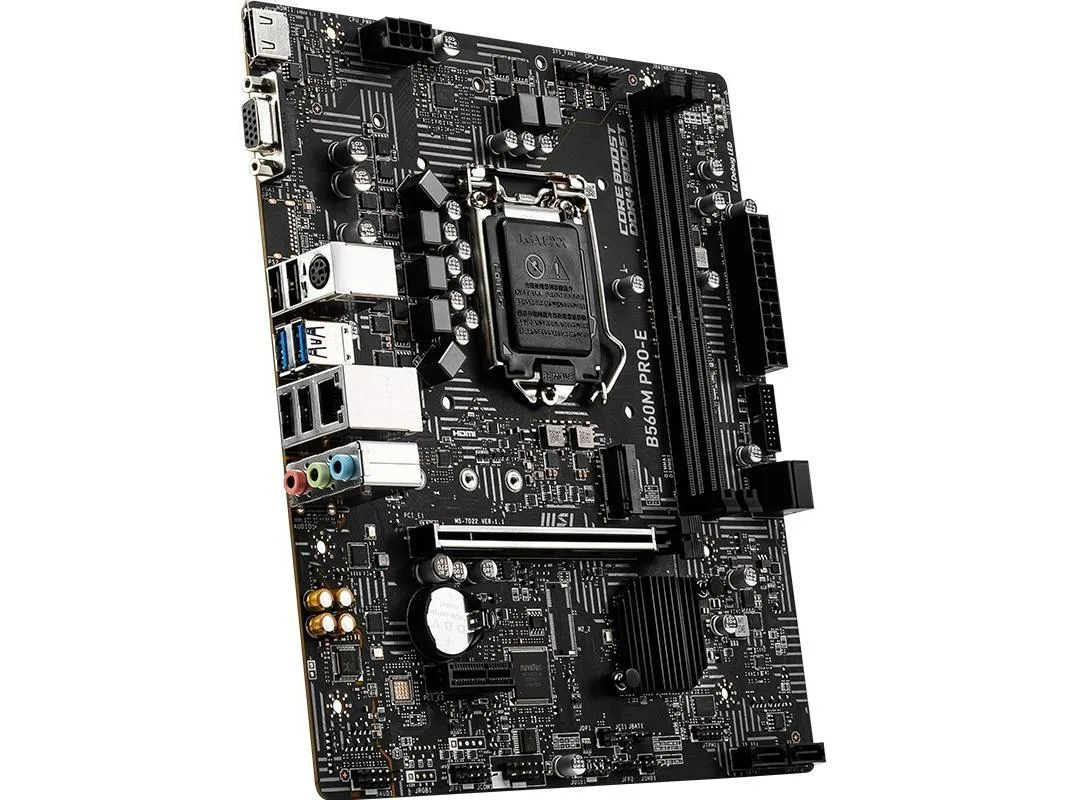

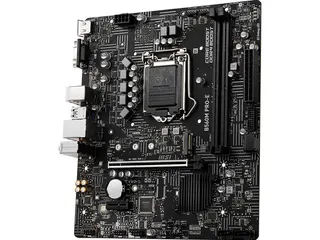

MSI B560M PRO-E Intel motherboard

SKU CH-5BN8-PADCH

Micro-ATX LGA 1200 board with Intel B560 chipset, 64 GB DDR4 support, PCIe 4.0 x16 slot, 7.1-channel audio and Intel I219V 1 Gbps LAN

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel B560
  • Memory StandardSupports dual-channel DDR4 4800 (OC)/4600 (OC)/4533 (OC)/440
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 64GB with speeds from 2933 to 4800 MHz
  • PCIe 4.0 x16 slot for graphics cards when paired with 11th Gen CPU
  • Realtek ALC897 codec delivers 7.1-channel high-definition audio
  • Intel I219V controller provides 1Gbps wired network connectivity

Socket & chipset

This MSI motherboard uses the LGA 1200 socket and the Intel B560 chipset. It accepts 10th and 11th Gen Intel Core processors plus Pentium Gold and Celeron CPUs. The Micro ATX form factor fits a wide range of cases.

Memory capacity

Dual-channel DDR4 is supported up to 64 GB with speeds from 2933 to 4800 MT/s depending on the processor generation. Four DIMM slots allow flexible population for mainstream or high-capacity builds.

Sustained operation

The board provides a single PCIe x16 slot running at 4.0 with 11th Gen CPUs and 3.0 with 10th Gen CPUs. One PCIe 3.0 x1 slot and four SATA III ports handle additional cards and storage. An Intel I219V 1 Gbps LAN controller and Realtek ALC897 7.1 audio deliver steady connectivity and sound during long sessions.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 64GB with speeds from 2933 to 4800 MHz
  • PCIe 4.0 x16 slot for graphics cards when paired with 11th Gen CPU
  • Realtek ALC897 codec delivers 7.1-channel high-definition audio
  • Intel I219V controller provides 1Gbps wired network connectivity

Specifications

BrandMSI
SeriesMSI B560M PRO-E
ModelMSI B560M PRO-E
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core ™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel B560
Memory StandardSupports dual-channel DDR4
4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
1x PCIe 3.0 x1 slot (From PCH)
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Intel I219V 1Gbps LAN controller
Onboard USB4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)

Questions about this item

What does the 4800 (OC) DDR4 figure mean when the board is running?

With an 11th Gen Intel Core processor installed, the board can run DDR4 memory up to 4800 MT/s when overclocked in the BIOS; with a 10th Gen CPU the maximum supported JEDEC speed is 2933 MT/s.

Which PCIe generation does the x16 slot actually deliver?

The single x16 slot runs at PCIe 4.0 when paired with an 11th Gen Intel Core CPU and drops to PCIe 3.0 with a 10th Gen Intel Core CPU.

What case and power connectors are required to mount this Micro-ATX board?

The board uses the standard Micro-ATX screw pattern, a 24-pin ATX power connector and an 8-pin CPU power connector; the I/O shield is included in the box.
