MSI

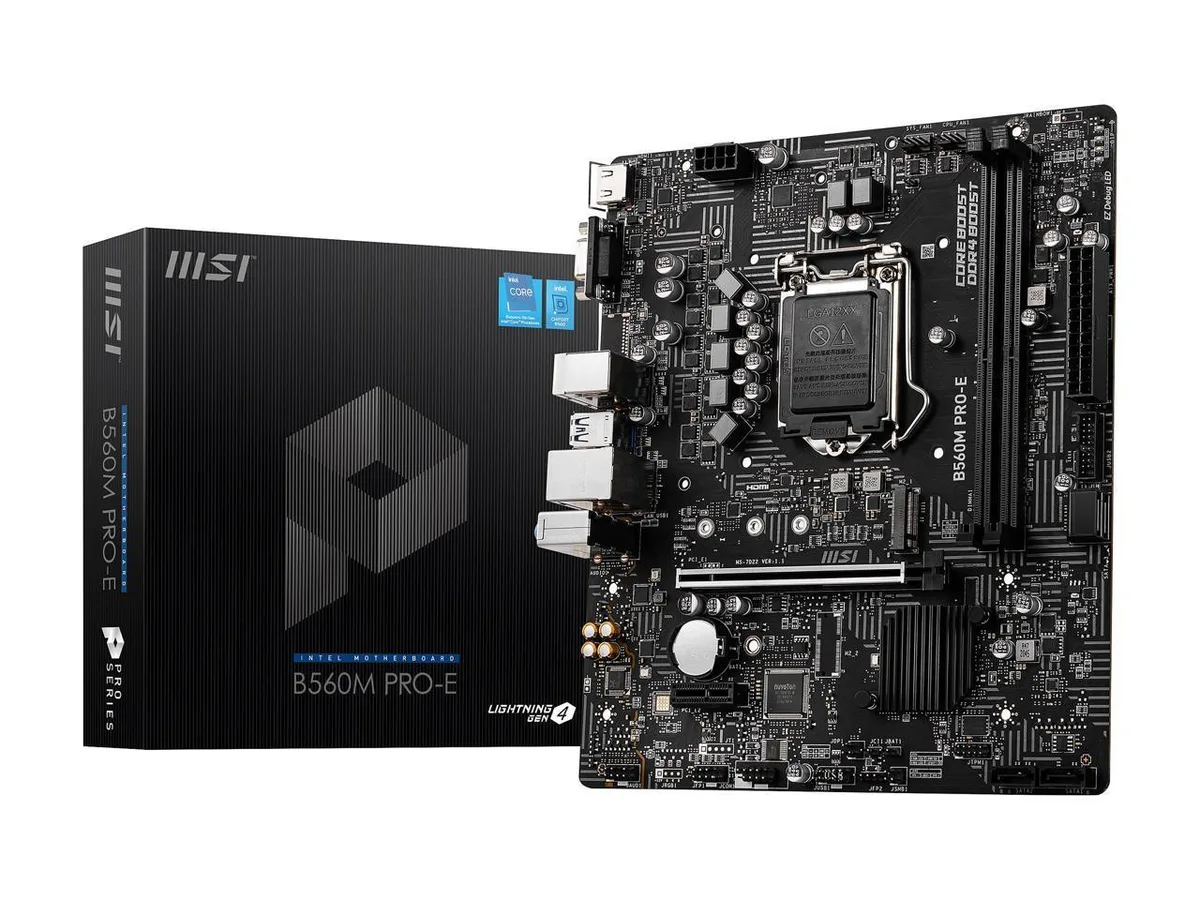

MSI B560M PRO-E LGA 1200 Intel motherboard
Micro-ATX board for 10th and 11th Gen Intel CPUs with dual-channel DDR4 up to 64 GB, one PCIe 4.0 x16 slot, four SATA ports, one M.2 slot, 1 GbE LAN and 7.1 audio
- CPU Socket TypeLGA 1200
- CPU TypeSupports 11th / 10th Gen Intel Core Processors Supports Inte
- ChipsetIntel B560
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots2x288pin (DDR4)
- Memory StandardSupports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, b
- Supports 11th and 10th Gen Intel Core processors with LGA 1200 socket
- Dual-channel DDR4 memory up to 64 GB at 4800 MHz overclocked speed
- PCIe 4.0 x16 slot for latest graphics cards with compatible CPU
- Four SATA 6Gb/s ports plus M.2 slot for 2242/2260/2280 drives
- Intel I219-V 1 Gbps LAN and Realtek ALC897 7.1-channel audio
Socket and chipset

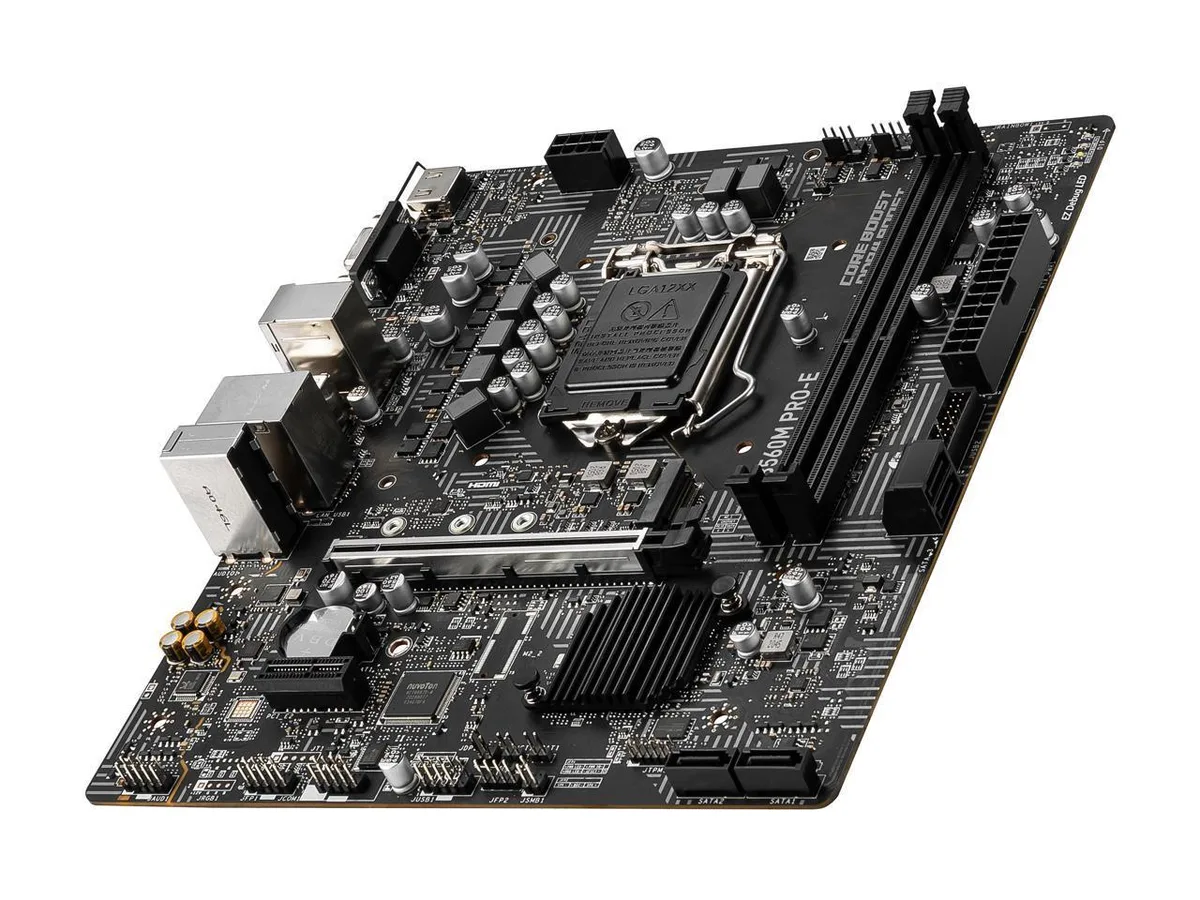

The MSI B560M PRO-E uses the Intel B560 chipset on a Micro ATX board with an LGA 1200 socket. It accepts 10th and 11th Gen Intel Core processors plus Pentium Gold and Celeron CPUs. Onboard video outputs function only with a processor that includes integrated graphics.
Build fit and trade-offs

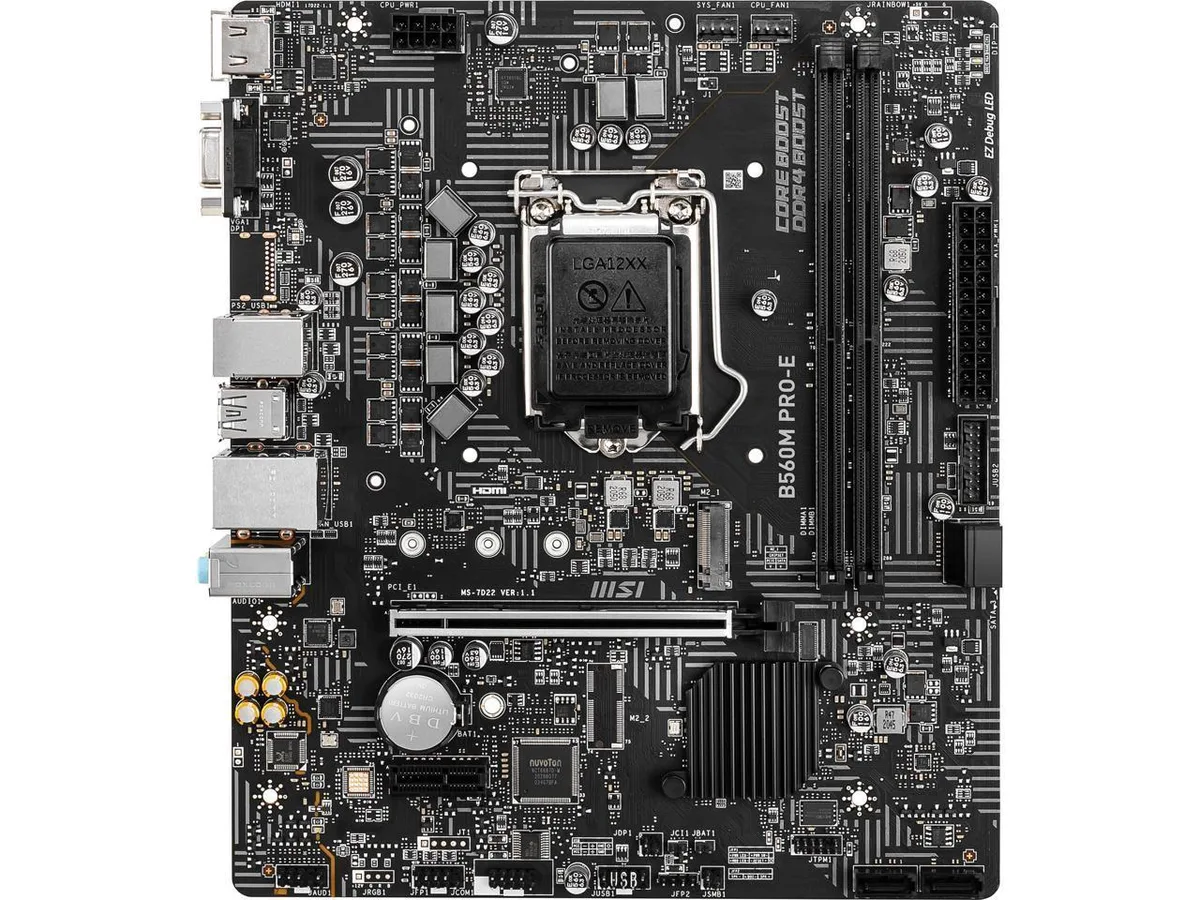

One PCI Express 4.0 x16 slot and one PCIe 3.0 x1 slot handle expansion cards. A single M.2 Key M slot takes 2242, 2260 or 2280 drives at PCIe 3.0 x4 or SATA speeds; using a SATA M.2 drive disables the fourth SATA port. Four SATA 6Gb/s ports remain for additional storage. Rear I/O supplies D-Sub, HDMI, one Gigabit LAN, a PS/2 combo port, two USB 3.2 Gen 1 Type-A and four USB 2.0 ports. Internal headers add two more USB 3.2 Gen 1 and two USB 2.0 ports.
Memory capacity and limits
Two DDR4 slots support dual-channel kits up to 64 GB. With an 11th Gen CPU the board runs JEDEC speeds of 3200, 2933, 2666 and 2133 MT/s; with a 10th Gen CPU the top JEDEC speed is 2933 MT/s. Overclocked memory can reach 4800 MT/s with a single-rank single-DIMM-per-channel layout or 4600 MT/s with dual-rank DIMMs. Realtek ALC897 provides 7.1-channel audio.
Highlights
- Supports 11th and 10th Gen Intel Core processors with LGA 1200 socket
- Dual-channel DDR4 memory up to 64 GB at 4800 MHz overclocked speed
- PCIe 4.0 x16 slot for latest graphics cards with compatible CPU
- Four SATA 6Gb/s ports plus M.2 slot for 2242/2260/2280 drives
- Intel I219-V 1 Gbps LAN and Realtek ALC897 7.1-channel audio
Specifications
| Brand | MSI |
|---|---|
| Model | B560M PRO-E |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold / Celeron Processors |
| Chipset | Intel B560 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 1DPC 2R Max speed up to 4600+ |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
| PCI Express x1 | 1 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 slot (Key M): M2_1 slot (From B560 Chipset): Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s* Supports 2242/2260/2280 storage devices * SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1 3 x Audio Jacks |
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) |
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.3" x 8.0" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 4800(OC) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Lightning Fast Experience: PCIe 4.0 Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EM |
Questions about this item
Will this board run an 11th Gen Intel Core i5 without a separate graphics card?
Yes, if the CPU has integrated graphics the HDMI and D-Sub ports will drive a display; if the CPU lacks an iGPU you must add a discrete card.
What is the fastest DDR4 speed I can reach with two single-rank sticks and an 11th Gen processor?
The board supports memory overclocking up to 4800 MT/s in a 1DPC 1R configuration with an 11th Gen CPU.
Can I install a 2280 M.2 SATA SSD and still use all four SATA ports?
No, populating the M.2 slot with a SATA drive disables the fourth SATA port, leaving three SATA 6Gb/s ports available.
