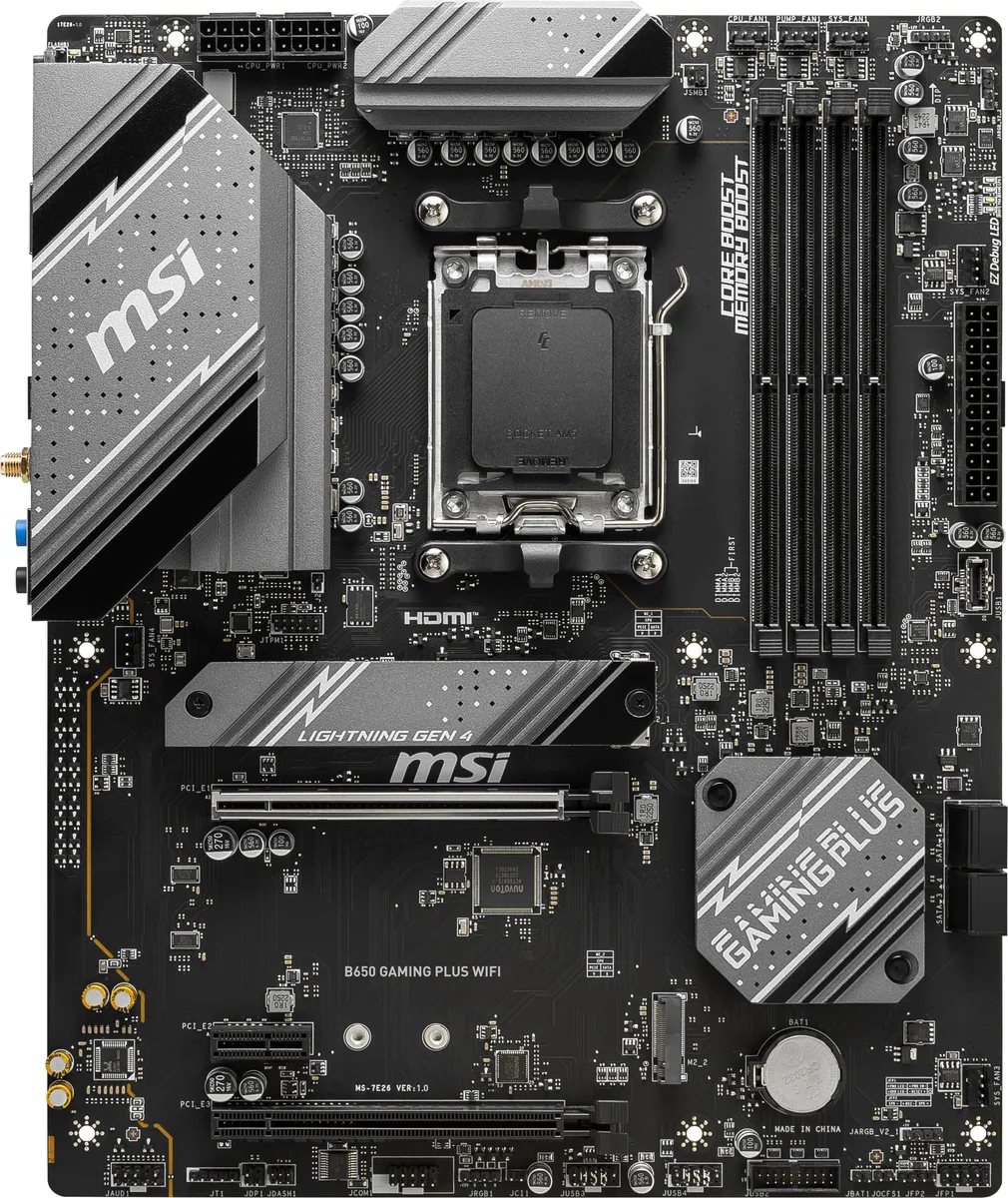

Black ATX motherboard with silver heatsinks and four DDR5 memory slots

MSI

MSI B650 GAMING PLUS WIFI AMD motherboard

SKU CH-9W3A-F40MR MPN B650 GAMING PLUS WIFI

ATX board for AM5 Ryzen 7000, 8000 and 9000 CPUs with four DDR5 slots up to 6000+ MHz, dual PCIe 4.0 x16 slots, two M.2 sockets, 2.5 Gb LAN and Wi-Fi 6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardMemory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/
  • Maximum Memory Supported192GB

Option B650 GAMING PLUS WIFI

  • MAG B650 TOMAHAWK WIFI
  • MAG B650M MORTAR WIFI
  • MPG B650 EDGE WIFI
  • MPG B650I EDGE WIFI
  • PRO B650M-A WIFI
  • PRO B650-P WIFI
  • PRO B650M-P
  • B650 GAMING PLUS WIFI
  • PRO B650-S WIFI
  • PRO B650-A WIFI

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • DDR5 memory up to 6000+ MHz OC with AMD EXPO on four 288-pin slots
  • 12+2+1 Duet Rail power with dual 8-pin CPU connectors for stable delivery
  • Two PCIe 4.0 x4 M.2 slots with Shield Frozr plus four SATA 6Gb/s ports
  • 5G LAN and Wi-Fi 6E with Realtek ALC897 7.1-channel audio

AM5 DDR5 platform for Ryzen 7000 8000 9000

This ATX motherboard uses the AMD B650 chipset and an AM5 socket. It accepts Ryzen 7000 8000 and 9000 series processors. Four 288 pin slots support up to 192 GB of dual channel DDR5 memory with AMD EXPO profiles.

Sustained load thermal design

A 12 plus 2 plus 1 Duet Rail power system with dual 8 pin CPU connectors feeds the CPU. Extended heatsinks and 7 W per mK MOSFET pads dissipate heat during long sessions. M.2 Shield Frozr covers both CPU linked Gen 4.0 x4 slots.

PCIe 4.0 x4 M.2 from CPU

The primary M.2 socket connects directly to the processor and runs at PCIe 4.0 x4. It accepts 22110 and 2280 drives. A second CPU linked M.2 slot takes 2280 and 2260 devices. Both deliver full bandwidth without chipset sharing.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • DDR5 memory up to 6000+ MHz OC with AMD EXPO on four 288-pin slots
  • 12+2+1 Duet Rail power with dual 8-pin CPU connectors for stable delivery
  • Two PCIe 4.0 x4 M.2 slots with Shield Frozr plus four SATA 6Gb/s ports
  • 5G LAN and Wi-Fi 6E with Realtek ALC897 7.1-channel audio

Specifications

BrandMSI
ModelB650 GAMING PLUS WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardMemory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6000+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5400+ MHz
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupports AMD EXPO
PCI Express 4.0 x162x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x11x PCI-E x1 slot
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.22x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
Audio Channels7.1 Channels
LAN ChipsetRealtek 8125BG 2.5G LAN
Max LAN Speed2.5Gbps
Wireless LANAMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
BluetoothSupports Bluetooth 5.3**
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Back I/O Ports1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A / 6 x Audio Jacks
Onboard USB4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Windows 11Supported
Shipping weight1.59 kg
Package size349 × 168 × 66 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the 12+2+1 Duet Rail Power System get when the board runs all day?

The 12+2+1 Duet Rail Power System uses dual 8-pin CPU power connectors with MOSFET thermal pads rated for 7W/mK, extended heatsinks and M.2 Shield Frozr to keep temperatures controlled during continuous operation.

Which DDR5 memory kit must I already own to populate the 4x288pin slots?

You need un-buffered non-ECC DDR5 modules; the board supports AMD EXPO profiles up to 6000+ MHz (OC) and JEDEC speeds from 4800 to 5800 MHz, with a maximum capacity of 192 GB across four slots.

Will my SATA 6Gb/s drives and PCIe 3.0 x1 cards still work on this AM5 platform?

Yes — four SATA 6Gb/s ports and one PCIe 3.0 x1 slot from the chipset are provided, so existing SATA SSDs or HDDs and legacy x1 expansion cards remain compatible.
