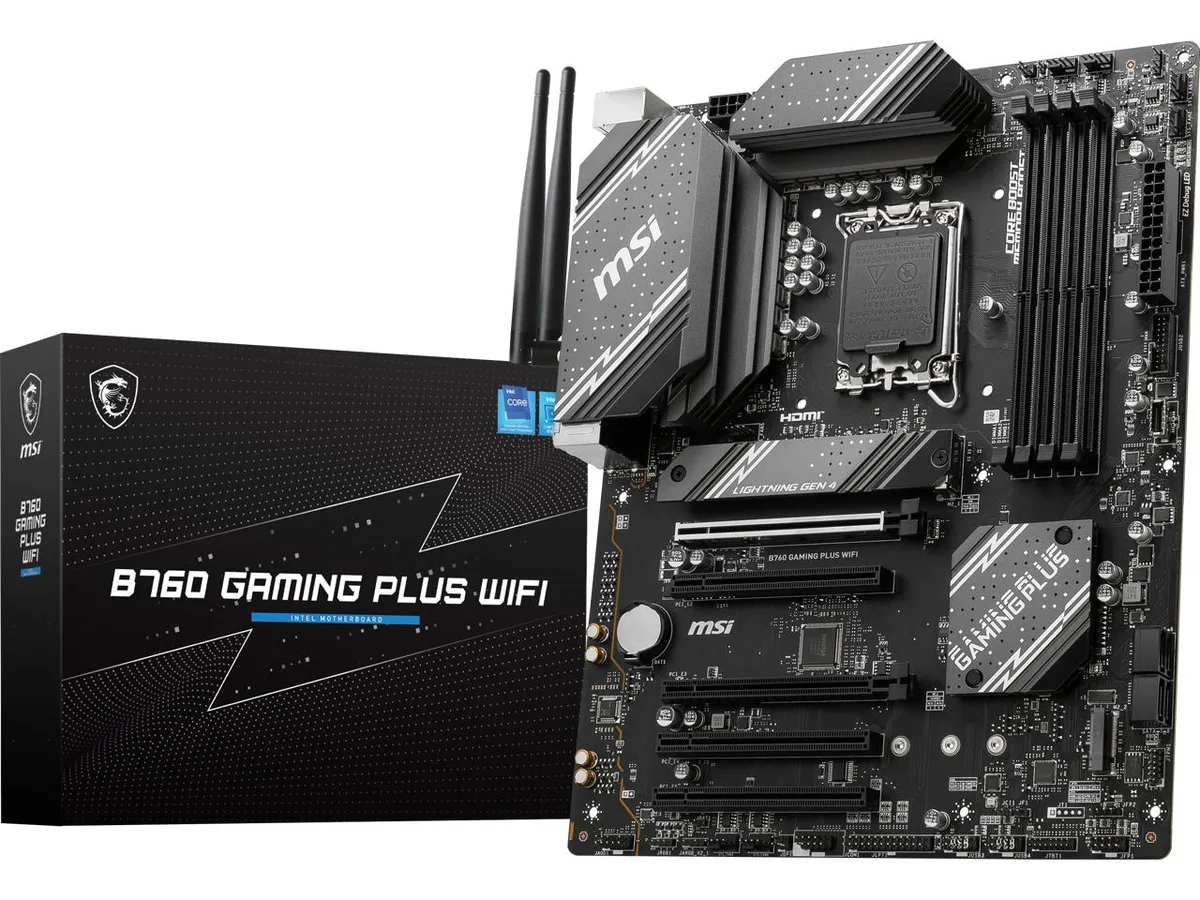

Rectangular ATX motherboard in black with silver heatsinks and a silver I/O shield

MSI

MSI B760 GAMING PLUS WIFI (280) Intel motherboard

SKU CH-H4TA-Q3VTD

An LGA 1700 ATX board for 12th, 13th and 14th Gen Intel Core CPUs with four DDR5 slots up to 192 GB, dual PCIe 4.0 x16, two M.2 sockets, 2.5 G LAN, Wi‑Fi 6E and Bluetooth 5.3

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pe
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6
  • Maximum Memory Supported192GB
  • Supports Intel Core 12th 13th 14th Gen processors for broad CPU choice
  • Four DDR5 slots up to 192 GB capacity for high memory bandwidth
  • Two M.2 slots with PCIe 4.0 x4 speed for fast storage expansion
  • Realtek 2.5G LAN plus Wi-Fi 6E and Bluetooth 5.3 for modern connectivity
  • Extended heatsink and M.2 Shield FROZR keep components cool under load

Socket LGA 1700 DDR5 ATX board

This MSI B760 Gaming Plus Wifi motherboard fits Intel Core 12th 13th and 14th Gen processors plus Pentium Gold and Celeron CPUs. The board delivers four DDR5 slots supporting up to 192 GB in dual channel mode. It targets builders who want current gen memory speeds and integrated wireless on a full size ATX layout.

Extended PWM heatsink with M.2 Shield Frozr

An extended heatsink covers the power delivery area while a dedicated M.2 Shield Frozr sits over the primary slot keeping SSDs cool under sustained loads. Rear I/O supplies HDMI 2.1 DisplayPort 1.4 two 10 Gbps USB 3.2 Gen 2 ports one Type A one Type C 2.5G LAN Wi-Fi 6E Bluetooth 5.3 and 7.1 HD audio with optical S/PDIF.

DDR5 up to 6800 MT/s overclocked

Memory can run at JEDEC 4800 5000 5200 5400 5600 MHz or be pushed to 5800 6000 6200 6400 6600 6800 MT/s when overclocked. This ceiling decides whether the board matches your kit and performance target. Two CPU power connectors and five system fan headers give headroom for high current CPUs.

Highlights

  • Supports Intel Core 12th 13th 14th Gen processors for broad CPU choice
  • Four DDR5 slots up to 192 GB capacity for high memory bandwidth
  • Two M.2 slots with PCIe 4.0 x4 speed for fast storage expansion
  • Realtek 2.5G LAN plus Wi-Fi 6E and Bluetooth 5.3 for modern connectivity
  • Extended heatsink and M.2 Shield FROZR keep components cool under load

Specifications

BrandMSI
ModelB760 GAMING PLUS WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory Supported192GB
Channel SupportedDual Channel
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x13x PCIe 3.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.22x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio Channels8-Channel (7.1) HD Audio with Audio Boost
Max LAN SpeedRealtek®
RTL8125BG 2.5G LAN
Wireless LANntel®
Wi-Fi 6E
Bluetooth, Bluetooth 5.3
Back I/O PortsKeyboard/Mouse, Displayport 1.4, 2.5G LAN, USB2.0, Wi-fi/Bluetooth, HD Audio Connectors, USB2.0, HDMI 2.1 Port, USB 3.2 Gen 2 10Gbps (type-A), USB 3.2 Gen 2 10Gbps(Type C), Optical S/PDIF-Out.
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
Windows 11Support for Windows® 11 64-bit, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
FeaturesSupports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi

Questions about this item

What PCIe generation does the primary M.2 slot use and what bandwidth does it provide?

The M.2_1 slot connects to the CPU and runs at PCIe 4.0 x4, providing up to 64GB/s bandwidth for maximum transfer speed.

What physical clearance does the extended PWM heatsink and M.2 Shield FROZR require in the case?

The board is ATX form factor and needs a case that fits ATX motherboards; the extended heatsink and M.2 Shield FROZR add height around the CPU socket and primary M.2 slot.

How do I install a 14th generation Intel Core processor and what step is often missed?

Install the CPU into the LGA 1700 socket, then update the BIOS via MSI support website before first boot, as a BIOS update may be required for 14th generation processors.
