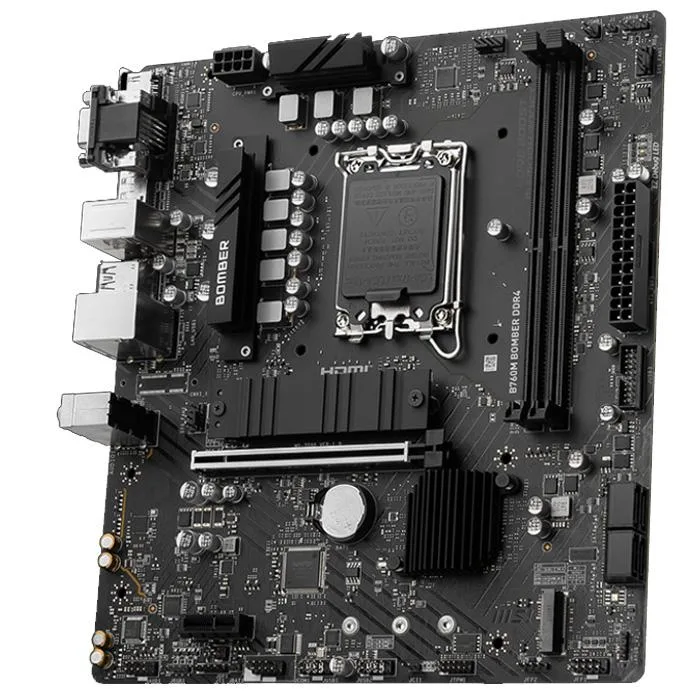

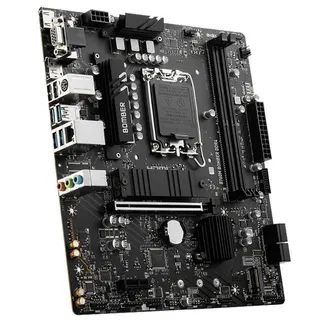

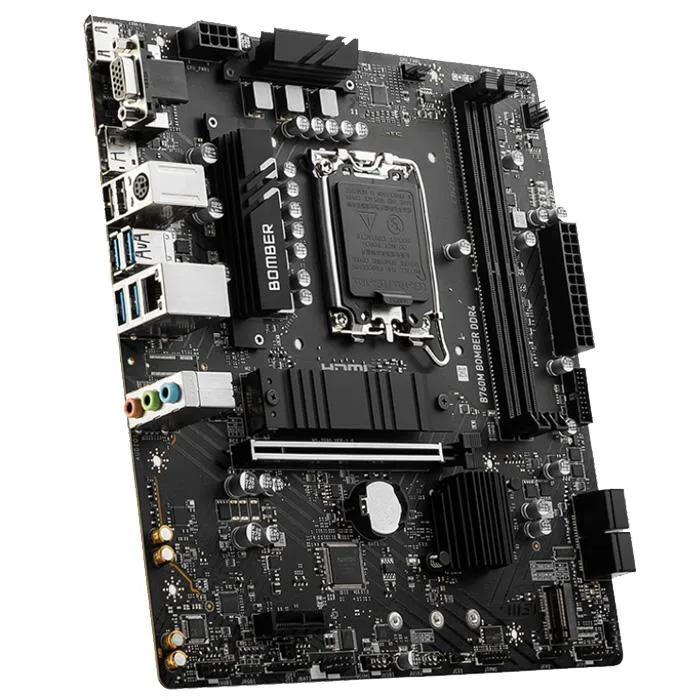

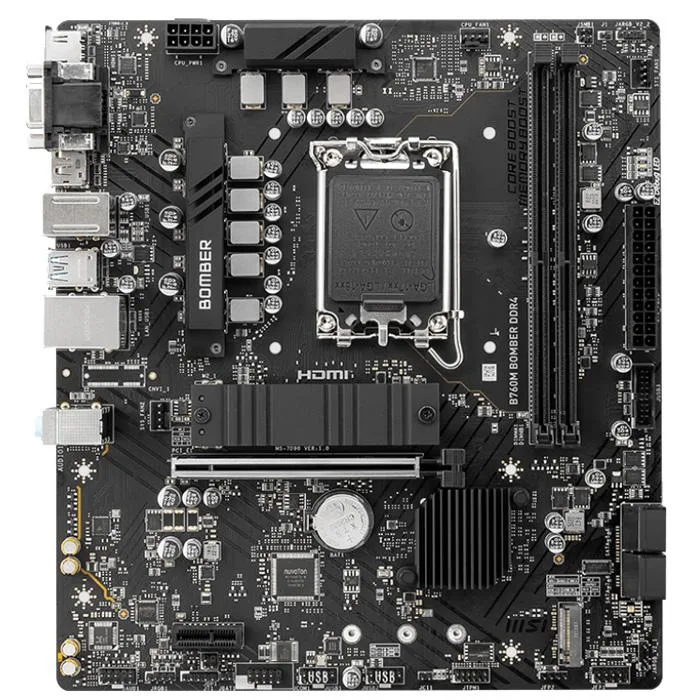

MSI B760M BOMBER DDR4 micro-ATX motherboard with black PCB and silver heatsinks

MSI

MSI B760M BOMBER DDR4 12th 13th Gen Intel Core Pentium Gold Celeron LGA 1700 Motherboard

SKU CH-ERFS-74DX7

Supports 12th and 13th Gen Intel LGA 1700 CPUs with DDR4 memory up to 4800 MHz, PCIe 4.0 M.2, 2.5G LAN and steel-reinforced PCIe slot

  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • Supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1700 socket
  • Dual-channel DDR4 memory up to 4800 MHz overclocked for high bandwidth
  • Core Boost digital power design delivers stable current for multi-core processors
  • PCIe 4.0 x4 M.2 slot with Shield Frozr heatsink for fast storage
  • 5G LAN and Audio Boost provide low-latency networking and studio-grade sound

B760M DDR4 Motherboard for 12th/13th Gen Intel

This MSI motherboard uses the Intel B760 chipset and fits LGA 1700 processors from the 12th and 13th generations. It supports Core, Pentium Gold and Celeron CPUs with dual-channel DDR4 memory up to 64 GB. The board includes HDMI 2.1, DisplayPort 1.4 and VGA outputs for systems using integrated graphics. A single PCIe 4.0 x16 slot and one x1 slot provide expansion room.

Ideal for DDR4 builds needing 2.5G LAN

It suits builders who want a compact platform with 2.5G LAN, Lightning Gen4 x4 M.2 with Shield Frozr and Steel Armor on the primary graphics slot. Audio Boost delivers studio-grade output for headphones or speakers. Buyers who need more than two memory slots or multiple full-length expansion cards should look at larger form-factor options.

Two DDR4 slots capped at 64 GB maximum capacity

The board provides only two DIMM slots with a 64 GB total limit, so memory upgrades stop at that ceiling. Overclocked speeds reach 4800+ MHz with a single-rank module and 4600+ MHz with dual-rank. If your workload demands 128 GB or four populated slots, this board cannot meet the requirement.

Highlights

  • Supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1700 socket
  • Dual-channel DDR4 memory up to 4800 MHz overclocked for high bandwidth
  • Core Boost digital power design delivers stable current for multi-core processors
  • PCIe 4.0 x4 M.2 slot with Shield Frozr heatsink for fast storage
  • 5G LAN and Audio Boost provide low-latency networking and studio-grade sound

Specifications

CPU TypeIntel Core 13th Gen (LGA 1700)

Questions about this item

Will this board run a 13th Gen Intel Core i5 with DDR4 memory?

Yes, the board supports 12th and 13th Generation Intel Core, Pentium Gold and Celeron processors on LGA 1700 and runs dual-channel DDR4 up to 4800 MHz when overclocked.

What is the maximum RAM capacity and how many slots are available?

The board has two DDR4 slots and supports a maximum of 64 GB of non-ECC un-buffered memory.

Can I use the onboard HDMI and DisplayPort outputs for a 4K 60 Hz display?

Yes, HDMI 2.1 and DisplayPort 1.4 both support 4K at 60 Hz, but only when the installed processor includes integrated graphics.
