MSI

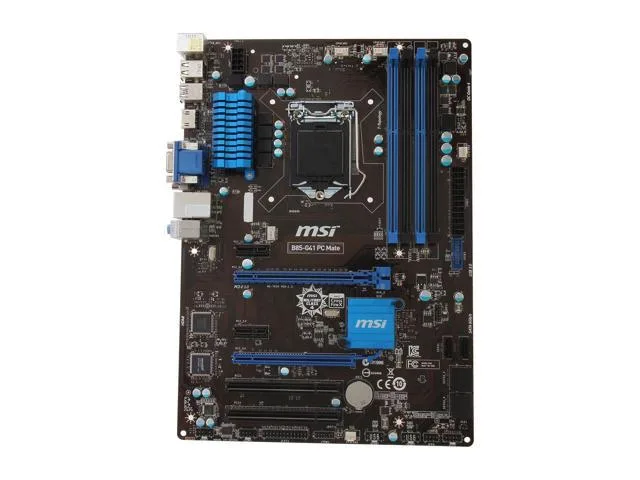

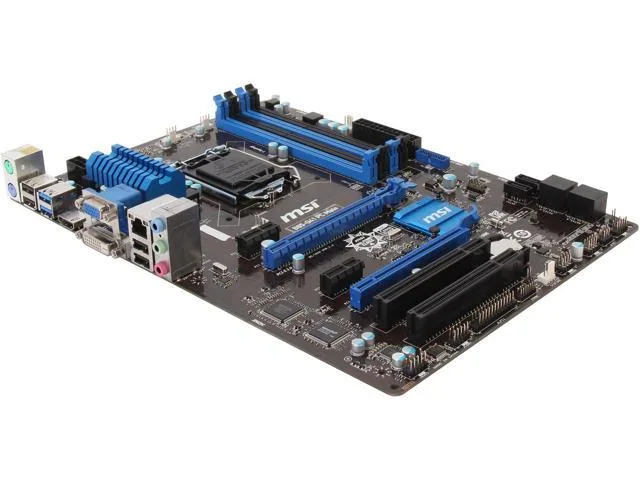

MSI B85-G41 PC Mate LGA 1150 Intel motherboard
LGA 1150 ATX board with Intel B85 chipset, four DDR3 slots up to 32 GB, one PCIe 3.0 x16, one x4, two x1, two legacy PCI, four SATA 6Gb/s, HDMI, two USB 3.0, four USB 2.0.
- CPU Socket TypeLGA 1150
- CPU Type4th-generation Core i3,i5,i7,Pentium,Celeron(LGA1150)
- ChipsetIntel B85
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots4x240pin
- Memory StandardDDR3 1066/1333/1600
- Supports 4th-gen Intel Core processors on LGA 1150 socket
- Four DDR3 slots accept up to 32 GB at 1600 MHz
- One PCIe 3.0 x16 plus one PCIe 2.0 x4 for graphics and add-in cards
- Four SATA 6 Gb/s ports connect high-speed storage drives
- Realtek ALC887 8-channel audio with gigabit LAN on rear I/O
LGA 1150 Intel B85 ATX motherboard
The MSI B85-G41 PC Mate is a desktop motherboard built around the Intel B85 chipset for 4th-generation Core i3, i5, i7, Pentium and Celeron processors in the LGA 1150 socket. It follows the standard ATX form factor and provides four 240-pin DDR3 memory slots that support dual-channel operation at 1066, 1333 and 1600 speeds up to a maximum of 32 GB.
Best for 4th-gen Intel builds with DDR3 memory
This board suits builders assembling or repairing a system based on a 4th-generation Intel CPU who need DDR3 memory support, a single PCI Express 3.0 x16 graphics slot and four SATA 6 Gb/s ports for storage. It will not accept newer processors that use different sockets or memory types, and it lacks onboard video outputs unless the installed CPU includes integrated graphics.
Four SATA 6 Gb/s ports for storage drives

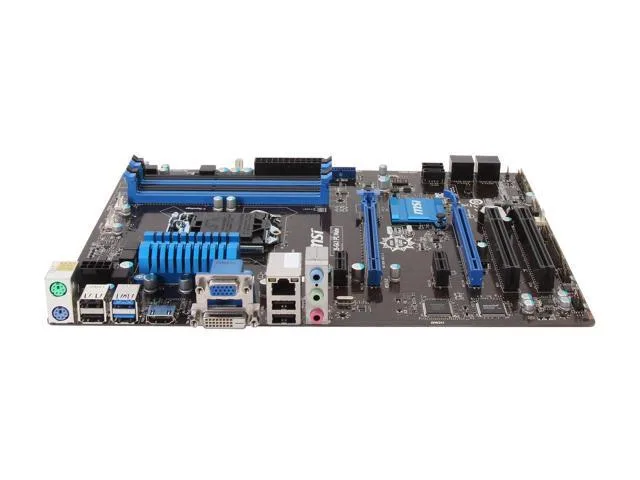

The rear I/O panel includes one HDMI port, two PS/2 connectors, two USB 3.0 ports and four USB 2.0/1.1 ports. Audio is handled by the Realtek ALC887 8-channel codec and networking by the Realtek 8111G controller with 1 Gbps maximum LAN speed. Expansion slots comprise one PCI Express 3.0 x16, one PCI Express 2.0 x16 running at x4, two PCI Express x1 and two legacy PCI slots.
Highlights
- Supports 4th-gen Intel Core processors on LGA 1150 socket
- Four DDR3 slots accept up to 32 GB at 1600 MHz
- One PCIe 3.0 x16 plus one PCIe 2.0 x4 for graphics and add-in cards
- Four SATA 6 Gb/s ports connect high-speed storage drives
- Realtek ALC887 8-channel audio with gigabit LAN on rear I/O
Specifications
| Brand | MSI |
|---|---|
| Model | B85-G41 PC Mate |
| CPU Socket Type | LGA 1150 |
| CPU Type | 4th-generation Core i3,i5,i7,Pentium,Celeron(LGA1150) |
| Chipset | Intel B85 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x240pin |
| Memory Standard | DDR3 1066/1333/1600 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 1(running at x4) |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111G |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
| Other Connectors | 1 x ATX 24-Pin power connector1 x 8-pin ATX 12V power connectorCPU x 2 / System x 3 FAN connectors1 x Clear CMOS jumper1 x Serial port connector1 x TPM Module connector1 x Parallel Port connector1 x Front Panel Audio connector1 x Front Panel connector1 x Chassis Intrusion connector |
| Form Factor | ATX |
| Dimensions (W x L) | 12" x 8.66" |
| Power Pin | 24 Pin |
| Features | Supports 4th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socketSupports DDR3-1600 MemoryUSB 3.0 + SATA 6Gb/sMilitary Class 4: Top Quality & StabilityMilitary Class Essentials: Total Protection for Military Class MotherboardsOC Genie 4: Overclock in 1 SecondClick BIOS 4: Easily Fine-tune Your System4K UHD Support: Ultra-high Definition Visual Experience3 Display Outputs: HDMI/DVI/D-Sub SupportPCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard BrandMulti-GPU: AMD CrossFire SupportCommand Center: Control & Customize Your PC SettingsFast Boot: Quickly Boot Up & E |
| Package Contents | 2 x SATAIII CableIO Shield |
Questions about this item
How much heat and power draw should I expect from the B85-G41 PC Mate running a 4th-gen Core i7 all day?
The B85 chipset itself draws modest power; total heat depends on the specific CPU and cooler you install. Board components run within normal ATX thermal limits.
Which memory modules must I already own to populate the four 240-pin slots on this board?
You need DDR3 DIMMs rated for 1066, 1333 or 1600 MT/s. Maximum capacity is 32 GB across the four slots in dual-channel mode.
Will my existing PCI expansion cards fit the two PCI slots alongside the PCIe x16 and x1 slots?
Yes, the board provides two legacy PCI slots plus one PCIe 3.0 x16, one PCIe 2.0 x16 running at x4, and two PCIe x1 slots for older add-in cards.
