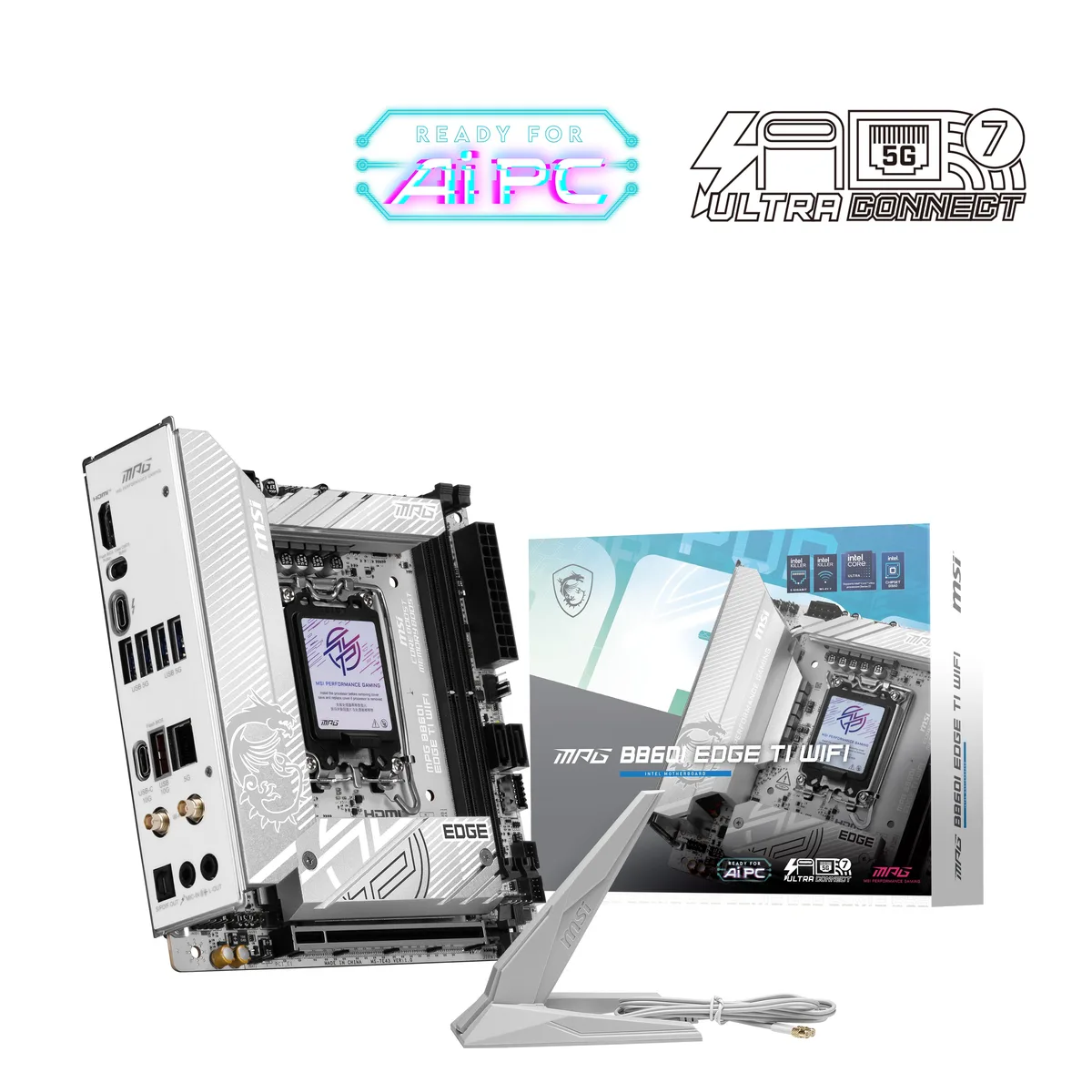

White Mini-ITX motherboard with silver heatsinks and black PCB

MSI

MSI B860I EDGE TI WIFI Intel motherboard

SKU CH-XP6K-GC5BE MPN B860I EDGE TI WIFI

Mini-ITX board for Intel Core Ultra Series 2 with 110A VRM, DDR5 up to 8600 MT/s, PCIe 5.0 x16, dual M.2, Thunderbolt 4, 5G LAN, Wi-Fi 7 and Bluetooth 5.4

  • CPU Socket TypeLGA 1851
  • CPU TypeCore 2 Duo
  • ChipsetIntel B860
  • Number of Memory Slots2x288pin (DDR5)
  • Channel SupportedDual Channel
  • Buffer SupportedNo
  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • Direct 8-phase 110A Smart Power Stage VRM for stable overclocking
  • DDR5 memory up to 8600 MT/s with Memory Boost technology
  • PCIe 5.0 x16 slot plus M.2 Gen5 for 128 GB/s bandwidth
  • Wi-Fi 7, Bluetooth 5.4, 5 Gbps LAN and Thunderbolt 4 connectivity

Mini-ITX Board for Intel Core Ultra Series 2

The MPG B860I EDGE TI WIFI is a Mini-ITX motherboard built on the Intel B860 chipset for LGA 1851 processors. It targets compact gaming systems that need high-speed connectivity and strong power delivery in a small footprint. The direct 8-phase VRM uses 110A Smart Power Stages to handle demanding CPU loads. Premium thermal components include a heat-pipe, 7W/mK MOSFET pads and an M.2 Shield Frozr.

Suits Small-Form-Factor Builders Needing Top I/O

This board fits builders who want Thunderbolt 4, 5 Gbps LAN, Wi-Fi 7 and Bluetooth 5.4 in a Mini-ITX layout. It also suits users who need PCIe 5.0 graphics and storage bandwidth. Users requiring four memory slots, more than two SATA ports or legacy video outputs should consider a larger form factor. The two DDR5 slots limit maximum capacity to two modules.

Build Around Two DDR5 Slots and Dual M.2

The board provides two 288-pin DDR5 slots supporting dual-channel memory up to 8600 MT/s when overclocked. A single PCIe 5.0 x16 slot delivers 128 GB/s bandwidth for modern GPUs. Two M.2 connectors accept PCIe 5.0 x4 and PCIe 4.0 x4 drives, both covered by the M.2 Shield Frozr. Rear I/O includes HDMI, USB 5 Gbps Type-A, USB 10 Gbps Type-A, USB 10 Gbps Type-C and Thunderbolt 4 at 40 Gbps. 7.1-channel audio and optical S/PDIF complete the connectivity.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • Direct 8-phase 110A Smart Power Stage VRM for stable overclocking
  • DDR5 memory up to 8600 MT/s with Memory Boost technology
  • PCIe 5.0 x16 slot plus M.2 Gen5 for 128 GB/s bandwidth
  • Wi-Fi 7, Bluetooth 5.4, 5 Gbps LAN and Thunderbolt 4 connectivity

Specifications

BrandMSI Computer
SeriesMPG
ModelB860I EDGE TI WIFI
CPU Socket TypeLGA 1851
CPU TypeCore 2 Duo
ChipsetIntel B860
Number of Memory Slots2x288pin (DDR5)
Channel SupportedDual Channel
Buffer SupportedNo
PCI Express 5.0 x161 x PCI Express 5.0 x16
Serial ATA (SATA)2 x SATA 6Gb/s
M.22 x M.2 (support PCIe 5.0 x4 and PCIe 4.0 x4)
Audio Channels7.1 Channels
LAN ChipsetIntel Killer E5000B
Max LAN Speed5 Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 1 x Thunderbolt 4 (Type-C), 1 x HDMI, 1 x 5G LAN, 1 x HD Audio, 1 x Optical/SPDIF
Video PortsHDMI
HDMI1 x HDMI
RJ451 x RJ45
Thunderbolt Ports1 x Thunderbolt Port
USB 3.06 x USB 3.0
USB 1.1/2.02 x USB 2.0
USB Type-C3 x USB Type-C® port, with USB 3.2 Gen 10Gbps support
S/PDIF Out1 x Optical
Onboard USB1 x USB 3.2 Gen 2x2 Type-A + 2 x USB 3.2 Gen 2x2 Type-C + 6 x USB 3.2 Gen 1 Type-A + 2 x USB 2.0
Onboard 13940
LED Lightingnone
Shipping weight1.18 kg
Package size267 × 229 × 56 mm

Questions about this item

Will my Intel Core Ultra Series 2 processor fit the LGA 1851 socket on this board?

Yes, the LGA 1851 socket is built for Intel Core Ultra Series 2 CPUs, so the processor will seat correctly.

Can I keep using my DDR5 memory kit with this Mini-ITX board?

The board has two 288-pin DDR5 slots running dual-channel, so existing DDR5 modules install directly.

How can I confirm the 5 Gbps LAN link is active after assembly?

The Intel Killer E5000B controller will show a 5 Gbps connection speed in the OS network adapter status.
