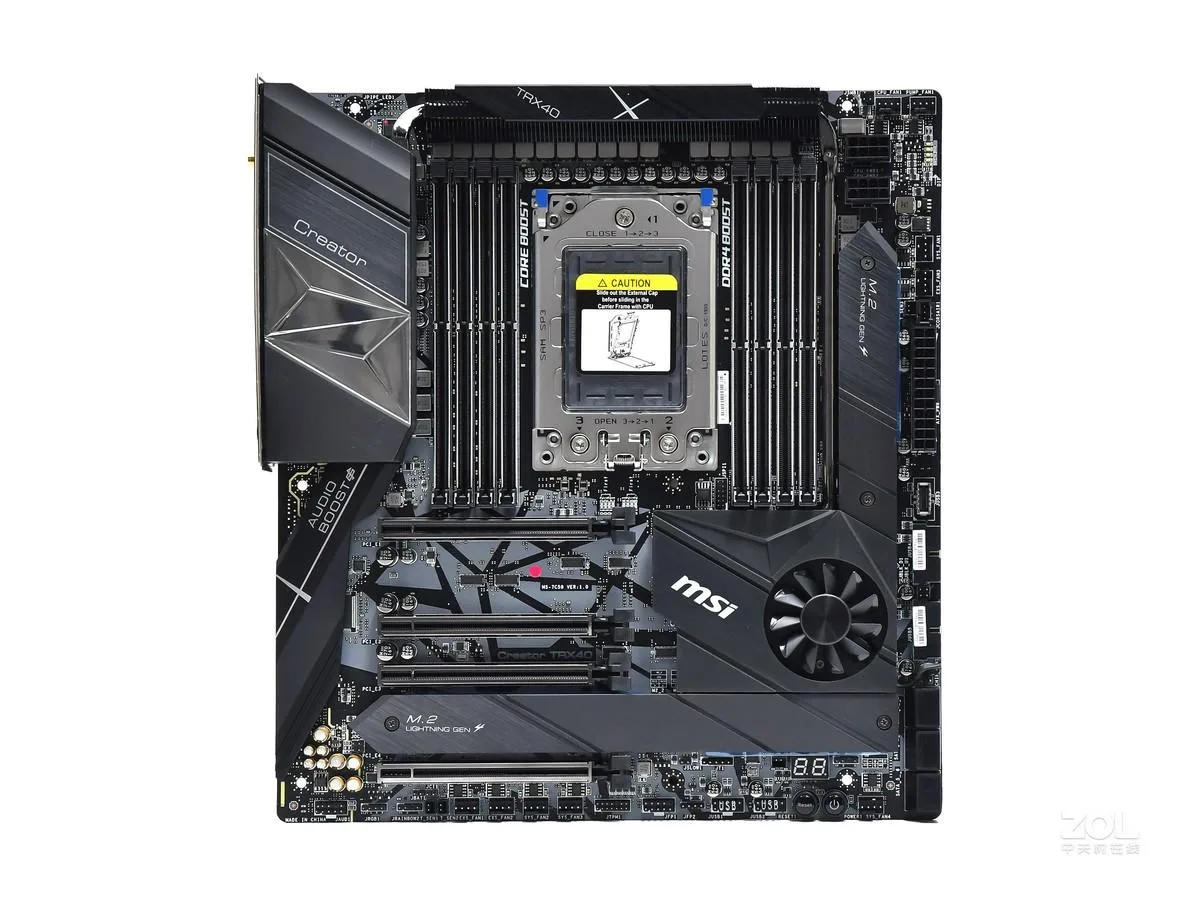

Rectangular ATX motherboard, dark grey finish, large socket area, multiple expansion slots

MSI

MSI Creator TRX40 AMD motherboard Socket sTRX4 DDR4 256GB ATX

SKU CH-SX34-98Q7M

Supports AMD Ryzen processors in Socket sTRX4 with 256GB DDR4 memory, four PCIe 4.0 x16 slots, six SATA ports, three M.2 interfaces, dual LAN including 10-Gigabit, and 7.1-channel audio

  • CPU Socket TypeSocket sTRX4
  • CPU TypeSupports third-generation AMD Ryzen ™ Thread Ripper ™ deskto
  • ChipsetAMD TRX40
  • Memory StandardSupport dual-channel DDR4 2133/2400/2666/3200MHz memory
  • Maximum Memory Supported256GB
  • PCI Slots4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
  • Supports Ryzen desktop CPUs via Socket sTRX4
  • 256GB maximum DDR4 capacity across dual-channel 2133/2400/2666/3200MHz memory
  • Four PCIe 4.0 x16 slots support x16/x8/x16/x8 mode
  • Dual LAN with Intel I211AT Gigabit and Aquantia AQC107 10-Gigabit controllers
  • 1-channel audio via Realtek ALC1220 and ALC4050H codecs

AMD TRX40 chipset for third-generation Ryzen

This ATX motherboard uses the AMD TRX40 chipset and the sTRX4 socket to support third-generation AMD Ryzen desktop processors. Four PCIe 4.0 x16 slots run in x16/x8/x16/x8 configuration for multi-GPU or accelerator builds.

Suited to workstations needing high memory

The board accepts up to 256GB of dual-channel DDR4 at 2133, 2400, 2666 or 3200MHz. Two LAN controllers — Intel I211AT Gigabit and Aquantia AQC107 10-Gigabit — serve demanding network workflows. Buyers who require integrated Wi-Fi or a different socket should look elsewhere.

256GB maximum memory capacity defines the build

Eight DIMM slots support dual-channel DDR4 up to 256GB total, setting the hard limit for memory-heavy workloads such as simulation, rendering or large dataset processing. Exceeding this capacity is not possible on this platform.

Highlights

  • Supports Ryzen desktop CPUs via Socket sTRX4
  • 256GB maximum DDR4 capacity across dual-channel 2133/2400/2666/3200MHz memory
  • Four PCIe 4.0 x16 slots support x16/x8/x16/x8 mode
  • Dual LAN with Intel I211AT Gigabit and Aquantia AQC107 10-Gigabit controllers
  • 1-channel audio via Realtek ALC1220 and ALC4050H codecs

Specifications

BrandMSI
SeriesMSI Creator TRX40
ModelMSI Creator TRX40
CPU Socket TypeSocket sTRX4
CPU TypeSupports third-generation AMD Ryzen ™ Thread Ripper ™ desktop processors
ChipsetAMD TRX40
Memory StandardSupport dual-channel DDR4 2133/2400/2666/3200MHz memory
Maximum Memory Supported256GB
PCI Slots4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
SATA RAID3XM.2 interface, 6xSATA III interface
Audio Chipset1x Realtek ALC1220 Codec
7.1-Channel High Definition Audio
1x Realtek ALC4050H Codec
Supports front & rear panel Mic-in
Supports S/PDIF output
LAN Chipset1x Intel I211AT Gigabit LAN controller
1x Aquantia AQC107 10-Gigabit LAN controller
Onboard USBAMD TRX40 Chipset
2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor
4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
ASMedia ASM3242 Chipset
1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

Questions about this item

What case and CPU cooler clearance does the ATX-sized Creator TRX40 board require?

The board follows the standard ATX form factor, so it fits any case that accepts ATX motherboards and leaves room for the sTRX4 socket retention mechanism and your chosen cooler.

Which power connectors must be seated before first boot, and which one is most often missed?

Connect the 24-pin ATX supply and both 8-pin EPS cables to the socket; the second EPS connector is the step builders most frequently forget.

How often should the CMOS battery included in the box be swapped?

The supplied lithium cell typically lasts several years; replace it when the system loses date and time settings after being unplugged.
