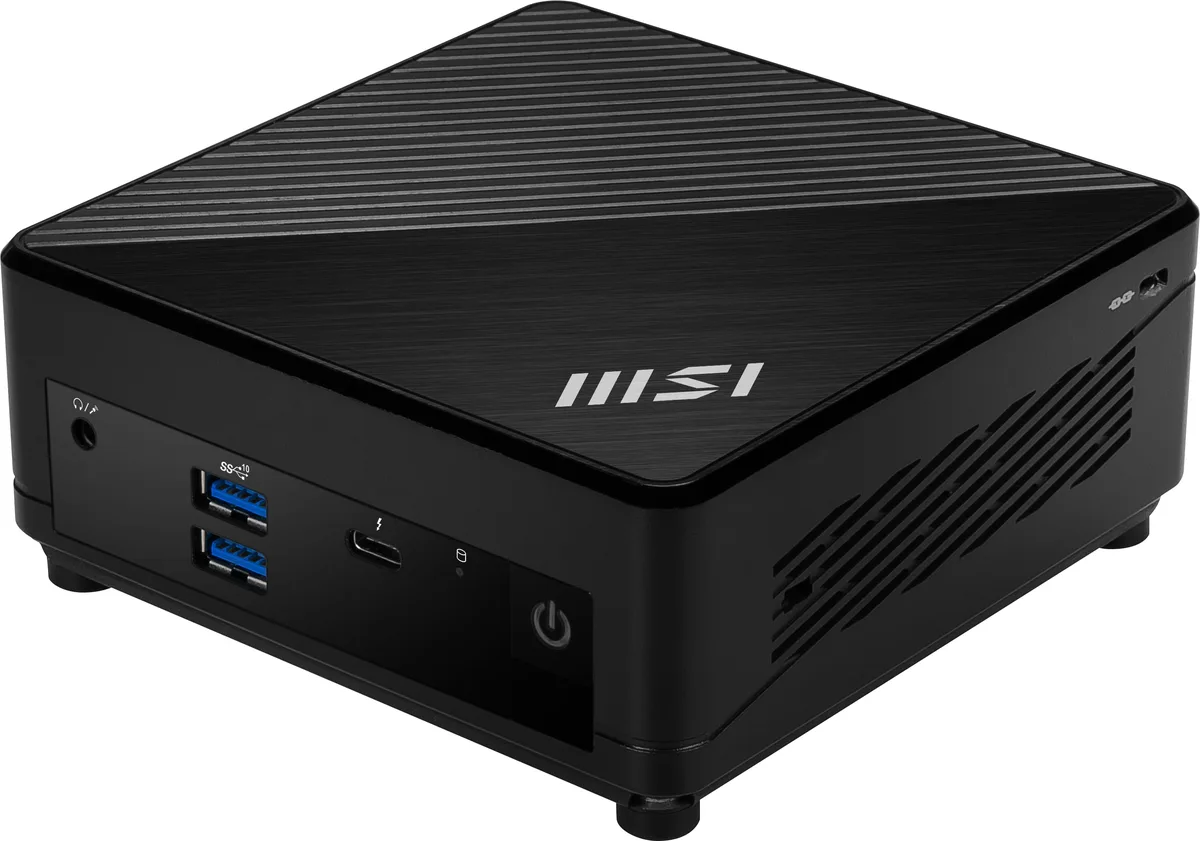

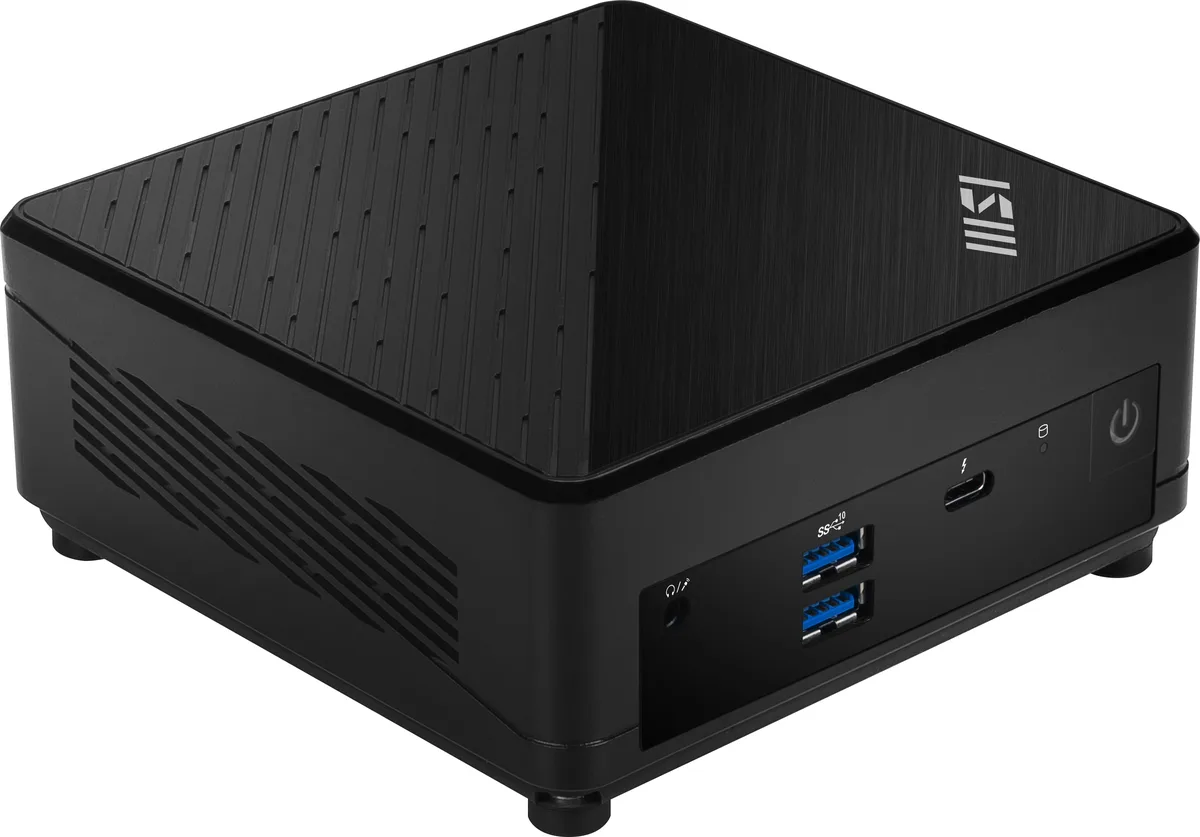

Compact black cube mini PC, 0.7 litre volume, front Thunderbolt 4 Type-C port visible

MSI

MSI Cubi 5 12M-016BUS barebone mini PC, Intel Core i7-1255U, DDR4 64GB max

SKU CH-KB0Z-RW4D9 MPN Cubi 5 12M-016BUS

A 0.7 L barebone with Intel Core i7-1255U, dual LAN, WiFi 6E, Bluetooth 5.2 and ThunderBOLT 4, supporting 64 GB DDR4

  • ColorBlack
  • CPU TypeIntel Core i7-1255U (P-core 4.70 GHz, E-core 3.50GHz)
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 2666
  • Max Memory Supported64GB
  • LAN1 x Realtek RTL8111H, 1 x Realtek RTL8125BG-CG

CPU Type Intel Core i7-1255U

  • Compact 0.7 L chassis fits tight spaces
  • Intel Core i7-1255U up to 4.70 GHz handles demanding workloads
  • Dual SO-DIMM slots support up to 64 GB DDR4 2666 memory
  • ThunderBOLT 4 plus HDMI 2.0b and DisplayPort 1.4 drive three displays
  • Dual LAN plus WIFI 6E and Bluetooth 5.2 keep connections fast and stable

Barebone Mini PC with Core i7-1255U

The MSI Cubi 5 12M-016BUS is a 0.7 litre barebone mini PC built around an Intel Core i7-1255U processor. It arrives without memory, storage or an operating system so integrators can choose their own DDR4 SO-DIMMs and a 2.5 inch drive. Dual LAN, WiFi 6E and Bluetooth 5.2 are already on board.

Suits DIY builders who want a tiny wired

Ideal for assemblers needing a compact desktop that can drive three displays via HDMI 2.0b, DisplayPort 1.4 and front ThunderBOLT Type-C. Buyers who require a pre-installed OS, larger internal drive bays or memory types other than DDR4 2666 should look at other form factors.

Two SO-DIMM slots supporting up to 64 GB DDR4 2666

The memory subsystem is the decisive spec: two 260-pin slots accept DDR4 2666 modules to a maximum of 64 GB. If your workload needs more capacity or a different memory generation this barebone will not fit the requirement.

Highlights

  • Compact 0.7 L chassis fits tight spaces
  • Intel Core i7-1255U up to 4.70 GHz handles demanding workloads
  • Dual SO-DIMM slots support up to 64 GB DDR4 2666 memory
  • ThunderBOLT 4 plus HDMI 2.0b and DisplayPort 1.4 drive three displays
  • Dual LAN plus WIFI 6E and Bluetooth 5.2 keep connections fast and stable

Specifications

BrandMSI
ModelCubi 5 12M-016BUS
ColorBlack
CPU TypeIntel Core i7-1255U (P-core 4.70 GHz, E-core 3.50GHz)
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 2666
Max Memory Supported64GB
LAN1 x Realtek RTL8111H, 1 x Realtek RTL8125BG-CG
Wireless LANWIFI 6E - AX 211
BluetoothBluetooth 5.2
2.5" Internal Bays1

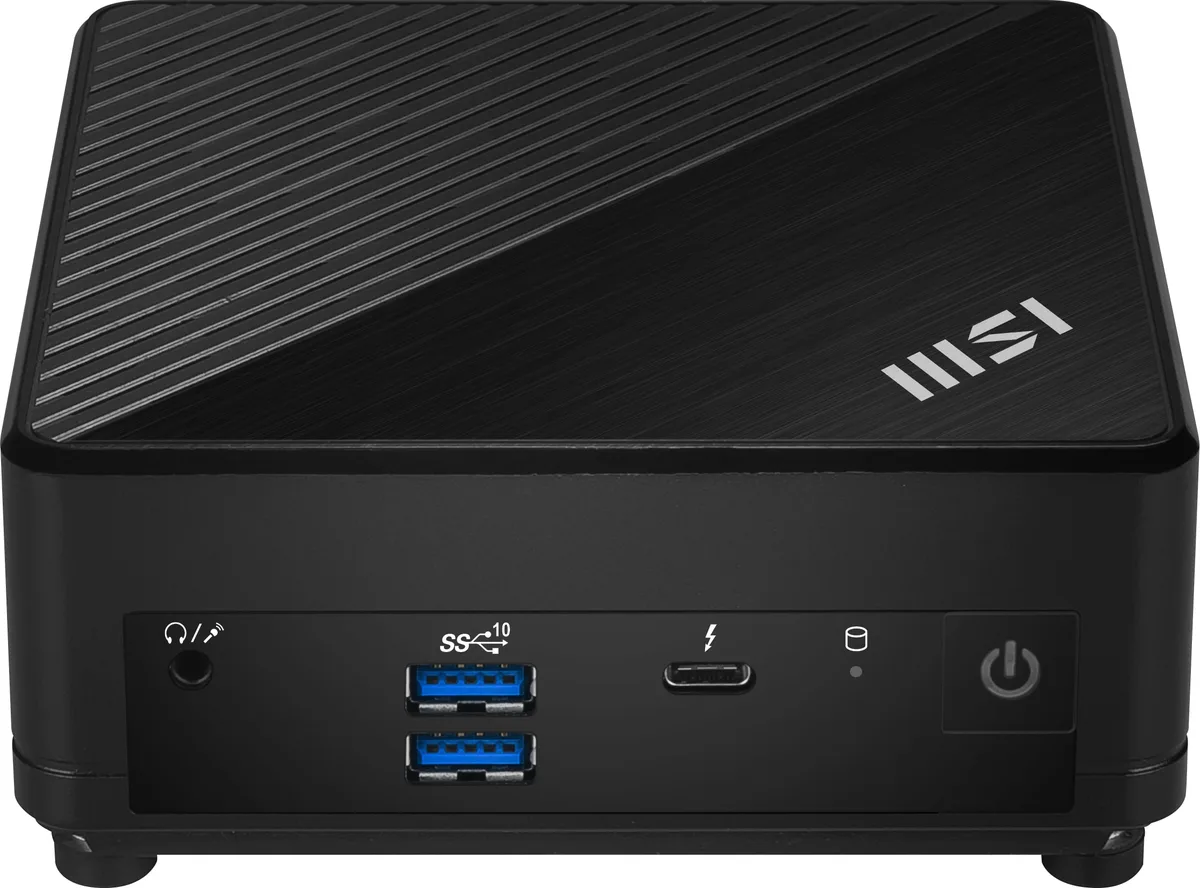

Front USB1 x ThunderBolt4 Type-C (front)
2 x USB 3.2 Gen2 Type-A (front)
Front Audio Ports1x Mic-in / Headphone-out combo
HDMI1 x HDMI 2.0b
DisplayPort1 x DisplayPort 1.4

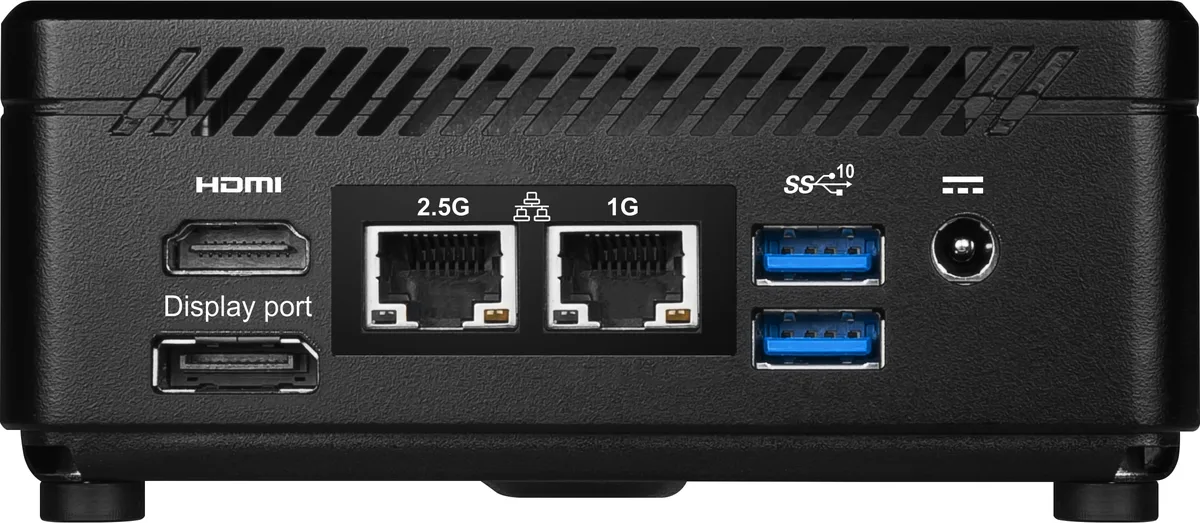

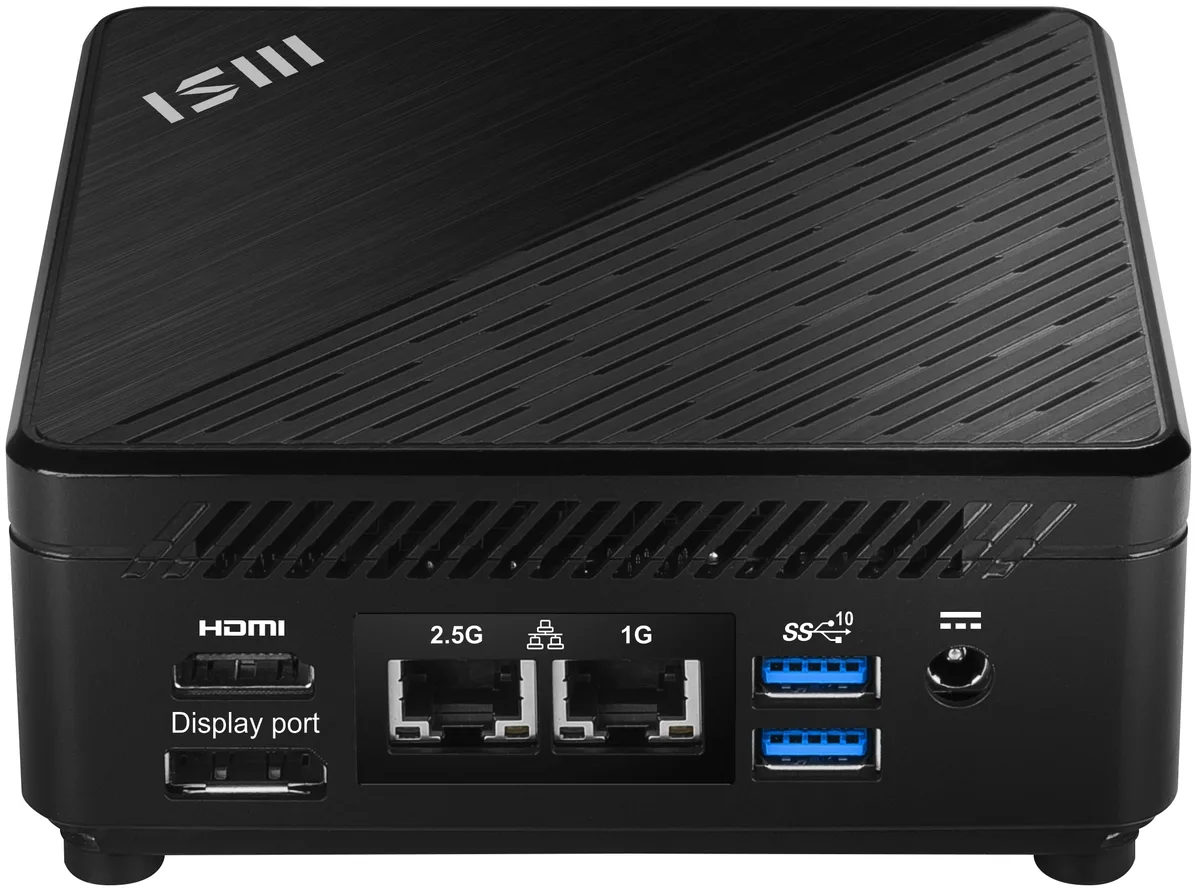

Rear USB2 x USB 3.2 Gen2 Type-A (rear)
Power Supply65W
Dimensions4.88" x 4.88" x 2.11"
Weight3.09 lbs.
Shipping weight1.27 kg
Package size224 × 208 × 97 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which memory modules do I need to add to the two 260-pin SO-DIMM slots?

Install DDR4 2666 SO-DIMM modules in both slots; the board supports a total of 64 GB.

Can I keep using my USB 3.2 Gen 2 Type-A peripherals with the front and rear ports?

Yes, the front panel has two USB 3.2 Gen 2 Type-A ports and the rear has two more, all compatible with existing USB 3.2 Gen 2 devices.

How do I verify the Thunderbolt 4 Type-C port is active after setup?

Connect a Thunderbolt 4 device; the OS should enumerate it at full speed and the port will carry DisplayPort 1.4 video alongside data.
