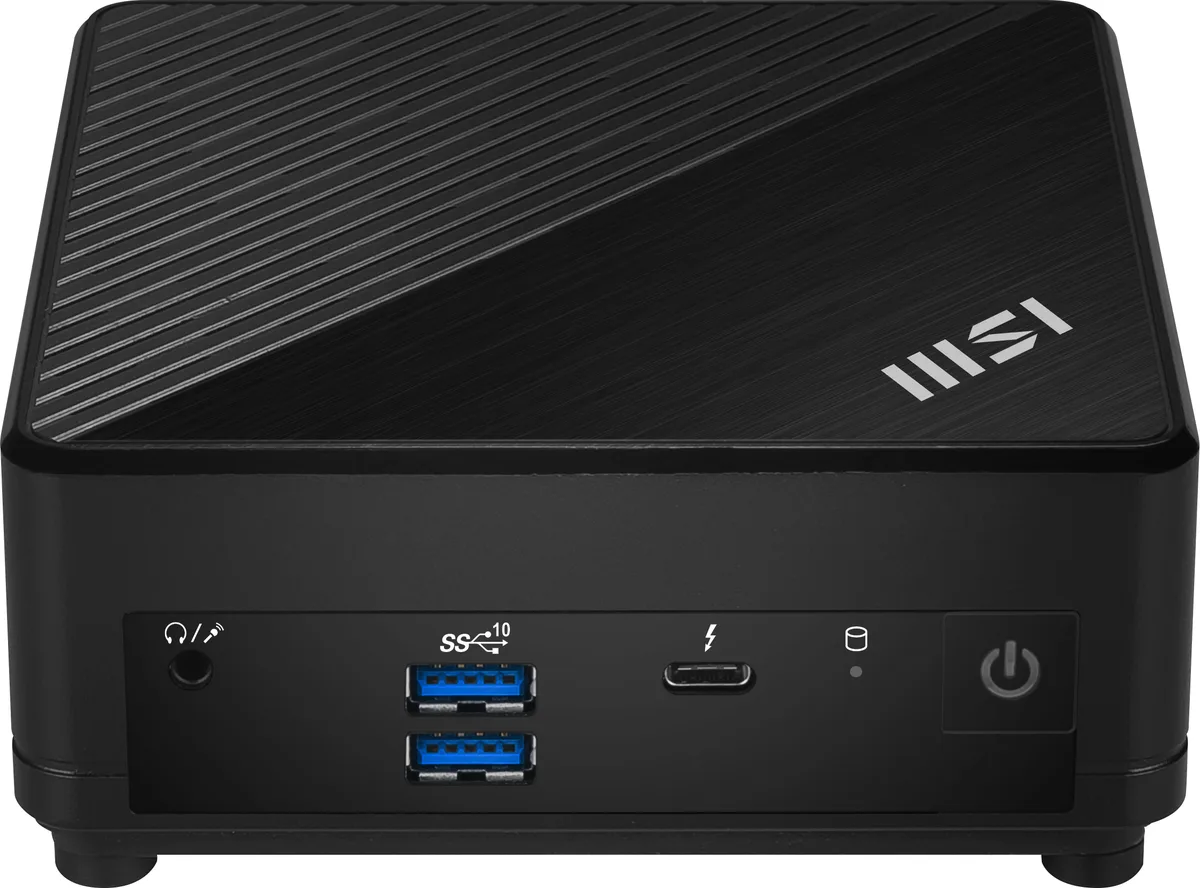

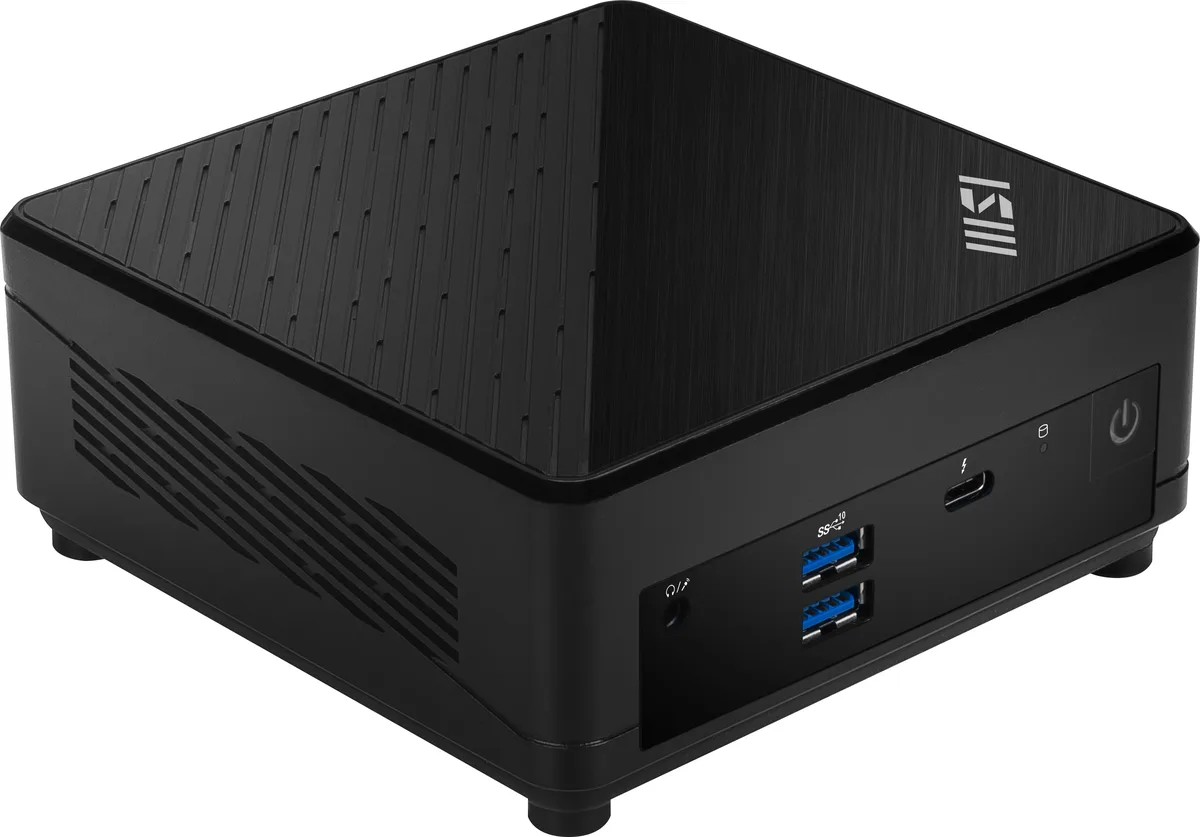

Compact black mini PC barebone, square chassis, front Thunderbolt and USB ports

MSI

MSI Cubi 5 1MA-495BUS Intel Core 3 100U barebone mini PC

SKU CH-FZW6-YD9BN MPN Cubi 5 1MA-495BUS

Barebone mini PC with Intel Core 3 100U, dual DDR4 3200 SO-DIMM slots up to 64 GB, Thunderbolt 4, dual 2.5 Gbps and 1 Gbps LAN, Wi-Fi 6E and Bluetooth 5.3

  • ColorBlack
  • CPU TypeIntel Core 3 100U
  • CPU Cores10-Core (2P+8E)
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

CPU Intel Core 3 100U

  • 10-core Intel Core 3 100U handles multitasking workloads efficiently
  • Two DDR4 3200 SO-DIMM slots support up to 64 GB dual-channel memory
  • Front Thunderbolt 4 port delivers 40 Gb/s data and display bandwidth
  • Dual LAN with 2.5 Gbps and 1 Gbps ports separates traffic for stable connectivity
  • Wi-Fi 6E and Bluetooth 5.3 provide fast wireless networking and peripheral pairing

Compact barebone with Intel Core 3 100U

The MSI Cubi 5 1MA-495BUS is a new mini PC barebone built around a 10-core Intel Core 3 100U processor. It arrives without memory or storage so you can choose two DDR4 3200 SO-DIMM modules up to 64 GB total and one M.2 drive plus a 2.5-inch drive. Triple-display output and front Thunderbolt 4 add connectivity for office or light creative work.

Suited to builders who want a small dual-LAN box

This unit fits users who need dual 2.5 Gbps and 1 Gbps LAN ports, Wi-Fi 6E and Bluetooth 5.3 in a compact chassis. It is not for buyers who require discrete graphics, more than two memory slots, or a pre-installed operating system and drives.

10-core Intel Core 3 100U processor

The CPU delivers 10 cores (2 performance plus 8 efficient) and integrated Intel Graphics, defining the performance ceiling for everyday productivity and multi-monitor setups.

Highlights

  • 10-core Intel Core 3 100U handles multitasking workloads efficiently
  • Two DDR4 3200 SO-DIMM slots support up to 64 GB dual-channel memory
  • Front Thunderbolt 4 port delivers 40 Gb/s data and display bandwidth
  • Dual LAN with 2.5 Gbps and 1 Gbps ports separates traffic for stable connectivity
  • Wi-Fi 6E and Bluetooth 5.3 provide fast wireless networking and peripheral pairing

Specifications

BrandMSI
ModelCubi 5 1MA-495BUS
ColorBlack
CPU TypeIntel Core 3 100U
CPU Cores10-Core (2P+8E)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2
Integrated GraphicsIntel Graphics
LAN1 x Realtek RTL8111H,
1 x Realtek RTL8125BG-CG
Max LAN Speed2.5Gbps + 1Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1
Front USB1 x ThunderBolt4 Type-C (front)
2 x USB 3.2 Gen2 Type-A (front)
Other Front Ports1 x Mic-in / Headphone-out combo
HDMI1 x HDMI-out (2.0b)
DisplayPort1 x DP-out (1.4)
Rear USB2 x USB 3.2 Gen2 Type-A (rear)
Power Supply65W Adapter
Dimensions4.88" x 4.88" x 2.11"
Weight1.3 lbs.
Shipping weight1.36 kg
Package size244 × 206 × 89 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR4 SO-DIMM memory must I buy to populate the two 260-pin slots?

Purchase two DDR4 3200 SO-DIMM modules up to 64 GB total; the board has two 260-pin slots and ships with no memory installed.

Will my existing 1 Gbps network gear limit the dual LAN ports on this unit?

One port runs at 2.5 Gbps via the RTL8125BG-CG controller and the other at 1 Gbps via the RTL8111H, so older 1 Gbps switches will work on either port but only the first port can exceed 1 Gbps.

How can I verify the Thunderbolt 4 port is delivering 40 Gbps after I connect a dock?

Check the Thunderbolt control panel or device manager for a 40 Gbps link width and confirm that connected displays or storage enumerate at Thunderbolt 4 speeds.
