MSI

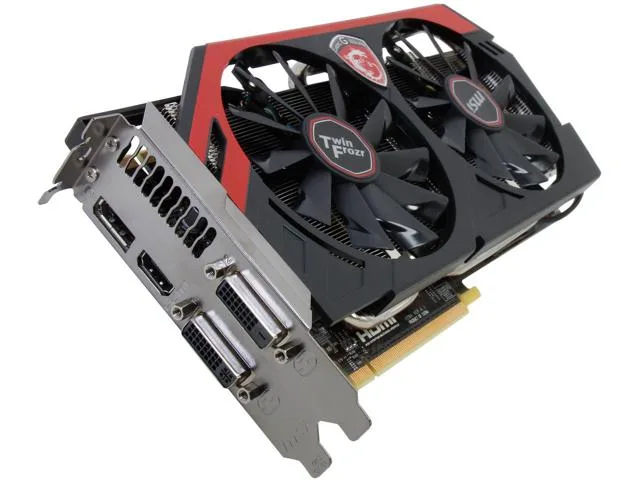

MSI Gaming N760 TF 2GD5/OC GeForce GTX 760 2GB graphics card
GeForce GTX 760 graphics card with 1152 CUDA cores, 2GB 256-bit GDDR5 memory, PCI Express 3.0, G-SYNC and SLI support
- InterfacePCI Express 3.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce GTX 700 Series
- GPUGeForce GTX 760
- Core Clock1085 MHz
- Boost Clock1150 MHz
- 1152 CUDA cores accelerate parallel workloads
- 2 GB GDDR5 on a 256-bit bus delivers high memory bandwidth
- PCI Express 3.0 interface provides fast system communication
- Boost clock reaches 1150 MHz for extra performance headroom
- G-SYNC support eliminates screen tearing with compatible monitors
GeForce GTX 760 for 1080p gaming
The MSI Gaming N760 TF 2GD5/OC is built around the NVIDIA GeForce GTX 760 GPU with 1152 CUDA cores. It targets gamers who want reliable frame rates at 1080p resolution in DirectX 11.1 and OpenGL 4.3 titles. The card connects through a PCI Express 3.0 slot and supports SLI for multi-GPU configurations.
Thermals noise and power draw
The Twin Frozr cooler uses dual fans over a large heatsink to manage heat from the 1085 MHz base clock and 1150 MHz boost clock. Under typical gaming loads the fans spin at moderate speeds, keeping noise low while maintaining stable temperatures. The 2GB GDDR5 memory runs at an effective 6008 MHz across a 256-bit bus without excessive power draw.
G-SYNC and display connectivity
G-SYNC support eliminates screen tearing when paired with a compatible monitor for smoother motion. The rear bracket provides one HDMI port, one DisplayPort and two DVI connectors (one DVI-I and one DVI-D) for multi-display setups. A 400 MHz RAMDAC drives the analogue output on the DVI-I port.
Highlights
- 1152 CUDA cores accelerate parallel workloads
- 2 GB GDDR5 on a 256-bit bus delivers high memory bandwidth
- PCI Express 3.0 interface provides fast system communication
- Boost clock reaches 1150 MHz for extra performance headroom
- G-SYNC support eliminates screen tearing with compatible monitors
Specifications
| Brand | MSI |
|---|---|
| Series | Gaming |
| Model | N760 TF 2GD5/OC |
| Interface | PCI Express 3.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce GTX 700 Series |
| GPU | GeForce GTX 760 |
| Core Clock | 1085 MHz |
| Boost Clock | 1150 MHz |
| CUDA Cores | 1152 |
| Effective Memory Clock | 6008 MHz |
| Memory Size | 2GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 11.1(feature level 11_0) |
| OpenGL | OpenGL 4.3 |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| DVI | 1 x DVI-I1 x DVI-D |
| RAMDAC | 400MHz |
| Max Resolution | 4096 x 2160 |
| SLI Support | 3-Way SLI |
| Cooler | With Fan |
| Thermal Design Power | 170W |
| Features | Gaming App:-OC Mode-Tune up core clock and fan speed to gain a best performance.-Gaming Mode-Provide a stable gaming experience with higher core clock.-Silent Mode-The best operating environment with extremely low noise.Advanced Thermal Design:-Dual 10 cm PWM fans with Propeller Blade technology generate more airflow than traditional fans.-Airflow Control technology deflects more airflow to heatpipe directly and increases the area of heatsink.Military Class Components:-Meet MIL-STD-810G standard to ensure the best stability and quality.-Adopt Hi-c CAP, new SFC, and Solid CAP.Experien |
| Card Dimensions (L x H) | 10.24" x 4.96" |
| Slot Width | 2 Slots |

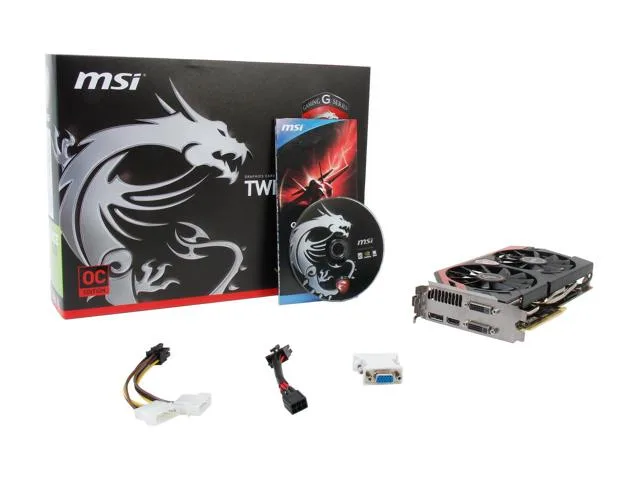

| Package Contents | MSI GeForce GTX 760 Gaming Video CardDriver CD Installation Guide DVI to VGA Dongle 6-pin Power Cable 8-Pin Power Cable |
Questions about this item
How do I install the MSI Gaming N760 TF 2GD5/OC into a PCI Express 3.0 slot?
Align the card with the PCI Express 3.0 slot, press firmly until the retention bracket clicks, then secure it with the case screw.
What maintenance will the MSI Gaming N760 TF 2GD5/OC need over time?
Remove dust from the Twin Frozr heatsink and fans every few months using compressed air to maintain cooling performance.
What limit appears first on the MSI Gaming N760 TF 2GD5/OC during sustained gaming loads?
The 2GB GDDR5 frame buffer fills before the GPU core reaches its 1150 MHz boost ceiling, forcing texture quality reductions.
