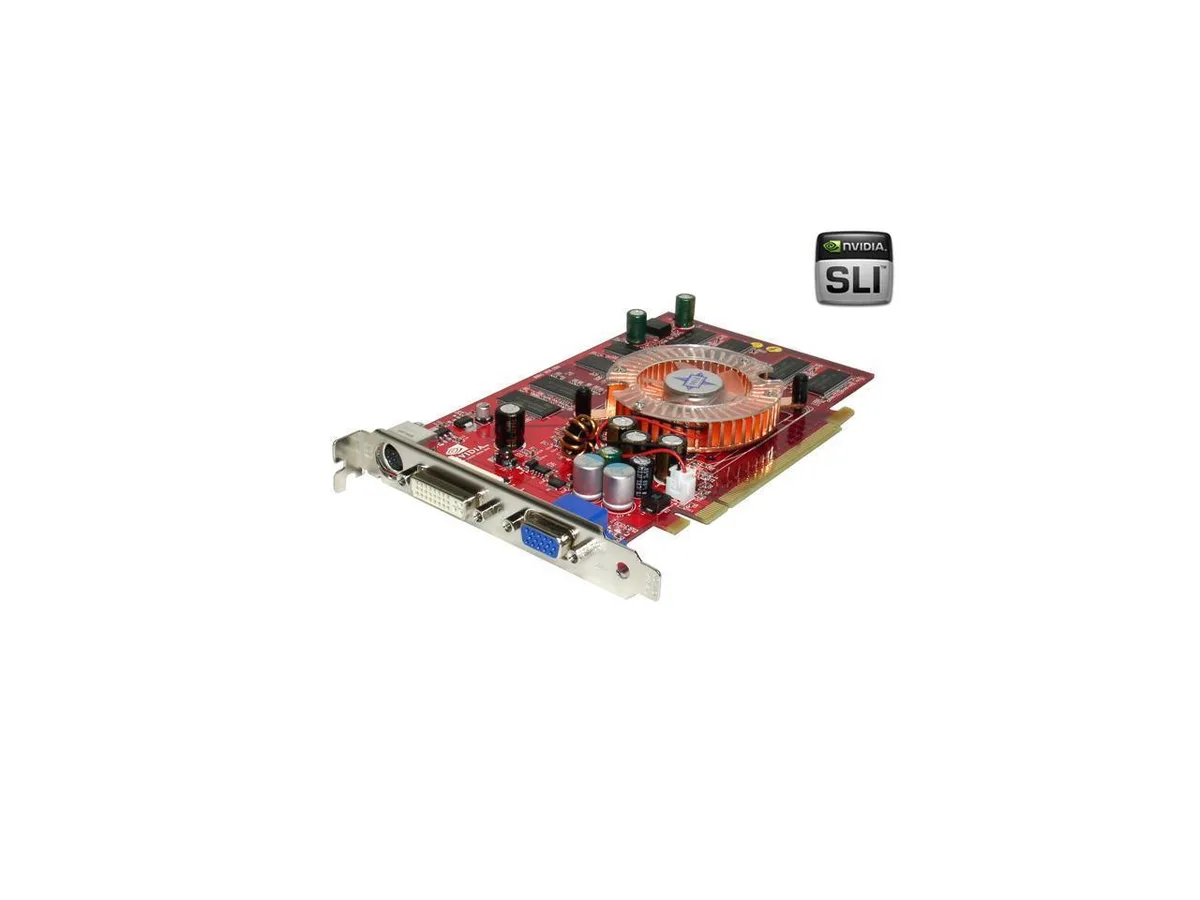

MSI GeForce 6600 graphics card with single-slot cooler, DVI and VGA ports

MSI

MSI GeForce 6600 NX6600-TD128E graphics card

SKU CH-QQC8-HW3YM

PCI Express x16 graphics card with a 300MHz GeForce 6600 GPU, 128MB 128-bit DDR memory at 550MHz, DVI and VGA outputs, supporting DirectX 9 and OpenGL 1.5 up to 2048 x 1536@85Hz on Windows 2000/XP

  • InterfacePCI Express x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce 6600
  • Core Clock300MHz
  • PixelPipelines8
  • Effective Memory Clock550MHz
  • 128 MB DDR memory on a 128-bit bus gives smooth 2D and basic 3D performance
  • Core runs at 300 MHz with eight pixel pipelines for DirectX 9 class rendering
  • Effective memory clock of 550 MHz feeds texture data without bottleneck
  • PCI Express x16 interface provides full bandwidth for the GeForce 6600 GPU
  • DVI and VGA outputs drive digital and analogue displays up to 2048 x 1536 at 85 Hz

GeForce 6600 PCI Express x16 Card

This MSI graphics card uses the NVIDIA GeForce 6600 GPU with a 300MHz core clock and eight pixel pipelines. It provides 128MB of DDR memory across a 128-bit interface running at an effective 550MHz. The board targets legacy Windows 2000 and XP systems needing DirectX 9 and OpenGL 1.5 support for period-correct gaming or display use.

Check Motherboard Slot and Monitor Inputs

Verify the motherboard has a free PCI Express x16 slot for installation. The card offers one D-SUB, one DVI and an S-Video or composite TV output for display connections. Maximum digital resolution reaches 2048 x 1536 at 85Hz. No VIVO or tuner functions are present on this model.

Replaces Older AGP or Integrated Graphics

Upgrading from AGP or integrated graphics adds a dedicated PCI Express x16 GPU with 128MB video memory and DirectX 9 capability. The jump is worthwhile when a legacy build requires hardware pixel pipelines for older titles or needs DVI output that the current system lacks.

Highlights

  • 128 MB DDR memory on a 128-bit bus gives smooth 2D and basic 3D performance
  • Core runs at 300 MHz with eight pixel pipelines for DirectX 9 class rendering
  • Effective memory clock of 550 MHz feeds texture data without bottleneck
  • PCI Express x16 interface provides full bandwidth for the GeForce 6600 GPU
  • DVI and VGA outputs drive digital and analogue displays up to 2048 x 1536 at 85 Hz

Specifications

BrandMSI
ModelNX6600-TD128E
InterfacePCI Express x16
Chipset ManufacturerNVIDIA
GPUGeForce 6600
Core Clock300MHz
PixelPipelines8
Effective Memory Clock550MHz
Memory Size128MB
Memory Interface128-Bit
Memory TypeDDR
DirectXDirectX 9
OpenGLOpenGL 1.5
D-SUB1 x D-SUB
DVI1 x DVI
TV-OutS-Video / Composite Out
VIVONo
TunerNone
Max Resolution2048 x 1536@85Hz
Operating Systems SupportedWindows 2000/XP
System RequirementsIntel Pentium III, AMD Athlon or compatible CPU
64MB System Memory or above
CD-ROM
Requires PCI Express x16 slot compliant motherboard
FeaturesNVIDIA CineFX 3.0 Technology
Powers the next generation of cinematic realism. Full support for Microsoft DirectX 9.0 Shader Model 3.0 enables stunning and complex special effects. Next-generation shader architecture delivers faster and smoother gameplay.
64-Bit Texture Filtering and Blending
Based on the OpenEXR technology from Industrial Light and Magic, NVIDIA's 64-bit texture implementation sets new standards for image clarity and quality through floating point capabilities in shading, filtering, texturing, and blending.
NVIDIA UltraShadow II Technology
Enhances the performance of

Questions about this item

Will this card fit a modern PCI Express x16 slot?

The card uses a PCI Express x16 interface, so it fits any standard x16 slot electrically, though the GPU only supports DirectX 9 and Windows 2000/XP drivers.

Can it drive a 2048 x 1536 display at 85 Hz?

Yes, the maximum resolution listed is 2048 x 1536 at 85 Hz, reachable through the D-SUB or DVI output.

What extra power connectors does the board need?

No external power connector is mentioned in the specifications, so the card draws all power from the slot.
