MSI
MSI GeForce GT 1030 2GH LP OC 2GB GDDR5 Low Profile graphics card
Low-profile graphics card with passive cooling, 2 GB GDDR5 memory and HDMI plus DisplayPort outputs for dual-monitor setups
- InterfacePCI Express 3.0 x16 (uses x4)
- Chipset ManufacturerNVIDIA
- GPUGeForce GT 1030
- CUDA Cores384
- Effective Memory Clock6008 MHz
- Memory Size2GB
- Low-profile design fits slim cases at just 69 mm tall
- Passive cooling runs silently with a 30 W TDP
- 384 CUDA cores and 6008 MHz GDDR5 deliver smooth 1080p media playback
- HDMI and DisplayPort outputs drive two displays simultaneously
- MIL-STD-810G certification confirms rugged component reliability
What the card is and who it targets

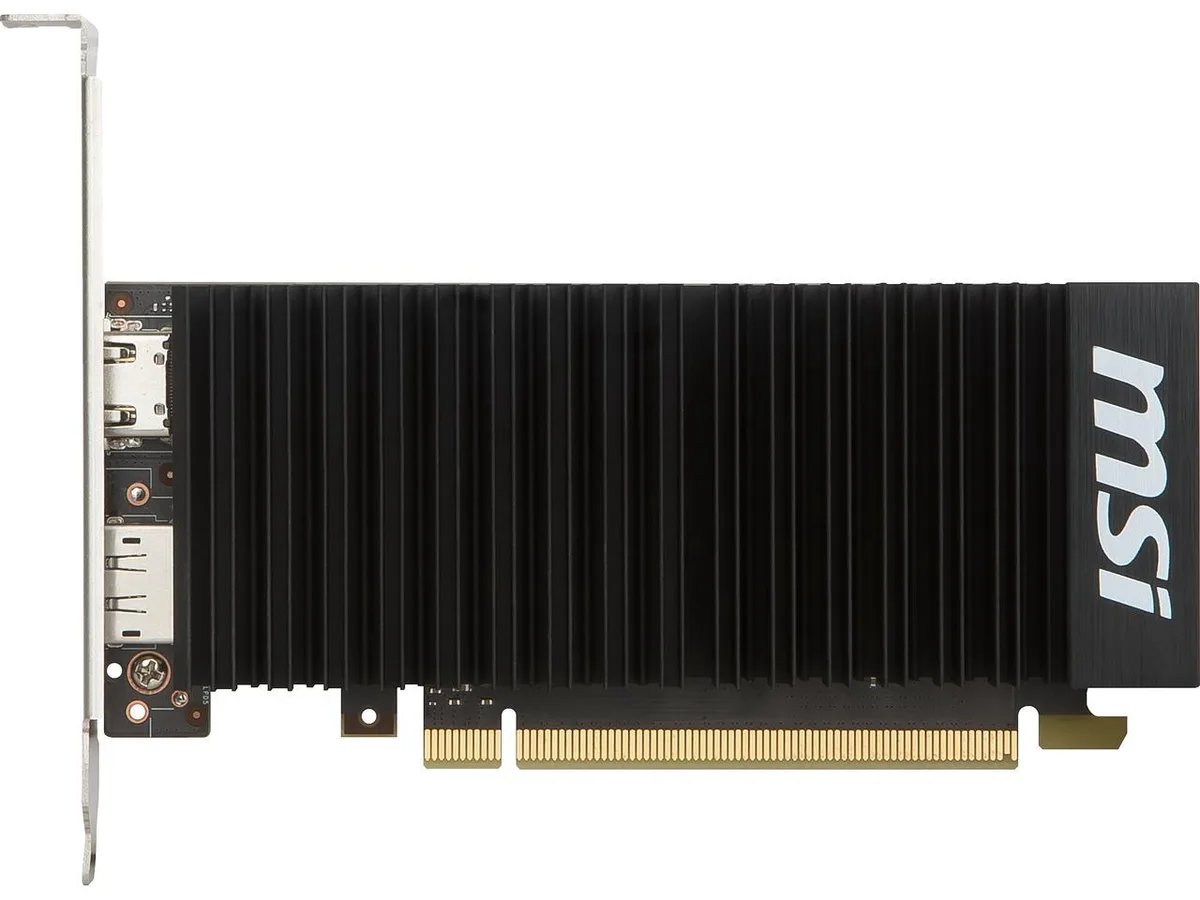

The MSI GeForce GT 1030 2GH LP OC is a low-profile graphics card with 2GB of GDDR5 memory on a 64-bit bus. It uses the NVIDIA GeForce GT 1030 GPU with 384 CUDA cores running at a base clock of 1265 MHz and a boost clock of 1518 MHz. The passive cooler makes it silent, suited for compact PCs or office upgrades needing basic display output and DirectX 12 support.
Check your slot power and bracket clearance
This card fits a PCI Express 3.0 x16 slot that operates at x4 electrical width and requires a 300 W power supply for the 30 W board power. It occupies a single low-profile bracket with one HDMI 2.2 port and one DisplayPort 1.4 port for up to two monitors. Verify your case accepts a low-profile bracket and that the slot provides enough physical space for the 153 mm length.
Ideal for silent media builds not for gaming
The fanless design and 30 W draw suit small form factor media PCs, multi-monitor desktops or entry-level workstations where silence matters. It is not Virtual Reality ready and the 64-bit memory bus limits 3D performance, so buyers wanting modern gaming or heavy compute should consider a higher-tier card with active cooling and more memory bandwidth.
Highlights
- Low-profile design fits slim cases at just 69 mm tall
- Passive cooling runs silently with a 30 W TDP
- 384 CUDA cores and 6008 MHz GDDR5 deliver smooth 1080p media playback
- HDMI and DisplayPort outputs drive two displays simultaneously
- MIL-STD-810G certification confirms rugged component reliability
Specifications
| Brand | MSI |
|---|---|
| Model | GT 1030 2GH LP OC |
| Interface | PCI Express 3.0 x16 (uses x4) |
| Chipset Manufacturer | NVIDIA |
| GPU | GeForce GT 1030 |
| CUDA Cores | 384 |
| Effective Memory Clock | 6008 MHz |
| Memory Size | 2GB |
| Memory Interface | 64-Bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.5 |
| Multi-Monitor Support | 2 |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| Virtual Reality Ready | No |
| Cooler | Fanless |
| Thermal Design Power | 30W |
| System Requirements | Power Consumption: 30W Recommended PSU: 300 W |
| HDCP Ready | 2.2 |
| Features | All Solid Capacitors - 10 years long lifetime under full load. - Lower temperature and higher efficiency. - Aluminum core for higher stability. Low Profile Design - Low profile design saves more spaces. - User can build slim or smaller system easier. Virtually Silent - Large heat sink covers the area of GPU and memory. - Providing the best environment for gaming and multimedia. Afterburner Overclocking Utility - Wireless control through Android/iOS devices. - Predator: In-game video recording. - Kombustor: built-in DirectX12 benchmark. GeForce Experience - Ensures the best gaming exp |
| Form Factor | Low Profile |
| Max GPU Length | 153 mm |
| Card Dimensions (L x H) | 6.02" x 2.72" |
| Slot Width | 1.5 slot |
| Package Contents | Accessories: Driver CD Installation Guide Low Profile Bracket |
Questions about this item
Does the GT 1030 2GH LP OC come with a low-profile bracket or do I need to buy one separately?
The card ships in a box weighing 542 g and includes the low-profile form factor already fitted, so no separate bracket purchase is required.
Should I choose this 2 GB GDDR5 version or a larger memory model for a small-form-factor PC?
This model provides 2 GB of GDDR5 on a 64-bit bus with 384 CUDA cores and a 30 W TDP, making it the only version that fits a single-slot low-profile slot without auxiliary power.
What does the 1518 MHz boost clock mean for everyday desktop use and light gaming?
The 1518 MHz boost clock drives the 384 CUDA cores and 6008 MHz memory to deliver smooth 1080p video playback and entry-level gaming within the 30 W power envelope.
