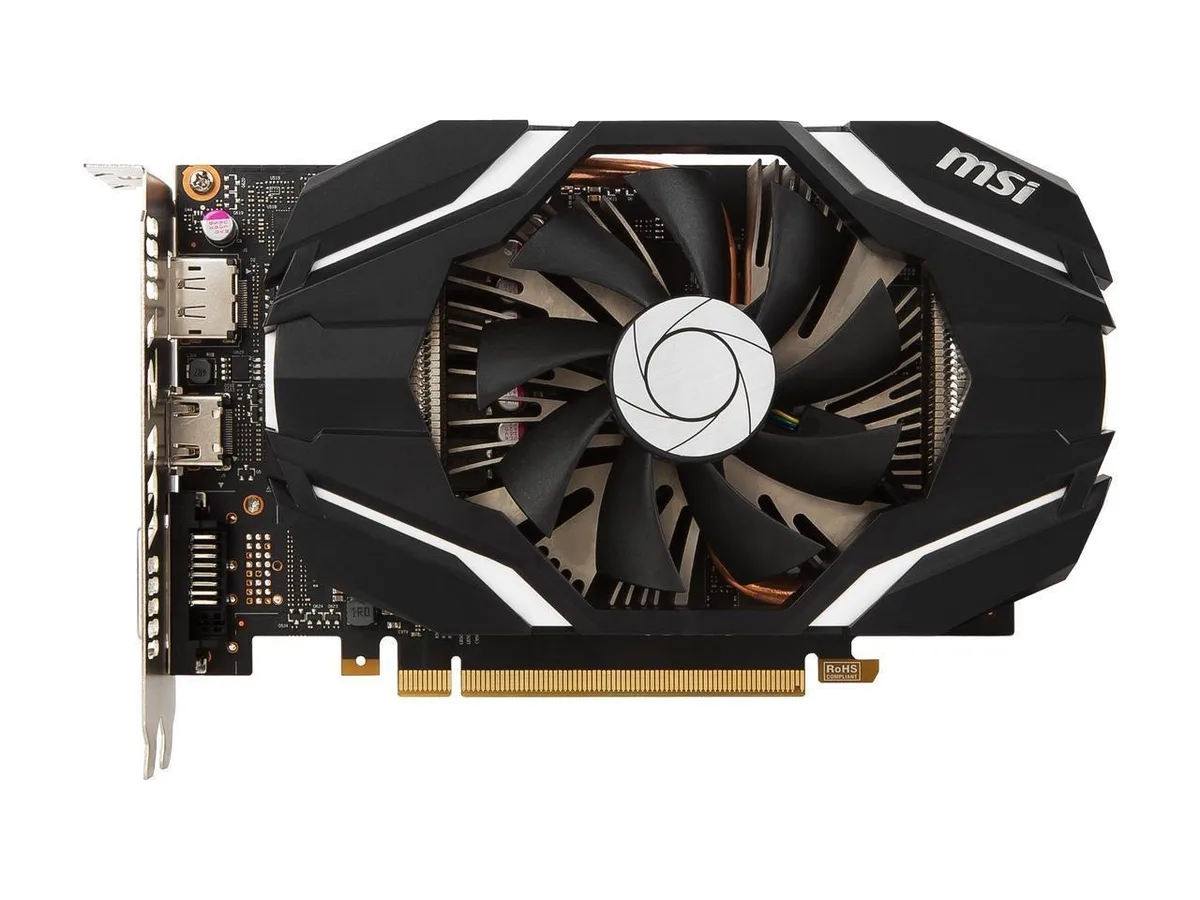

Compact MSI GeForce GTX 1060 graphics card with single fan cooler

MSI

MSI GeForce GTX 1060 6G OCV1 6GB GDDR5 graphics card

SKU CH-Z48V-M0A56

Compact single-fan card with 6 GB GDDR5 on a 192-bit bus, 1280 CUDA cores, 1544 MHz base and 1759 MHz boost clocks, plus HDMI 2.0, DisplayPort 1.4 and DVI for VR-ready gaming

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1060
  • Core Clock1544 MHz
  • Boost Clock1759 MHz
  • 6 GB GDDR5 memory at 8008 MHz effective speed
  • Boost clock reaches 1759 MHz for higher frame rates
  • 1280 CUDA cores accelerate parallel workloads
  • Three display outputs: HDMI 2.0, DisplayPort 1.4, DL-DVI-D
  • PCI Express 3.0 x16 interface provides full bandwidth

Compact 6GB GTX 1060 for small builds

The MSI GeForce GTX 1060 6G OCV1 fits compact cases with a single-fan cooler and a short PCB. It targets 1080p gamers and VR users who need a 6GB frame buffer without a large triple-slot design. The card draws power from the PCI Express 3.0 x16 slot and a single external connector.

PCI Express 3.0 x16 and display outputs

The board uses a PCI Express 3.0 x16 interface with a 192-bit memory bus and 8008 MHz effective memory clock. Video outputs comprise one HDMI 2.0, one DisplayPort 1.4 and one DL-DVI-D, supporting up to three monitors simultaneously. DirectX 12 and OpenGL 4.5 provide the API baseline for current titles.

Check case length and power connectors

Verify that your chassis can accept the card length and that the power supply includes the required auxiliary connector for the factory overclock. Ensure the motherboard offers a full-size PCI Express 3.0 x16 slot and that your display cables match HDMI 2.0, DisplayPort 1.4 or DL-DVI-D.

Highlights

  • 6 GB GDDR5 memory at 8008 MHz effective speed
  • Boost clock reaches 1759 MHz for higher frame rates
  • 1280 CUDA cores accelerate parallel workloads
  • Three display outputs: HDMI 2.0, DisplayPort 1.4, DL-DVI-D
  • PCI Express 3.0 x16 interface provides full bandwidth

Specifications

BrandMSI
SeriesGTX 1060 6G OCV1
ModelGTX 1060 6G OCV1
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1060
Core Clock1544 MHz
Boost Clock1759 MHz
CUDA Cores1280
Effective Memory Clock8008 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support3
HDMI1 x HDMI 2.0
DisplayPort1 x DisplayPort 1.4
DVI1 x DL-DVI-D
Virtual Reality ReadyYes
CoolerSingle Fan
System RequirementsPower consumption: 120W Recommended PSU: 400W
Power Connector6-Pin
Dual-Link DVI SupportedYes
HDCP Ready2.2
FeaturesMilitary Class 4 Components - Certified to MIL-STD-810G standards for top stability and quality. - Built with Hi-c CAP and Solid CAP components. Afterburner Overclocking Utility - Wireless control through Android/iOS devices. - Predator: In-game video recording. - Kombustor: built-in DirectX12 benchmark. NVIDIA G-SYNC - Synchronizes the display refresh to your GeForce GTX GPU for the fast, smooth gaming. GeForce GTX VR Ready - NVIDIA's unique set of features ensure you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amaz
Form FactorATX
Max GPU Length188 mm
Card Dimensions (L x H)7.40" x 4.57"
Slot Width2 Slots

Questions about this item

Which capacity version of the MSI GTX 1060 OCV1 should I pick?

The OCV1 model is only offered with 6GB of GDDR5 memory on a 192-bit bus, so there is no alternative capacity to choose from.

What does the 1759 MHz boost clock mean once the card is installed in my PC?

Under load the GPU can reach 1759 MHz, giving higher frame rates than the 1544 MHz base clock while staying within the card's power and thermal limits.

How does the PCI Express 3.0 x16 interface affect real-world performance?

The x16 link provides full bandwidth for the GTX 1060, so the interface does not bottleneck the 1280 CUDA cores or 8008 MHz memory in modern games.
