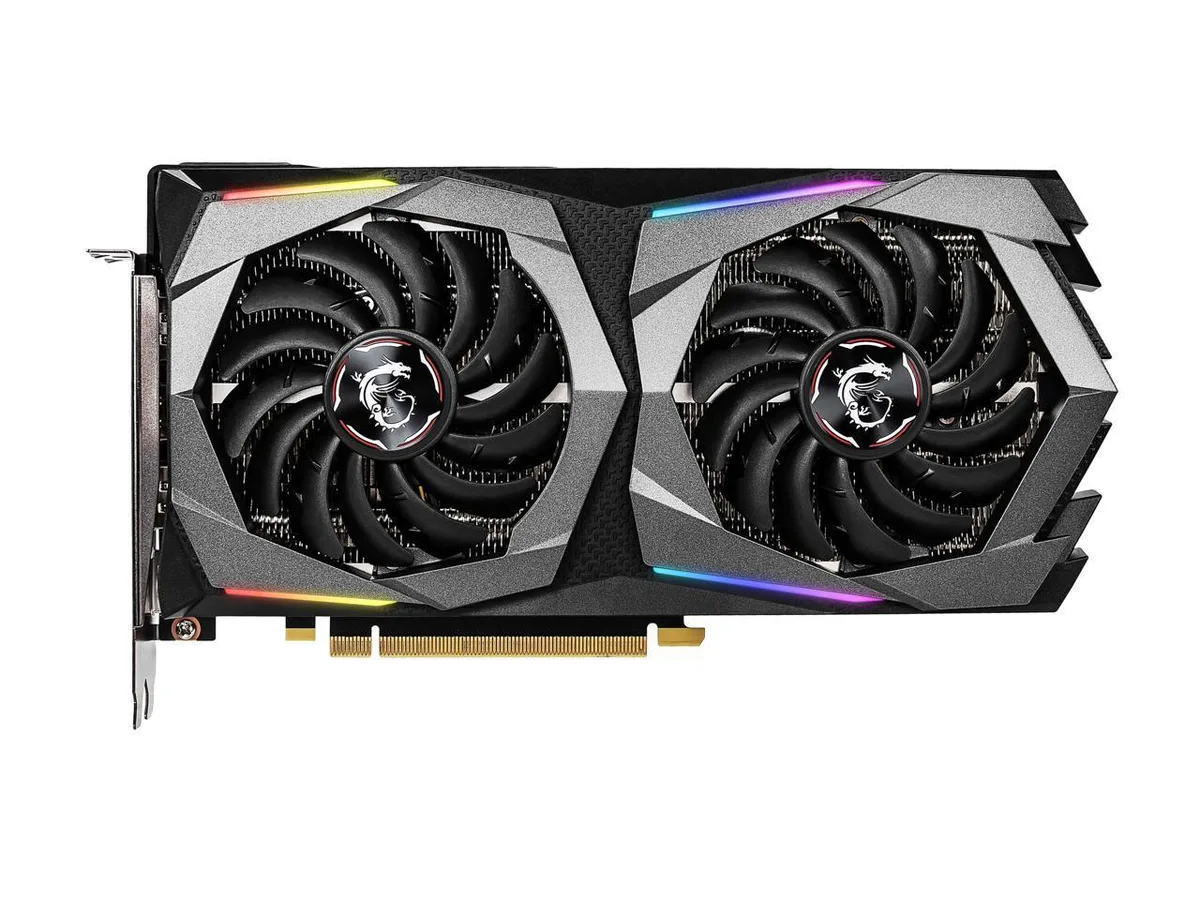

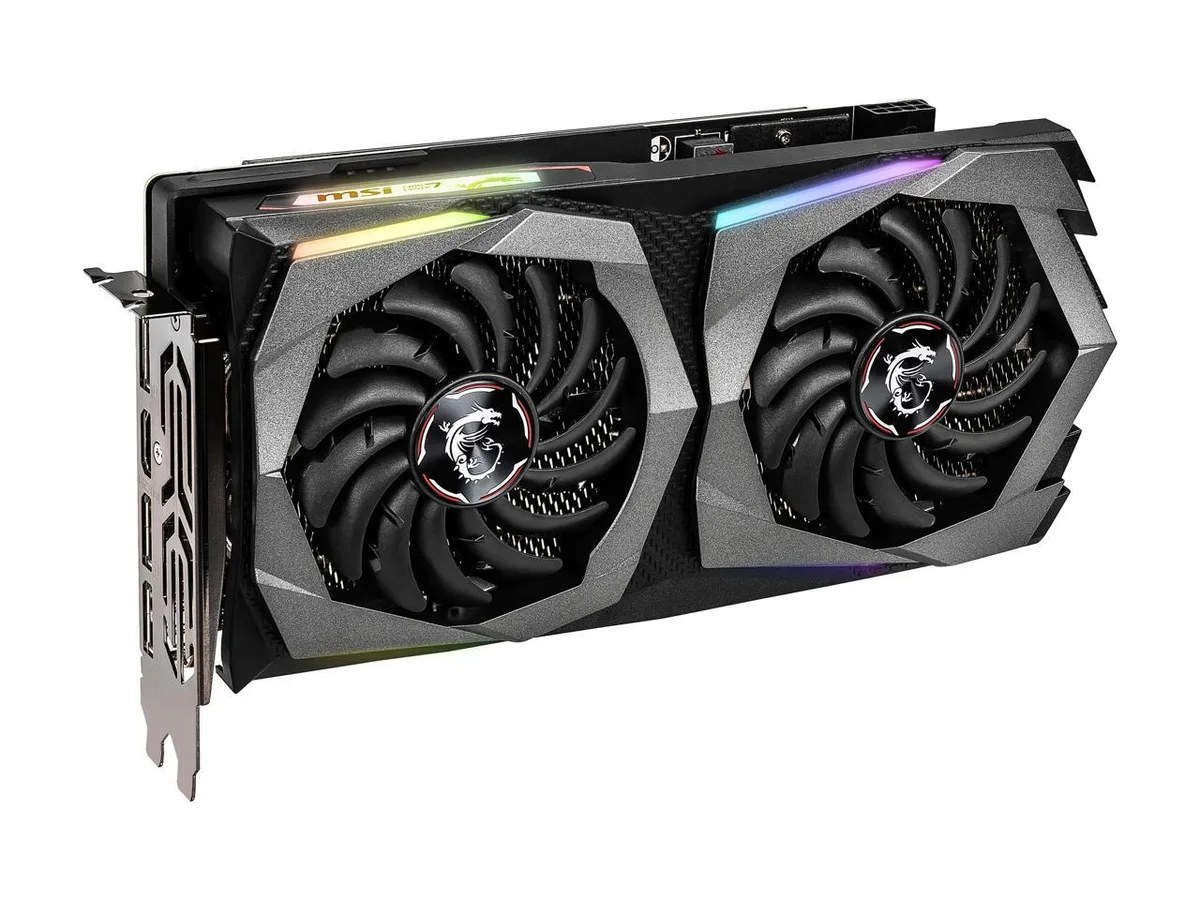

MSI GeForce RTX 2060 Gaming Z 6G dual-fan graphics card with black metal shroud and backplate

MSI

MSI GeForce RTX 2060 Gaming Z 6G 6GB GDDR6 1830 MHz graphics card

SKU CH-16VF-EKD7D

GeForce RTX 2060 GPU with 6GB GDDR6 on a 192-bit bus, 1830 MHz boost clock, 1920 CUDA cores, three DisplayPort 1.4 outputs and one HDMI 2.0b port

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2060
  • Boost Clock1830 MHz
  • CUDA Cores1920
  • 6GB GDDR6 memory on a 192-bit bus handles high-resolution textures smoothly
  • Boost clock of 1830 MHz delivers strong frame rates in demanding titles
  • 1920 CUDA cores accelerate rendering and compute workloads efficiently
  • Three DisplayPort 1.4 and one HDMI 2.0b ports drive up to four 7680 x 4320 displays
  • PCI Express 3.0 x16 interface provides ample bandwidth for modern systems

GeForce RTX 2060 for 1080p and 1440p gaming

The MSI GeForce RTX 2060 Gaming Z 6G targets players who want solid 1080p and 1440p performance with ray-tracing headroom. Its 1920 CUDA cores and 6GB of 192-bit GDDR6 memory feed the GPU at 14 Gbps, while the boost clock reaches 1830 MHz. Four simultaneous displays are supported for multi-monitor setups.

PCI Express 3.0 x16 bandwidth and display limits

The card plugs into a PCI Express 3.0 x16 slot, capping theoretical bandwidth to the 3.0 specification rather than the newer 4.0 or 5.0 standards. Display outputs max out at 7680 x 4320 across three DisplayPort 1.4 ports and one HDMI 2.0b port, so 8K at high refresh rates is not possible. DirectX 12 and OpenGL 4.5 define the API ceiling.

Dual-slot 9.72-inch board with standard bracket

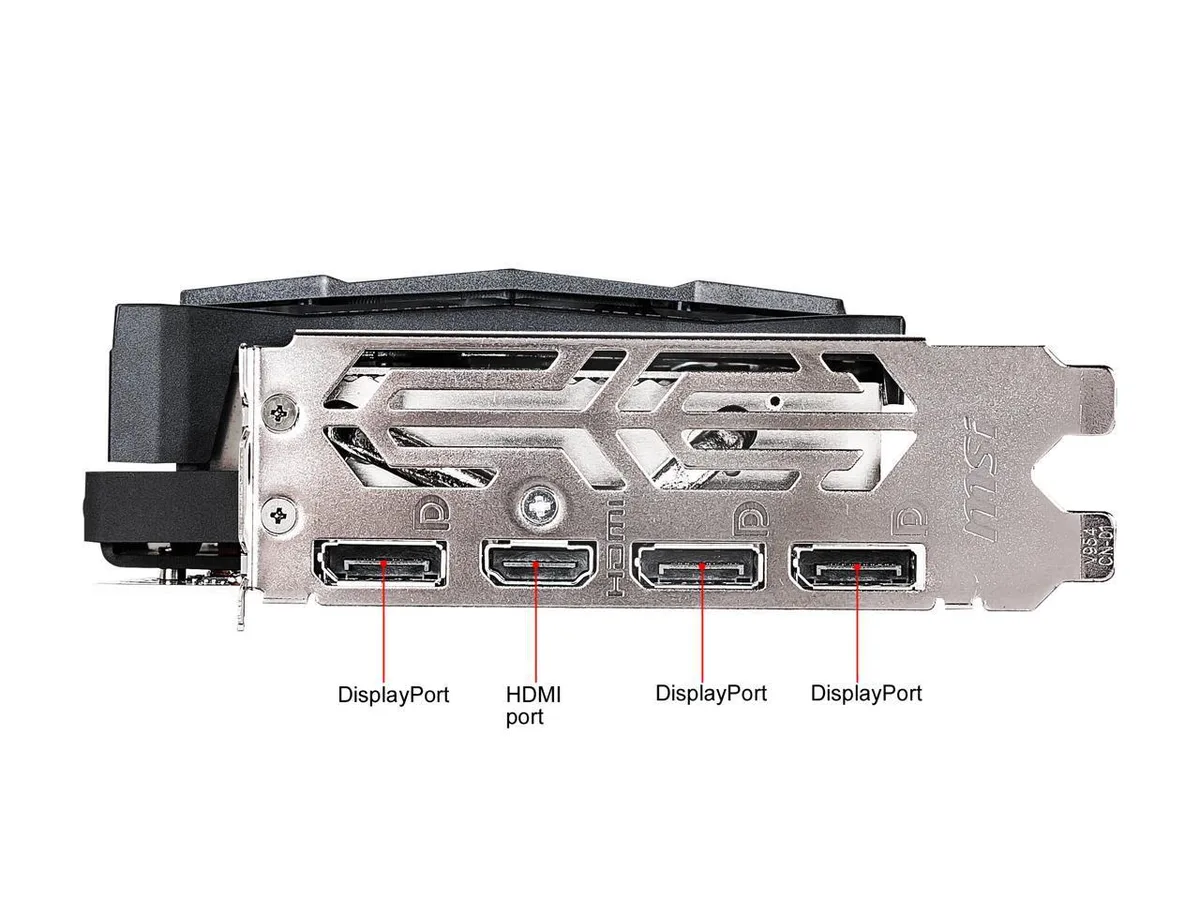

At 9.72 inches long and 5.08 inches tall the dual-slot cooler fits most mid-tower cases without blocking adjacent slots. The metal backplate stiffens the PCB and protects the rear components during handling. One HDMI 2.0b and three DisplayPort 1.4 connectors sit on a standard I/O bracket, making cable routing straightforward for typical desk layouts.

Highlights

  • 6GB GDDR6 memory on a 192-bit bus handles high-resolution textures smoothly
  • Boost clock of 1830 MHz delivers strong frame rates in demanding titles
  • 1920 CUDA cores accelerate rendering and compute workloads efficiently
  • Three DisplayPort 1.4 and one HDMI 2.0b ports drive up to four 7680 x 4320 displays
  • PCI Express 3.0 x16 interface provides ample bandwidth for modern systems

Specifications

BrandMSI
SeriesRTX 2060 GAMING Z 6G
ModelRTX 2060 GAMING Z 6G
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2060
Boost Clock1830 MHz
CUDA Cores1920
Effective Memory Clock14 Gbps
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power190W
System RequirementsRecommended PSU: 500W
Power Connector8-Pin
HDCP Ready2.2
FeaturesTwin Frozr 7 Thermal Design: TORX Fan 3.0 - Dispersion fan blade: Steep curved blade accelerating the airflow. - Traditional fan blade: Provides steady airflow to massive heat sink below. Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high. Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment. RGB Mystic Light: Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components. Dragon Center: 1 click to optim
Max GPU Length247 mm
Card Dimensions (L x H)9.72" x 5.08"

Questions about this item

Should I choose the 6 GB 192-bit GDDR6 version or is there a larger frame buffer available?

This model ships with 6 GB of GDDR6 on a 192-bit bus running at 14 Gbps; no higher-capacity variant is listed for the Gaming Z 6G.

What does the 1830 MHz boost clock deliver in actual games?

The 1830 MHz boost clock is the peak frequency the GPU can reach under load, giving the 1920 CUDA cores their highest throughput for the RTX 2060 chipset.

Does the PCI Express 3.0 x16 interface limit performance on a modern motherboard?

The card uses PCI Express 3.0 x16, which provides ample bandwidth for the RTX 2060; typical gaming workloads do not saturate this link.
