MSI

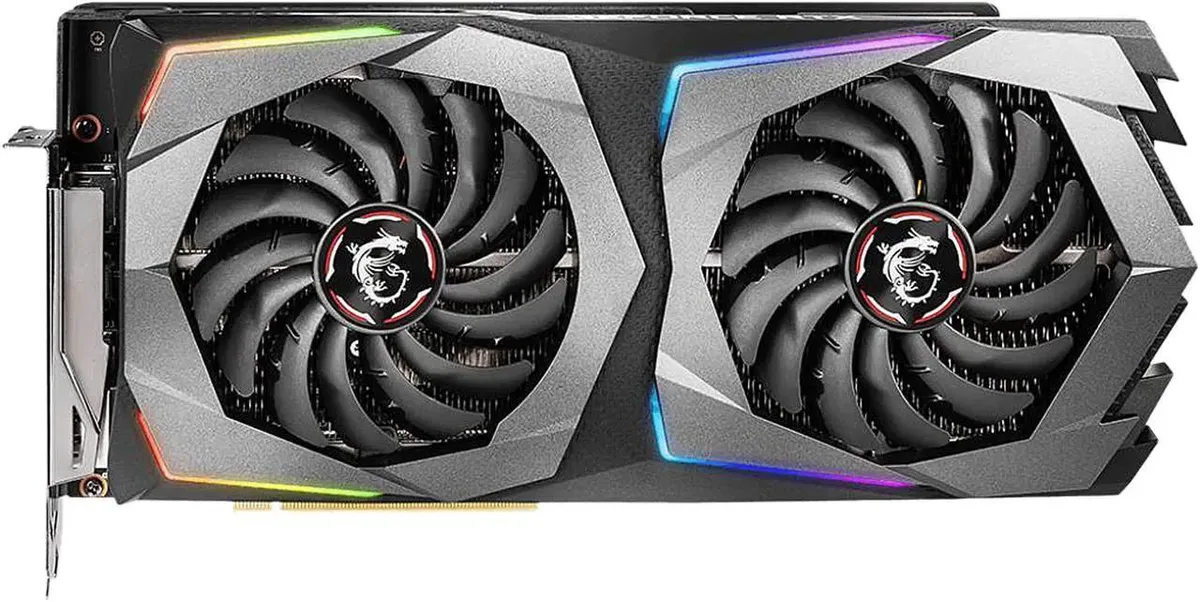

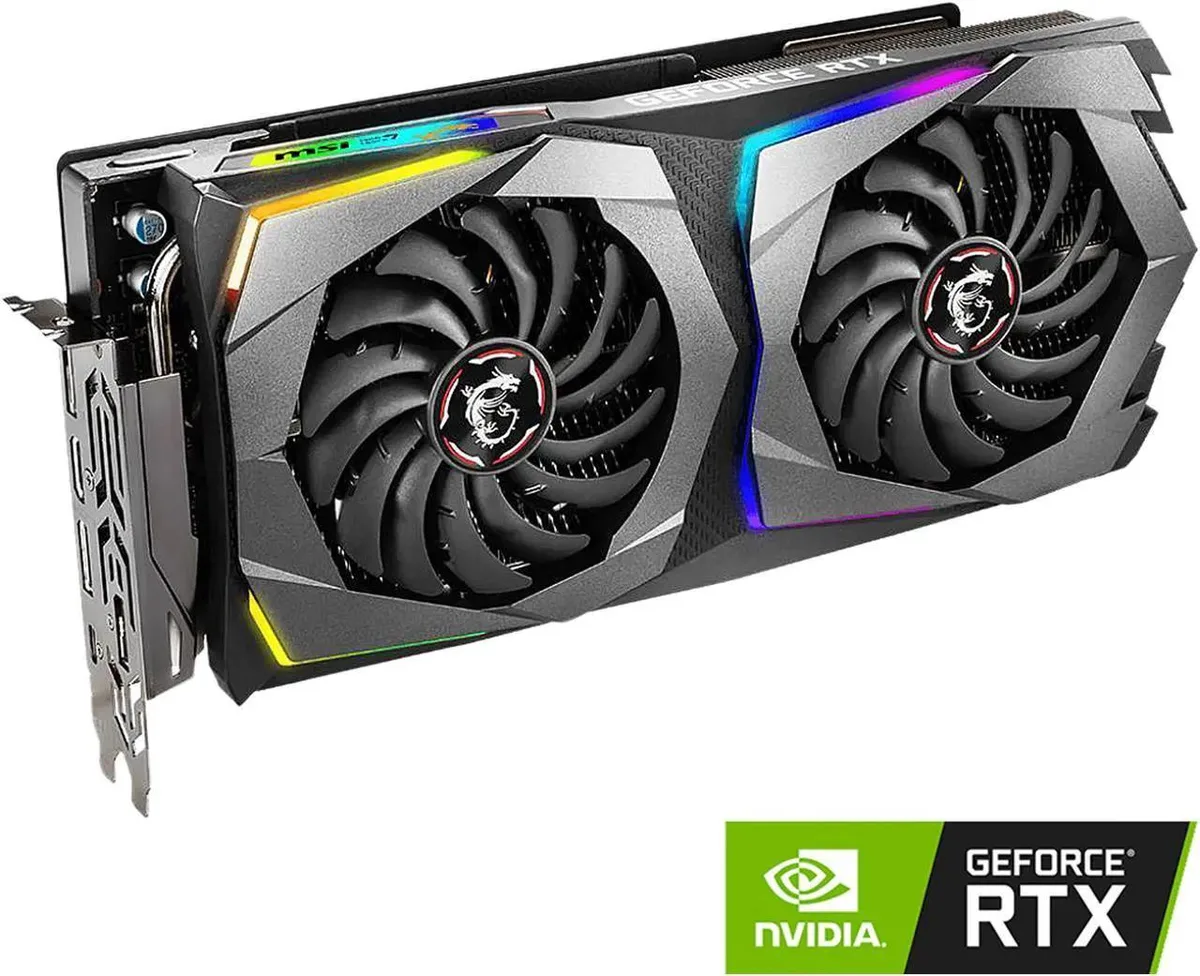

MSI GeForce RTX 2070 GAMING 8G 8GB GDDR6 Graphics Card
Delivers real-time ray tracing with 2304 CUDA cores, 8 GB GDDR6 at 14 Gbps, and 1410 MHz base clock boosting to 1620 MHz
- InterfacePCI Express 3.0 x16
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 20 Series
- GPUGeForce RTX 2070
- Core Clock1410 MHz
- Boost Clock1620 MHz
- 8GB GDDR6 memory with 256-bit interface for high-bandwidth gaming
- 2304 CUDA cores accelerate real-time ray tracing and AI workloads
- Boost clock of 1620 MHz delivers responsive frame rates at 1440p

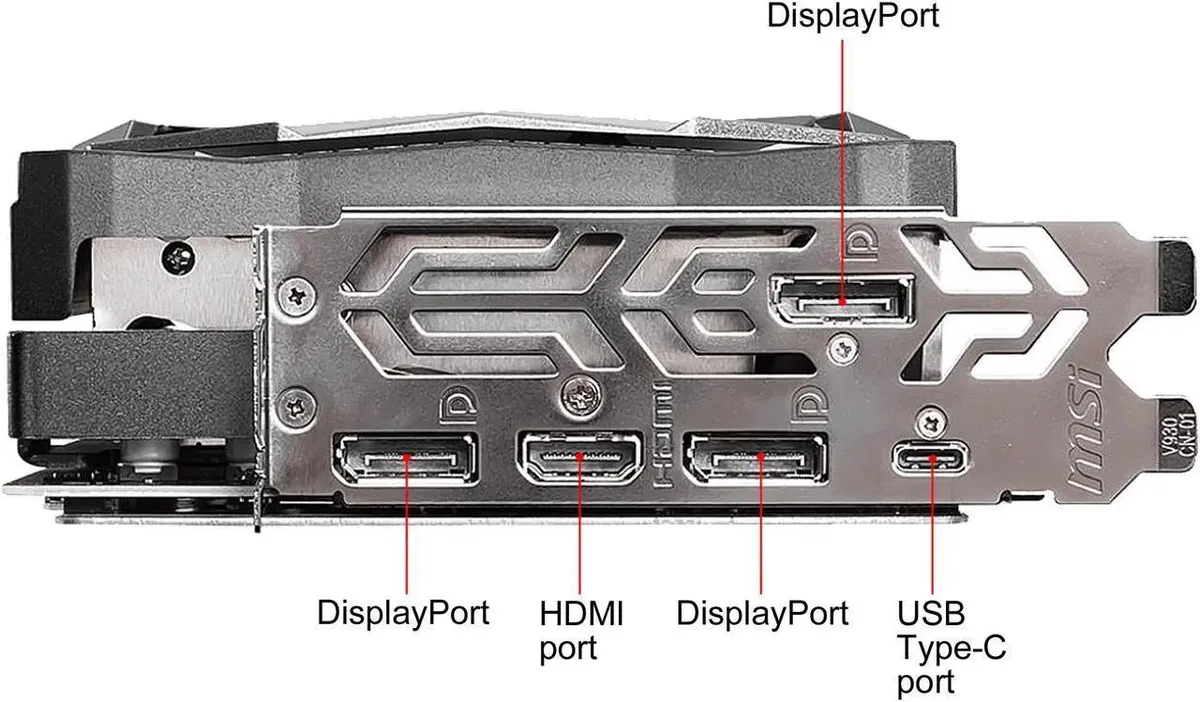

- Four display outputs including HDMI 2.0b and three DisplayPort 1.4 connectors
- Supports up to 7680 x 4320 resolution across four monitors
Product identity
The MSI GeForce RTX 2070 GAMING 8G is a graphics card built on the NVIDIA Turing architecture. It targets gamers and creators who need hardware-accelerated ray tracing and AI-enhanced rendering in a single-slot PCI Express 3.0 x16 form factor. The board carries 8GB of GDDR6 memory across a 256-bit bus.
Deciding specification
The GPU delivers 2304 CUDA cores with a base clock of 1410 MHz and a boost clock of 1620 MHz. Memory runs at 14 Gbps effective, feeding the 256-bit interface for high bandwidth in 1440p and entry-level 4K workloads. This clock and core combination determines whether the card meets a given performance target.
Fit and alternatives
The card suits builders running a PCI Express 3.0 platform who want DisplayPort 1.4, HDMI 2.0b and USB Type-C outputs for up to four displays at 7680 x 4320. Users requiring PCI Express 4.0, more than 8GB VRAM, or a newer architecture should evaluate other models.
Highlights
- 8GB GDDR6 memory with 256-bit interface for high-bandwidth gaming
- 2304 CUDA cores accelerate real-time ray tracing and AI workloads
- Boost clock of 1620 MHz delivers responsive frame rates at 1440p
- Four display outputs including HDMI 2.0b and three DisplayPort 1.4 connectors
- Supports up to 7680 x 4320 resolution across four monitors
Specifications
| Brand | MSI |
|---|---|
| Model | RTX 2070 GAMING 8G |
| Interface | PCI Express 3.0 x16 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 20 Series |
| GPU | GeForce RTX 2070 |
| Core Clock | 1410 MHz |
| Boost Clock | 1620 MHz |
| CUDA Cores | 2304 |
| Effective Memory Clock | 14 Gbps |
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.5 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
| Other Ports | 1 x USB Type-C |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Thermal Design Power | 175W |
| System Requirements | Recommended PSU: 550W |
| Recommended PSU Wattage | 550W |
| Power Connector | 1 x 8-pin, 1 x 6-pin |
| HDCP Ready | 2.2 |
| Features | Twin Frozr 7 Thermal Design TORX Fan 3.0 with Double Ball Bearings - Dispersion fan blade: Steep curved blade accelerating the airflow. - Traditional fan blade: Provides steady airflow to massive heat sink below. Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high. Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment. RGB Mystic Light Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components. Dragon Cent |
| Max GPU Length | 295 mm |
| Card Dimensions (L x H) | 11.61" x 5.51" |
Questions about this item
How does the 1620 MHz boost clock affect frame rates in a built system?
The 1620 MHz boost clock is the peak GPU frequency under load; actual in-game clocks depend on power limit, temperature and the title's workload, so sustained speeds often sit below the peak.
What does the PCI Express 3.0 x16 interface limit in practice?
PCI Express 3.0 x16 delivers up to 16 GT/s per lane; on current platforms it rarely bottlenecks the RTX 2070, but moving to a 2.0 slot or an x8 link can shave a few percent off bandwidth-heavy scenes.
What clearance and power connectors does the card need to fit?
The dual-slot design occupies two rear brackets and requires a case with enough length for a full-size board plus one 8-pin and one 6-pin PCIe power cable from the PSU.
