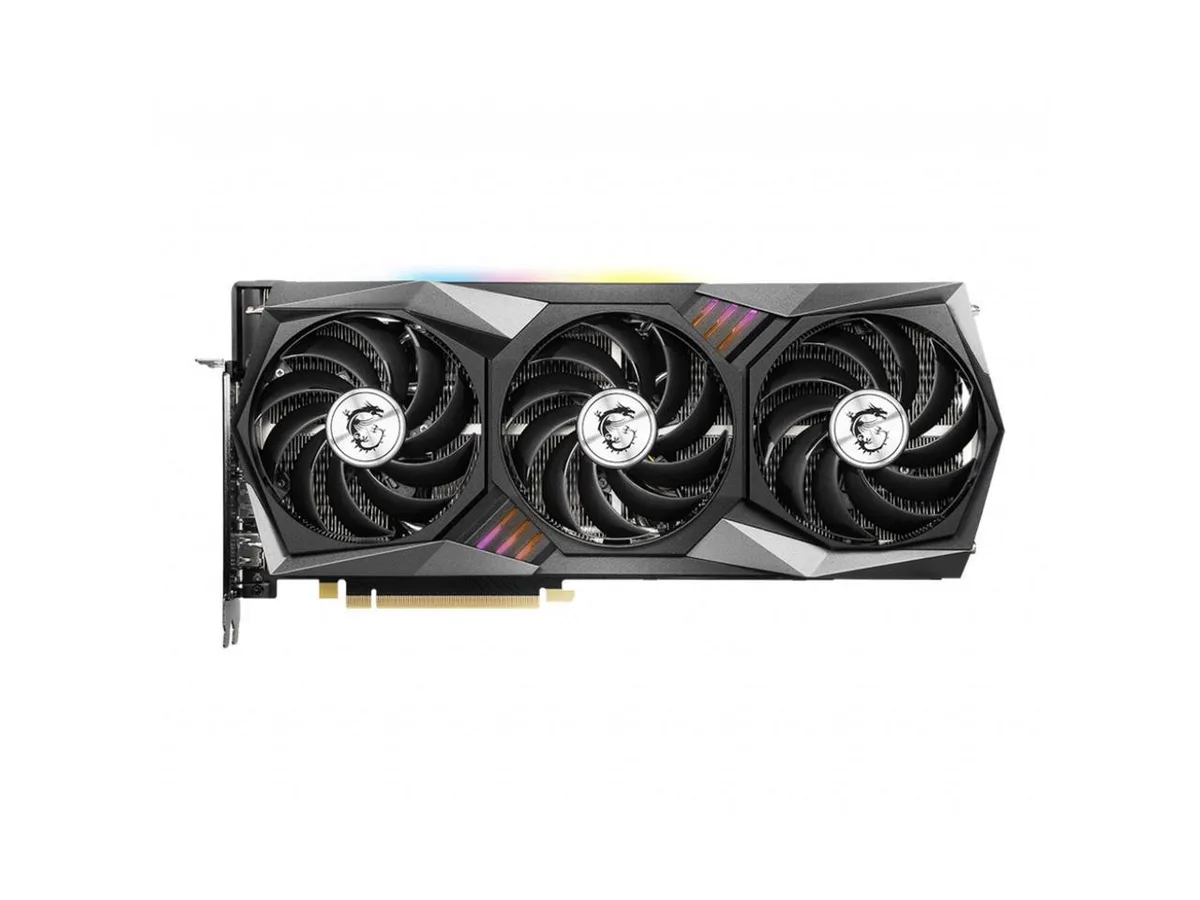

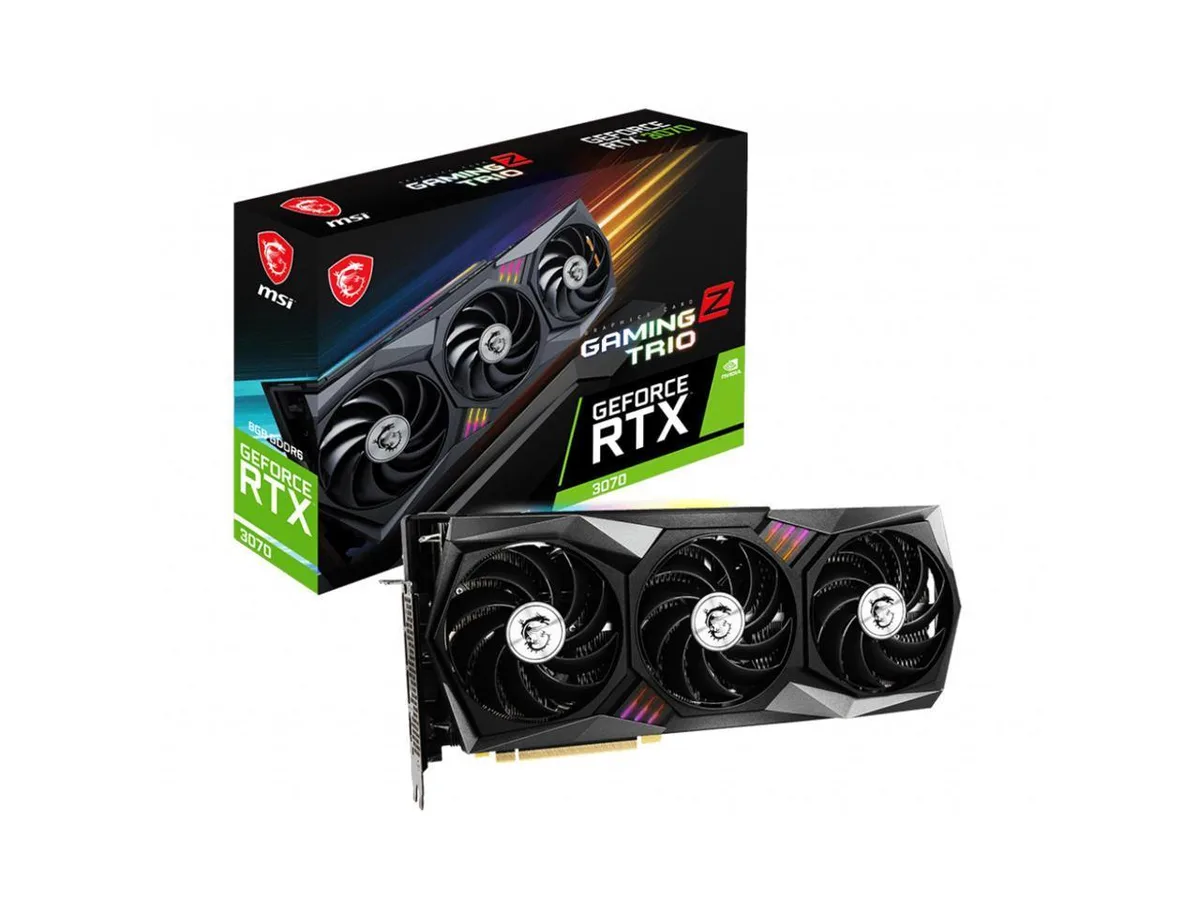

MSI RTX 3070 Gaming Z Trio triple-fan graphics card with brushed metal shroud and backplate

MSI

MSI GeForce RTX 3070 Gaming Z Trio 8G LHR graphics card

SKU CH-0WTS-2AGJA

Triple-fan RTX 3070 with 8 GB GDDR6, 1845 MHz boost, PCIe 4.0, HDMI 2.1 and three DisplayPort 1.4a outputs

  • InterfacePCI Express 4.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 30 Series
  • GPUGeForce RTX 3070
  • Boost Clock1845 MHz
  • CUDA Cores5888
  • 5888 CUDA cores accelerate rendering and compute workloads
  • 8 GB GDDR6 on a 256-bit bus delivers 14000 MHz memory bandwidth
  • Boost clock reaches 1845 MHz for higher frame rates
  • PCI Express 4.0 x16 interface doubles link bandwidth
  • Triple-fan cooler keeps thermals in check under load

GeForce RTX 3070 Gaming Z Trio 8G LHR

This graphics card is built around the NVIDIA GeForce RTX 3070 GPU with 5888 CUDA cores and a boost clock of 1845 MHz. It carries 8GB of GDDR6 memory on a 256-bit bus running at 14000 MHz. The board connects via PCI Express 4.0 and targets gamers and creators who want high-frame-rate 1440p or entry-level 4K performance. LHR firmware limits Ethereum hash rate for mining workloads.

Thermals noise and power draw

The card uses a triple-fan cooling assembly to dissipate up to 240W of board power. MSI recommends a system power supply of at least 650W to handle peak loads. Two 8-pin PCIe power connectors feed the GPU, VRAM and VRM sections. Under typical gaming loads the three fans spin at moderate speeds to keep core temperatures in check while keeping acoustic output low.

Build quality and connectors

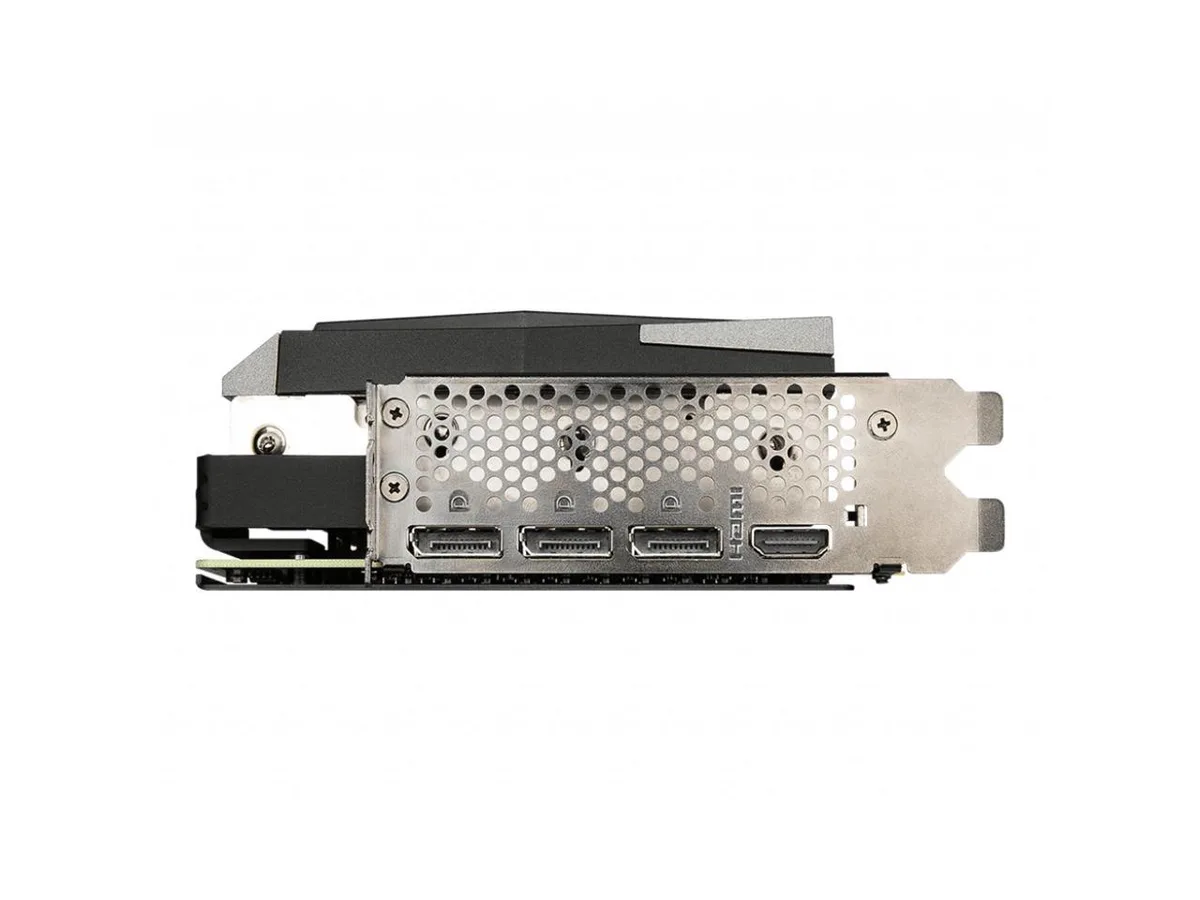

The 323 mm long board occupies a 3-slot thickness of 56 mm, so case clearance should be verified before installation. A metal backplate adds rigidity and helps prevent PCB flex during transport or heavy cooler mounting. Video output consists of one HDMI 2.1 port and three DisplayPort 1.4a connectors, supporting up to four simultaneous displays at a maximum resolution of 7680 x 4320. NVIDIA G-SYNC compatibility provides variable refresh rate support on compatible monitors.

Highlights

  • 5888 CUDA cores accelerate rendering and compute workloads
  • 8 GB GDDR6 on a 256-bit bus delivers 14000 MHz memory bandwidth
  • Boost clock reaches 1845 MHz for higher frame rates
  • PCI Express 4.0 x16 interface doubles link bandwidth
  • Triple-fan cooler keeps thermals in check under load

Specifications

BrandMSI
SeriesGaming
ModelRTX 3070 GAMING Z TRIO 8G LHR
InterfacePCI Express 4.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 30 Series
GPUGeForce RTX 3070
Boost Clock1845 MHz
CUDA Cores5888
Effective Memory Clock14000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power240W
Recommended PSU Wattage650W
Power Connector2 x 8-Pin
HDCP ReadyYes
FeaturesTRI FROZR 2 Thermal Design TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure. Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink. Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling. RGB Mystic Light Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products. MSI Center The exclusive MSI Center software lets you monitor, tweak and opti
Max GPU Length323 mm
Card Dimensions (L x H)12.72" x 5.51"
Slot Width2.8 Slot

Questions about this item

How do I install the 8pin+8pin power connectors so the card gets stable power?

Connect both 8pin plugs from the power supply to the card; each must come from a separate cable, not a single daisy-chain, otherwise the 240W draw can trip the rail.

What maintenance will the triple-fan cooler need over time?

Blow dust from the three fans and heatsink fins every few months; if a fan bearing becomes noisy, replace that fan module rather than the whole card.

What limit appears first when the 1845 MHz boost clock is held under load?

The 240W power ceiling is reached before thermal limits, so the card drops clocks to stay within the 8pin+8pin budget.
