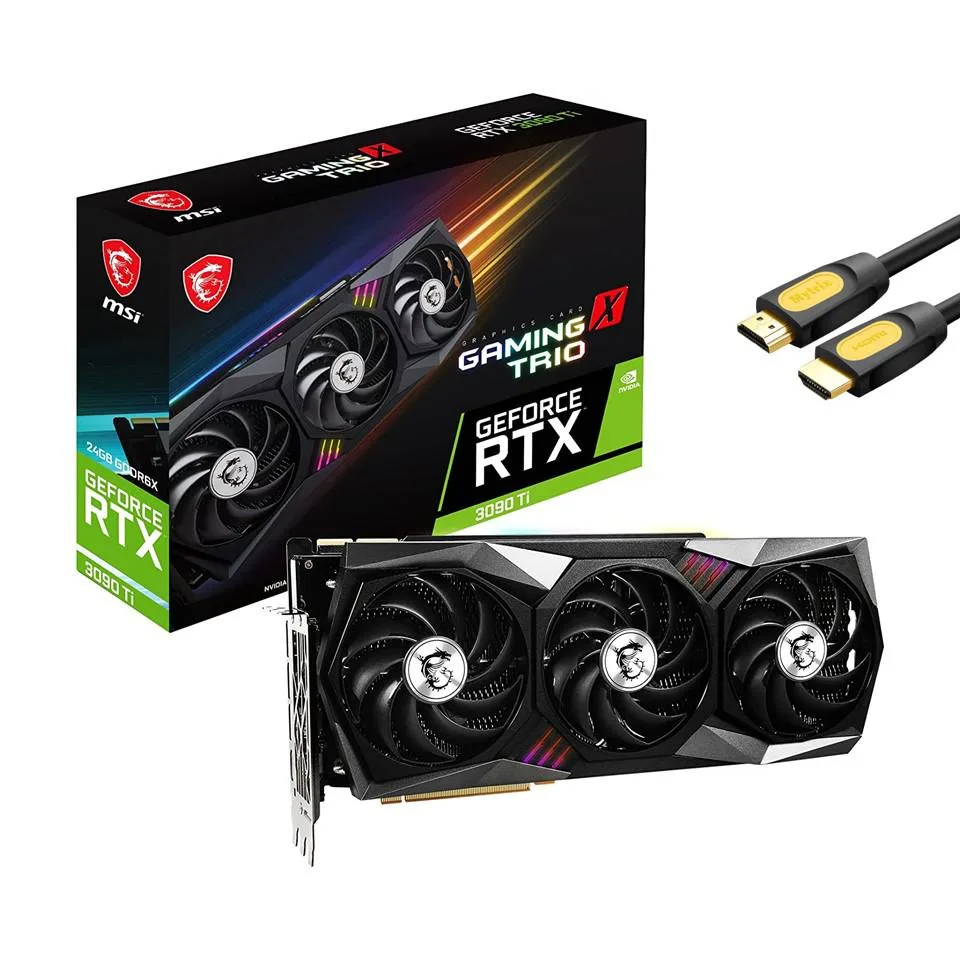

MSI GeForce RTX 3090 Ti Gaming X Trio 24GB GDDR6X graphics card

MSI RTX 3090 Ti Gaming X Trio 24GB GDDR6X

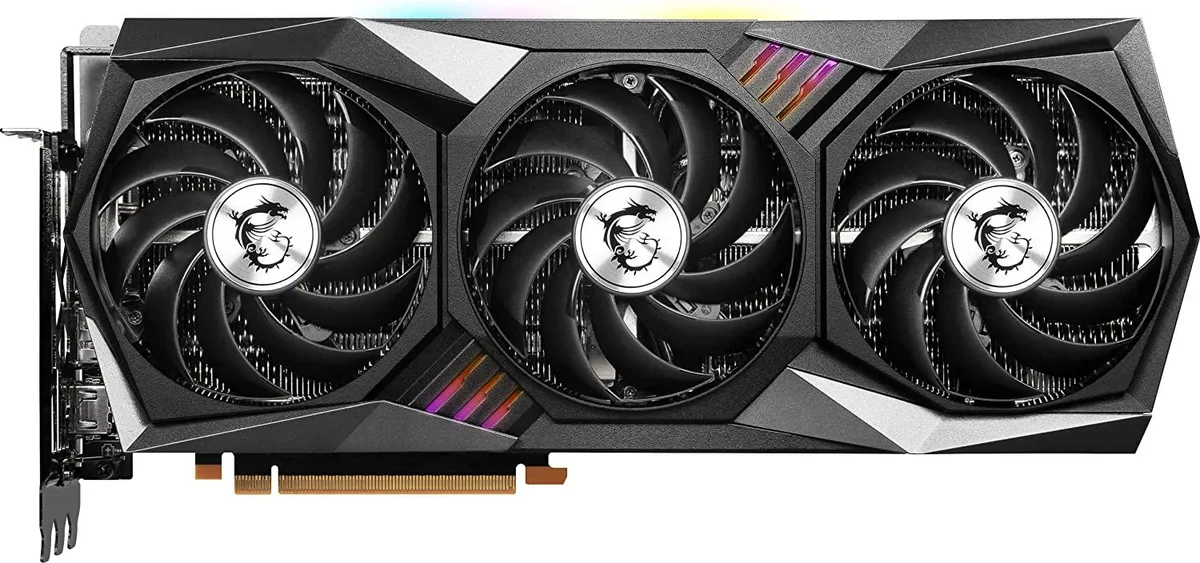

The MSI GeForce RTX 3090 Ti Gaming X Trio equips 24GB of GDDR6X memory on a 384-bit bus driven by the Ampere architecture. It targets creators and enthusiasts who need maximum frame buffer capacity for 8K gaming workloads or heavy 3D rendering tasks. The triple-fan Tri-Frozr 2 thermal design manages a 450W TDP through a copper baseplate that contacts VRAM modules directly. A single PCIe Gen 5 16-pin connector delivers power to the 10752 CUDA cores.

VRAM upgrade from 10GB and 12GB cards

Stepping up from 10GB or 12GB models eliminates texture streaming bottlenecks in modern titles and allows larger scene assets to reside in fast local memory. The 21 Gbps effective clock feeds the 384-bit interface with bandwidth that matches the compute capability of the 1920 MHz boost clock. This jump is worth it when workloads exceed 12GB VRAM or when 7680 x 4320 output is required across four displays. An 850W power supply is the minimum recommended unit for stable operation.

PCIe 4.0 x16 interface practical limits

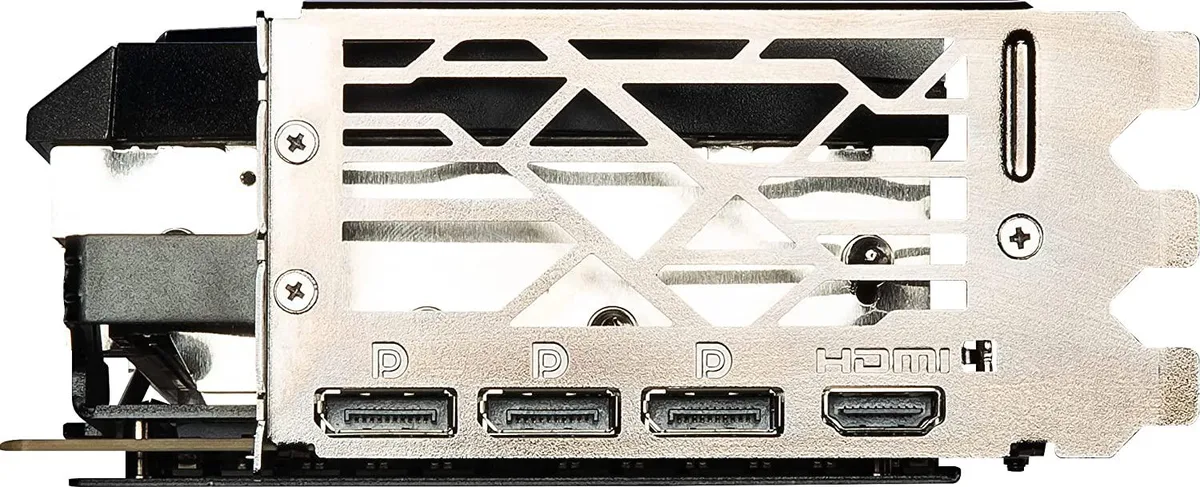

The card communicates over a PCI Express 4.0 x16 link which provides sufficient throughput for current gaming and compute loads. Bandwidth saturation only appears in extreme multi-GPU compute scenarios that this single-GPU product does not target. The physical triple-slot form factor at 325 mm length demands a spacious ATX chassis with adequate clearance for the 12.80 x 5.51 inch footprint. Display outputs consist of one HDMI 2.1 and three DisplayPort 1.4a connectors supporting HDCP and VR readiness.
