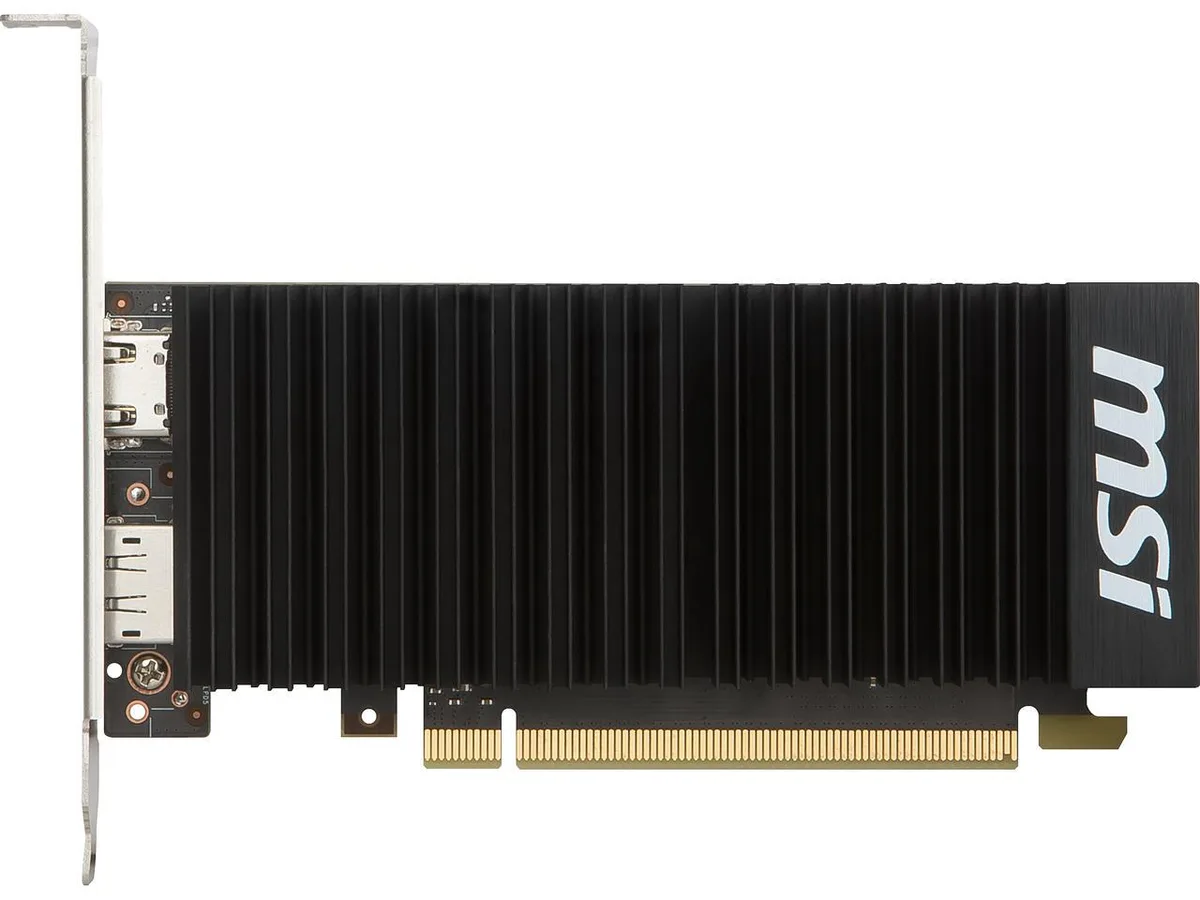

Low-profile black graphics card with passive cooler, single slot, HDMI and DisplayPort outputs

MSI

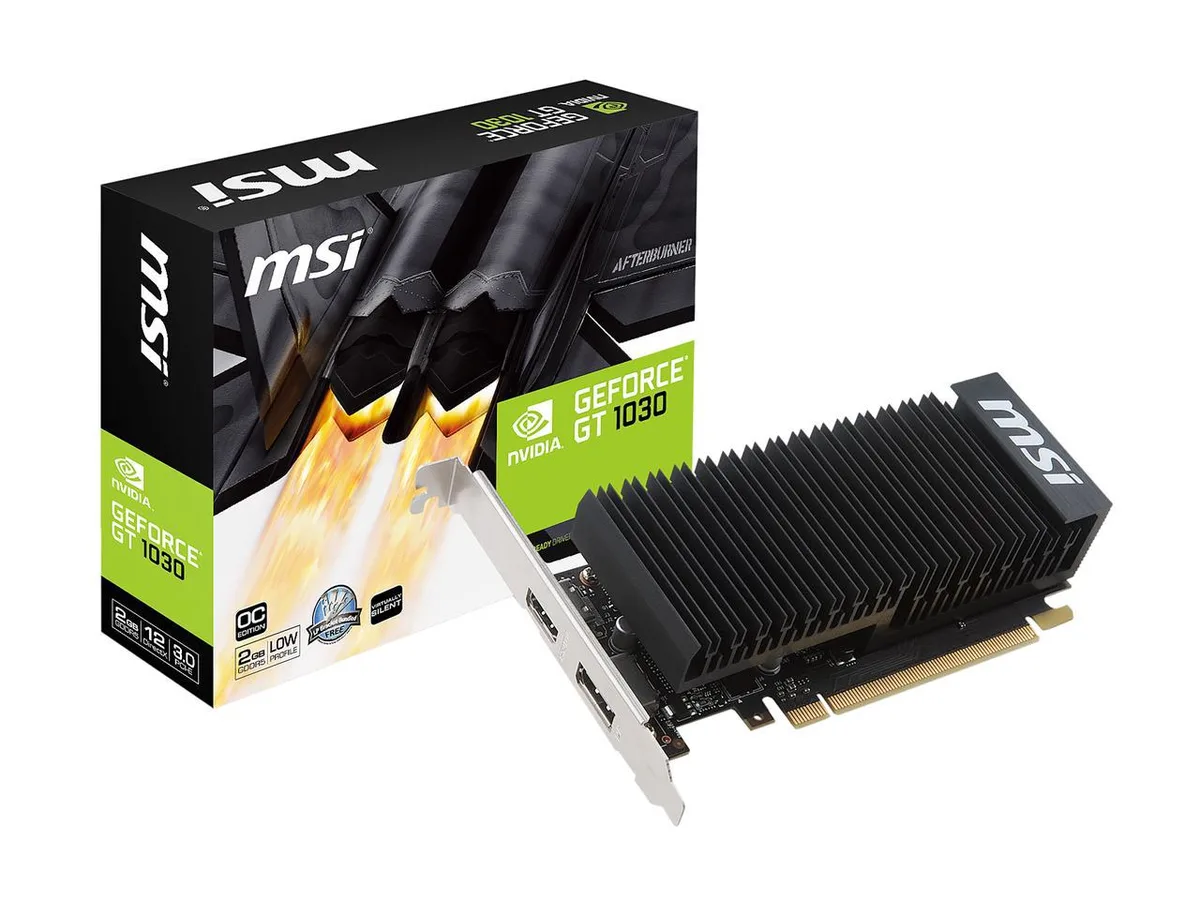

MSI GT 1030 2GH LP OC graphics card

SKU CH-PV1M-1H7NT

Low-profile passive card with 2GB GDDR5, 384 CUDA cores and HDMI plus DisplayPort outputs

  • InterfacePCI Express 3.0 x16 (uses x4)
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GT 1030
  • CUDA Cores384
  • Effective Memory Clock6008 MHz
  • Memory Size2GB
  • Low-profile design fits compact cases with a 38 mm depth
  • Passive cooling runs silently at a 30 W TDP
  • 2 GB GDDR5 memory on a 64-bit bus at 6008 MHz
  • 384 CUDA cores boost to 1518 MHz for light compute
  • Dual outputs drive two monitors via HDMI 2.2 and DisplayPort 1.2

Low-profile GT 1030 for compact builds

This MSI GT 1030 2GH LP OC is a low-profile graphics card built for small-form-factor PCs. It uses a PCI Express 3.0 x16 slot that operates at x4 electrical width. The GeForce GT 1030 GPU provides 384 CUDA cores and 2GB of GDDR5 memory on a 64-bit bus. It suits office work, media playback and light gaming where space is limited.

Passive cooling with 30 W TDP

The card relies on a passive cooler, so it adds no fan noise to the system. Thermal design power is 30 W and the manufacturer recommends a 300 W power supply. With no moving parts on the cooler, reliability is improved in dusty environments. Power is drawn entirely from the slot, so no extra cables are required.

2 GB GDDR5 on a 64-bit bus

The frame buffer is 2 GB of GDDR5 running at an effective 6008 MHz across a 64-bit interface. This capacity and bus width set the practical limit for texture-heavy workloads at 1080p. If your application needs more video memory or wider bandwidth, a different card is required.

Highlights

  • Low-profile design fits compact cases with a 38 mm depth
  • Passive cooling runs silently at a 30 W TDP
  • 2 GB GDDR5 memory on a 64-bit bus at 6008 MHz
  • 384 CUDA cores boost to 1518 MHz for light compute
  • Dual outputs drive two monitors via HDMI 2.2 and DisplayPort 1.2

Specifications

BrandMSI
ModelGT 1030 2GH LP OC
InterfacePCI Express 3.0 x16 (uses x4)
Chipset ManufacturerNVIDIA
GPUGeForce GT 1030
CUDA Cores384
Effective Memory Clock6008 MHz
Memory Size2GB
Memory Interface64-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support2
HDMI1 x HDMI
DisplayPort1 x DisplayPort
Virtual Reality ReadyNo
CoolerFanless
Thermal Design Power30W
System RequirementsPower Consumption: 30W Recommended PSU: 300 W
HDCP Ready2.2
FeaturesAll Solid Capacitors - 10 years long lifetime under full load. - Lower temperature and higher efficiency. - Aluminum core for higher stability. Low Profile Design - Low profile design saves more spaces. - User can build slim or smaller system easier. Virtually Silent - Large heat sink covers the area of GPU and memory. - Providing the best environment for gaming and multimedia. Afterburner Overclocking Utility - Wireless control through Android/iOS devices. - Predator: In-game video recording. - Kombustor: built-in DirectX12 benchmark. GeForce Experience - Ensures the best gaming exp
Form FactorLow Profile
Max GPU Length153 mm
Slot Width1.5 slot
Package ContentsAccessories: Driver CD Installation Guide Low Profile Bracket

Questions about this item

How do I install the GT 1030 2GH LP OC into a PCI Express 3.0 x16 slot that uses x4 lanes, and what step is often missed?

Insert the card into the PCI Express 3.0 x16 slot; it will operate at x4 lanes. The low-profile bracket must be swapped for a full-height bracket if your case needs it, and the HDCP 2.2 handshake must be enabled in the OS for protected content.

What maintenance or replacement will the fanless GT 1030 2GH LP OC need later?

The passive cooler has no moving parts to wear out. Periodically remove dust from the heatsink fins with compressed air so the 30 W thermal design power can still be dissipated silently.

What limit appears first when the GT 1030 2GH LP OC runs sustained loads?

The 30 W power envelope and passive cooler cap the GPU at its 1518 MHz boost clock. Once the heatsink saturates, clocks throttle to stay within the 30 W thermal design power.
