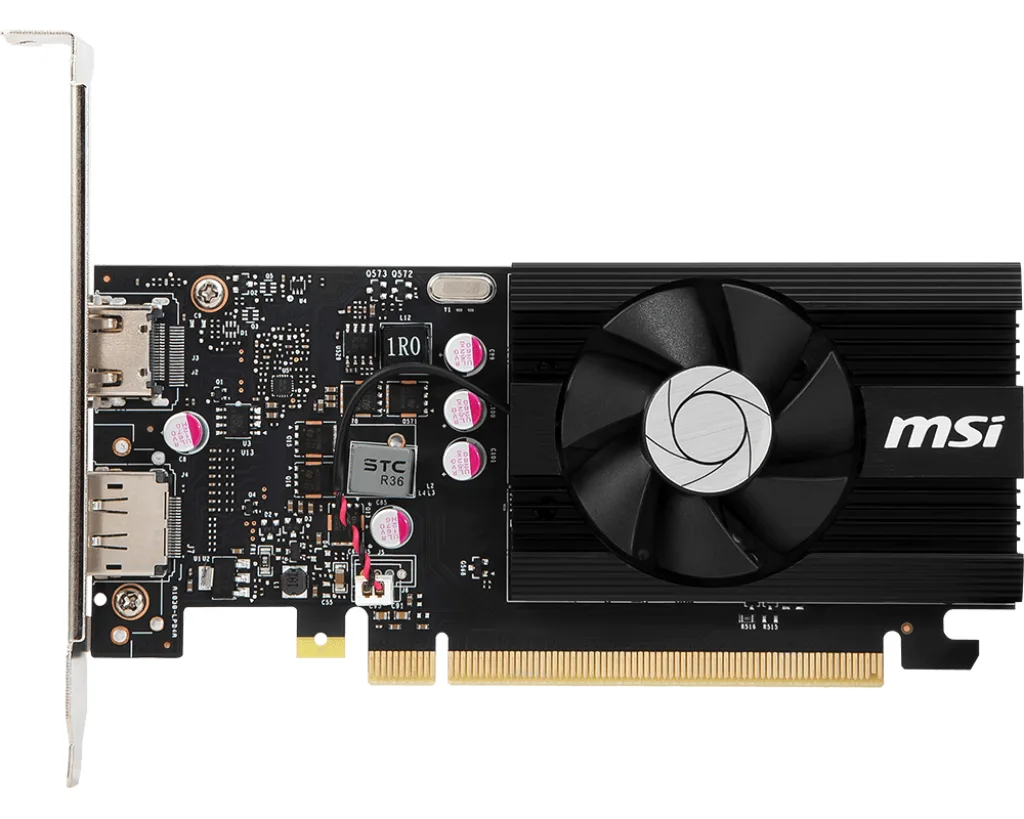

Low-profile black graphics card with single fan and HDMI DisplayPort outputs

MSI

MSI GT 1030 4GD4 LP OC graphics card

SKU CH-BXTT-SYHKC MPN GT 1030 4GD4 LP OC

Low-profile GeForce GT 1030 with 4 GB DDR4 memory, 384 CUDA cores, HDMI 2.0b and DisplayPort 1.4a outputs

  • InterfacePCI Express 3.0 x16 (uses x4)
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GT 1030
  • Core Clock1189 MHz
  • Boost Clock1430 MHz
  • 4GB DDR4 memory for smooth everyday visuals
  • Boost clock of 1430 MHz lifts frame rates in light titles
  • 384 CUDA cores accelerate compute and video tasks
  • HDMI 2.0b and DisplayPort 1.4a drive two modern displays
  • PCIe 3.0 x16 interface fits standard low-profile slots

Low-profile GT 1030 for compact builds

The MSI GT 1030 4GD4 LP OC is a low-profile graphics card built on the NVIDIA Pascal architecture with 384 CUDA cores. It targets small-form-factor PCs that need a discrete GPU for desktop acceleration, light gaming or multi-monitor productivity without a full-height bracket. A single-fan cooler keeps the PCB short enough for slim cases.

4 GB DDR4 on a 64-bit bus

The card carries 4 GB of DDR4 memory clocked at 2100 MHz across a 64-bit interface, providing enough frame buffer for 1080p video playback, office suites and older or less demanding titles. In modern games with high texture settings the narrow bus and limited capacity become the bottleneck, so frame rates drop once assets exceed the available VRAM.

PCIe x4 link and modest power draw

The board connects through a PCI Express 3.0 x16 slot that operates at x4 electrical width, reducing peak bandwidth but fitting a wider range of motherboards. Under typical desktop and media workloads the single fan runs quietly and the GPU stays within a low thermal envelope, making it suitable for chassis with restricted airflow.

Highlights

  • 4GB DDR4 memory for smooth everyday visuals
  • Boost clock of 1430 MHz lifts frame rates in light titles
  • 384 CUDA cores accelerate compute and video tasks
  • HDMI 2.0b and DisplayPort 1.4a drive two modern displays
  • PCIe 3.0 x16 interface fits standard low-profile slots

Specifications

BrandMSI
ModelGT 1030 4GD4 LP OC
InterfacePCI Express 3.0 x16 (uses x4)
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GT 1030
Core Clock1189 MHz
Boost Clock1430 MHz
CUDA Cores384
Effective Memory Clock2100 MHz
Memory Size4GB
Memory Interface64-Bit
Memory TypeDDR4
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support2
HDMI1 x HDMI 2.0b
DisplayPort1 x DisplayPort 1.4a
ColorBlack
CoolerSingle Fan
Thermal Design Power20W
Recommended PSU Wattage300W
Form FactorATX
Max GPU Length150 mm
Low Profile Bracket IncludedYes
Shipping weight0.36 kg
Package size254 × 178 × 51 mm

Questions about this item

Will the GT 1030 4GD4 LP OC run in a PCI Express 3.0 x16 slot that only wires four lanes?

Yes, the card uses a PCI Express 3.0 x16 connector that operates on four electrical lanes, so it works in a slot wired for x4 without any extra configuration.

How can I verify the GT 1030 is running at its rated boost clock of 1430 MHz after installation?

Open GPU-Z or the NVIDIA Control Panel and check the sensor tab while a 3D load is active; the core clock should read 1430 MHz under load.

Does the GT 1030 4GD4 LP OC include a low-profile bracket and a DisplayPort cable in the box?

The box contains the graphics card with a low-profile bracket already fitted, a driver disc and a quick-install guide; a DisplayPort cable is not supplied and must be purchased separately.
