Green Micro ATX motherboard with silver LGA 1151 socket and black PCIe slots

MSI

MSI H170M PRO-VDH LGA 1151 Intel H170 Micro ATX Motherboard

SKU CH-W7RS-HASEG

Micro ATX board for LGA 1151 CPUs with Intel H170 chipset, dual-channel DDR4 up to 64 GB, one PCIe 3.0 x16 and two PCIe 3.0 x1 slots, six SATA III ports.

  • CPU Socket TypeLGA 1151
  • CPU Type6th generation Intel Core ™ i3/i5/i7, Intel Pentium/Celeron
  • ChipsetIntel H170
  • Memory StandardSupports dual-channel DDR4 2133MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots1 PCIe 3.0 x 16 slot 2 PCIe 3.0 x 1 slots
  • Supports 6th generation Intel Core i3/i5/i7 processors with LGA 1151 socket
  • Dual-channel DDR4 2133MHz memory up to 64GB capacity
  • PCIe 3.0 x16 slot plus two PCIe 3.0 x1 slots for expansion
  • Realtek ALC887 7.1 channel audio and RTL8111H gigabit LAN
  • Six USB 3.1 Gen1 ports and six USB 2.0 ports onboard

LGA 1151 Micro ATX platform

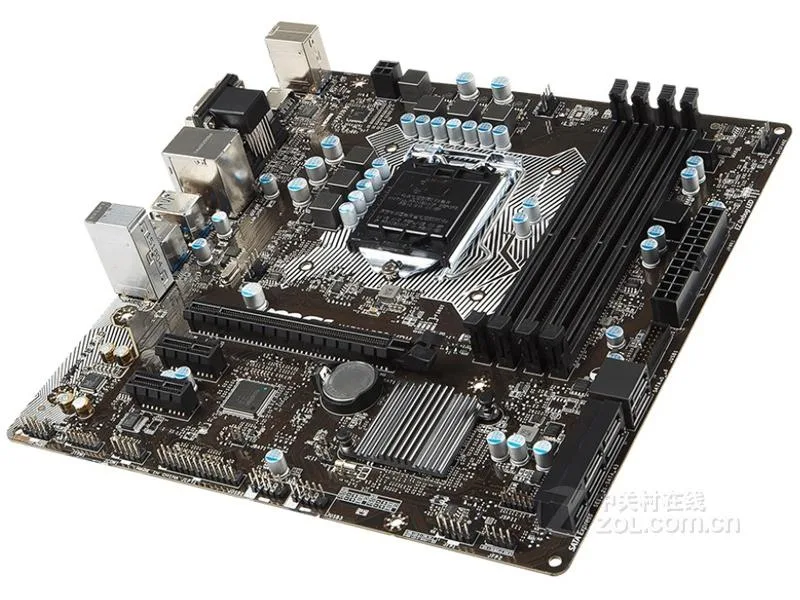

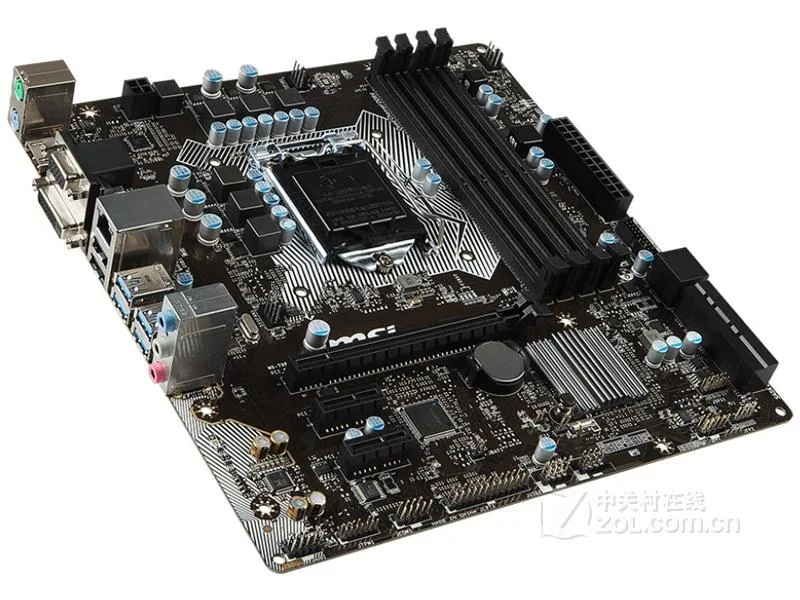

The MSI H170M PRO-VDH is an Intel H170 motherboard built for the LGA 1151 socket. It accepts 6th generation Intel Core i3, i5 and i7 processors plus Pentium and Celeron models. The board uses the Micro ATX form factor so it fits a wide range of chassis.

Dual-channel DDR4 and expansion layout

Four memory slots support dual-channel DDR4 2133MHz up to 64GB total. One PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots provide room for a graphics card and add-in cards. Six SATA III ports and one SATA Express interface handle storage drives. Six USB 3.1 Gen1 ports and six USB 2.0 ports cover peripherals.

Realtek audio and gigabit LAN under load

The Realtek ALC887 codec delivers 7.1 channel audio while the Realtek RTL8111H controller manages gigabit networking. Both controllers are designed for continuous operation during extended sessions. The board ships with a CMOS battery, one SATA cable and an I/O back panel.

Highlights

  • Supports 6th generation Intel Core i3/i5/i7 processors with LGA 1151 socket
  • Dual-channel DDR4 2133MHz memory up to 64GB capacity
  • PCIe 3.0 x16 slot plus two PCIe 3.0 x1 slots for expansion
  • Realtek ALC887 7.1 channel audio and RTL8111H gigabit LAN
  • Six USB 3.1 Gen1 ports and six USB 2.0 ports onboard

Specifications

BrandMSI
SeriesMSI H170M PRO-VDH
ModelMSI H170M PRO-VDH
CPU Socket TypeLGA 1151
CPU Type6th generation Intel Core ™ i3/i5/i7, Intel Pentium/Celeron processor with LGA1151 architecture
ChipsetIntel H170
Memory StandardSupports dual-channel DDR4 2133MHz memory
Maximum Memory Supported64GB
PCI Slots1 PCIe 3.0 x 16 slot
2 PCIe 3.0 x 1 slots
SATA RAID1xSATA Express interface, 6xSATA III interface
Audio ChipsetRealtek ALC887 Decoder Chip
7.1 channel high-quality sound effects
LAN Chipset1 Realtek RTL8111H gigabit network interface card
Onboard USB- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 on the backplane, 2 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 on the backplane, 4 via onboard USB ports)

Questions about this item

How much DDR4 2133MHz memory can the H170M PRO-VDH support in dual-channel mode?

The board supports up to 64GB of dual-channel DDR4 2133MHz memory across its four DIMM slots.

What are the thermal and acoustic characteristics when the H170 chipset and Realtek RTL8111H LAN run continuously?

The H170 chipset uses passive cooling, so it adds no fan noise; the Realtek RTL8111H gigabit LAN draws minimal power and generates little extra heat during all-day operation.

Which processor and cooler mounting hardware must I already have for this LGA 1151 Micro ATX board?

You need a 6th generation Intel Core i3, i5, i7, Pentium or Celeron CPU for the LGA 1151 socket plus a cooler that fits the standard LGA 1151 mounting pattern.
