Green ATX motherboard with silver heatsinks and black slots

MSI

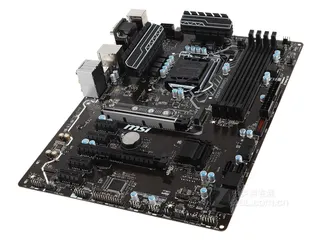

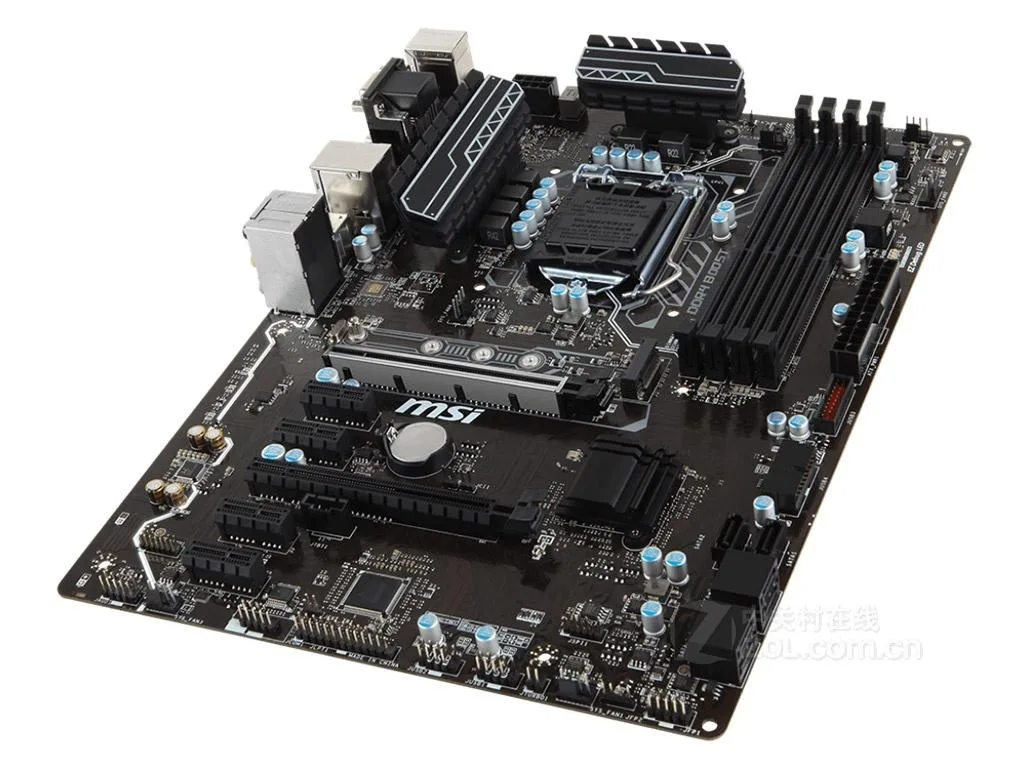

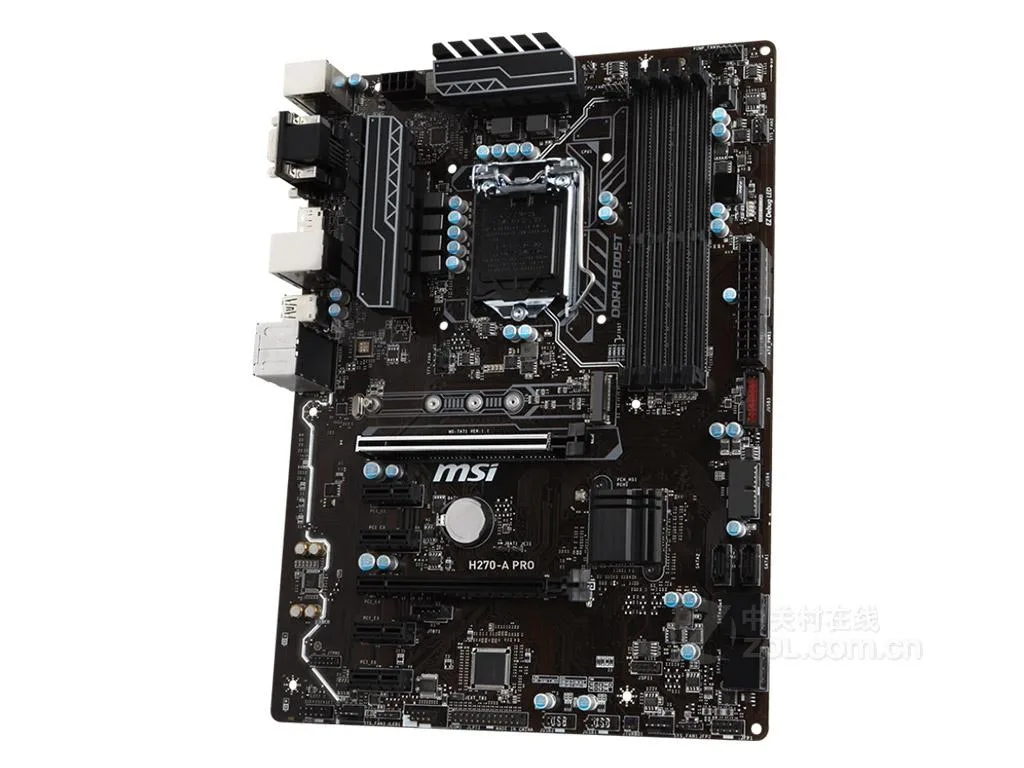

MSI H270-A PRO LGA 1151 Intel H270 DDR4 64GB ATX Motherboard

SKU CH-99WB-M7DCK

LGA 1151 ATX board with H270 chipset, dual-channel DDR4 to 2400 MHz, 64 GB max, two PCIe 3.0 x16 slots, six SATA ports and Realtek 7.1 audio

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports 6th/7th generation Intel Core ™ i3/i5/i7 processors
  • ChipsetIntel H270
  • Memory StandardSupports dual-channel DDR4 2400/2133MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes) 4 PCIe 3.0 x1 s
  • Supports 6th and 7th generation Intel Core i3, i5, i7, Pentium and Celeron processors with LGA 1151 socket
  • Dual-channel DDR4 memory at 2400 or 2133 MHz up to 64 GB capacity
  • Two PCIe 3.0 x16 slots running at x16 or x4 plus four PCIe 3.0 x1 slots for expansion
  • One M.2 interface and six SATA III ports with RAID support
  • Realtek ALC892 7.1 channel audio and Realtek RTL8111H Gigabit LAN

LGA 1151 DDR4 ATX Motherboard

The MSI H270-A PRO is an Intel H270 motherboard for LGA 1151 processors. It supports 6th and 7th generation Intel Core i3, i5 and i7 CPUs plus Pentium and Celeron models. Dual-channel DDR4 memory runs at 2400 or 2133MHz up to a 64GB maximum. The board uses the standard ATX form factor.

Builders keeping 6th or 7th gen Intel CPUs

This board suits owners of LGA 1151 processors who need a replacement H270 platform with 64GB memory headroom and multiple expansion slots. It provides two PCIe 3.0 x16 slots, four PCIe 3.0 x1 slots and six SATA III ports. Builders starting a new system or using 8th generation or newer Intel CPUs should choose a different socket and chipset.

64GB DDR4 Maximum Memory

The 64GB DDR4 limit is the key figure for capacity planning. Four DIMM slots accept dual-channel kits at 2400 or 2133MHz. If the workload requires more than 64GB of system memory, this motherboard cannot meet that requirement and a different platform must be selected.

Highlights

  • Supports 6th and 7th generation Intel Core i3, i5, i7, Pentium and Celeron processors with LGA 1151 socket
  • Dual-channel DDR4 memory at 2400 or 2133 MHz up to 64 GB capacity
  • Two PCIe 3.0 x16 slots running at x16 or x4 plus four PCIe 3.0 x1 slots for expansion
  • One M.2 interface and six SATA III ports with RAID support
  • Realtek ALC892 7.1 channel audio and Realtek RTL8111H Gigabit LAN

Specifications

BrandMSI
SeriesMSI H270-A PRO
ModelMSI H270-A PRO
CPU Socket TypeLGA 1151
CPU TypeSupports 6th/7th generation Intel Core ™ i3/i5/i7 processors, as well as Intel Pentium and Celeron processors with pin LGA1151
ChipsetIntel H270
Memory StandardSupports dual-channel DDR4 2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes)
4 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek RTL8111H Gigabit network interface card
Onboard USB- 8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the backplane, 4 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 via onboard USB ports)

Questions about this item

What size case and mounting pattern does the MSI H270-A PRO ATX board need?

The board follows the standard ATX form factor, so it fits any case with ATX standoffs and the matching I/O shield cut-out.

How is the board installed and which step is often missed?

Mount the board on ATX standoffs, attach the supplied I/O shield, connect the 24-pin and 4-pin power cables, then seat the LGA 1151 CPU, DDR4 modules and SATA cables; the step most often missed is fitting the I/O shield before the board.

Which on-board component will need replacement later?

The included CMOS battery keeps the real-time clock running and will need replacing when the system starts losing date and time after power-off.
