Green Micro ATX motherboard with silver heatsinks and black I/O shield

MSI

MSI H310M PRO-VDH PLUS Intel Motherboard

SKU CH-3RSG-1P99J

Supports 8th and 9th Gen Intel Core processors on LGA 1151 socket with dual-channel DDR4 memory up to 32GB, one PCIe 3.0 x16 slot, four SATA ports.

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
  • ChipsetIntel H310
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 2666
  • Supports 8th and 9th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz with 32 GB maximum capacity
  • PCIe 3.0 x16 slot plus two PCIe x1 slots for graphics and add-in cards
  • Four SATA 6Gb/s ports for high-speed storage connectivity
  • Realtek ALC887 codec delivers 7.1-channel audio with Gigabit LAN

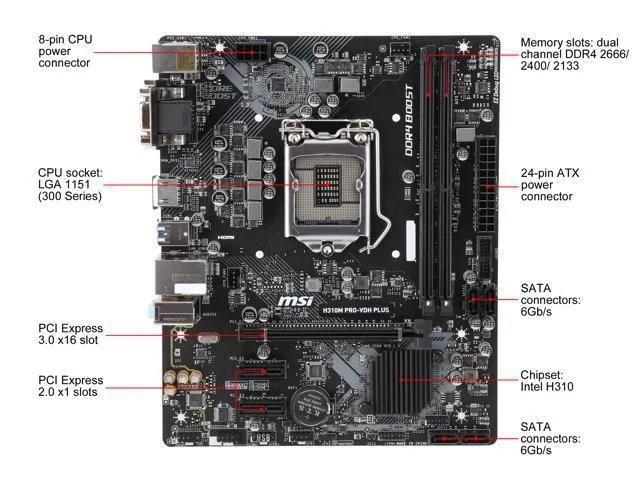

Socket and chipset

This MSI H310M PRO-VDH PLUS board uses the LGA 1151 (300 Series) socket and the Intel H310 chipset. It accepts 8th and 9th generation Core i7, i5, i3, Pentium Gold and Celeron processors. The micro-ATX form factor fits smaller cases while keeping a full set of rear I/O.

Who it suits and who it does not

Builders who need a basic platform for office work, home media or a single-GPU desktop will find the feature set adequate. Enthusiasts who want CPU overclocking, multiple graphics cards or more than two memory modules should choose a board with a Z-series chipset and four DIMM slots.

Memory capacity limit

Two DDR4 slots support up to 32 GB running at 2666 MHz in dual-channel mode. If the planned system requires more than 32 GB or four populated slots, this motherboard cannot meet that requirement.

Highlights

  • Supports 8th and 9th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz with 32 GB maximum capacity
  • PCIe 3.0 x16 slot plus two PCIe x1 slots for graphics and add-in cards
  • Four SATA 6Gb/s ports for high-speed storage connectivity
  • Realtek ALC887 codec delivers 7.1-channel audio with Gigabit LAN

Specifications

BrandMSI
SeriesPRO
ModelH310M PRO-VDH PLUS
Part NumberH310M PRO-VDH PLUS
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
ChipsetIntel H310
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2666
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x161 x PCI Express x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
HDMI1 x HDMI
USB 3.12 x USB 3.1
USB 1.1/2.04 x USB 2.0
Onboard USB2 x USB 3.1 + 2 x USB 2.0
Other Connectors1 x Clear CMOS jumper2 x Front panel connectors1 x Serial port connector1 x TPM module connector1 x Chassis Intrusion connector1 x Front panel audio connector1 x 4-pin CPU fan connector1 x 4-pin system fan connector
Form FactorMicro ATX
Dimensions (W x L)8.9" x 7.3"
Power Pin24 Pin
FeaturesSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket.Supports DDR4 Memory, up to 2666 MHz.Audio Boost: Reward your ears with studio grade sound quality.EZ Debug LED: Easiest way to troubleshoot.X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Questions about this item

How hot does the H310M PRO-VDH PLUS run when the CPU is under full load all day?

The board uses a 4-pin CPU fan header and heatsinks on the power phases to dissipate heat; actual temperature depends on the cooler and case airflow you pair with it.

Which memory kit do I need so the H310M PRO-VDH PLUS posts on first boot?

Install DDR4 modules rated for 2666, 2400 or 2133 MHz; the board has two 288-pin slots and supports up to 32 GB in dual-channel mode.

Will my existing SATA SSD and PCIe 3.0 x16 graphics card work with the H310M PRO-VDH PLUS?

Yes — four SATA 6Gb/s ports accept your SSD, and the full-size PCI Express 3.0 x16 slot takes the graphics card without an adapter.
