MSI

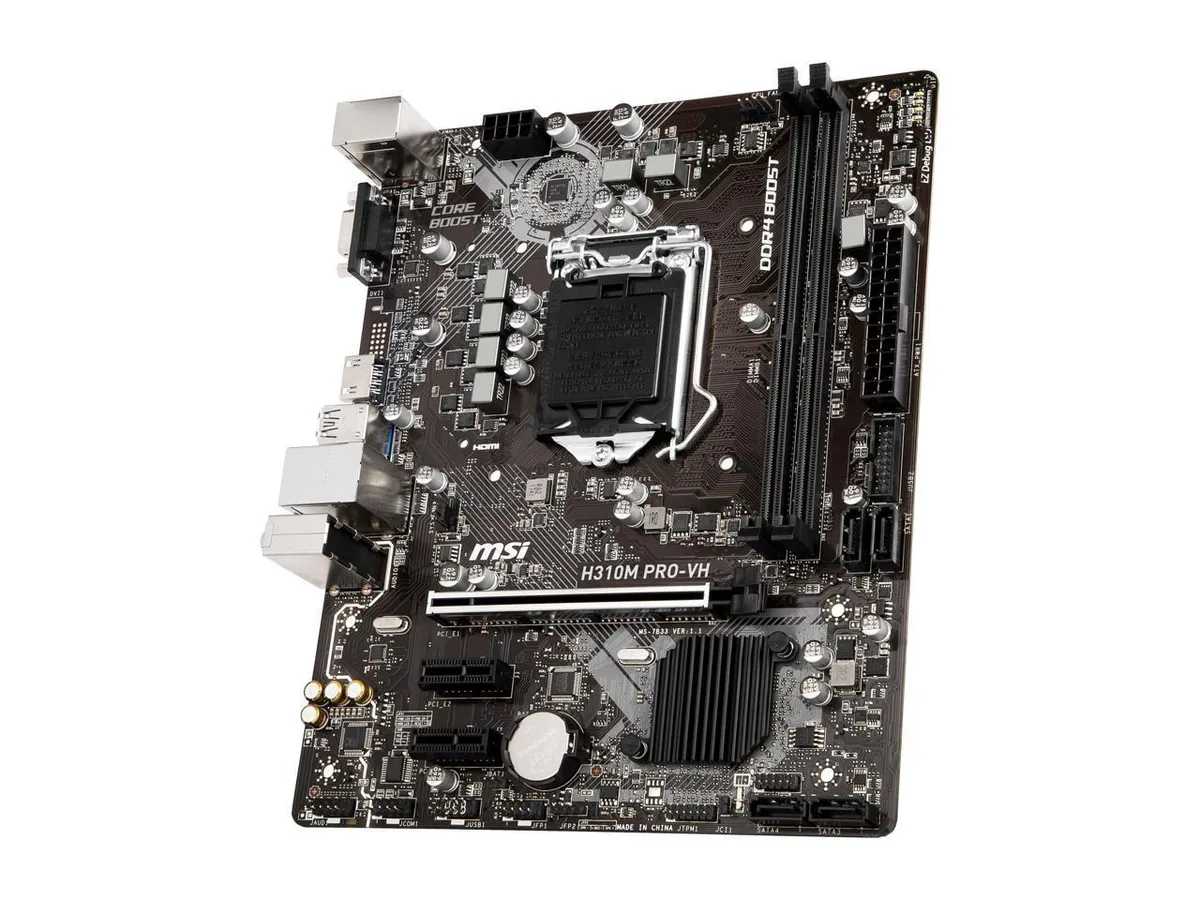

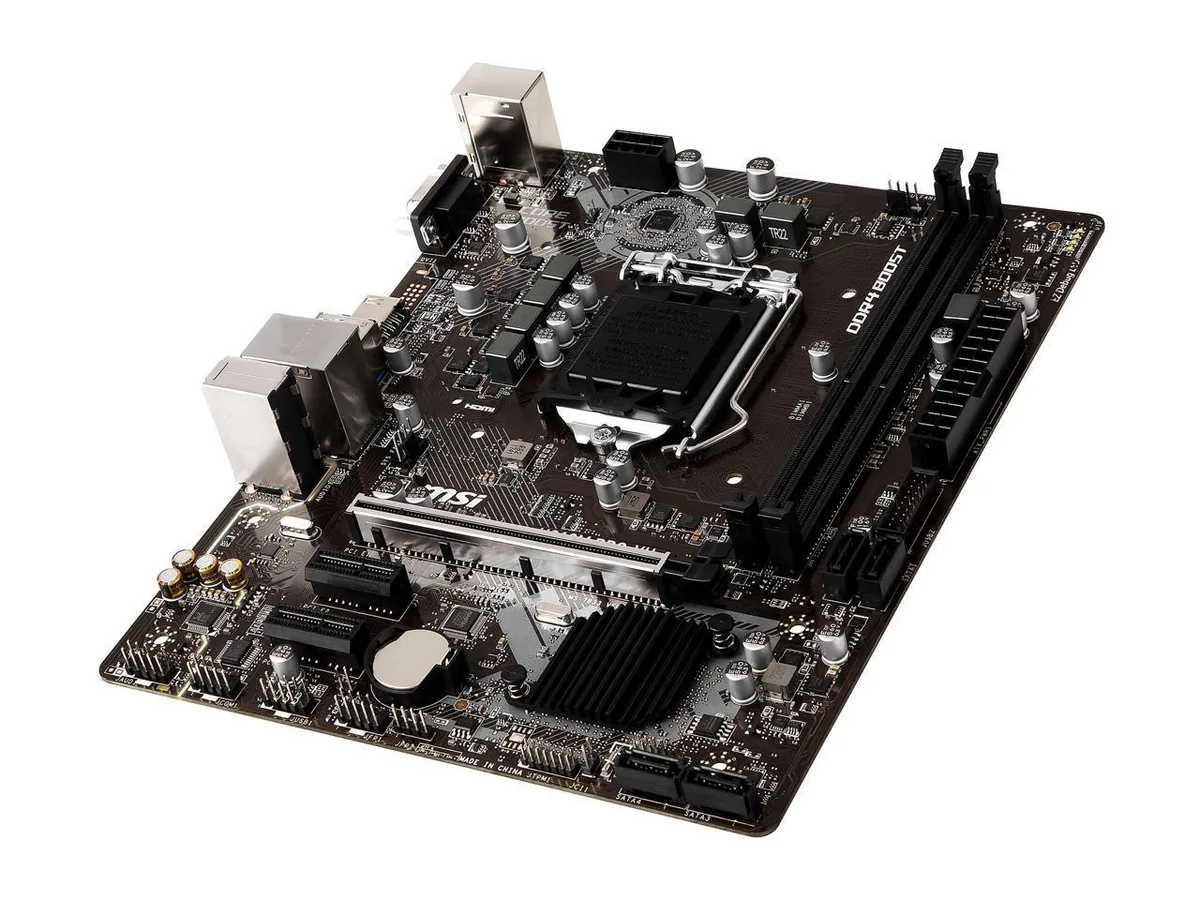

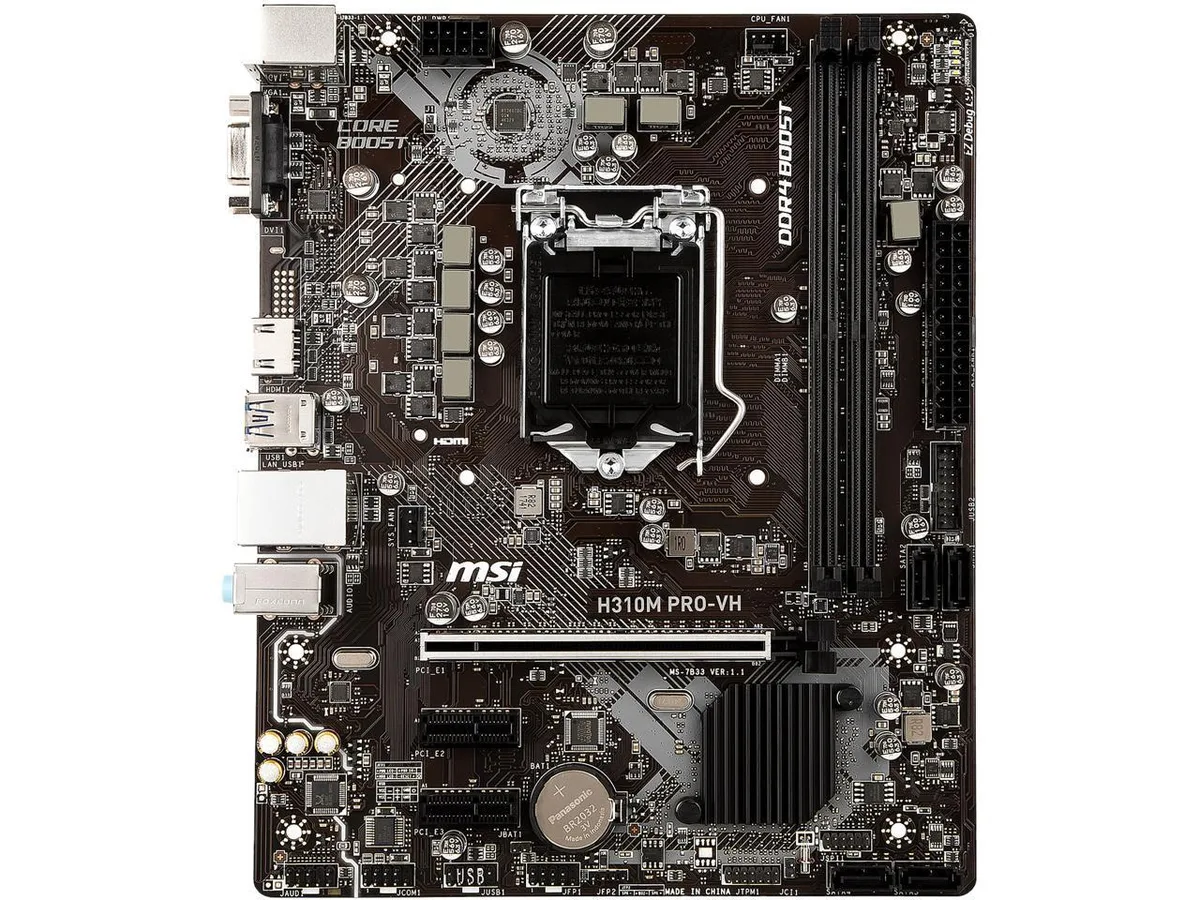

MSI H310M PRO-VH LGA 1151 Intel H310 Micro ATX Motherboard
Supports 8th Gen Intel Core CPUs on an LGA 1151 (300 Series) socket with dual-channel DDR4 up to 32 GB, four SATA 6 Gb/s ports, HDMI and D-Sub video, Realtek 8-channel audio.
- CPU Socket TypeLGA 1151 (300 Series)
- CPU Type8th Generation Intel Core Processors * Not backward compatib
- ChipsetIntel H310
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots2x288pin (DDR4)
- Maximum Memory Supported32GB
- Supports 8th Generation Intel Core processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 32 GB across two 288-pin slots
- Four SATA 6Gb/s ports for high-speed storage expansion
- Realtek ALC887 8-channel audio with RTL8111H 1 Gbps LAN
- Micro ATX form factor measuring 8.9" x 7.3" with HDMI and D-Sub video outputs
Designed for 8th Gen Intel Core builds
The MSI H310M PRO-VH is a Micro ATX motherboard built around the Intel H310 chipset. It accepts LGA 1151 (300 Series) processors from the 8th Generation Intel Core family. The board is not backward compatible with older LGA 1151 CPUs. It provides the essential interfaces for a compact desktop system.
Suits budget office or home PCs.
This board fits cost-sensitive builds that need HDMI output and up to four SATA drives. The two DDR4 slots limit total memory to 32 GB, so users planning heavier multitasking or content creation should consider a platform with four slots. Overclocking features are absent, matching the entry-level chipset.
Two DDR4 slots cap memory at 32 GB
Only two 288-pin DDR4 sockets are available, running in dual-channel mode. The maximum supported capacity is 32 GB, which decides whether the board meets a given workload's memory requirements.
Highlights
- Supports 8th Generation Intel Core processors via LGA 1151 socket
- Dual-channel DDR4 memory up to 32 GB across two 288-pin slots
- Four SATA 6Gb/s ports for high-speed storage expansion
- Realtek ALC887 8-channel audio with RTL8111H 1 Gbps LAN
- Micro ATX form factor measuring 8.9" x 7.3" with HDMI and D-Sub video outputs
Specifications
| Brand | MSI |
|---|---|
| Model | H310M PRO-VH |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | 8th Generation Intel Core Processors * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel H310 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 2x288pin (DDR4) |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek RTL8111H |
| Max LAN Speed | 1Gbps |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 8.9" x 7.3" |
Questions about this item
How can I confirm the H310M PRO-VH is working after installing the CPU and memory?
Power on the system; the BIOS should post and display on a monitor connected to the HDMI or D-Sub port when using a processor with integrated graphics
What components are included with the H310M PRO-VH and what must be sourced separately?
The package contains the motherboard and I/O shield only; CPU, DDR4 memory, storage drives, power supply, case and mounting screws are not included
Which memory capacity should I choose for the two DDR4 slots on this H310M PRO-VH board?
Each slot accepts DDR4 modules up to the 32 GB total limit, so select modules that suit your workload while keeping the combined capacity at or below that figure
