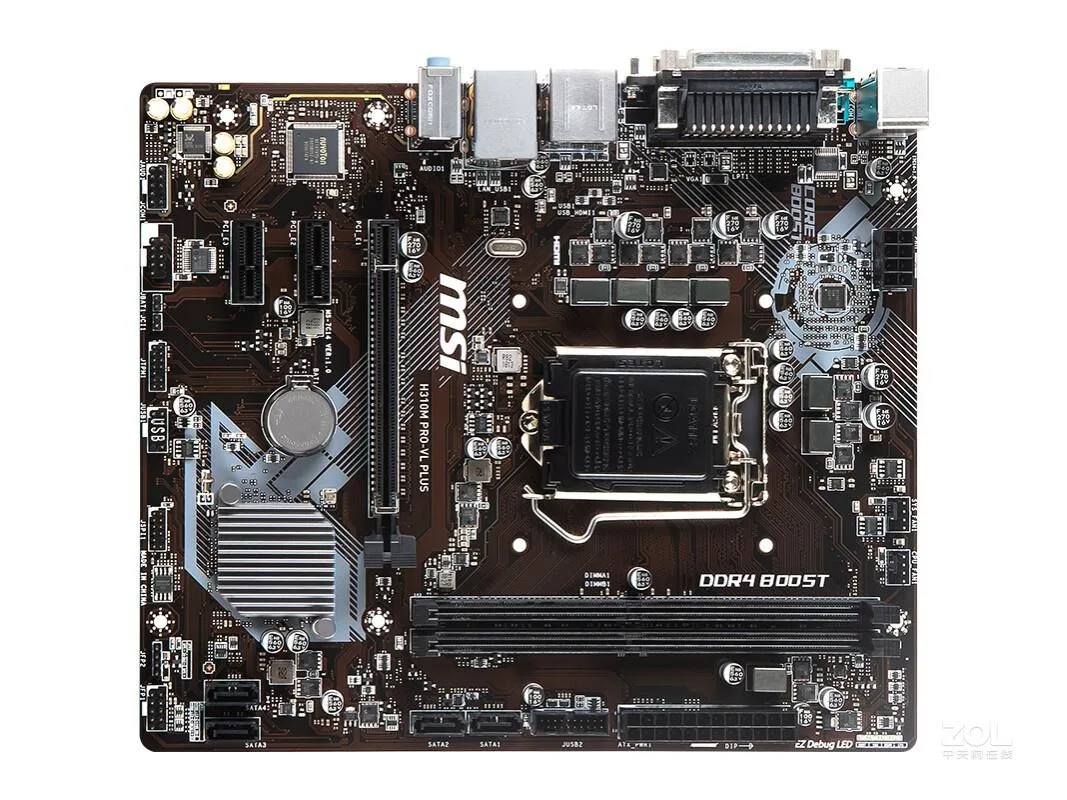

Micro ATX motherboard, black PCB with silver and blue slots, LGA 1151 socket, four RAM slots, PCIe x16, two PCIe x1, four SATA ports

MSI

MSI H310M PRO-VL PLUS Intel motherboard

SKU CH-PE1C-CFE2F

Micro-ATX Intel H310 board with LGA 1151 socket, dual-channel DDR4 up to 32GB, one PCIe 3.0 x16 slot, two PCIe 2.0 x1 slots, four SATA III ports, 7.1 Realtek ALC887 audio.

  • CPU Socket TypeLGA 1151
  • CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as wel
  • ChipsetIntel H310
  • Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
  • Maximum Memory Supported32GB
  • PCI Slots1 PCIe 3.0 x16 slot 2 PCIe 2.0 x1 slots
  • Supports 8th Gen Intel Core CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz for responsive multitasking
  • 32 GB maximum capacity handles demanding workloads
  • Realtek ALC887 codec delivers 7.1 channel high-definition audio
  • Realtek RTL8111H provides reliable Gigabit Ethernet connectivity

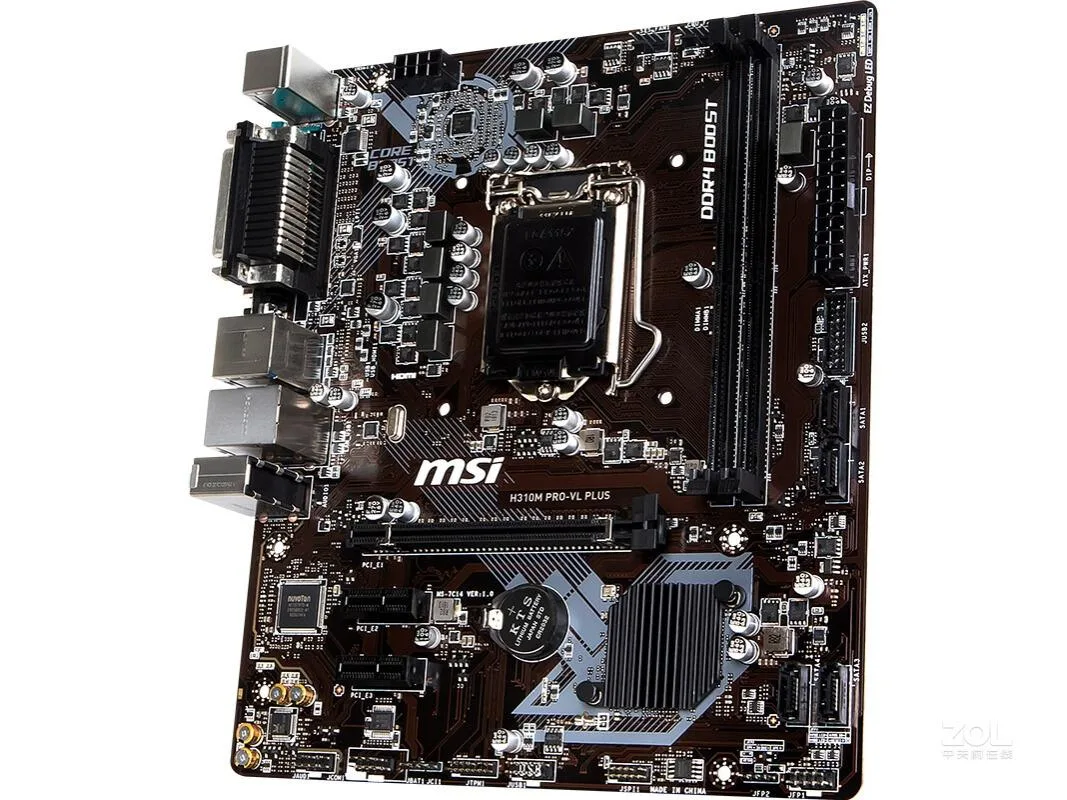

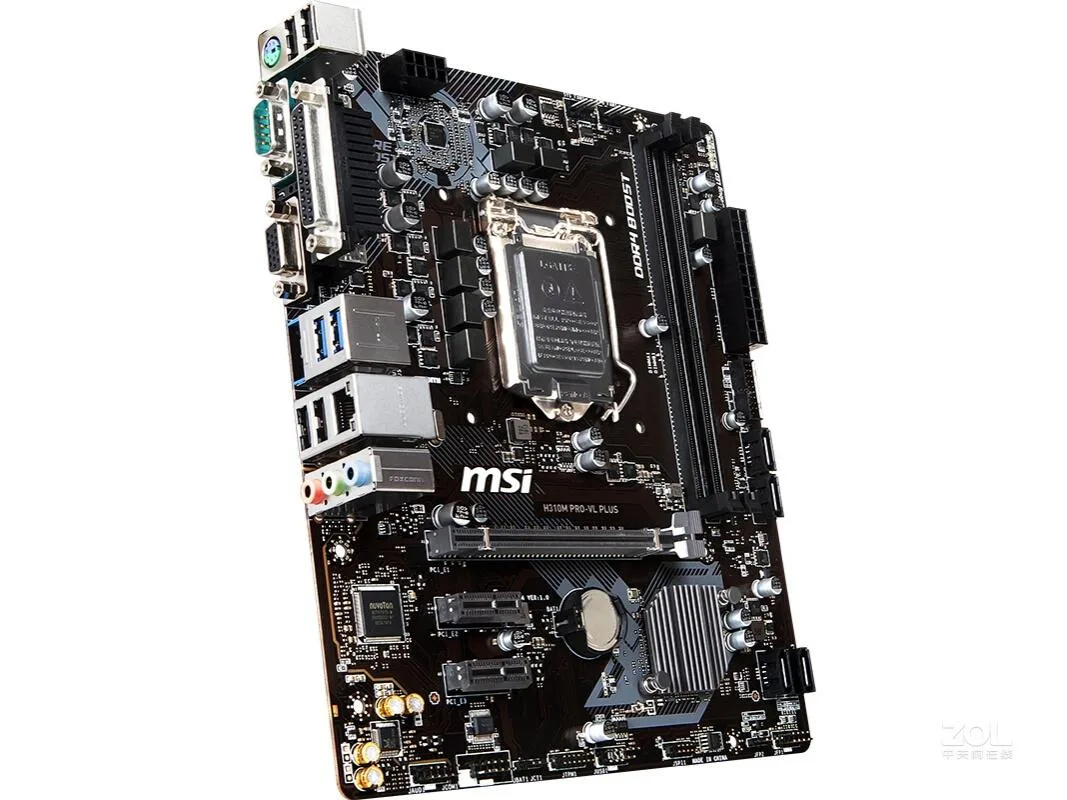

MSI H310M PRO-VL PLUS Motherboard

The MSI H310M PRO-VL PLUS is a micro ATX motherboard built on the Intel H310 chipset. It uses the LGA 1151 socket for 8th generation Intel Core, Pentium Gold and Celeron processors. The board supports dual-channel DDR4 memory at 2666, 2400 or 2133 MHz up to a maximum of 32 GB.

Ideal for Basic Desktop Builds

This board suits budget office or home PCs needing 7.1 channel audio and a single Gigabit LAN port. It provides four USB 3.1 Gen1 ports and six USB 2.0 ports for peripherals. Builders needing multiple graphics cards, M.2 slots or overclocking features should consider a different chipset.

Single PCIe 3.0 x16 Expansion Slot

The expansion layout centres on one PCIe 3.0 x16 slot for a graphics card plus two PCIe 2.0 x1 slots for add-in cards. Four SATA III connectors handle storage drives. This slot count defines the upgrade path for the system.

Highlights

  • Supports 8th Gen Intel Core CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz for responsive multitasking
  • 32 GB maximum capacity handles demanding workloads
  • Realtek ALC887 codec delivers 7.1 channel high-definition audio
  • Realtek RTL8111H provides reliable Gigabit Ethernet connectivity

Specifications

BrandMSI
SeriesMSI H310M PRO-VL PLUS
ModelMSI H310M PRO-VL PLUS
CPU Socket TypeLGA 1151
CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as well as Intel Pentium Gold and Celeron processors
ChipsetIntel H310
Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
Maximum Memory Supported32GB
PCI Slots1 PCIe 3.0 x16 slot
2 PCIe 2.0 x1 slots
SATA RAID4XSATA III interface
Audio ChipsetRealtek ALC887 decoding chip
7.1 channel high-quality sound effects
LAN Chipset1 Realtek RTL8111H Gigabit network interface card
Onboard USBNtel H310 Chipset
4 USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the backplane, 2 via onboard USB ports)
6 USB 2.0 (High-speed USB) ports (4 ports on the backplane, 2 via onboard USB ports)

Questions about this item

Does the motherboard include a CMOS battery and SATA cable, or must they be purchased separately?

The board ships with one CMOS battery and one SATA cable included, so no separate purchase is needed for those items.

Should I choose 2133 MHz, 2400 MHz or 2666 MHz DDR4 modules for this H310 board?

All three speeds are supported; 2666 MHz modules will run at their rated frequency, while 2133 MHz and 2400 MHz modules also work without configuration changes.

What does the 32 GB maximum memory figure mean for a typical dual-channel build?

You can install two 16 GB DDR4 modules to reach the 32 GB limit and run them in dual-channel mode for full bandwidth.
