Green Mini-ITX motherboard with black I/O shield and Wi-Fi antenna connectors

MSI

MSI H410I PRO WIFI Intel motherboard

SKU CH-M6ME-8P8E4

Mini-ITX board for Intel 10th Gen CPUs with dual-channel DDR4 up to 64GB, PCIe 3.0 x16, 7.1 audio, Intel Gigabit LAN and built-in Wi-Fi

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports Intel 10th Gen processors for LGA 1200 socket
  • ChipsetIntel H410
  • Memory StandardSupport dual-channel DDR4 2133/2200/2400/2666/2800/2933MHz m
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe 3.0 x16 slot (From CPU)
  • Supports Intel 10th Gen CPUs on LGA 1200 socket
  • Dual-channel DDR4 memory up to 64GB capacity
  • PCIe 3.0 x16 slot for graphics expansion
  • Intel 1219V Gigabit LAN plus Wi-Fi connectivity
  • 1-channel Realtek ALC1200 audio with S/PDIF output

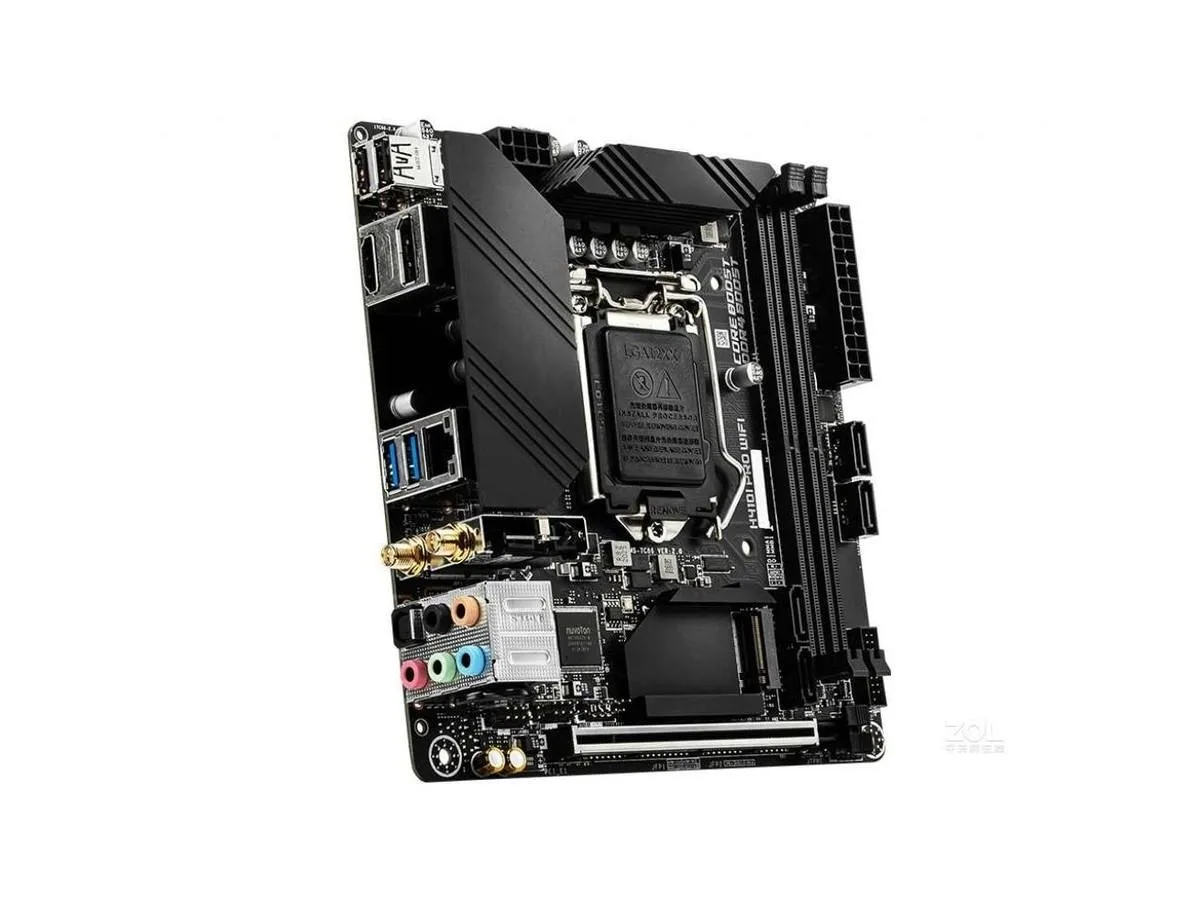

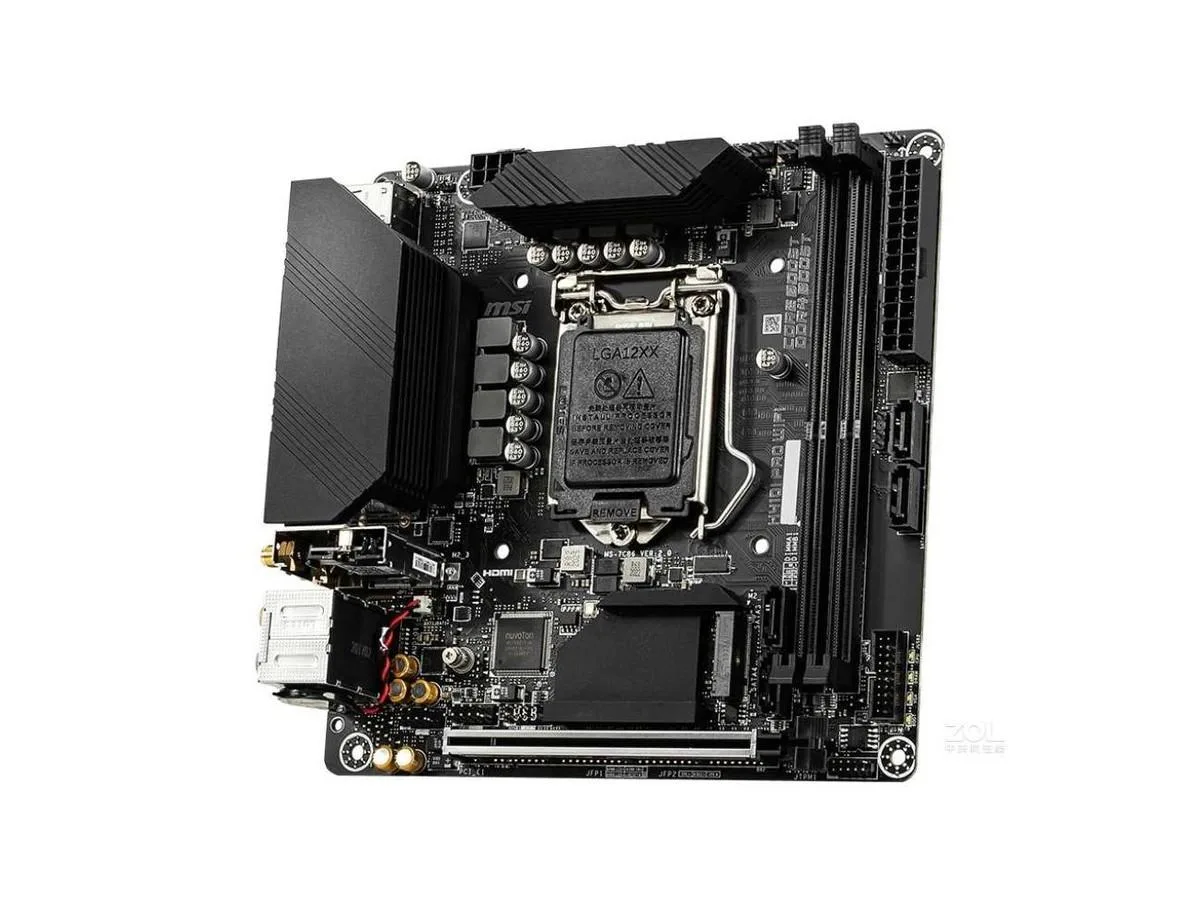

H410I PRO WIFI Mini-ITX board

The MSI H410I PRO WIFI is a Mini-ITX motherboard built around the Intel H410 chipset. It accepts 10th Gen Intel processors in an LGA 1200 socket. The board targets compact system builders who need a small footprint with integrated wireless capability. It supports up to 64GB of dual-channel DDR4 memory.

Build quality and daily connectivity

The board provides one PCIe 3.0 x16 slot for a graphics card. Storage options include one M.2 interface and four SATA III ports. Rear I/O supplies two USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports. Internal headers add two more USB 3.2 Gen 1 and two USB 2.0 ports. Networking uses an Intel 1219V Gigabit LAN controller. Audio runs through a Realtek ALC1200 codec with 7.1-channel output and S/PDIF.

Upgrading from older compact platforms

This motherboard replaces earlier Mini-ITX boards limited to 6th or 7th generation Intel CPUs. The jump is worthwhile when you need 10th Gen processor support and faster DDR4 speeds up to 2933MHz. It also adds a modern M.2 interface alongside traditional SATA storage. The integrated Wi-Fi antenna simplifies wireless setup in tight cases.

Highlights

  • Supports Intel 10th Gen CPUs on LGA 1200 socket
  • Dual-channel DDR4 memory up to 64GB capacity
  • PCIe 3.0 x16 slot for graphics expansion
  • Intel 1219V Gigabit LAN plus Wi-Fi connectivity
  • 1-channel Realtek ALC1200 audio with S/PDIF output

Specifications

BrandMSI
SeriesMSI H410I PRO WIFI
ModelMSI H410I PRO WIFI
CPU Socket TypeLGA 1200
CPU TypeSupports Intel 10th Gen processors for LGA 1200 socket
ChipsetIntel H410
Memory StandardSupport dual-channel DDR4 2133/2200/2400/2666/2800/2933MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe 3.0 x16 slot (From CPU)
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Intel 1219V Gigabit LAN Controller
Onboard USBIntel H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)

Questions about this item

What PCIe standard does the single x16 slot use and what bandwidth does it cap at?

The board provides one PCIe 3.0 x16 slot wired from the CPU, so a graphics card is limited to PCIe 3.0 x16 bandwidth.

What form factor is this board and which mounting pattern does it use?

It is a Mini-ITX board that uses the standard Mini-ITX mounting hole pattern for chassis installation.

How is the Wi-Fi antenna connected and what step do builders often miss?

The antenna screws onto the two gold posts on the rear I/O panel; the common mistake is leaving the antenna cables loose inside the case instead of mounting them externally.
