Green micro-ATX motherboard with black heatsinks and silver PCIe slot

MSI

MSI H510M BOMBER LGA1200 Intel motherboard

SKU CH-CFKF-PFVEW

LGA 1200 board with Intel H510 chipset, two DDR4 slots up to 3200 MHz, PCIe 4.0 x16 slot, one M.2 slot and four SATA 6 Gb/s ports

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Core 11th Gen (LGA 1200)
  • Supports 10th and 11th Gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1200 socket
  • DDR4 memory up to 3200 MHz with XMP support for faster responsiveness
  • PCIe 4.0 x16 slot with steel armor protects heavy graphics cards
  • M.2 Key M slot enables NVMe SSD storage at PCIe 3.0 x4 speeds
  • HDMI 2.0b and VGA outputs drive 4K 60 Hz and 2048 x 1536 displays

Socket LGA1200 Intel H510 board

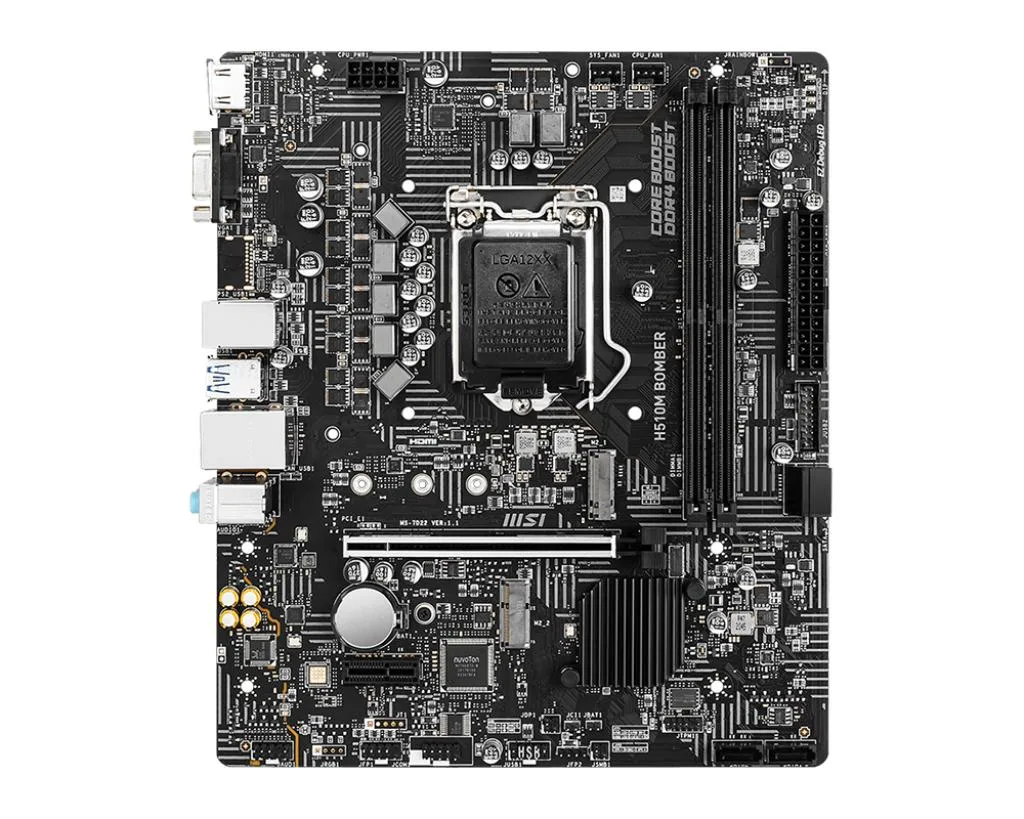

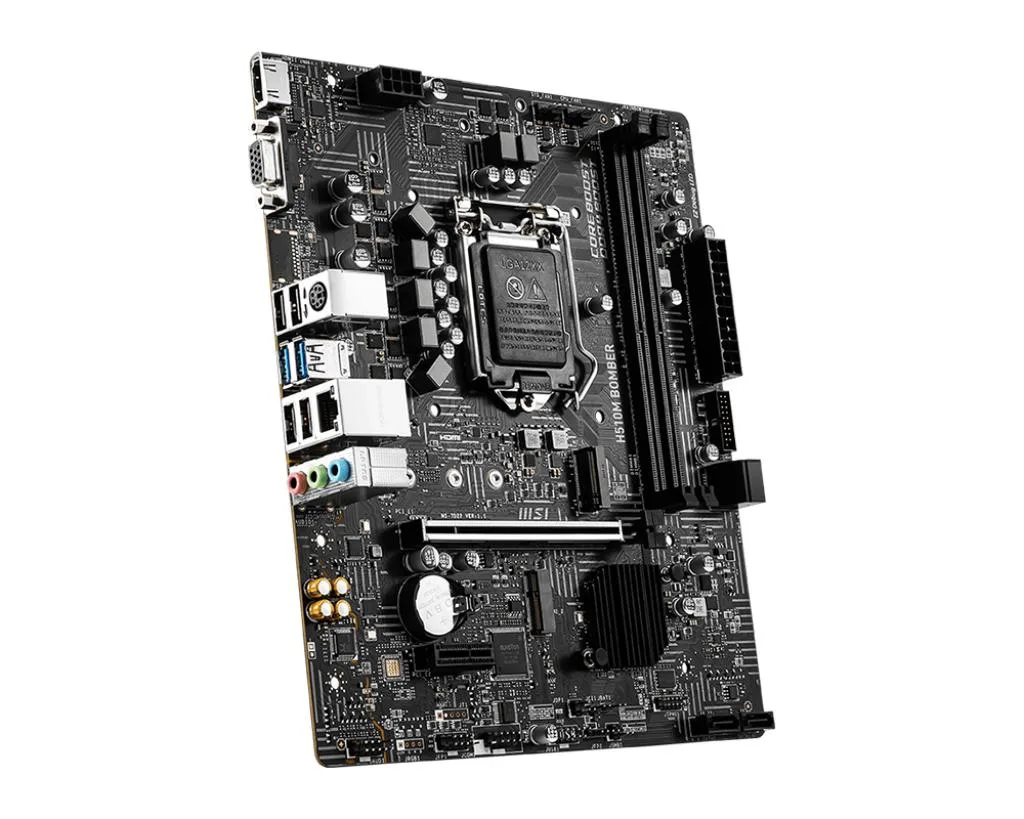

The MSI H510M BOMBER is a micro-ATX motherboard built around the Intel H510 chipset for LGA1200 processors. It accepts 10th and 11th generation Core CPUs as well as Pentium Gold and Celeron chips. Two DDR4 slots support up to 64 GB of memory with XMP profiles. A single PCIe x16 slot and one M.2 Key M connector handle graphics and storage.

Home builds needing one GPU and one NVMe drive

This board suits builders who want a single graphics card and one M.2 NVMe SSD alongside up to four SATA drives. It lacks a second full-size PCIe slot and provides only one M.2 Key M socket, so multi-GPU arrays or multiple NVMe drives are not possible. Users needing extra expansion lanes should consider a different chipset.

PCIe 4.0 x16 requires an 11th Gen CPU

The top PCIe x16 slot runs at PCIe 4.0 speeds only when an 11th generation processor is installed; with a 10th generation CPU it operates at PCIe 3.0. This single detail decides whether a modern graphics card or high-speed add-in card can use its full bandwidth on this platform.

Highlights

  • Supports 10th and 11th Gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1200 socket
  • DDR4 memory up to 3200 MHz with XMP support for faster responsiveness
  • PCIe 4.0 x16 slot with steel armor protects heavy graphics cards
  • M.2 Key M slot enables NVMe SSD storage at PCIe 3.0 x4 speeds
  • HDMI 2.0b and VGA outputs drive 4K 60 Hz and 2048 x 1536 displays

Specifications

CPU Socket TypeLGA 1200
CPU TypeIntel Core 11th Gen (LGA 1200)

Questions about this item

How do I install the CPU into the LGA 1200 socket without bending pins?

Lift the socket lever, align the processor triangle with the socket corner, place the CPU gently without pressure, lower the frame and lock the lever.

Which components may need replacement after extended use on this H510 board?

The M.2 Key M slot supports NVMe SSDs; if a drive wears out it can be swapped. The CMOS battery on the board will eventually need replacement.

What limits sustained performance first when running an 11th Gen Core processor at full load?

The VRM uses a digital power design without heatsinks; under prolonged heavy loads the voltage regulators can throttle before the CPU hits its thermal ceiling.
