Green Micro-ATX board with silver LGA 1200 socket and black heatsinks

MSI

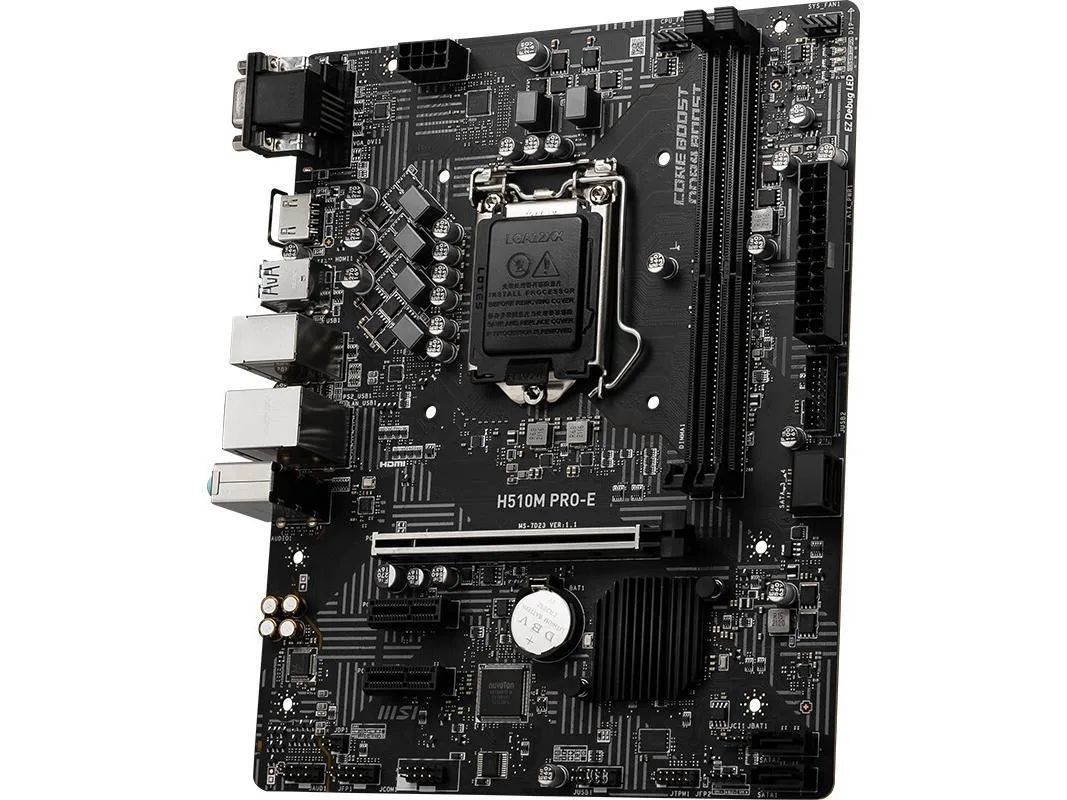

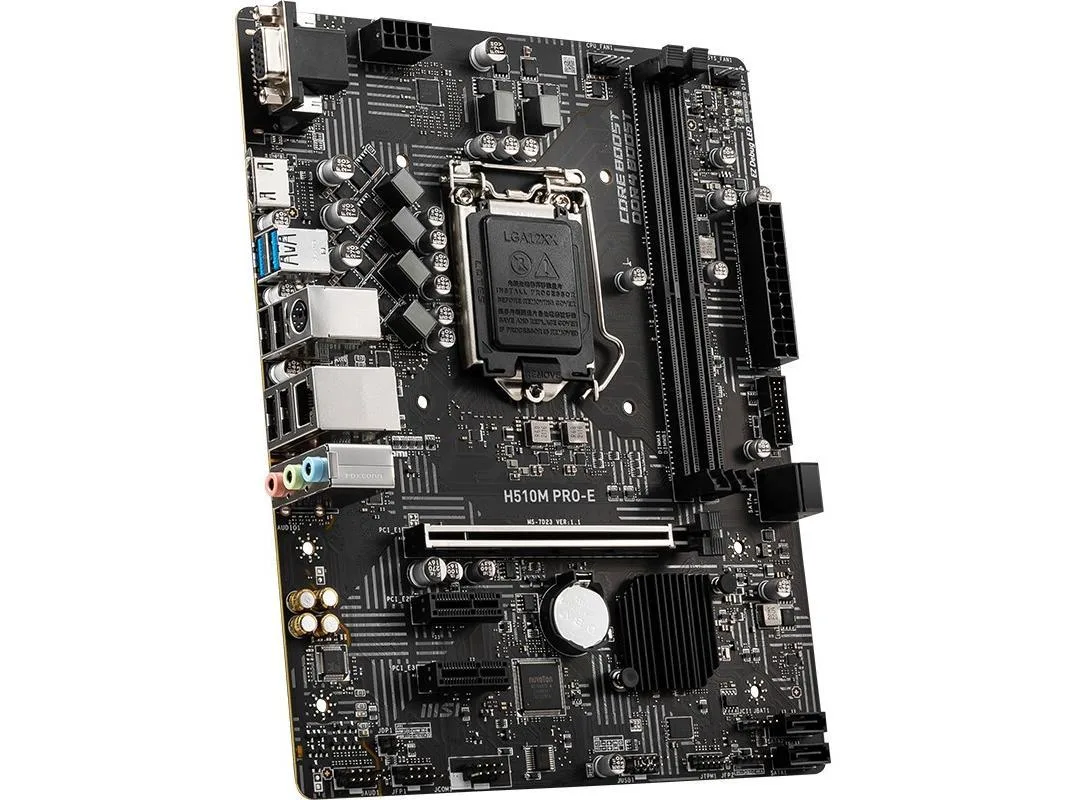

MSI H510M PRO-E Intel motherboard

SKU CH-F71C-6ZFCT

Micro-ATX LGA 1200 board with H510 chipset, 64 GB DDR4, PCIe 4.0 and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors, 11th Gen Intel Core
  • ChipsetIntel H510
  • Memory StandardSupport dual-channel DDR4 3200/3000/2933/2800/2666/2400/2133
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th
  • Supports 10th and 11th Gen Intel CPUs via LGA 1200 socket
  • Dual-channel DDR4 up to 3200 MHz with 64 GB maximum capacity
  • PCIe 4.0 x16 slot for 11th Gen and PCIe 3.0 for 10th Gen processors
  • Four SATA III ports plus Realtek 8111 Gigabit LAN for storage and networking
  • Realtek ALC897 7.1-channel audio and USB 3.2 Gen 1 5 Gbps connectivity

Socket and chipset

The MSI H510M PRO-E is an LGA 1200 Micro ATX motherboard built on the Intel H510 chipset. It accepts 10th and 11th Gen Intel Core processors together with Pentium Gold and Celeron models. Dual-channel DDR4 memory runs at speeds from 2133 to 3200 MHz up to a 64 GB limit. A Realtek ALC897 codec delivers 7.1-channel audio and a Realtek RTL8111 controller provides Gigabit LAN.

Build integration

One PCIe x16 slot connects directly to the CPU and operates at PCIe 4.0 with 11th Gen CPUs or PCIe 3.0 with 10th Gen CPUs. Two additional PCIe 3.0 x1 slots come from the chipset. Four SATA III ports handle storage drives. The rear panel supplies two USB 3.2 Gen 1 Type-A ports and four USB 2.0 Type-A ports; internal headers add two more USB 3.2 Gen 1 ports and two USB 2.0 ports. A chassis I/O back panel, one SATA cable and a CMOS battery are included in the box.

Suitability

This board suits budget builds that need a compact Micro ATX form factor and basic connectivity for 10th or 11th Gen Intel CPUs. Users requiring more than one full-size PCIe slot, additional SATA ports or integrated Wi-Fi should consider other chipsets. The 64 GB memory ceiling and single x16 slot also limit future expansion for workstation workloads.

Highlights

  • Supports 10th and 11th Gen Intel CPUs via LGA 1200 socket
  • Dual-channel DDR4 up to 3200 MHz with 64 GB maximum capacity
  • PCIe 4.0 x16 slot for 11th Gen and PCIe 3.0 for 10th Gen processors
  • Four SATA III ports plus Realtek 8111 Gigabit LAN for storage and networking
  • Realtek ALC897 7.1-channel audio and USB 3.2 Gen 1 5 Gbps connectivity

Specifications

BrandMSI
SeriesMSI H510M PRO-E
ModelMSI H510M PRO-E
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
ChipsetIntel H510
Memory StandardSupport dual-channel DDR4 3200/3000/2933/2800/2666/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From PCH)
SATA RAID4XSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Realtek RTL8111 Gigabit LAN controller
Onboard USB4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

Questions about this item

Will the single PCIe x16 slot limit GPU performance if I run compute workloads continuously?

The board provides one PCIe x16 slot from the CPU; 11th Gen CPUs use PCIe 4.0 while 10th Gen CPUs use PCIe 3.0, so sustained throughput depends on which processor is installed.

How loud or hot does the board get when the system runs all day?

With only a Realtek ALC897 audio codec, RTL8111 gigabit LAN and basic voltage regulation on the H510 chipset, the board itself adds minimal heat and no active noise; system thermals will follow the CPU cooler and case airflow.

Which memory kit do I need to have on hand before this board will post?

You must supply DDR4 modules; the board supports dual-channel speeds from 2133 up to 3200 MHz and a maximum capacity of 64 GB across its two slots.
