MSI

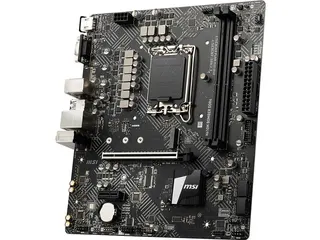

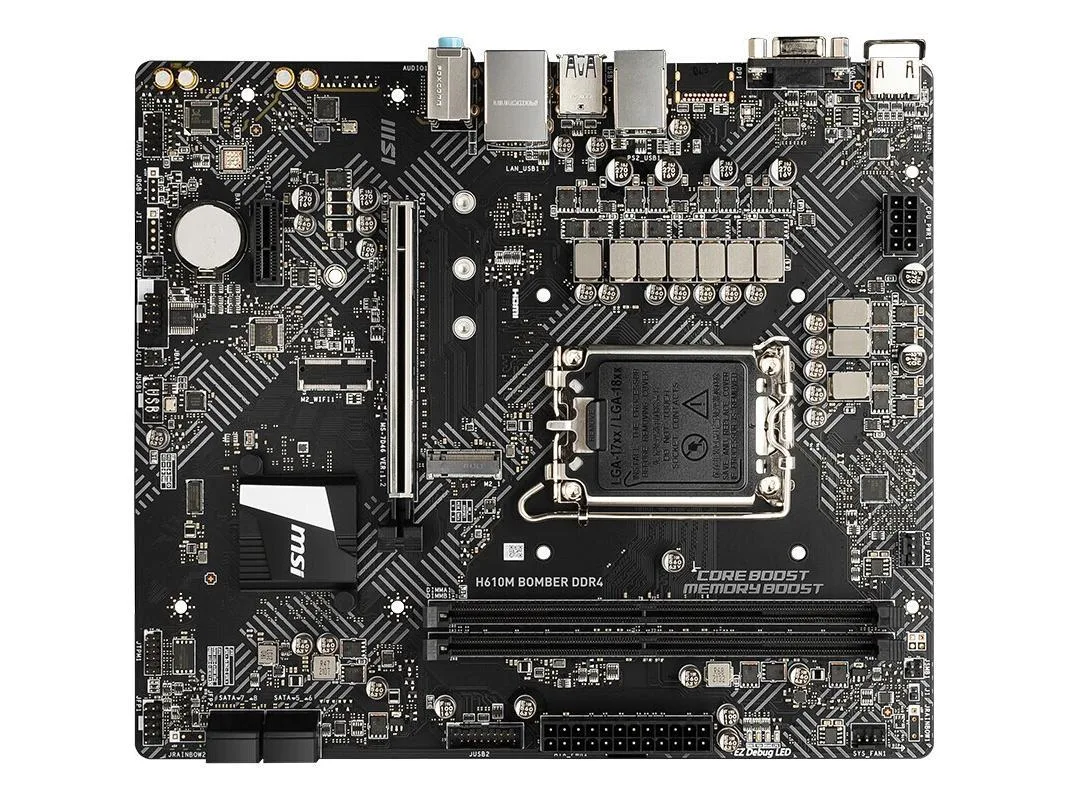

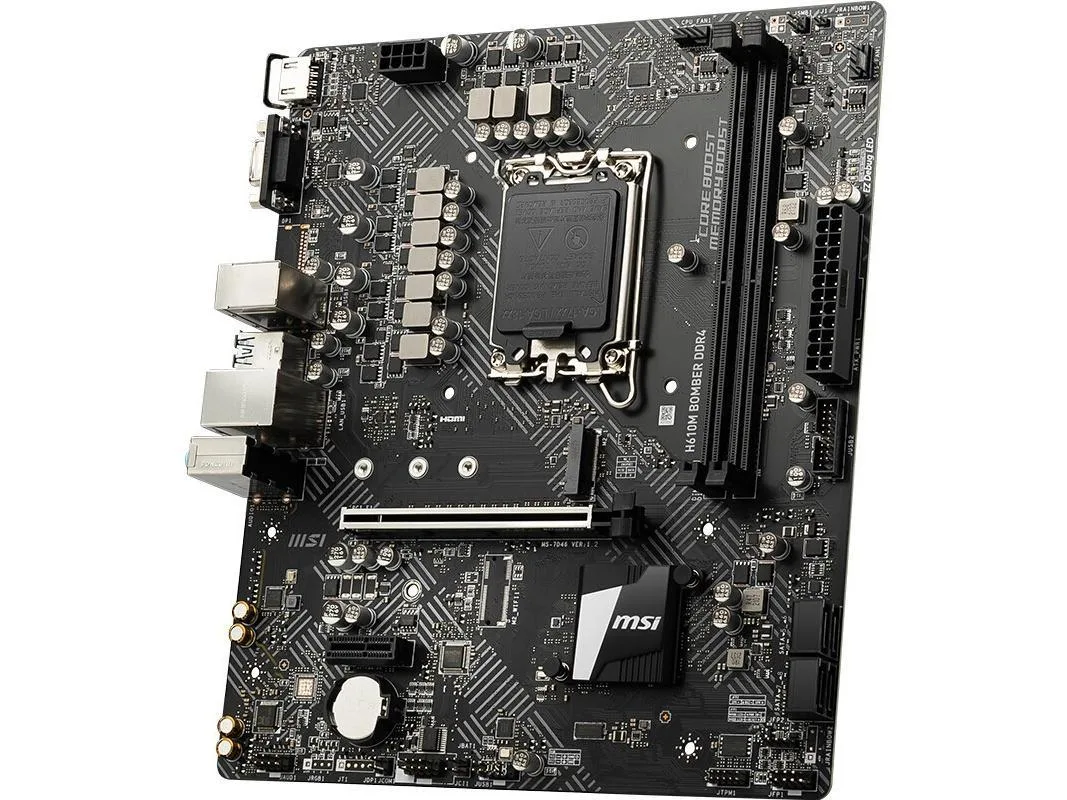

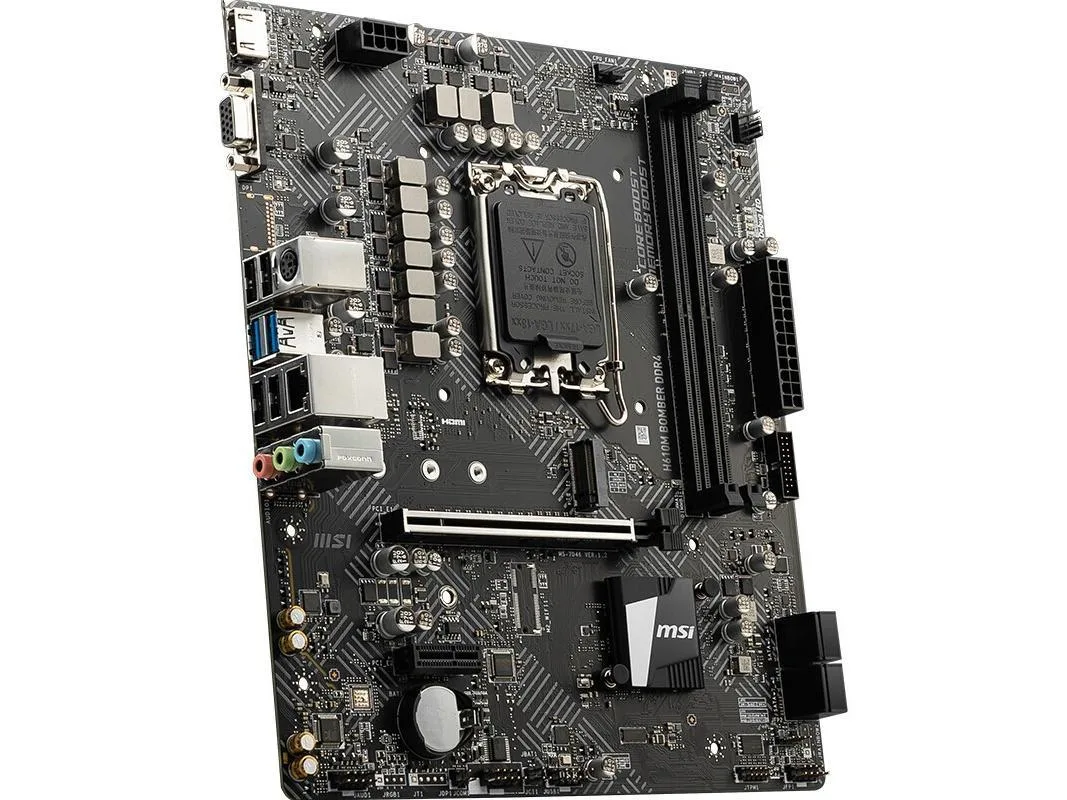

MSI H610M BOMBER DDR4 Intel H610 LGA 1700 Intel motherboard
Micro-ATX board for 12th Gen Intel Core, Pentium Gold and Celeron CPUs with dual-channel DDR4 3200 (OC) up to 64 GB, PCIe 4.0 x16, PCIe 3.0 x1, one E-key M.2 slot, Intel I219V 1 Gbps LAN.
- CPU Socket TypeLGA 1700
- CPU TypeSupports 12th Gen Intel Core Processors, Pentium Gold and Ce
- ChipsetIntel H610
- Memory StandardSupports dual-channel DDR4 3200 (OC) MHz memory
- Maximum Memory Supported64GB
- PCI Slots1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x P
- Supports 12th Gen Intel Core processors on LGA 1700 socket
- Dual-channel DDR4 3200 MHz memory up to 64 GB capacity
- PCIe 4.0 x16 slot plus PCIe 3.0 x1 slot for expansion
- Realtek ALC892/ALC897 codec delivers 7.1-channel high-definition audio
- Intel I219V controller provides 1 Gbps wired network connectivity
Essential H610 board for 12th Gen builds
This MSI H610M BOMBER DDR4 motherboard uses the Intel H610 chipset and an LGA 1700 socket. It supports 12th Gen Intel Core, Pentium Gold and Celeron processors in a micro ATX layout. Dual-channel DDR4 memory runs up to 3200 MHz when overclocked, with a 64 GB capacity ceiling.
Ideal for basic office or home PCs.
The board suits users who need a straightforward platform for everyday computing, light productivity or a compact secondary system. Enthusiasts who want CPU overclocking, multiple high-speed M.2 drives or extensive rear I/O should consider a different chipset.
One PCIe 4.0 x16 slot from the CPU
A single full-length PCIe 4.0 x16 slot connects directly to the processor, providing the primary graphics upgrade path. One additional PCIe 3.0 x1 slot and a dedicated E-key M.2 slot for a Wi-Fi module complete the expansion options.
Highlights
- Supports 12th Gen Intel Core processors on LGA 1700 socket
- Dual-channel DDR4 3200 MHz memory up to 64 GB capacity
- PCIe 4.0 x16 slot plus PCIe 3.0 x1 slot for expansion
- Realtek ALC892/ALC897 codec delivers 7.1-channel high-definition audio
- Intel I219V controller provides 1 Gbps wired network connectivity
Specifications
| Brand | MSI |
|---|---|
| Series | MSI H610M BOMBER DDR4 |
| Model | MSI H610M BOMBER DDR4 |
| CPU Socket Type | LGA 1700 |
| CPU Type | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel H610 |
| Memory Standard | Supports dual-channel DDR4 3200 (OC) MHz memory |
| Maximum Memory Supported | 64GB |
| PCI Slots | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1) |
| SATA RAID | 1XM.2 interface |
| Audio Chipset | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| LAN Chipset | 1x Intel I219V 1Gbps LAN controller |
| Onboard USB | Intel H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
Questions about this item
What case size and mounting pattern does the 23.6x20.0cm Micro ATX board require?
The board follows the Micro ATX form factor measuring 23.6x20.0cm, so any chassis with Micro ATX standoffs and an I/O cut-out for the supplied back panel will accept it.
Which CPU power connector must be seated for the LGA 1700 socket to post?
Connect the 8-pin EPS cable from the PSU to the single CPU power header near the socket; the board will not initialise without it.
What is the maximum DDR4 capacity the two slots can hold?
Two DDR4 DIMM slots support up to 64GB total in dual-channel mode at 3200 MHz OC.
