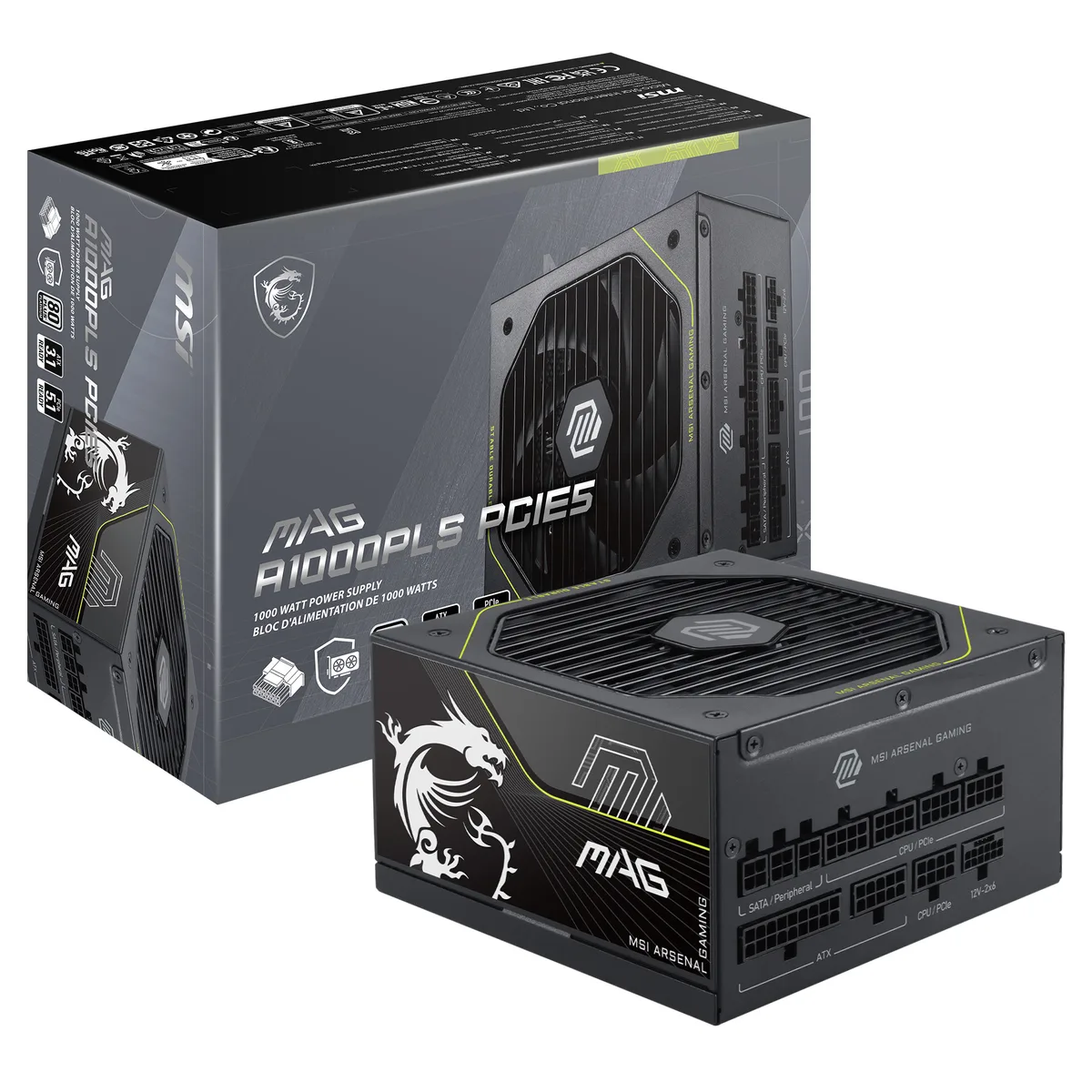

Black rectangular ATX power supply 150 mm deep with 135 mm fan and embossed modular cables

MSI

MSI MAG A1000PLS PCIE5 1000W power supply

SKU CH-NHK8-TMF09 MPN MAG A1000PLS PCIE5

A fully modular 1000 W ATX 3.1 power supply with 80 PLUS Platinum efficiency, native 12V-2x6 connector for 600 W GPU support, GPU Safeguard monitoring, and a 135 mm FDB fan in a compact 150 mm depth

  • TypeATX 3.1
  • Maximum Power1000 W
  • Fans1 x 135 mm
  • Main Connector20+4Pin
  • +12V RailsSingle
  • PCI-Express Connector4 x 6+2-Pin

Option MAG A1000PLS PCIE5

  • Real-time GPU protection alerts via GPU Safeguard on the 12V-2x6 connector
  • Up to 92% efficiency with 80 PLUS Platinum certification
  • Native 12V-2x6 connector delivers up to 600 W to PCIe 5.1 GPUs
  • 135 mm FDB fan and embossed jacket cables built for durability
  • Compact 150 mm length fits most cases for better airflow

1000W ATX 3.1 Power Supply

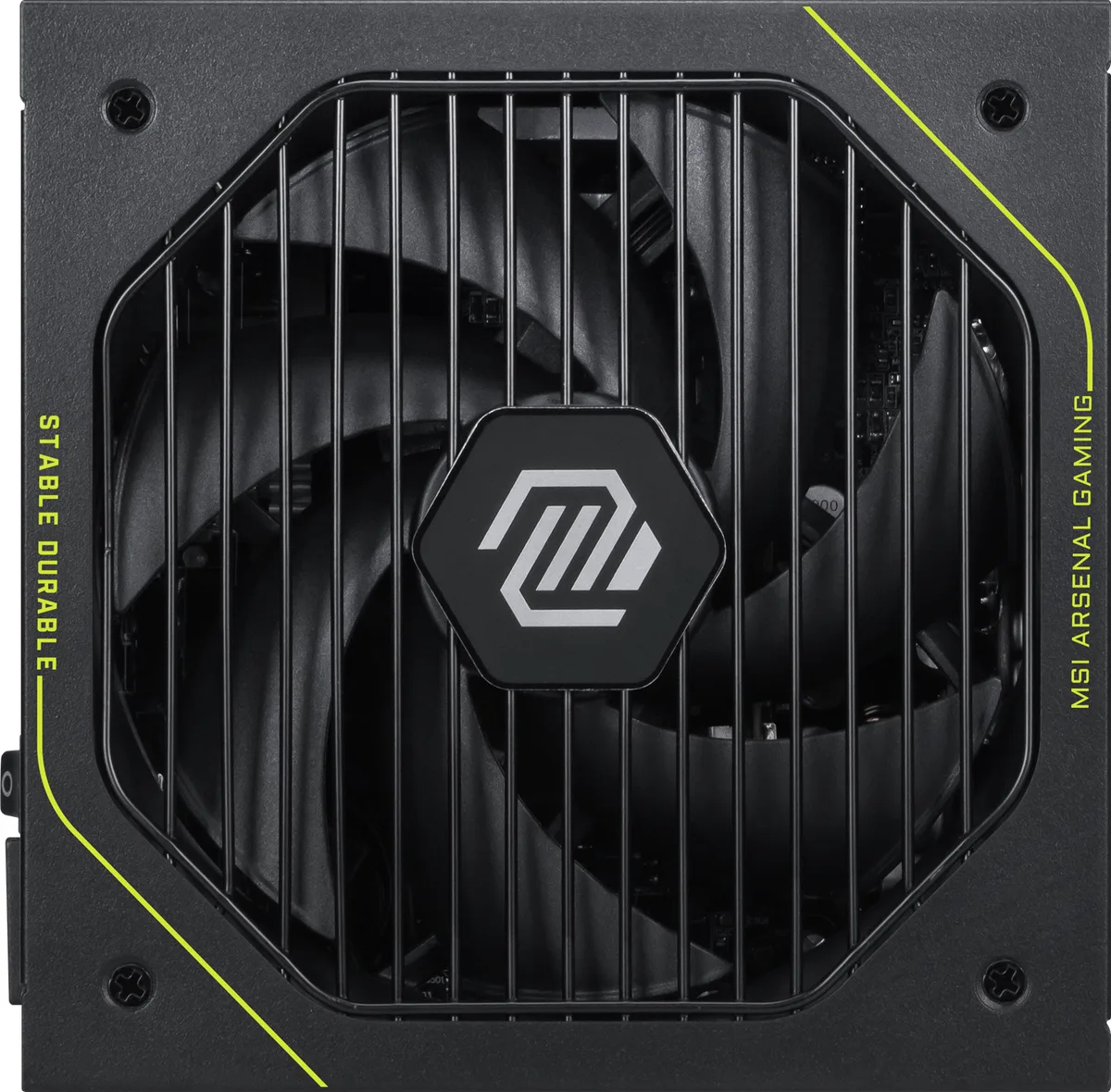

The MSI MAG A1000PLS PCIE5 delivers 1000 watts of continuous power with 80 PLUS Platinum efficiency up to 92 percent. It follows the ATX 3.1 and PCIe 5.1 specifications and uses a single +12V rail design. A 135 mm fluid-dynamic bearing fan provides cooling inside a compact 150 mm long chassis.

Native 12V-2x6 Connector For Modern GPUs

This unit includes a native 12V-2x6 connector rated for 600W, making it suitable for PCIe 5.1 graphics cards such as RTX 50 series models. Builders using older GPUs with standard 6+2 pin connectors are also covered by four additional PCIe plugs. Systems without a 12V-2x6 device will not use the dedicated high-power cable.

GPU Safeguard Monitoring And Embossed Cables

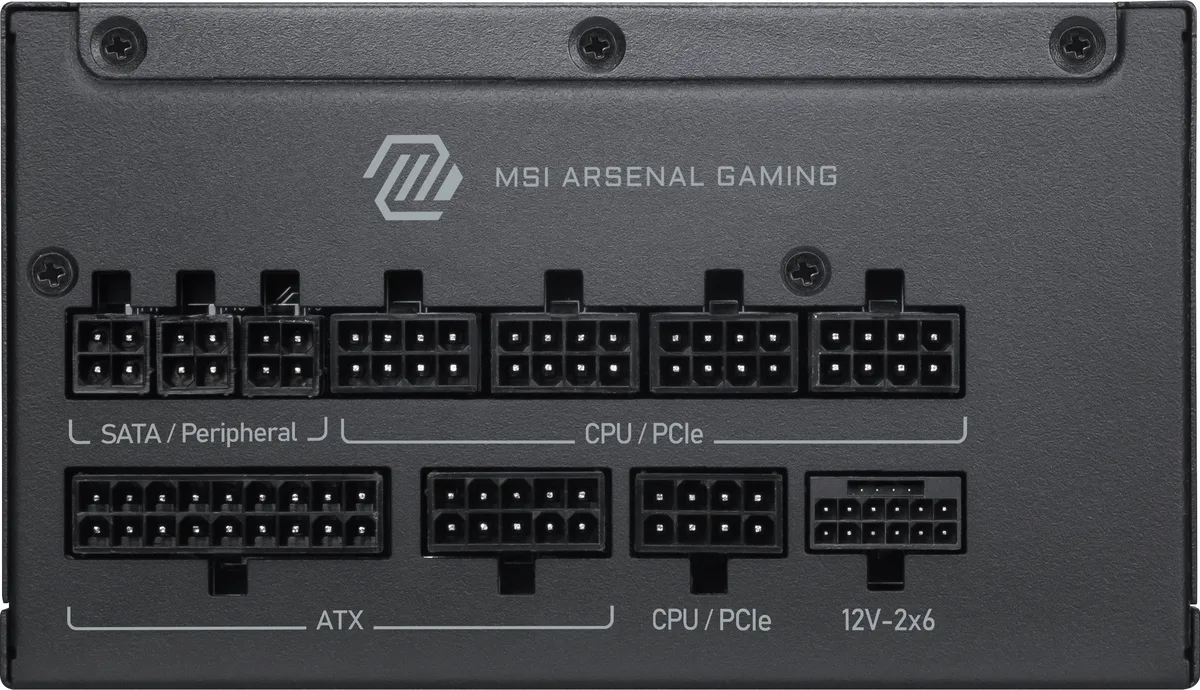

GPU Safeguard monitors the 12V-2x6 connector for abnormal current and sounds a buzzer alert when an issue is detected. The package supplies fully modular embossed jacket cables: one ATX 20+4 pin, two EPS 4+4 pin, one PCIe 5.1, three PCIe, two SATA and one peripheral cable.

Highlights

  • Real-time GPU protection alerts via GPU Safeguard on the 12V-2x6 connector
  • Up to 92% efficiency with 80 PLUS Platinum certification
  • Native 12V-2x6 connector delivers up to 600 W to PCIe 5.1 GPUs
  • 135 mm FDB fan and embossed jacket cables built for durability
  • Compact 150 mm length fits most cases for better airflow

Specifications

BrandMSI
ModelMAG A1000PLS PCIE5
TypeATX 3.1
Maximum Power1000 W
Fans1 x 135 mm
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector6
Max PSU Length150 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
Overload ProtectionYes
ProtectionOCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Output[email protected] , [email protected] , [email protected] , [email protected]
Connectors1 x ATX (20+4 PIN), 2 x EPS (4+4 / 8 PIN), 1 x PCIe 5.1 (600W), 4 x PCIe, 6 x SATA, 3 x Peripheral
Cable Spec1 x ATX Embossed Jacket Cable
2 x EPS12V Embossed Jacket Cable
1 x PCIe 5.1 Embossed Jacket Cable
2 x PCIe Embossed Jacket Cable
1 x PCIe Embossed Jacket Cable
2 x SATA Embossed Jacket Cable
1 x PERIPHERAL Embossed Jacket Cable
Dimensions150 x 150 x 86mm
Shipping weight3.18 kg
Package size305 × 229 × 127 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard connector does the PSU need to power the board?

The unit supplies a 20+4 pin ATX connector that plugs directly into the motherboard main power socket.

Can I keep using my existing SATA drives and older PCIe graphics cards with this supply?

Yes, the box includes six SATA power leads and four 6+2 pin PCIe cables alongside the new 12V-2x6 connector.

How do I know the 12V-2x6 connection to my GPU is seated correctly?

The native 16-pin cable has yellow highlights that make a loose fit easy to spot, and GPU Safeguard sounds a buzzer alert if current becomes abnormal.
