MSI
MSI MAG A850GL PCIE5 850W power supply

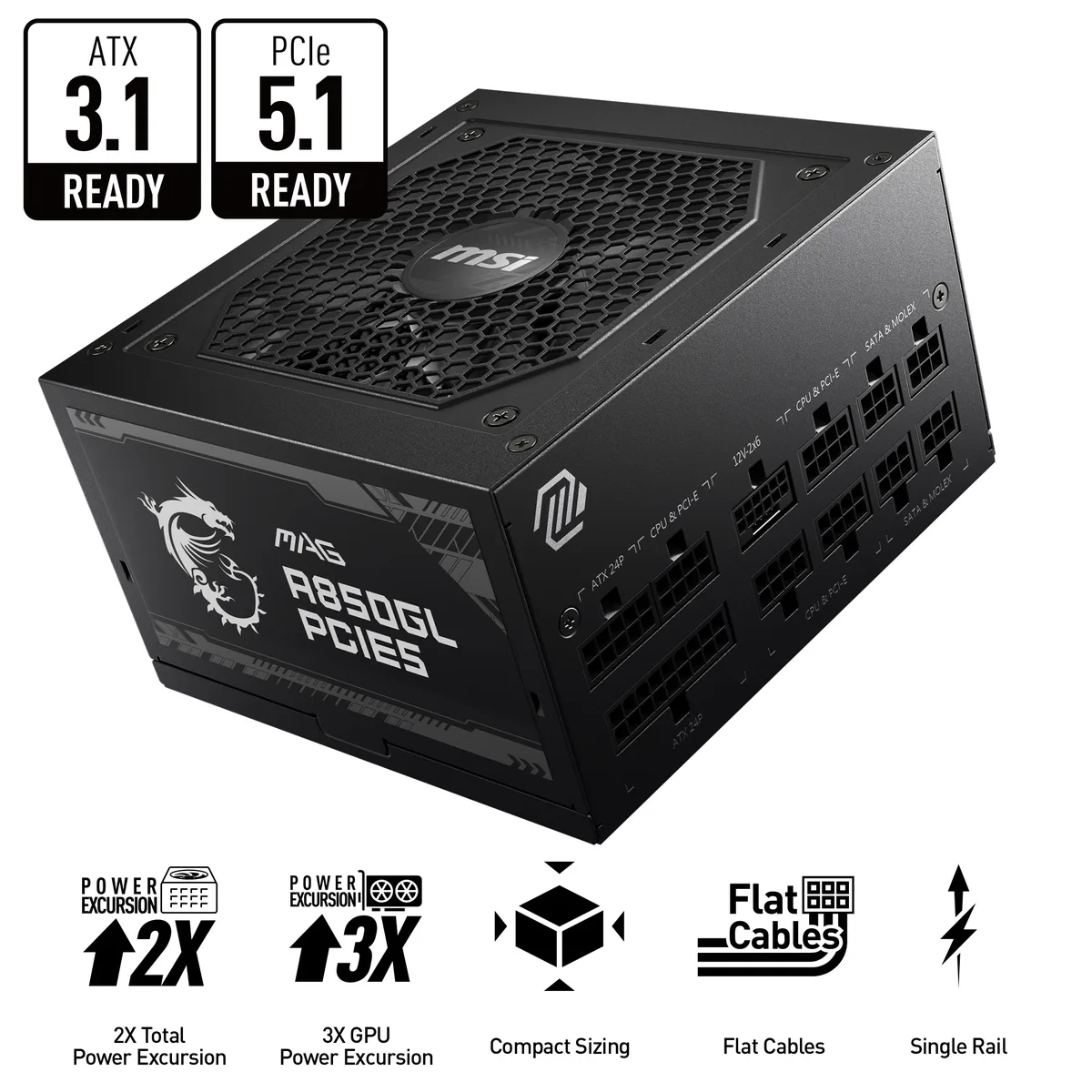

An 850 W ATX 3.1 power supply with 80 PLUS Gold efficiency, PCIe 5.1 support and a native 12V-2x6 cable for modern GPUs
- TypeATX 12V
- Maximum Power850 W
- ModularNo
- Fans1 x 120 mm
- PFCActive
- Main Connector20+4 Pin
Type ATX 3.1 (850W)
- 850 W output for demanding builds

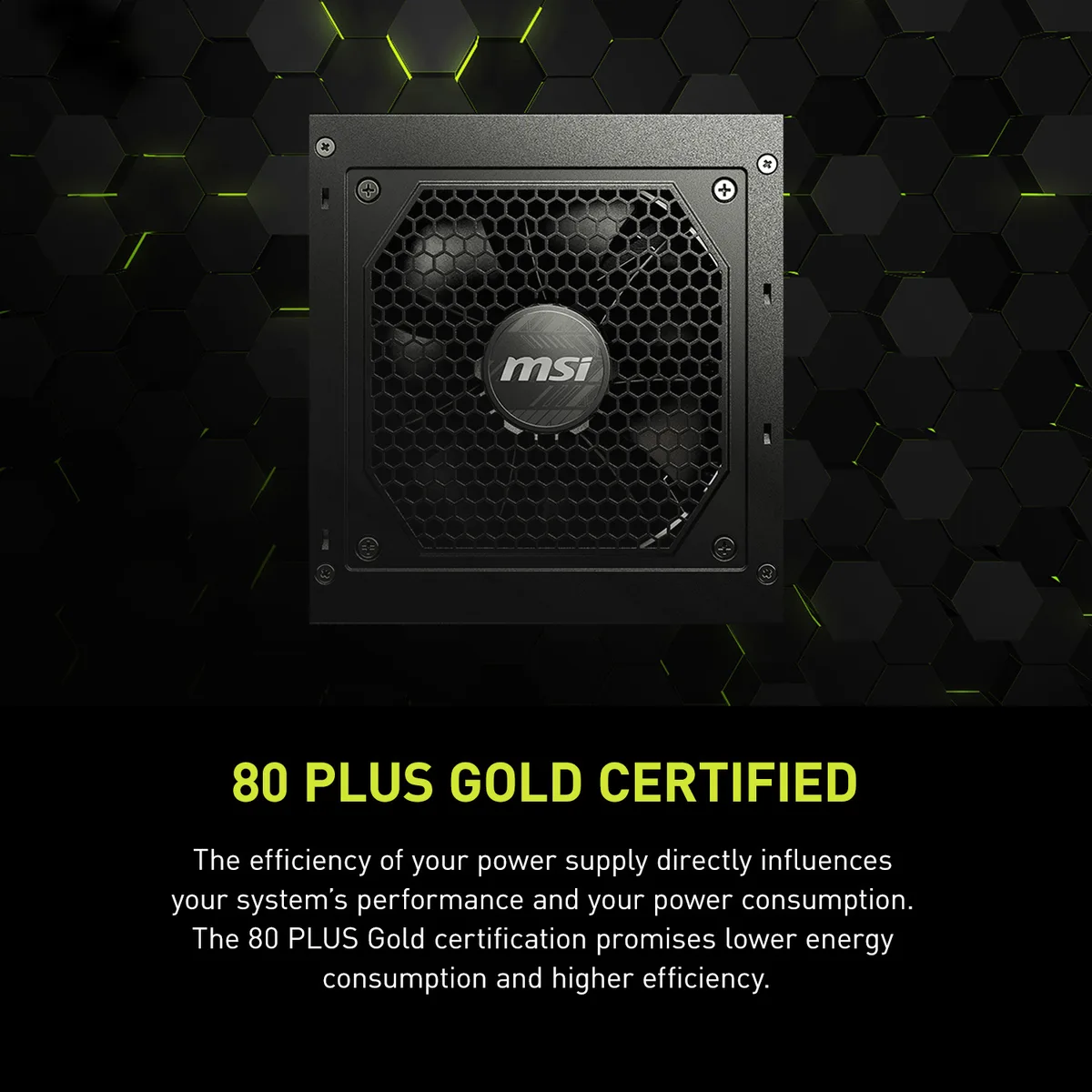

- 80 PLUS Gold certified efficiency up to 90 %
- ATX 3.1 and PCIe 5.1 ready for modern GPUs

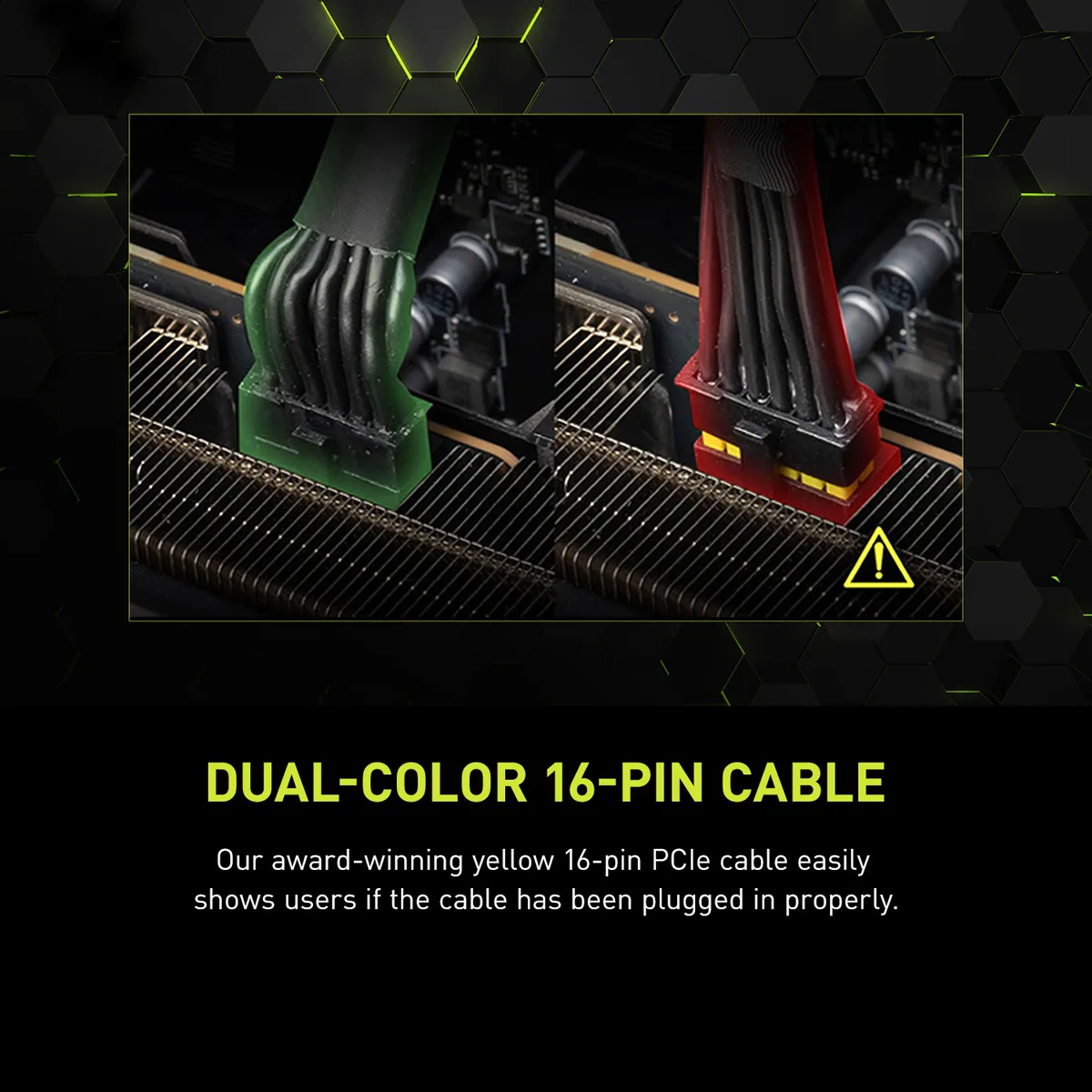

- Native 12V-2x6 connector delivers up to 600 W to graphics cards
- Compact 140 mm depth fits most cases
Compact 850 W ATX 3.1 unit
The MSI MAG A850GL PCIE5 is an 850 W ATX 3.1 power supply with 80 PLUS Gold certification. It delivers up to 600 W through a native 12V-2x6 connector for PCIe 5.1 graphics cards. The fully modular design lets builders attach only the cables they need. A 120 mm Fluid Dynamic Bearing fan handles cooling.
Suits PCIe 5.1 GPU builds.
This unit suits systems that need a native 16-pin GPU connector and high efficiency at 850 W. Builders who prefer a fixed-cable layout or who require more than 850 W should look at something else. The compact 140 mm depth fits most standard ATX cases. It operates on 100-240 V input worldwide.
Sustains 850 W with Gold efficiency

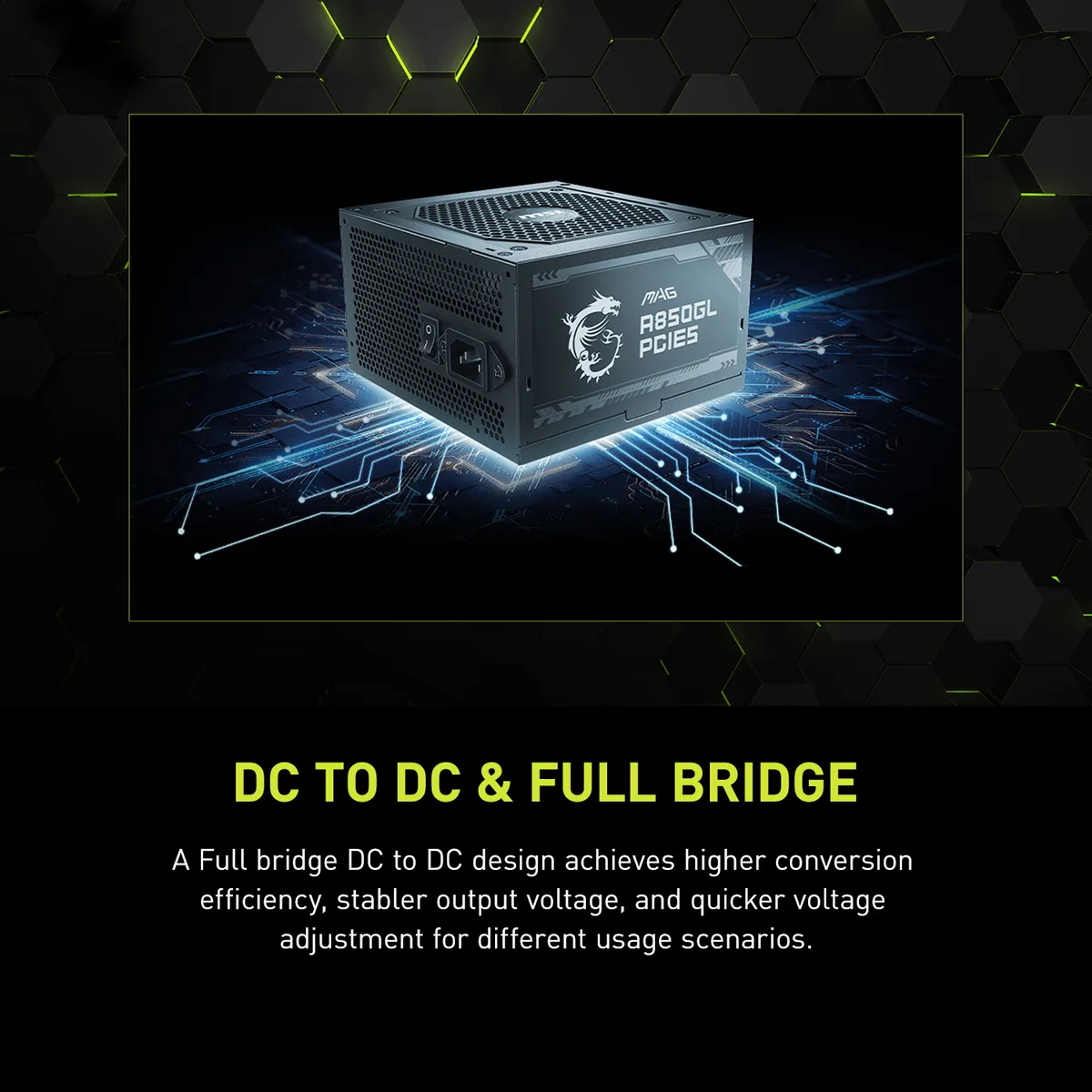

Under sustained load the supply maintains its 850 W rating while 80 PLUS Gold efficiency keeps waste heat low. ATX 3.1 compliance allows 2x total power excursions and 3x GPU power excursions for short bursts. The single 120 mm FDB fan speed ramps with temperature to maintain stable output. Active PFC and dual +12 V rails support consistent delivery.
Highlights
- 850 W output for demanding builds
- 80 PLUS Gold certified efficiency up to 90 %
- ATX 3.1 and PCIe 5.1 ready for modern GPUs
- Native 12V-2x6 connector delivers up to 600 W to graphics cards
- Compact 140 mm depth fits most cases
Specifications
| Brand | MSI |
|---|---|
| Model | MAG A850GL PCIE5 |
| Series | RMx Series |
| Type | ATX 12V |
| Maximum Power | 850 W |
| Modular | No |
| Fans | 1 x 120 mm |
| PFC | Active |
| Main Connector | 20+4 Pin |
| +12V Rails | 2 |
| SATA Power Connector | 16 |
| Efficiency | > 85% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10A @ 115V, 5A @ 230V |
| Output | +3.3V@20A, +5V@20A, [email protected] , [email protected] , [email protected] |
| Approvals | true, not_applicable |

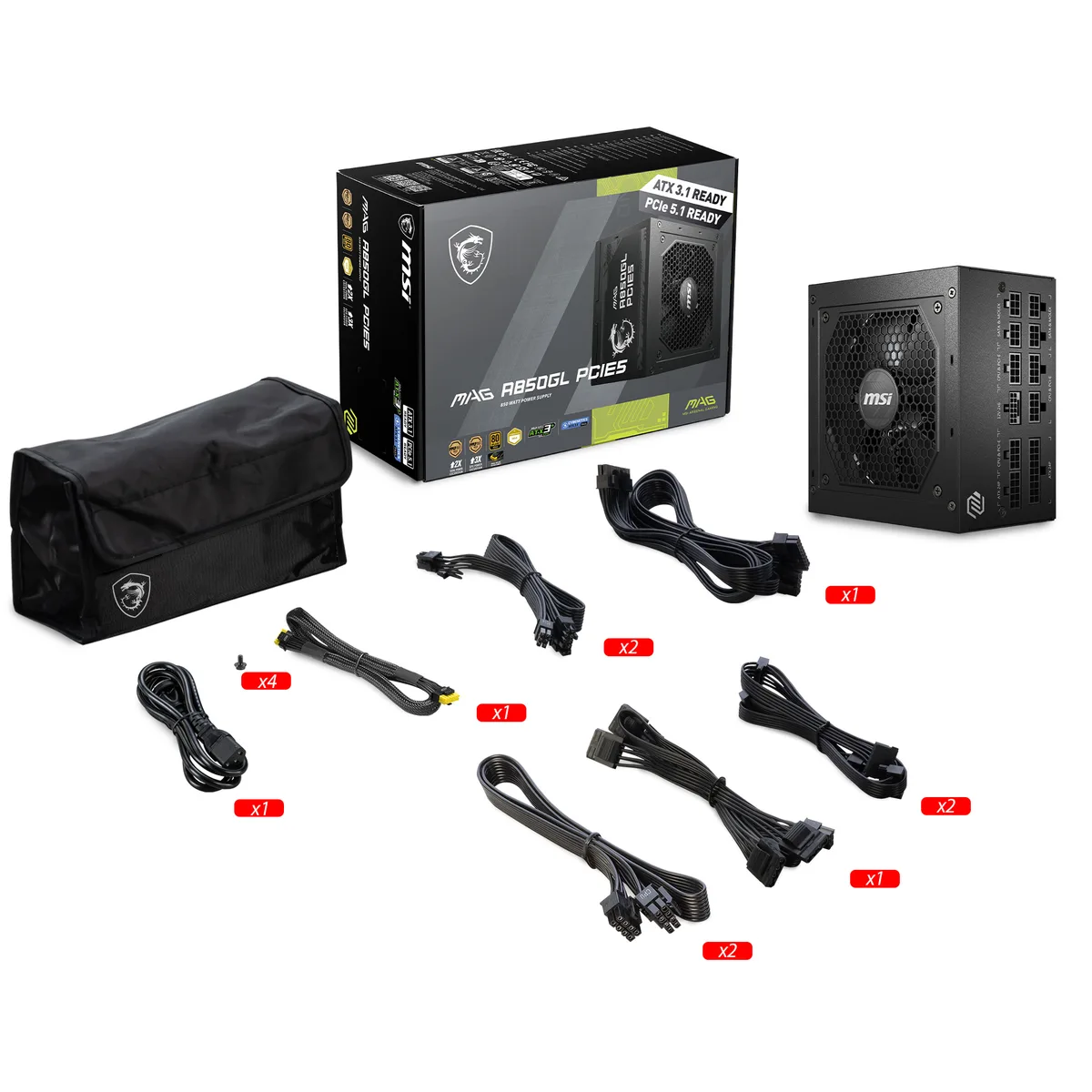

| Connectors | 1 x MB (24/20 pins) 2 x CPU (8/4 pins) 4 x PCIe (8/6 pins) 1 x 12VHPWR (PCI-E 5.0) 8 x SATA 4 x Molex 1 x Molex to FDD Adapter |
| Color | Black |
| Fan LED | RGB |
| Max PSU Length | 150 mm |
| Protection | OVP, OCP, OTP, OPP , SCP, UVP |
| Cable Spec | 20_plus_4_pin_atx, 1, ATX |
| Power Rating | 600W |
| Peak Power | 850 watts |
| SLI | Certified |
| Size/Dimensions | 12 in x 8.75 in x 4.92 in |
| Dimensions | 20' |
| Weight | 2.82 kilograms |
| Package Content | a850gl, MPG A850GL, 1, false |
| Frequency Range | 50/60 Hz |
| +3.3V Max. Current | 8A |
| +12V1 Max. Current | 9A |
| +12V2 Max. Current | 10A |
| +12V3 Max. Current | 30A |
| +12V4 Max. Current | 28A |
| +12V5 Max. Current | 29A |
| +12V6 Max. Current | 28A |
| +5VSB Max. Current | 5A |
| 12V Power Connector | 1 x 4 Pin ATX 12V |
| Floppy Connector | 1 |
| Peripheral Connector | 1 |
| Fans Total Quantity | 1 |
| Top Fans Size | 120mm |
| Top Fans Noise Level | Air |
| Rear Fans Size | 120mm |
| Features | a850gl, Full Modular, full, Air, ATX, 10 Year Limited Manufacturer, 850W (PCIE 5), MAG A850GL PCIE5 |
| Shipping weight | 2.88 kg |
| Package size | 305 × 229 × 133 mm |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
MSI
MSI MAG A850GL PCIE5 WHITE power supply 850W 80+ Gold ATX 3.1 PCIe 5.1
- ATX 12V
- 850 W
$139.99$146.99−5%
0.00180595BTC
In stockQuestions about this item
Will the 12VHPWR connector deliver 600 W to a PCIe 5.0 graphics card?
Yes, the native 16-pin 12VHPWR cable is rated for up to 600 W on a PCIe 5.0 GPU.
Does the fully modular design let me remove every unused cable?
All cables detach from the unit, so only the connectors needed for the build remain installed.
What ATX specification does this unit meet for power excursions?
It complies with ATX 3.0, supporting 2x total and 3x GPU power excursions.
