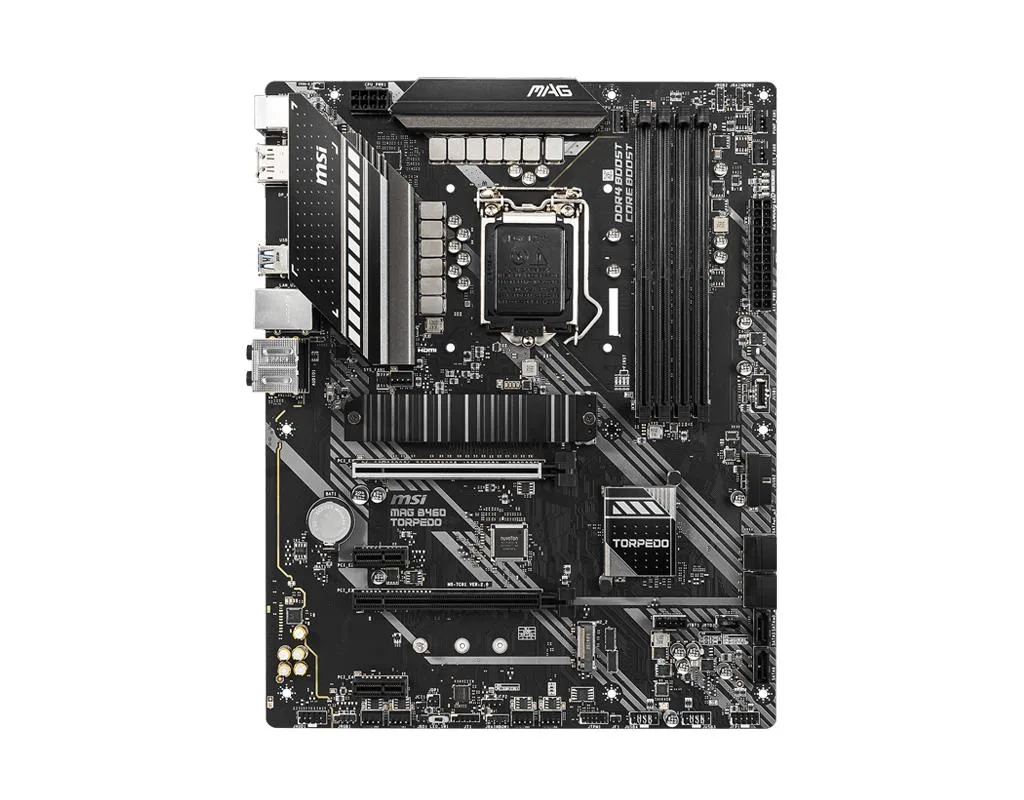

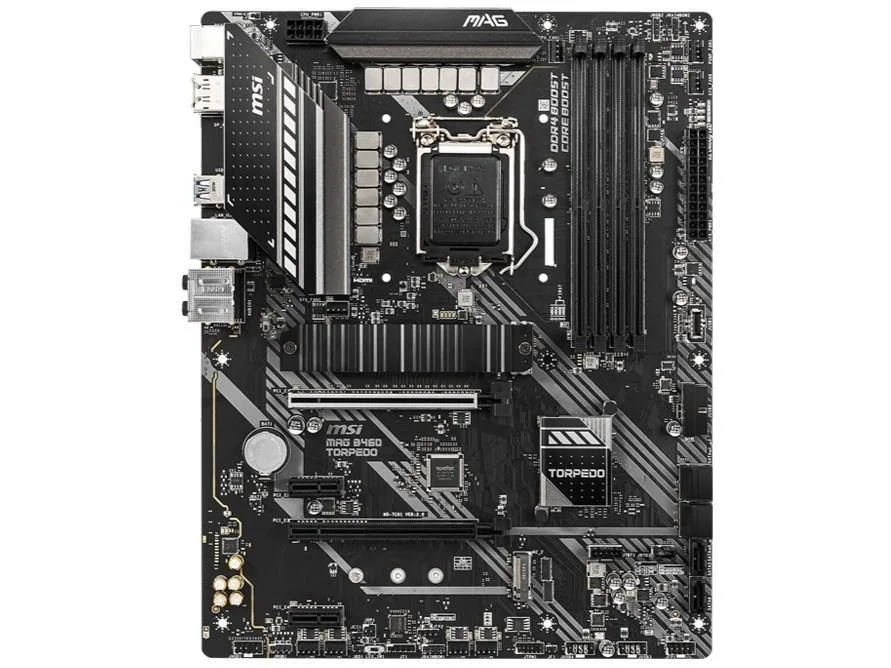

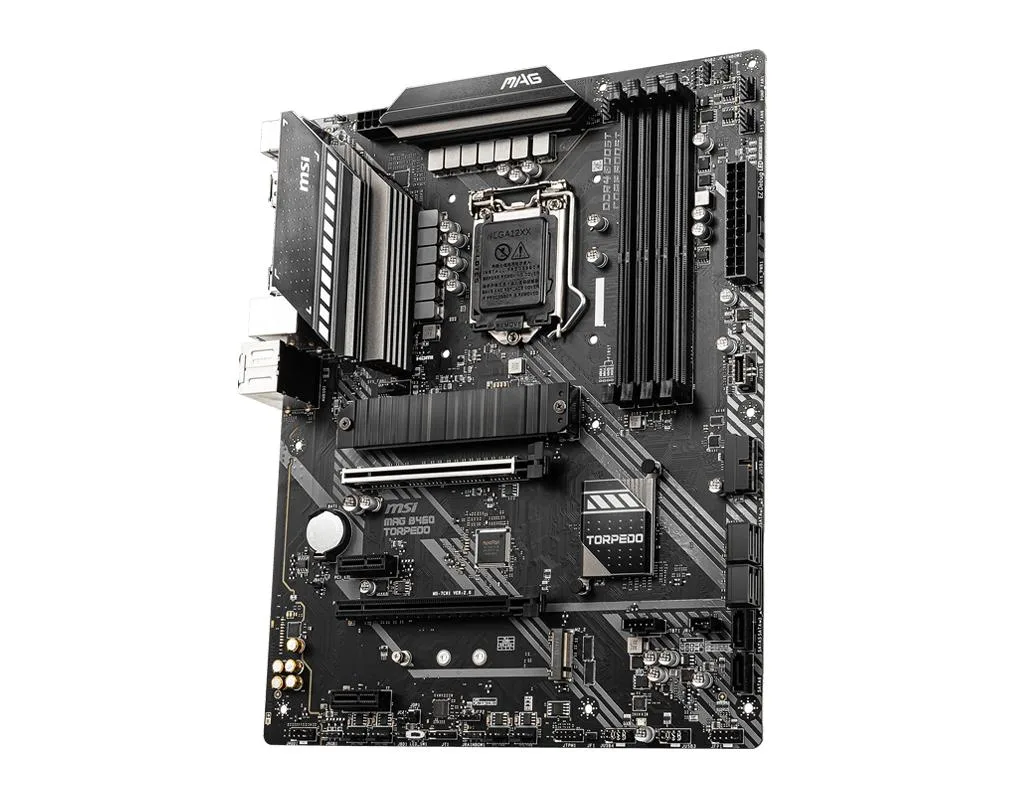

Black ATX motherboard with silver heatsinks and blue accents

MSI

MSI MAG B460 TORPEDO Intel motherboard

SKU CH-2HX8-B5CKA

Supports 10th Gen Intel Core processors with LGA 1200 socket, dual-channel DDR4 memory up to 128GB, 2.5Gbps LAN, 7.1 audio and multiple PCIe 3.0 slots

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core and Pentium Gold / Celeron proc
  • ChipsetIntel B460
  • Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
  • Maximum Memory Supported128GB
  • PCI Slots1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode 1
  • Supports 10th Gen Intel Core and Pentium Gold Celeron processors LGA 1200 socket
  • Dual-channel DDR4 2933MHz memory up to 128GB maximum capacity
  • 5Gbps LAN via Realtek RTL8125B controller for faster wired networking
  • 1-channel high definition audio with Realtek ALC1200 codec and S/PDIF output
  • 1x PCIe 3.0 x16 slot from CPU plus 1x PCIe 3.0 x16 slot from PCH at x4 mode

Intel B460 ATX board for 10th Gen Core

The MSI MAG B460 TORPEDO is an ATX motherboard built around the Intel B460 chipset and the LGA 1200 socket. It accepts 10th Generation Intel Core, Pentium Gold and Celeron processors. Four DDR4 slots support dual-channel memory up to 2933 MHz and a total capacity of 128 GB.

Builders who need 2.5 Gbps LAN and 7.1 audio

The single Realtek RTL8125B controller provides a 2.5 Gbps Ethernet connection, while the Realtek ALC1200 codec delivers 7.1-channel high-definition audio with S/PDIF output. Users requiring integrated Wi-Fi or additional PCIe 4.0 lanes should consider other platforms.

Bundled back-panel, battery and single SATA cable

The package includes a chassis I/O back panel, a CMOS battery and one SATA cable. No further cables, Wi-Fi antennas or mounting hardware are supplied, so installers must source any extra drive or front-panel connectors separately.

Highlights

  • Supports 10th Gen Intel Core and Pentium Gold Celeron processors LGA 1200 socket
  • Dual-channel DDR4 2933MHz memory up to 128GB maximum capacity
  • 5Gbps LAN via Realtek RTL8125B controller for faster wired networking
  • 1-channel high definition audio with Realtek ALC1200 codec and S/PDIF output
  • 1x PCIe 3.0 x16 slot from CPU plus 1x PCIe 3.0 x16 slot from PCH at x4 mode

Specifications

BrandMSI
SeriesMSI MAG B460 TORPEDO
ModelMSI MAG B460 TORPEDO
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
ChipsetIntel B460
Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
Maximum Memory Supported128GB
PCI Slots1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode
2x PCIe 3.0 x1 slots (From PCH)
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek RTL8125B 2.5Gbps LAN controller
Onboard USBIntel B460 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector)
1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Questions about this item

Do I need an LGA 1200 processor for the MSI MAG B460 TORPEDO?

Yes, this board only accepts 10th Gen Intel Core, Pentium Gold or Celeron CPUs that fit the LGA 1200 socket.

Will my existing DDR4 2933 MHz modules run at full speed on the MSI MAG B460 TORPEDO?

The board supports dual-channel DDR4 up to 2933 MHz, so compatible modules will operate at their rated frequency.

How can I confirm the 2.5 Gbps LAN is active after building with the MSI MAG B460 TORPEDO?

Check Device Manager for the Realtek RTL8125B adapter and verify the link speed shows 2.5 Gbps in the network connection status.
