MSI
MSI MAG B460M BAZOOKA LGA 1200 DDR4 128GB Micro ATX Intel motherboard
Micro-ATX board for 10th Gen Intel Core and Pentium Gold or Celeron CPUs with dual-channel DDR4 up to 2933MHz and 128GB capacity
- CPU Socket TypeLGA 1200
- CPU TypeSupports 10th Gen Intel Core and Pentium Gold / Celeron proc
- ChipsetIntel B460
- Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
- Maximum Memory Supported128GB
- PCI Slots1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH)
- Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
- Dual-channel DDR4 memory up to 2933MHz with 128GB maximum capacity
- PCIe 3.0 x16 slot from CPU plus 2x PCIe x1 slots from PCH for expansion
- Realtek ALC892 codec delivers 7.1-channel high definition audio
- Realtek RTL8111H gigabit LAN controller provides wired network connectivity

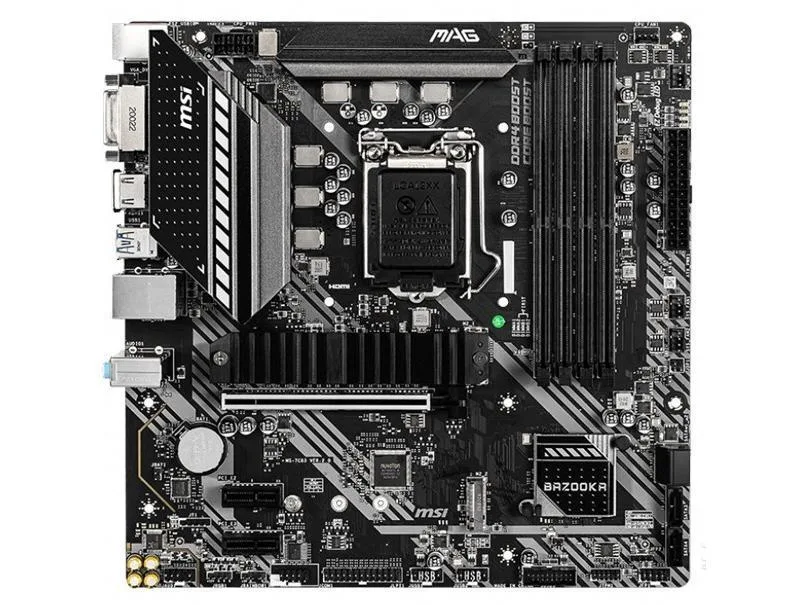

MSI MAG B460M BAZOOKA Motherboard
This Micro ATX board uses the Intel B460 chipset and an LGA 1200 socket. It supports 10th Gen Intel Core processors and Pentium Gold or Celeron CPUs. Four DDR4 slots accept up to 128GB of dual-channel memory at 2933MHz maximum speed.
Who This Board Suits
Builders wanting a compact foundation for a 10th Gen Intel system will find the required socket and chipset here. The layout provides one full-length PCIe 3.0 x16 slot from the CPU plus two x1 slots from the PCH. Anyone needing a newer socket, a different chipset, or more than four memory slots should look elsewhere.
Deciding Specification — 128GB DDR4 Limit
The maximum supported memory is 128GB across four slots running dual-channel DDR4 at up to 2933MHz. If your build requires more capacity or a different memory standard, this motherboard will not meet that requirement. Check your CPU and memory kit against this ceiling before purchasing.
Highlights
- Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
- Dual-channel DDR4 memory up to 2933MHz with 128GB maximum capacity
- PCIe 3.0 x16 slot from CPU plus 2x PCIe x1 slots from PCH for expansion
- Realtek ALC892 codec delivers 7.1-channel high definition audio
- Realtek RTL8111H gigabit LAN controller provides wired network connectivity
Specifications
| Brand | MSI |
|---|---|
| Series | MSI MAG B460M BAZOOKA |
| Model | MSI MAG B460M BAZOOKA |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket |
| Chipset | Intel B460 |
| Memory Standard | Supports dual-channel DDR4 2933MHz memory (maximum) |
| Maximum Memory Supported | 128GB |
| PCI Slots | 1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH) |
| SATA RAID | 2XM.2 interface, 4xSATA III interface |
| Audio Chipset | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| LAN Chipset | 1x Realtek RTL8111H Gigabit LAN Controller |
| Onboard USB | Intel B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
Questions about this item
What DDR4 speed does the B460 chipset cap dual-channel memory at?
The board supports dual-channel DDR4 up to 2933 MHz; faster modules will run at that ceiling.
What case and power connectors does the Micro ATX layout require?
A Micro ATX chassis with standard 24-pin ATX and 8-pin EPS power headers fits the board.
How is the CPU installed in the LGA 1200 socket and what step is often missed?
Lift the load lever, align the notches, place the processor gently, lower the frame, then lock the lever — forgetting to remove the socket cover is the common error.
