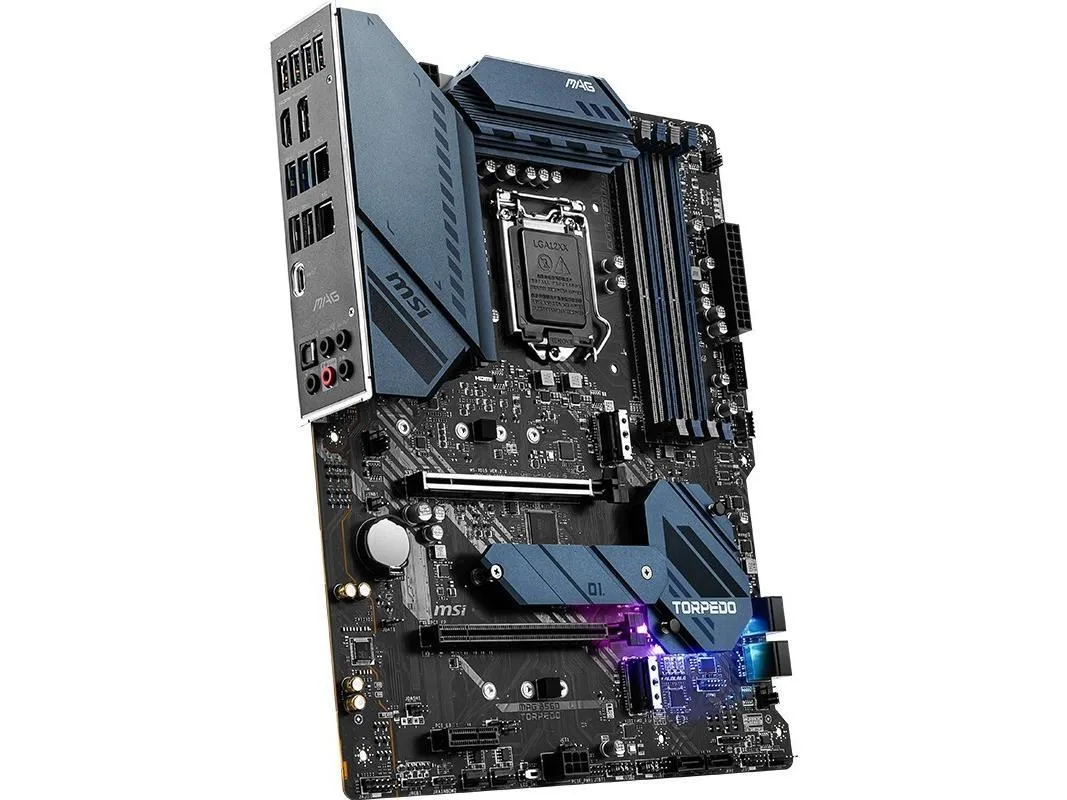

Rectangular ATX board, black PCB with silver heatsinks and blue accents

MSI

MSI MAG B560 TORPEDO Intel motherboard

SKU CH-97KH-F2YC9

ATX motherboard with LGA 1200 socket, B560 chipset, dual-channel DDR4 up to 5066 MHz, 128 GB maximum memory, 2.5 Gbps and 1 Gbps LAN, USB 3.2 Gen 2x2 20 Gbps Type-C, Realtek ALC897 7.1 audio.

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel B560
  • Memory StandardSupports dual-channel DDR4 5066 (OC) MHz memory
  • Maximum Memory Supported128GB
  • PCI Slots2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 f
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 up to 5066 MHz with 128 GB maximum capacity
  • PCIe 4.0 on the primary x16 slot with 11th Gen CPUs
  • Dual LAN with 2.5 Gbps and 1 Gbps controllers
  • 1-channel audio from Realtek ALC897 codec

Intel B560 chipset for LGA 1200

The MSI MAG B560 TORPEDO is an Intel B560 motherboard built for LGA 1200 processors. It supports 10th and 11th Gen Intel Core, Pentium Gold and Celeron CPUs. The board uses a Micro ATX form factor and carries the MAG TORPEDO branding. It targets builders who need a mainstream platform for current-generation Intel desktop chips.

Dual-channel DDR4 up to 128 GB

Four memory slots accept dual-channel DDR4 with a rated overclock ceiling of 5066 MHz. The maximum supported capacity is 128 GB, giving ample headroom for heavy multitasking and content workloads. Memory speed scales with the installed processor generation and module quality. Beyond 128 GB the chipset cannot address additional DRAM.

PCIe 4.0 from CPU and 2.5 Gbps LAN

With an 11th Gen CPU the primary PCIe x16 slot runs at PCIe 4.0; with a 10th Gen CPU it falls back to PCIe 3.0. The second x16 slot and the x1 slot are wired to the B560 chipset at PCIe 3.0 x4 and x1 respectively. Networking combines a Realtek 2.5 Gbps controller and an Intel 1 Gbps controller. USB 3.2 Gen 2x2 reaches 20 Gbps on the rear Type-C port.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 up to 5066 MHz with 128 GB maximum capacity
  • PCIe 4.0 on the primary x16 slot with 11th Gen CPUs
  • Dual LAN with 2.5 Gbps and 1 Gbps controllers
  • 1-channel audio from Realtek ALC897 codec

Specifications

BrandMSI
SeriesMSI MAG B560 TORPEDO
ModelMSI MAG B560 TORPEDO
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel B560
Memory StandardSupports dual-channel DDR4 5066 (OC) MHz memory
Maximum Memory Supported128GB
PCI Slots2x PCIe x16 slots
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E2 (from B560 chipset)
Support up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (from B560 chipset)
SATA RAID3XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek RTL8125B 2.5Gbps LAN controller
1x Intel I219V 1Gbps LAN controller
Onboard USBIntel B560 Chipset
1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
4x USB 2.0 ports on the back panelG
Hub-GL850G
4x USB 2.0 ports available through the internal connectors

Questions about this item

Will my existing DDR4 memory kits work with the B560 chipset on this board?

The board runs dual-channel DDR4 up to 5066 MHz when overclocked and supports a total of 128 GB, so any standard DDR4 modules within that range are compatible.

How can I confirm the 2.5 Gbps LAN controller is active after assembly?

Open Device Manager or your OS network settings and verify the Realtek RTL8125B adapter shows a 2.5 Gbps link speed when connected to a matching switch or router.

Which accessories are included and what must I source separately?

The package supplies the motherboard, a CMOS battery, one SATA cable and the I/O shield; CPU cooler mounting hardware, additional SATA cables, M.2 screws and any Wi-Fi antenna are not included.
