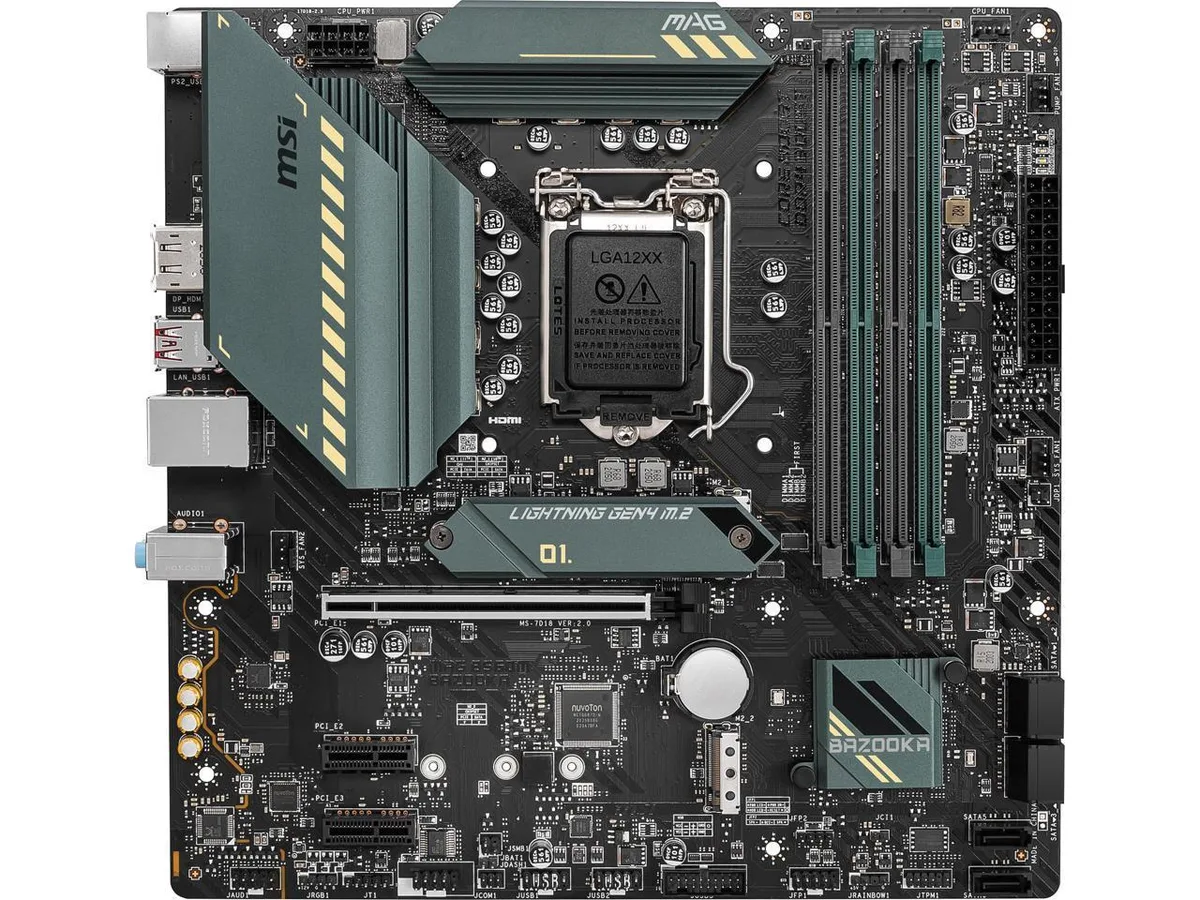

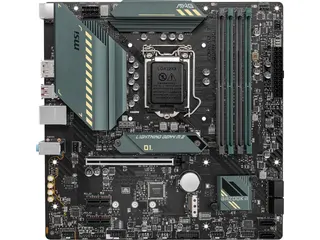

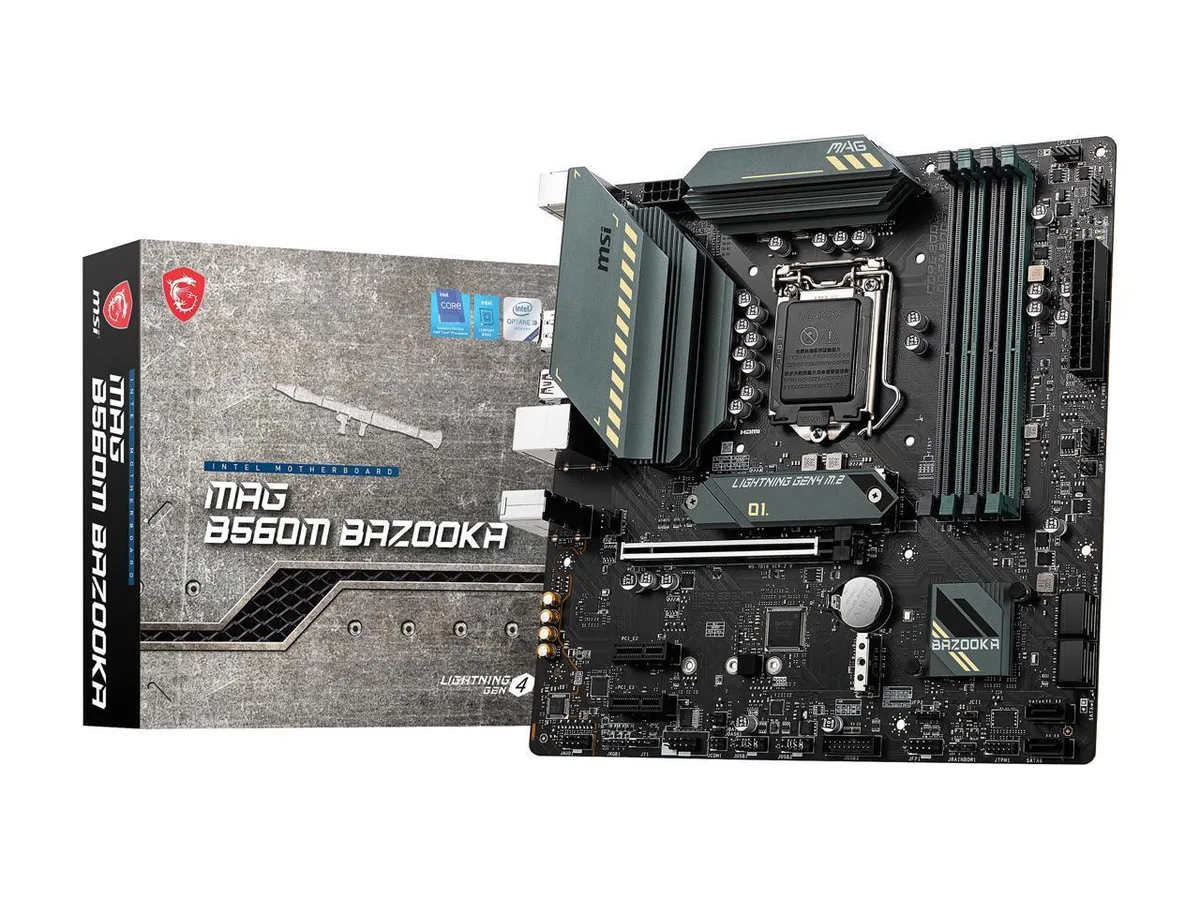

Green rectangular Micro ATX board with silver heatsinks and black slots

MSI

MSI MAG B560M BAZOOKA Intel Motherboard

SKU CH-5BCM-WH2PP

Micro ATX board for LGA 1200 CPUs with dual-channel DDR4 up to 128 GB, PCIe 4.0 x16 slot, two M.2 sockets, 2.5 Gbps LAN and six SATA 6Gb/s ports

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th / 10th Gen Intel Core Processors Supports Inte
  • ChipsetIntel B560
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardSupports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, b
  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory at speeds up to 5066 MHz
  • PCIe 4.0 x16 slot and two M.2 Key M slots for fast storage and graphics
  • 5 Gbps LAN and Realtek ALC897 7.1-channel audio for high-speed networking and sound
  • Six SATA 6Gb/s ports plus USB 3.2 Gen 2 and Gen 1 Type-A on the rear I/O

Micro ATX board for 10th and 11th Gen Intel Core

The MSI MAG B560M BAZOOKA fits the LGA 1200 socket and accepts 10th and 11th Gen Intel Core processors plus Pentium Gold and Celeron models. Four DDR4 slots support up to 128 GB in dual-channel mode. A single PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots provide expansion room for graphics and add-in cards.

PCIe lane limits depend on the installed CPU

With an 11th Gen CPU the primary M.2 slot runs at PCIe 4.0 x4 from the processor, while a 10th Gen CPU drops that slot to PCIe 3.0 x4 or SATA. The second M.2 slot is wired through the B560 chipset. Six SATA 6Gb/s ports remain available regardless of CPU generation. The 2.5 Gbps LAN and USB 3.2 Gen 2 ports deliver consistent throughput.

Steel-reinforced PCIe slot and shielded M.2

The board uses a reinforced primary PCIe slot to resist sag from heavy graphics cards. Both M.2 slots accept 2242, 2260 and 2280 devices without extra brackets. Rear I/O includes HDMI and DisplayPort for CPUs with integrated graphics, a PS/2 combo port, two USB 2.0, two USB 3.2 Gen 1 and two USB 3.2 Gen 2 Type-A ports plus 7.1-channel audio jacks driven by the Realtek ALC897 codec.

Highlights

  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory at speeds up to 5066 MHz
  • PCIe 4.0 x16 slot and two M.2 Key M slots for fast storage and graphics
  • 5 Gbps LAN and Realtek ALC897 7.1-channel audio for high-speed networking and sound
  • Six SATA 6Gb/s ports plus USB 3.2 Gen 2 and Gen 1 Type-A on the rear I/O

Specifications

BrandMSI
ModelMAG B560M BAZOOKA
CPU Socket TypeLGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors
ChipsetIntel B560
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066
1DPC 2R Max speed up to 4600+
2DPC 1R Max speed up to 4266+
2DPC 2R Max speed up to 4000+
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
PCI Express x12 x PCIe 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2 slot (Key M):
M2_1 slot:
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU*
Supports 2242/2260/2280 storage devices
M2_2 slot (from B560 chipset):
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/2260/2280 storage devices
Intel Optane Memory Ready**
* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane ReadyYes
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8125B
Max LAN Speed2.5Gbps
Back I/O Ports1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x PS/2 Keyboard/Mouse Combo
2 x USB 2.0/1.1
2 x USB 3.2 Gen 1 Type-A
2 x USB 3.2 Gen 2 Type-A
3 x Audio Jacks
Onboard USB1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
1 x Serial port connector
1 x Tuning Controller connector
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armo

Questions about this item

Will my 11th Gen Intel Core processor run PCIe 4.0 on the primary M.2 slot and the x16 graphics slot?

Yes, with an 11th Gen CPU the M2_1 slot operates at PCIe 4.0 x4 and the primary x16 slot runs at PCIe 4.0 x16.

What is the highest memory speed I can reach with a 10th Gen Intel Core processor and four populated DDR4 slots?

The board supports up to 4000 MT/s in a 2DPC 2R configuration when overclocking with a 10th Gen CPU.

Does the rear I/O provide a 2.5 Gbps network port and USB 3.2 Gen 2 Type-A connectors?

Yes, the back panel includes a Realtek 2.5G LAN port and two USB 3.2 Gen 2 Type-A ports.
