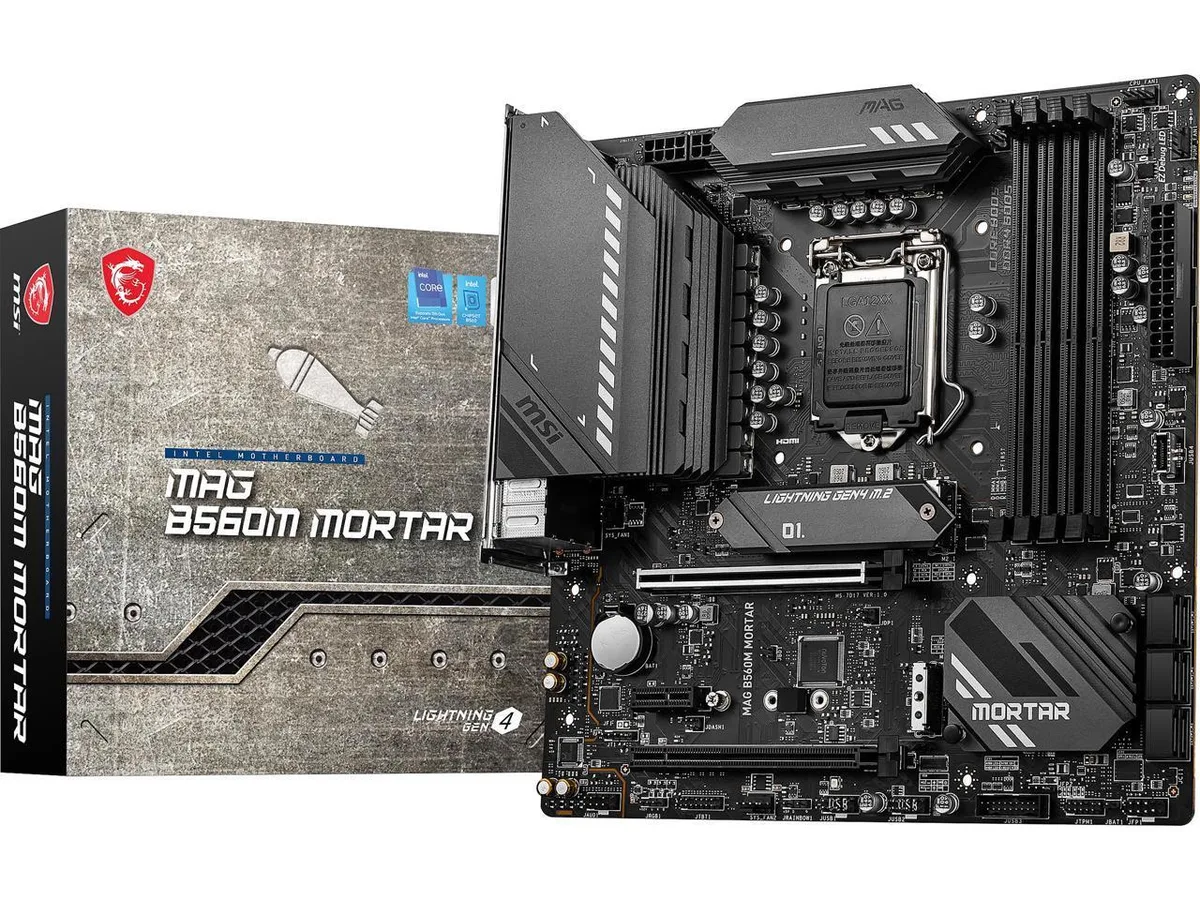

Micro ATX motherboard with black heatsinks and silver accents

MSI

MSI MAG B560M MORTAR Intel motherboard

SKU CH-AQQ4-56Z0W

Micro ATX board for LGA 1200 CPUs with DDR4 memory up to 128 GB, PCIe 4.0 slots, dual M.2, 2.5 Gbps LAN and USB 20 Gbps Type-C

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th / 10th Gen Intel Core Processors Supports Pent
  • ChipsetIntel B560
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) /
  • Maximum Memory Supported128GB
  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB with overclocked speeds beyond 3200
  • Two M.2 slots and six SATA 6 Gb/s ports give flexible high-speed storage
  • 5 Gbps LAN and USB 3.2 Gen 2x2 20 Gbps Type-C deliver fast wired connectivity
  • Extended heatsink, M.2 Shield FROZR and Frozr AI Cooling keep thermals under control

LGA 1200 Micro ATX board for 10

This Micro ATX motherboard uses the Intel B560 chipset and an LGA 1200 socket to support 10th and 11th Gen Intel Core processors plus Pentium Gold and Celeron CPUs. Four DDR4 slots accept up to 128GB of memory with a long list of overclocked speeds. The board fits compact cases while still providing two full-length PCIe x16 slots and six SATA 6Gb/s ports.

Extended heatsink M.2 Shield FROZR and 2.5G LAN

An extended PWM heatsink covers the power delivery for sustained loads. The M.2 Shield FROZR acts as a thermal accessory for installed M.2 drives to limit throttling. A Realtek RTL8125B controller provides a 2.5Gbps LAN port with LAN manager software. Audio Boost circuitry delivers 7.1 channel output and the rear I/O includes a USB 3.2 Gen 2x2 Type-C port rated at 20Gbps. Frozr AI Cooling monitors CPU and GPU temperatures to adjust fan duty automatically.

PCIe 4.0 from CPU for 11 Gen or PCIe 3.0 for 10 Gen

The primary PCIe x16 slot and the first M.2 slot run at PCIe 4.0 x4 when an 11th Gen processor is installed and fall back to PCIe 3.0 with a 10th Gen CPU. The second PCIe x16 slot and the second M.2 slot are wired to the chipset at PCIe 3.0. This split determines the maximum bandwidth available to graphics cards and high-speed storage.

Highlights

  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB with overclocked speeds beyond 3200
  • Two M.2 slots and six SATA 6 Gb/s ports give flexible high-speed storage
  • 5 Gbps LAN and USB 3.2 Gen 2x2 20 Gbps Type-C deliver fast wired connectivity
  • Extended heatsink, M.2 Shield FROZR and Frozr AI Cooling keep thermals under control

Specifications

BrandMSI
ModelMAG B560M MORTAR
CPU Socket TypeLGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core Processors
Supports Pentium Gold and Celeron Processors
ChipsetIntel B560
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC) MHz
Maximum Memory Supported128GB
PCI Express 4.0 x162x PCIe x16 slots, Support x16/ x4
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3 (From B560 chipset) Support up to PCIe 3.0
1x PCIe 3.0 x1 slot
PCI_E2 (From B560 chipset)
* PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.
Serial ATA (SATA)6 x SATA 6Gb/s
M.22x M.2 slots (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B560 chipset)
Supports up to PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Audio Channels7.1 Channels
LAN Chipset1 x Realtek RTL8125B 2.5Gbps LAN controller
Max LAN Speed2.5Gbps
Back I/O Ports4 x USB 2.0
1 x DisplayPort
1 x USB 3.2 Gen 1 5Gbps Type-A
1 x 2.5G LAN Port
5 x HD Audio Connectors
1 x HDMI
1 x USB 3.2 Gen 2x2 20Gbps Type-C
2 x USB 3.2 Gen 1 5Gbps Type-A
1 x Optical S/PDIF OUT
Antenna Connectors1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
1 x Tuning Controller Connector
1 x TBT connector (Supports RTD3)
Form FactorMicro ATX
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector

Questions about this item

How often should I clean the extended PWM heatsink and M.2 Shield FROZR to maintain cooling performance?

Clean the extended PWM heatsink and M.2 Shield FROZR every 6 to 12 months using compressed air to remove dust buildup that can reduce thermal efficiency.

Which component hits its limit first during sustained heavy loads on this board?

The VRM area cooled by the extended PWM heatsink is the first to reach thermal limits under continuous high-current operation with multi-core 11th Gen CPUs.

How loud and hot does the board get when running all day with the Frozr AI Cooling active?

Frozr AI Cooling automatically adjusts fan duty based on CPU and GPU temperatures, keeping VRM and M.2 thermals in check while minimising acoustic output during extended sessions.
