Green micro-ATX board with black heatsinks and silver I/O shield

MSI

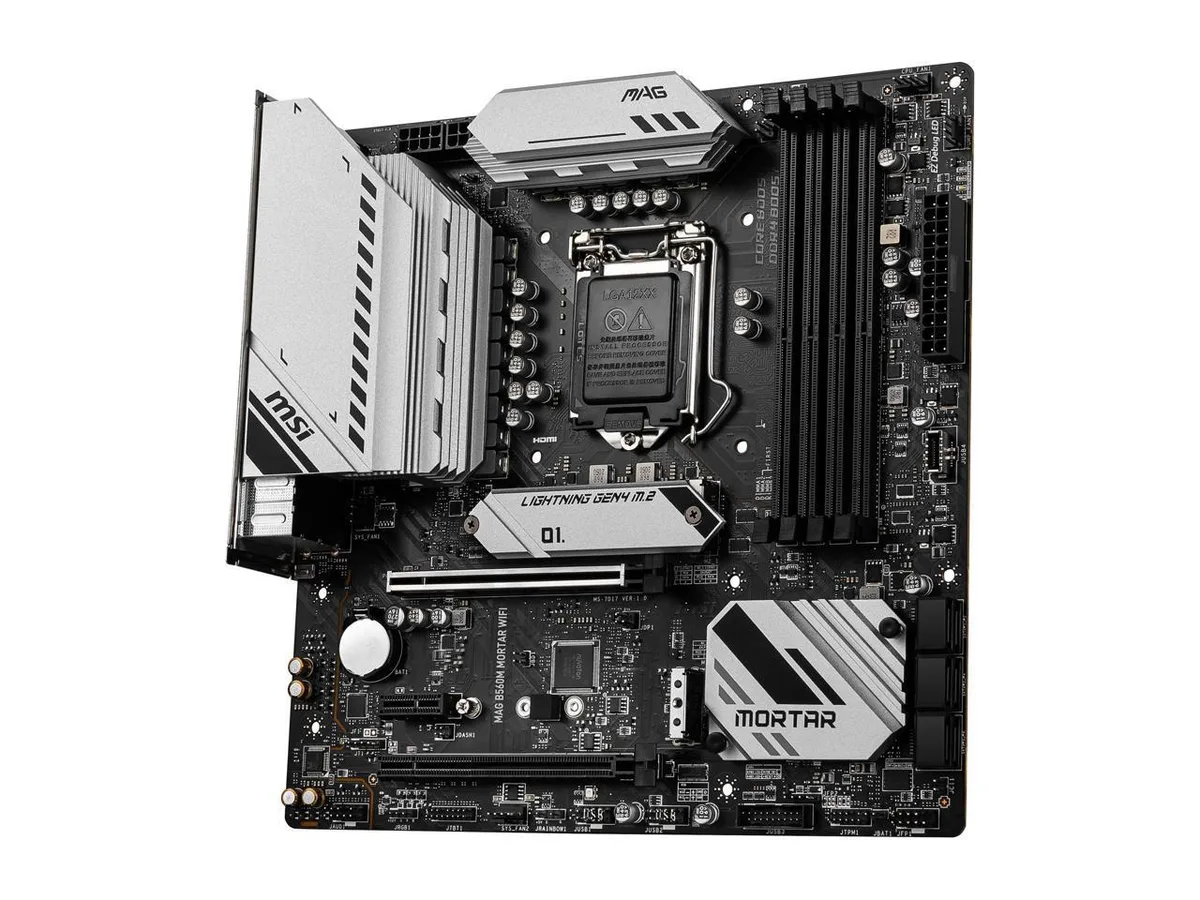

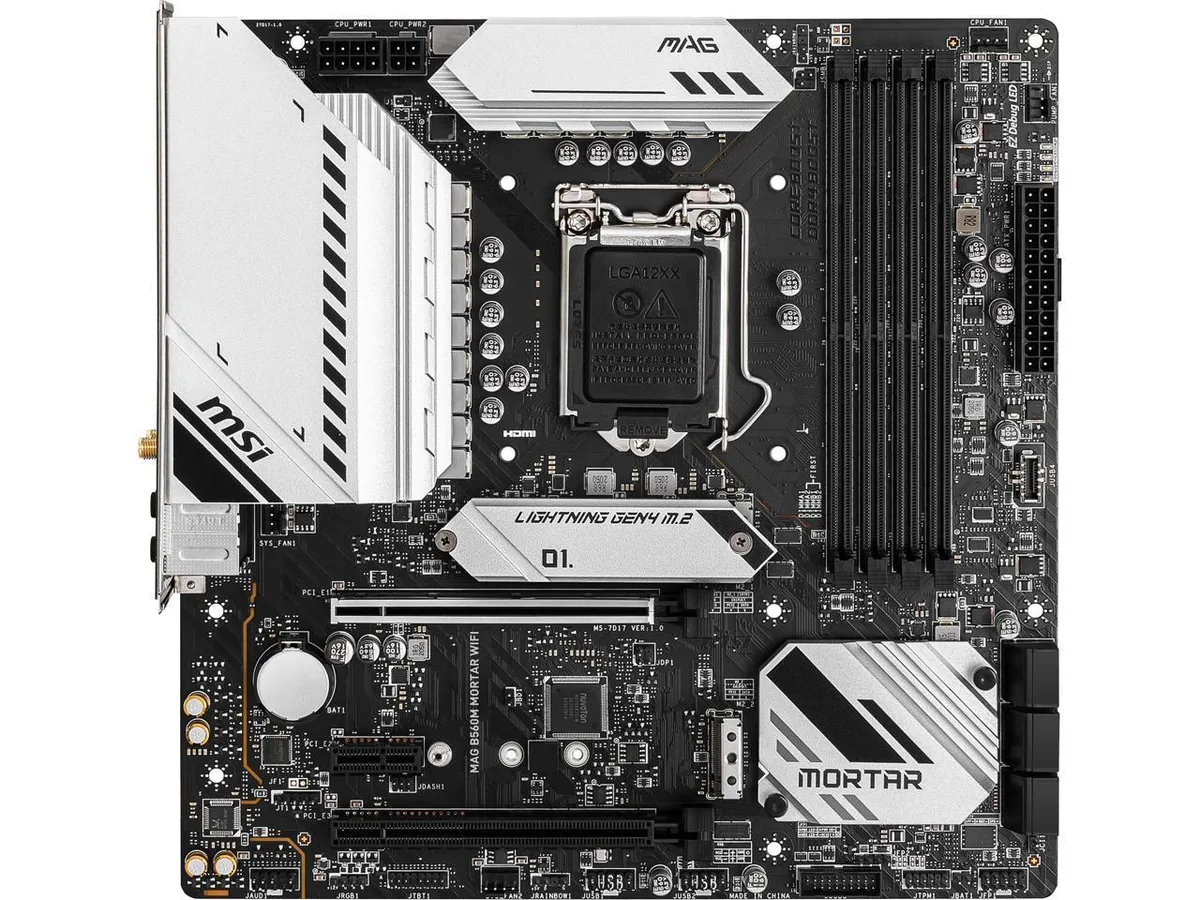

MSI MAG B560M MORTAR WIFI B560 SATA 6Gb/s Micro ATX Intel motherboard

SKU CH-W6ZF-51SYD

Micro ATX board for 10th and 11th Gen Intel LGA 1200 CPUs with DDR4 up to 128 GB, 2.5 Gbps LAN, WiFi 6E and dual M.2 slots

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th / 10th Gen Intel Core Processors Supports Inte
  • ChipsetIntel B560
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardSupports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, b
  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 128 GB across four 288-pin slots
  • PCIe 4.0 x16 and two M.2 slots for fast storage
  • 5 Gbps LAN plus Intel WiFi 6E AX210 wireless
  • Realtek ALC897 audio with 7.1 channel output

Socket and processor support

This Micro ATX motherboard uses the LGA 1200 socket and the Intel B560 chipset. It accepts 10th and 11th Generation Intel Core processors along with Pentium Gold and Celeron models. Onboard video output works only with CPUs that include integrated graphics.

Memory and expansion limits

Four 288-pin slots support DDR4 up to 128 GB in dual-channel mode. With an 11th Generation CPU the board reaches 3200 MT/s by JEDEC and can overclock beyond 5066 MT/s in a 1DPC 1R configuration. The primary PCIe 4.0 x16 slot and the first M.2 slot connect directly to the CPU; the second M.2 slot and the PCIe 3.0 x16 slot share bandwidth and require BIOS adjustment for simultaneous use.

Network and audio connectivity

A Realtek RTL8125B controller provides 2.5 Gbps wired Ethernet while the Intel WiFi 6E AX210 module adds 802.11 a/b/g/n/ac/ax wireless. Audio is handled by a Realtek ALC897 codec delivering 7.1 channels. Six SATA 6Gb/s ports and two M.2 Key M slots complete the storage options.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 128 GB across four 288-pin slots
  • PCIe 4.0 x16 and two M.2 slots for fast storage
  • 5 Gbps LAN plus Intel WiFi 6E AX210 wireless
  • Realtek ALC897 audio with 7.1 channel output

Specifications

BrandMSI
CPU Socket TypeLGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors
* Please go to intel.com for compatibility information.
ChipsetIntel B560
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066+
1DPC 2R Max speed up to 4600+
2DPC 1R Max speed up to 4266+
2DPC 2R Max speed up to 4000+
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
PCI Express 3.0 x161 x PCI Express 3.0 x16
* PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.
PCI Express x11 x PCIe 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2 slots (Key M):
M2_1 slot:
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)*
Supports 2242/2260/2280 storage devices
M2_2 slot (From B560 chipset):
Supports up to PCIe 3.0 x4
Supports 2242/2260/2280 storage devices
Intel Optane Memory Ready**
* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane ReadyYes
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8125B
Max LAN Speed2.5Gbps
Wireless LANIntel WiFi 6E AX210
802.11 a/b/g/n/ac/ax
BluetoothBluetooth 5.2
Back I/O Ports1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x Optical S/PDIF Out
1 x USB 3.2 Gen 2x2 Type-C
3 x USB 3.2 Gen 1
4 x USB 2.0/1.1
5 x Audio Jacks
2 x Antenna Bracket
Onboard USB1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector

Questions about this item

Should I pick 3200 MHz or 2933 MHz memory for an 11th Gen Intel CPU?

With an 11th Gen processor the board supports DDR4 up to 3200 MHz by JEDEC, while a 10th Gen CPU limits JEDEC support to 2933 MHz.

What does the 2.5 Gbps LAN figure mean for my actual network speed?

The Realtek RTL8125B controller provides a 2.5 Gbps wired link, so throughput can exceed 1 Gbps when your router, switch and cabling also support 2.5 GbE.

How fast can an M.2 drive run on the primary slot with an 11th Gen CPU?

The M2_1 slot connects through the CPU and delivers PCIe 4.0 x4 bandwidth, giving up to roughly 8 GB/s theoretical throughput for a compatible drive.
