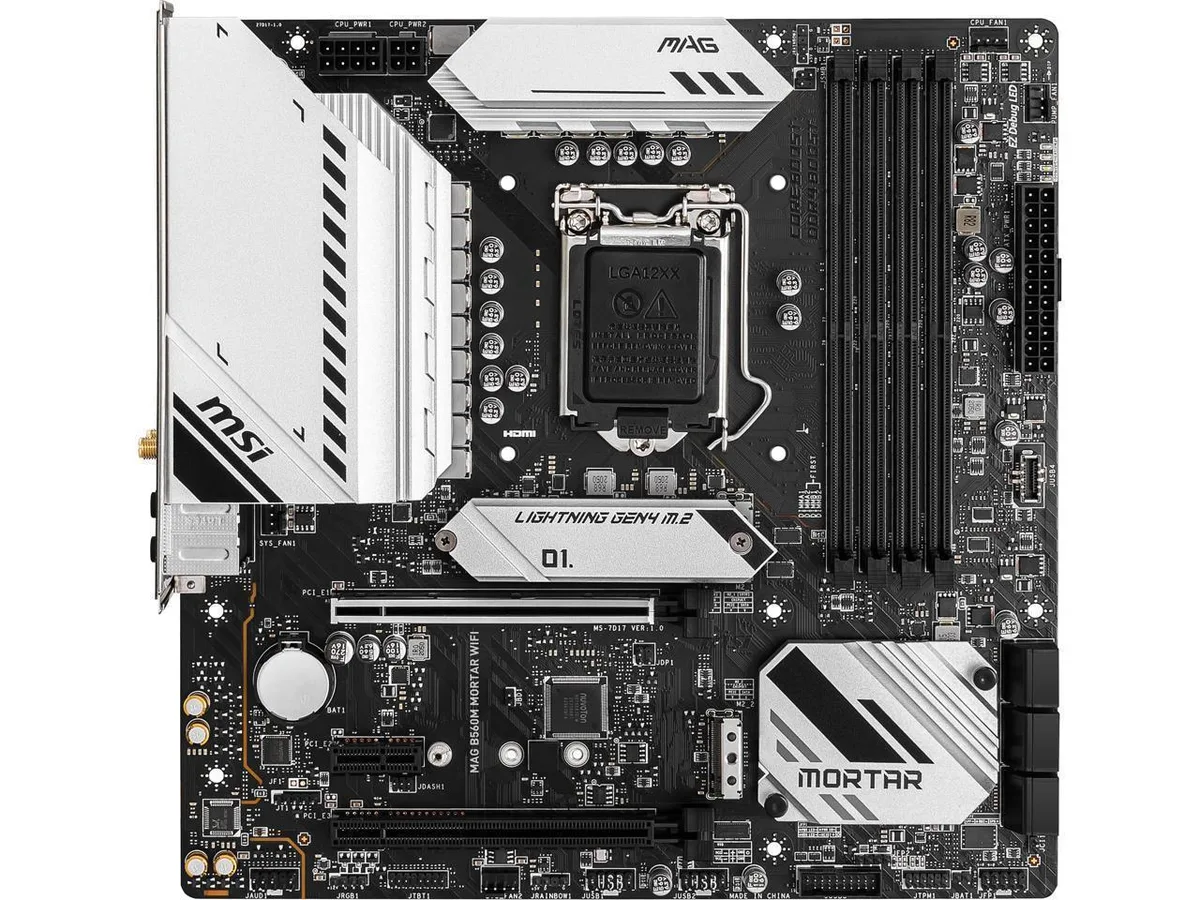

Micro-ATX board, black PCB with grey heatsinks and silver I/O shield

MSI

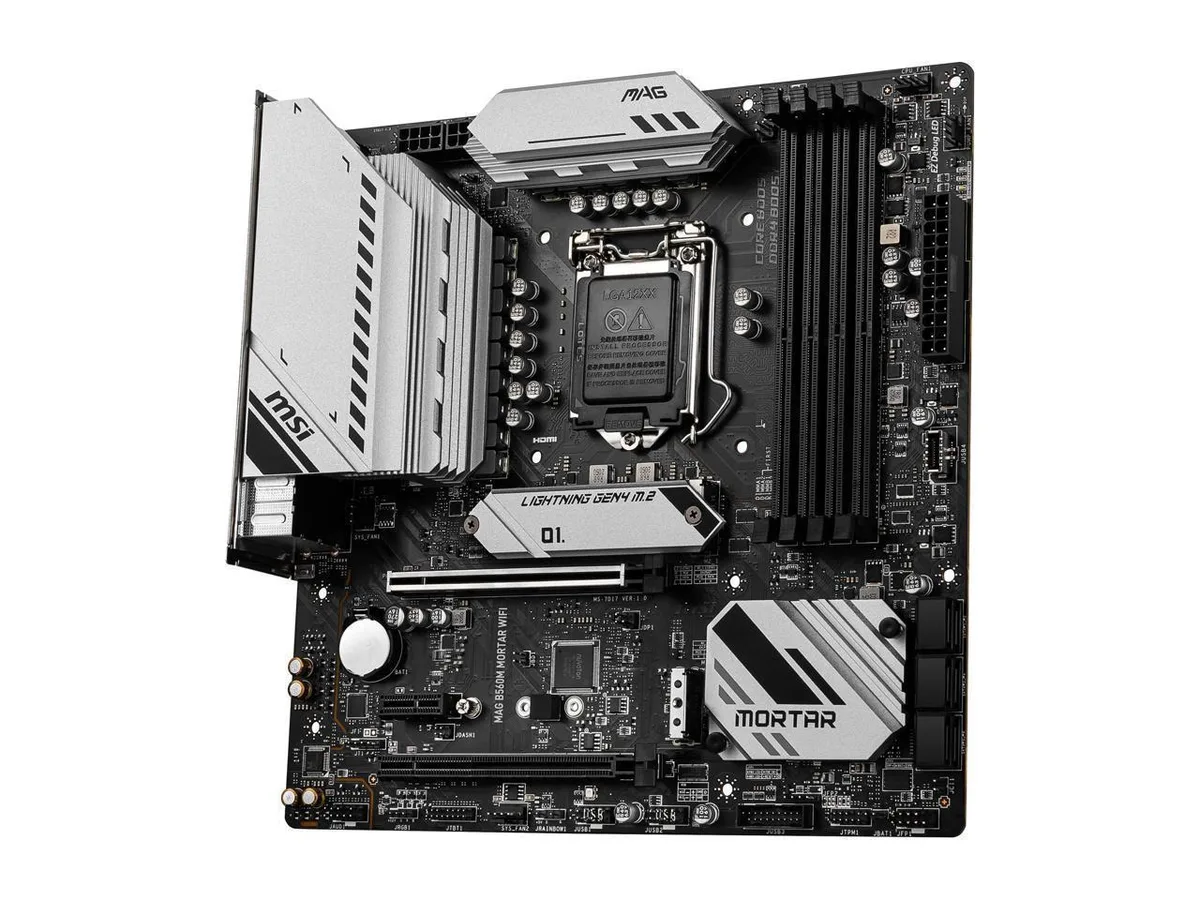

MSI MAG B560M MORTAR WIFI Intel motherboard

SKU CH-0XZH-KAXP0

LGA 1200 Micro ATX board for 10th and 11th Gen Intel Core, Pentium Gold and Celeron CPUs with dual-channel DDR4 up to 128 GB, two M.2 slots, 2.5 Gbps LAN, Wi-Fi, HDMI 2.0b and DisplayPort 1.4

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors, 11th Gen Intel Core
  • ChipsetIntel B560
  • Onboard Video Chipset1 x HDMI 2.0b with HDR port, supports a maximum resolution o
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardSupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by
  • Supports 10th and 11th Gen Intel CPUs on LGA 1200 socket
  • DDR4 memory up to 5066+ MHz overclocked via XMP
  • Dual M.2 slots with PCIe 4.0 x4 for 11th Gen processors
  • 5 Gbps Realtek LAN and USB 3.2 Gen 2 Type-C at 10 Gbps
  • 1-channel Realtek ALC897 audio with S/PDIF output

LGA 1200 Micro-ATX for 10th and 11th Gen Intel

This Micro-ATX board uses the Intel B560 chipset and an LGA 1200 socket to support 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors. It targets builders who want a compact platform with modern connectivity for everyday work or gaming. Four DDR4 slots accept up to 128 GB of memory in dual-channel mode.

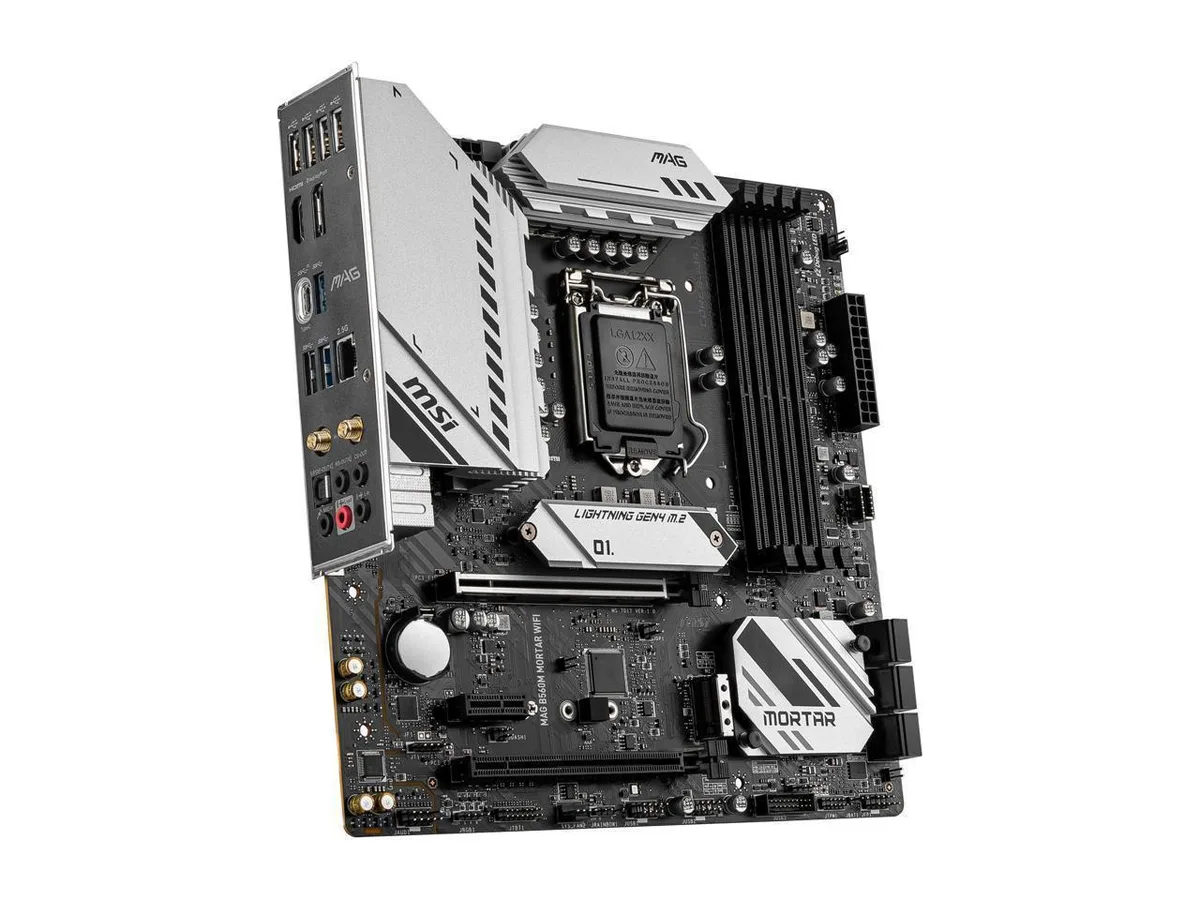

Dual M.2, 2.5 Gbps LAN and front USB-C

Two M.2 Key M slots take 2242, 2260 or 2280 drives; the top slot runs at PCIe 4.0 x4 with an 11th Gen CPU and PCIe 3.0 x4 or SATA with a 10th Gen CPU. Six SATA 6 Gb/s ports are available, though SATA2 disables when a SATA drive occupies M2_1. A Realtek RTL8125B controller provides 2.5 Gbps wired networking, while the rear I/O includes HDMI 2.0b, DisplayPort 1.4, a USB 3.2 Gen 2 10 Gbps Type-C port and 7.1-channel audio from the Realtek ALC897 codec.

Check CPU generation for PCIe 4.0 and memory speed

PCIe 4.0 on the primary x16 slot and the top M.2 slot requires an 11th Gen processor; with a 10th Gen chip both run at PCIe 3.0. Memory defaults are 2133, 2666 or 2933 MHz for 10th Gen and up to 3200 MHz JEDEC for 11th Gen; higher speeds up to 5066+ MHz are possible through XMP overclocking depending on DIMM population. Ensure your case fits a Micro-ATX board and that the power supply provides the required 4-pin CPU and 24-pin ATX connectors.

Highlights

  • Supports 10th and 11th Gen Intel CPUs on LGA 1200 socket
  • DDR4 memory up to 5066+ MHz overclocked via XMP
  • Dual M.2 slots with PCIe 4.0 x4 for 11th Gen processors
  • 5 Gbps Realtek LAN and USB 3.2 Gen 2 Type-C at 10 Gbps
  • 1-channel Realtek ALC897 audio with S/PDIF output

Specifications

BrandMSI
ModelMAG B560M MORTAR WIFI
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
ChipsetIntel B560
Onboard Video Chipset1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz* **
1 x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz* **
*Available only on processors featuring integrated graphics
**Graphics specifications may vary depending on the CPU installed.
MULTI-GPU: Supports 2-way AMD CrossFire Technology
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express x162 x PCI Express x16
PCI Express x11 x PCIe 3.0 x1 slot
PCI_E2 (From B560 chipset)
Other SlotsSupport x16/ x4
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3 (From B560 chipset)*
Support up to PCIe 3.0
* PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.
Serial ATA (SATA)6x SATA 6Gb/s ports (from B560 chipset)*
*SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.22 x M.2 slots (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)*
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B560 chipset)
Supports up to PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready**
Supports Intel Smart Response Technology for Intel Core processors
*SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
**Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to
Audio ChipsetRealtek ALC897 Codec
Supports S/PDIF output
Audio Channels7.1 Channels
LAN Chipset1 x Realtek RTL8125B 2.5Gbps LAN controller
Onboard USB1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
1 x Tuning Controller Connector
1 x TBT connector (Supports RTD3)
Form FactorMicro ATX
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
FeaturesSupports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never befor

Questions about this item

What PCIe generation does the primary M.2 slot use and what bandwidth does that cap the drive at?

With an 11th Gen CPU the M2_1 slot runs at PCIe 4.0 x4; with a 10th Gen CPU it drops to PCIe 3.0 x4, limiting sequential throughput to the 3.0 ceiling.

What case clearance and mounting pattern does this Micro‑ATX board require?

The board follows the Micro‑ATX form factor with standard mounting holes, so it fits any case that lists Micro‑ATX support and provides the matching standoff layout.

How is the Wi‑Fi module installed and what step is commonly missed?

The Wi‑Fi card plugs into the CNVi M.2 Key‑E slot near the rear I/O; the screw must be fitted before the antenna cables are snapped on, otherwise the card can lift and lose contact.
