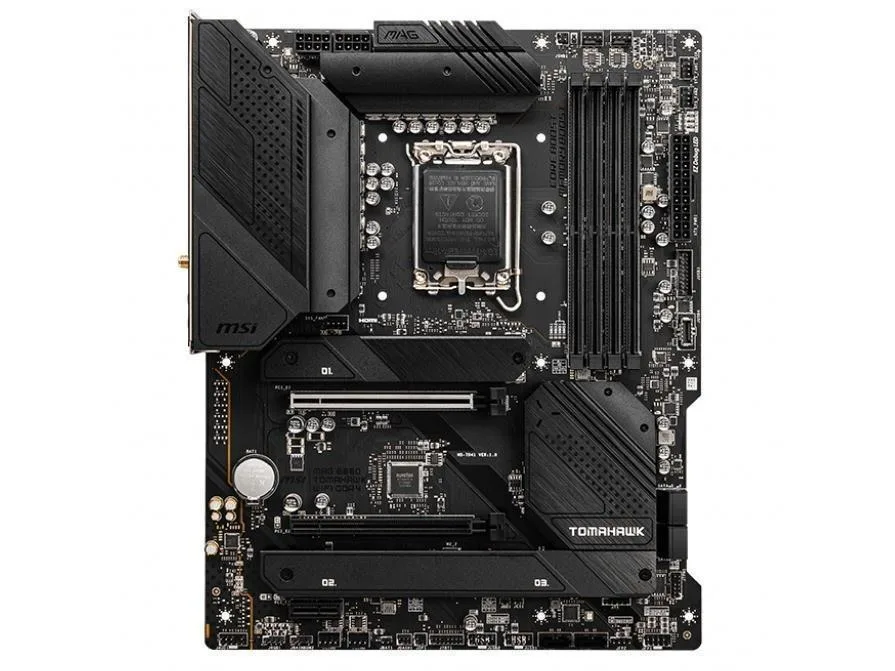

Black rectangular ATX motherboard with silver heatsinks and rear I/O shield

MSI

MSI MAG B660 TOMAHAWK WIFI DDR4 Intel motherboard

SKU CH-WRQS-WTMYD

ATX board for LGA 1700 CPUs with DDR4 up to 128 GB, 2.5 Gbps LAN, Wi-Fi and 7.1 audio

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th Gen Intel Core™, Pentium Gold and Celeron proc
  • ChipsetIntel B660
  • Memory StandardSupports dual-channel DDR4 4800 (OC)/4600 (OC)/4400 (OC)/426
  • Maximum Memory Supported128GB
  • PCI Slots2x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 4.0 P
  • Supports 12th Gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1700 socket
  • Dual-channel DDR4 memory up to 4800 OC and 128 GB capacity
  • PCIe 4.0 on primary x16 slot plus PCIe 3.0 x4 on second x16 slot
  • Realtek ALC1220P codec delivers 7.1-channel high-definition audio with S/PDIF
  • 5 Gbps LAN and USB 3.2 Gen 2x2 20 Gbps Type-C on rear I/O

B660 chipset motherboard for LGA 1700 processors

This Intel B660 motherboard fits the LGA 1700 socket and accepts 12th Generation Intel Core, Pentium Gold and Celeron processors. It provides a mainstream platform for office work, content creation and gaming builds that do not need overclocking features. The board uses the ATX form factor for standard case compatibility.

Dual-channel DDR4 support and extensive rear I/O

Four memory slots accept dual-channel DDR4 up to 128GB with JEDEC speeds from 2133 to 3200 and a long list of overclocked profiles up to 4800. Rear connectivity includes one USB 3.2 Gen 2x2 Type-C port at 20Gbps, five USB 3.2 Gen 2 Type-A ports at 10Gbps, two USB 3.2 Gen 1 ports at 5Gbps, 2.5Gbps LAN and 7.1-channel audio driven by the Realtek ALC1220P codec. A pre-installed I/O shield simplifies installation.

PCIe 4.0 primary slot and six SATA 3.0 ports

The top PCIe x16 slot runs at PCIe 4.0 from the CPU while the second x16 slot and the single x1 slot operate at PCIe 3.0 from the chipset. Storage options include three M.2 interfaces and six SATA 3.0 ports with RAID support. Bandwidth for the chipset-linked slots and M.2 interfaces is limited to PCIe 3.0 lanes, so the fastest graphics cards and drives should use the primary slot.

Highlights

  • Supports 12th Gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1700 socket
  • Dual-channel DDR4 memory up to 4800 OC and 128 GB capacity
  • PCIe 4.0 on primary x16 slot plus PCIe 3.0 x4 on second x16 slot
  • Realtek ALC1220P codec delivers 7.1-channel high-definition audio with S/PDIF
  • 5 Gbps LAN and USB 3.2 Gen 2x2 20 Gbps Type-C on rear I/O

Specifications

BrandMSI
SeriesMSI MAG B660 TOMAHAWK WIFI DDR4
ModelMSI MAG B660 TOMAHAWK WIFI DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 12th Gen Intel Core™, Pentium Gold and Celeron processors
Processor socket LGA1700
ChipsetIntel B660
Memory StandardSupports dual-channel DDR4 4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4200 (OC)/4000 (OC)/3800 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3200 (OC)/3200 (JEDEC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported128GB
PCI Slots2x PCIe x16 slots
PCI_E1 (From CPU)
Support up to PCIe 4.0
PCI_E2 (From B660 chipset)
Support up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From B660 chipset)
SATA RAID3XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek RTL8125B-CG 2.5Gbps LAN controller
Onboard USB1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector)
2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

Questions about this item

What PCIe generation does the primary x16 slot from the CPU support?

The primary PCIe x16 slot connected to the CPU supports up to PCIe 4.0, while the second x16 slot from the B660 chipset runs at PCIe 3.0 x4.

What form factor is this board and which CPU socket does it use?

This is a Micro ATX motherboard using the LGA 1700 socket for 12th Gen Intel Core, Pentium Gold and Celeron processors.

How is the Wi-Fi antenna attached during installation?

The board includes a built-in Wi-Fi module; screw the supplied external antenna onto the gold connectors on the rear I/O panel before powering on.
