Dark green Micro ATX board with black heatsinks and silver I/O shield

MSI

MSI MAG B660M MORTAR WIFI DDR4 Intel motherboard

SKU CH-T158-Y3YJZ

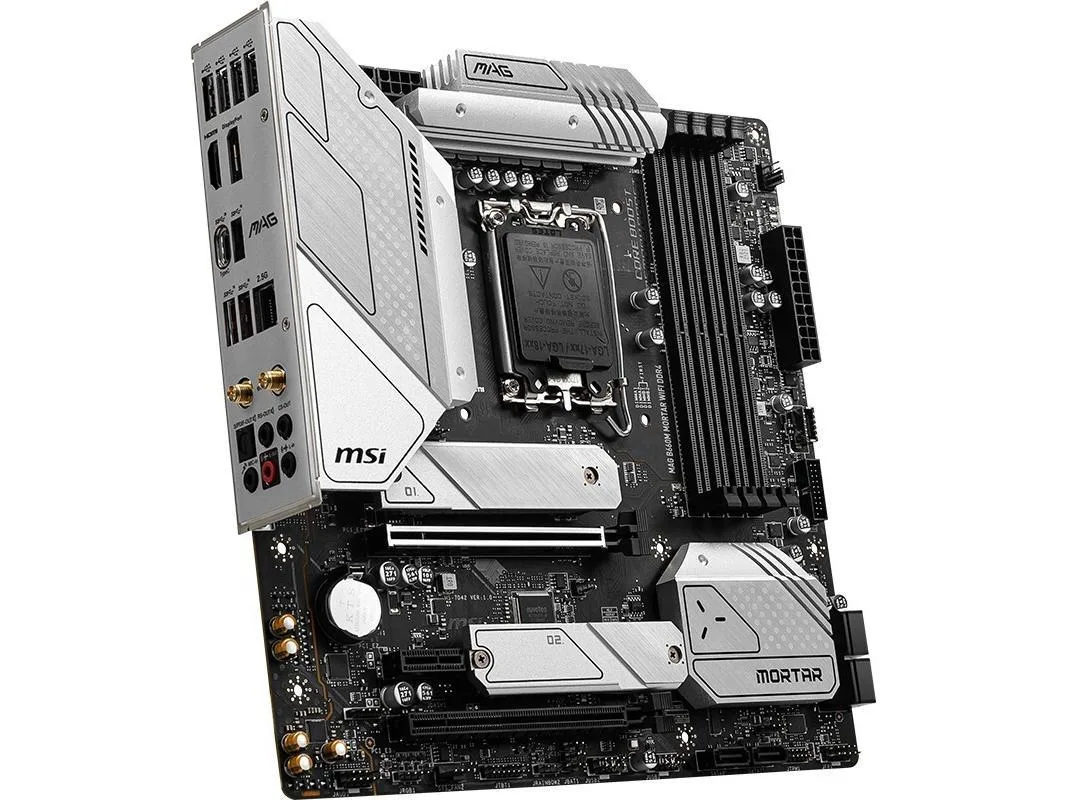

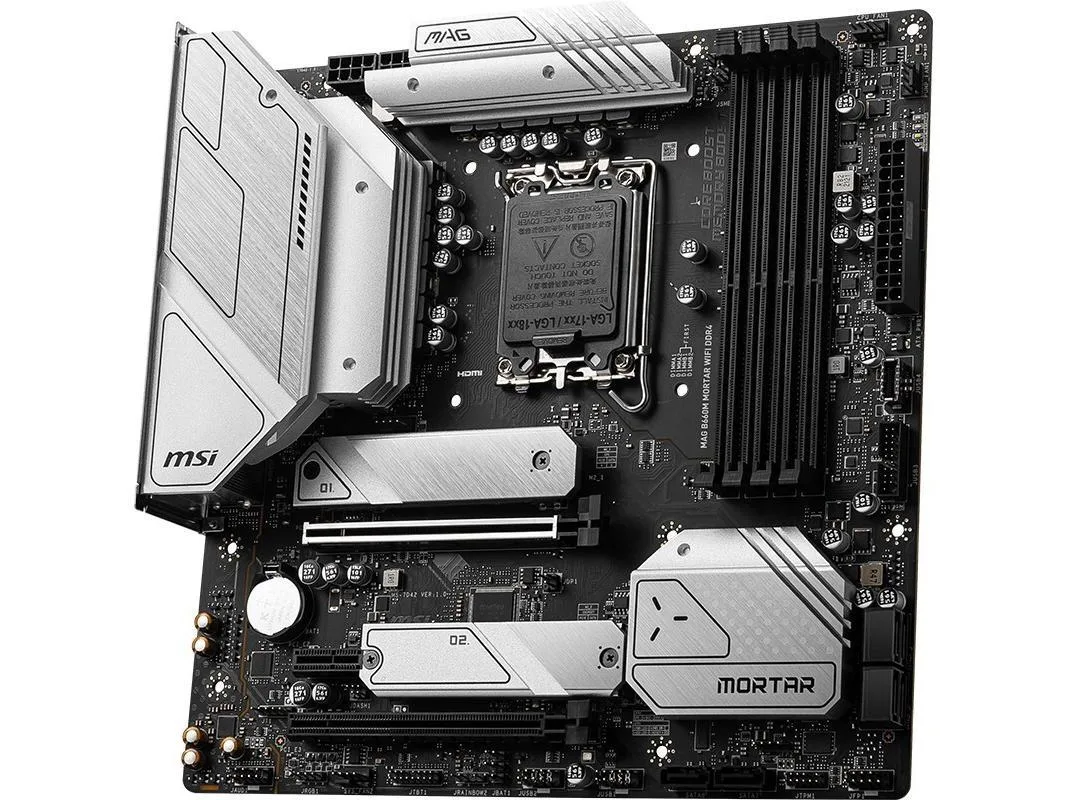

Micro ATX board with Intel B660 chipset, LGA 1700 socket, DDR4 up to 4800 MHz and 2.5 Gbps LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th Gen Intel Core™, Pentium Gold and Celeron proc
  • ChipsetIntel B660
  • Memory StandardSupports dual-channel DDR4 4800 (OC)/4600 (OC)/4400 (OC)/426
  • Maximum Memory Supported128GB
  • PCI Slots2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x
  • Supports 12th Gen Intel Core processors on LGA 1700 socket
  • Up to 128GB DDR4 memory with speeds to 4800 (OC)
  • PCIe 4.0 x16 slot for modern graphics cards
  • 5Gbps LAN plus Realtek ALC1200 7.1-channel audio
  • USB 3.2 Gen2x2 20Gbps Type-C on rear I/O

Micro ATX LGA 1700 board for 12th Gen Intel

This Micro ATX motherboard uses the Intel B660 chipset and an LGA 1700 socket to support 12th Gen Intel Core, Pentium Gold and Celeron processors. It provides four DDR4 slots with a maximum capacity of 128GB and runs memory speeds up to 4800 OC. The board includes 2.5Gbps LAN, 7.1-channel audio and a rear USB 3.2 Gen2x2 20Gbps Type-C port.

Suits DDR4 builders needing 2.5Gbps LAN

Builders who want a compact board with wired 2.5Gbps networking, high-speed rear USB-C and front-panel USB 3.2 Gen 2 Type-C support will fit this model. Users requiring more than two full-length PCIe x16 slots or more than six SATA ports should look at larger form factors. The two M.2 interfaces and six SATA III ports cover typical storage needs.

Extended VRM heatsink handles sustained multi-core

The extended heatsink over the power phases keeps temperatures in check during long compile, render or compute sessions. PCIe 4.0 on the primary x16 slot and PCIe 3.0 x4 on the second x16 slot maintain consistent throughput for GPUs and high-speed add-in cards without throttling. Fan headers allow targeted airflow over the VRM area for heavy workloads.

Highlights

  • Supports 12th Gen Intel Core processors on LGA 1700 socket
  • Up to 128GB DDR4 memory with speeds to 4800 (OC)
  • PCIe 4.0 x16 slot for modern graphics cards
  • 5Gbps LAN plus Realtek ALC1200 7.1-channel audio
  • USB 3.2 Gen2x2 20Gbps Type-C on rear I/O

Specifications

BrandMSI
SeriesMSI MAG B660M MORTAR WIFI DDR4
ModelMSI MAG B660M MORTAR WIFI DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 12th Gen Intel Core™, Pentium Gold and Celeron processors
Processor socket LGA1700
ChipsetIntel B660
Memory StandardSupports dual-channel DDR4 4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4200 (OC)/4000 (OC)/3800 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3200 (OC)/3200 (JEDEC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported128GB
PCI Slots2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 4.0 x16
PCI_E3 slot (From B660 Chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek 8125BG 2.5Gbps LAN controller
Onboard USBIntel B660 Chipset
1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4x USB 2.0 ports on the back panel
USB Hub-GL3590
3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors

Questions about this item

Which LGA 1700 processor do I need for the MSI MAG B660M MORTAR WIFI DDR4?

The board supports 12th Gen Intel Core, Pentium Gold and Celeron CPUs in the LGA 1700 socket.

Can I keep my DDR4 3200 memory when upgrading to this B660 motherboard?

Yes, 3200 JEDEC DDR4 is listed among the supported speeds up to 128 GB.

How do I confirm the 2.5 Gbps LAN is active after building with this board?

Check the Realtek 8125BG adapter in Device Manager and verify the link speed shows 2.5 Gbps.
