MSI MAG B660M MORTAR WIFI Intel motherboard

LGA 1700 DDR5 Micro ATX board

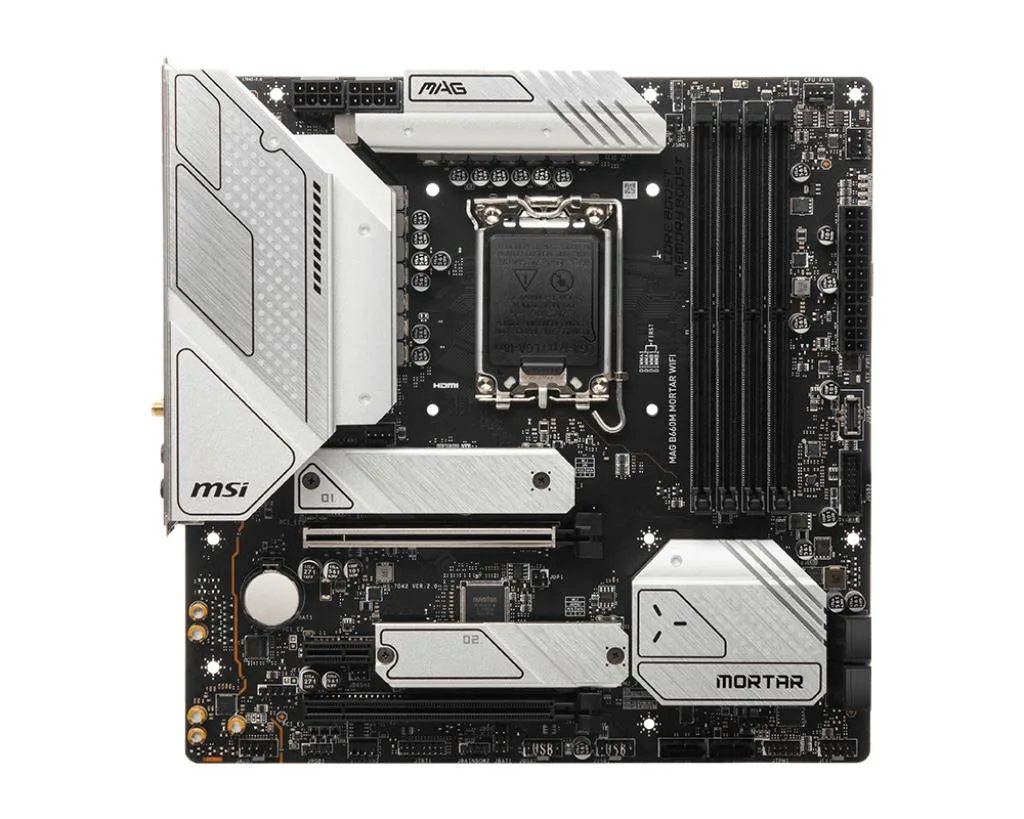

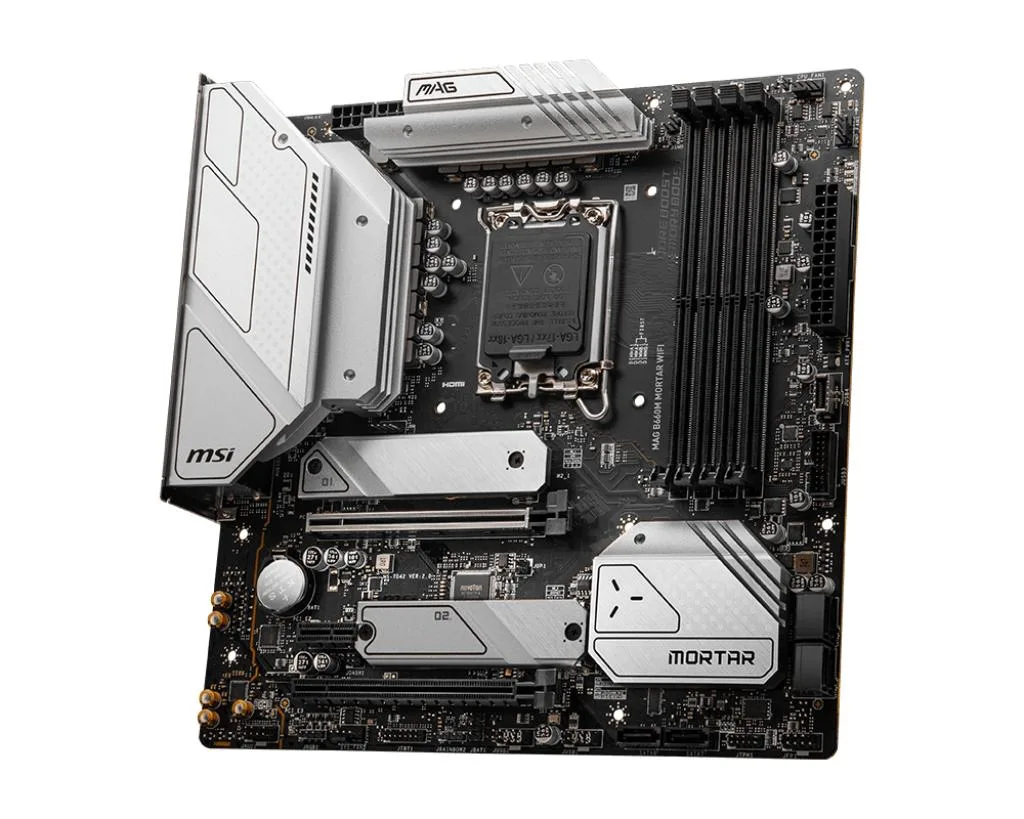

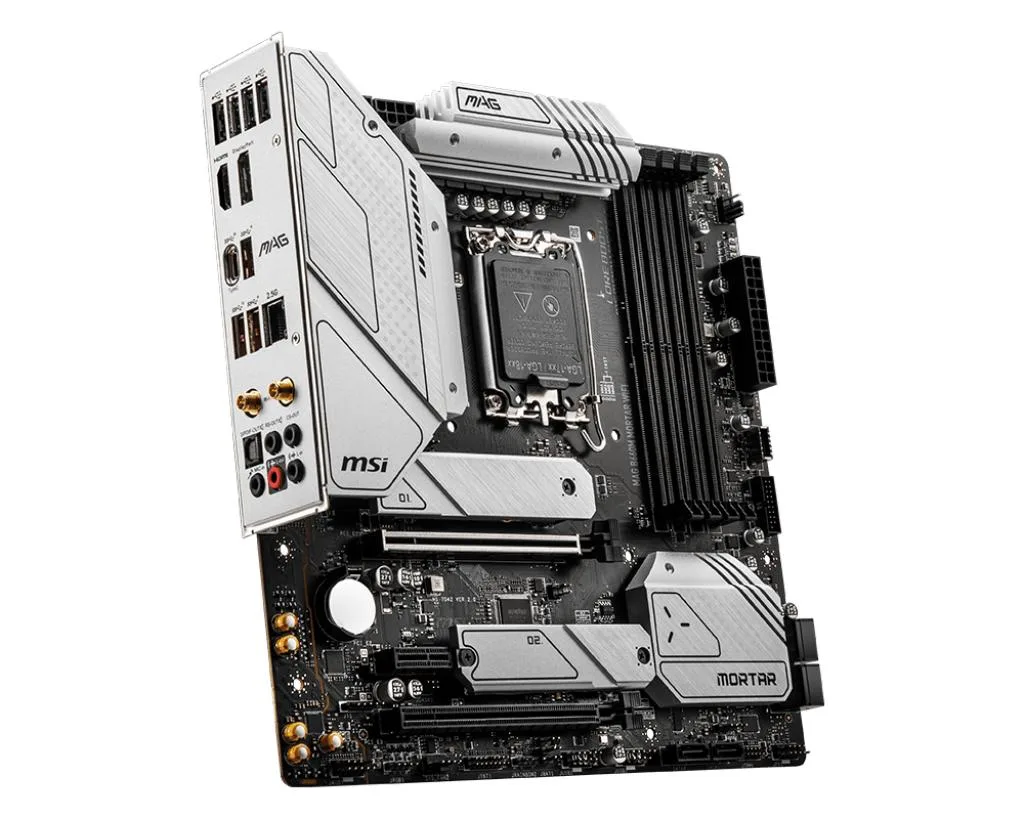

This Micro ATX motherboard fits the LGA 1700 socket and runs on the Intel B660 chipset. It accepts dual-channel DDR5 up to 6200 (OC) and 128 GB total capacity. The Realtek ALC1200 codec delivers 7.1-channel audio, while the 8125BG controller provides a 2.5 Gbps LAN link. Two PCIe x16 slots and six SATA III ports give ample expansion room.

Upgrade from DDR4 B660 or B560 boards

Moving from a DDR4-equipped B660 or B560 board unlocks DDR5 bandwidth that starts at 4800 JEDEC and scales through 5000, 5200, 5400, 5600, 5800, 6000 and 6200 (OC) steps. The jump is worthwhile when memory-heavy workloads or high-refresh gaming benefit from the extra throughput. PCIe 4.0 on the primary x16 slot also doubles the link speed of PCIe 3.0 designs.

Sustained load on VRM and M.2 slots

Extended sessions keep the VRM within operating limits thanks to the board's heatsink coverage and the B660 chipset's moderate power draw. Both M.2 interfaces remain stable during long file transfers because the chipset-linked PCIe 3.0 x4 lanes and CPU-linked PCIe 4.0 lanes share thermal headroom. The 2.5 Gbps LAN and USB 3.2 Gen 2x2 20 Gbps Type-C port maintain throughput without throttling.
