MSI

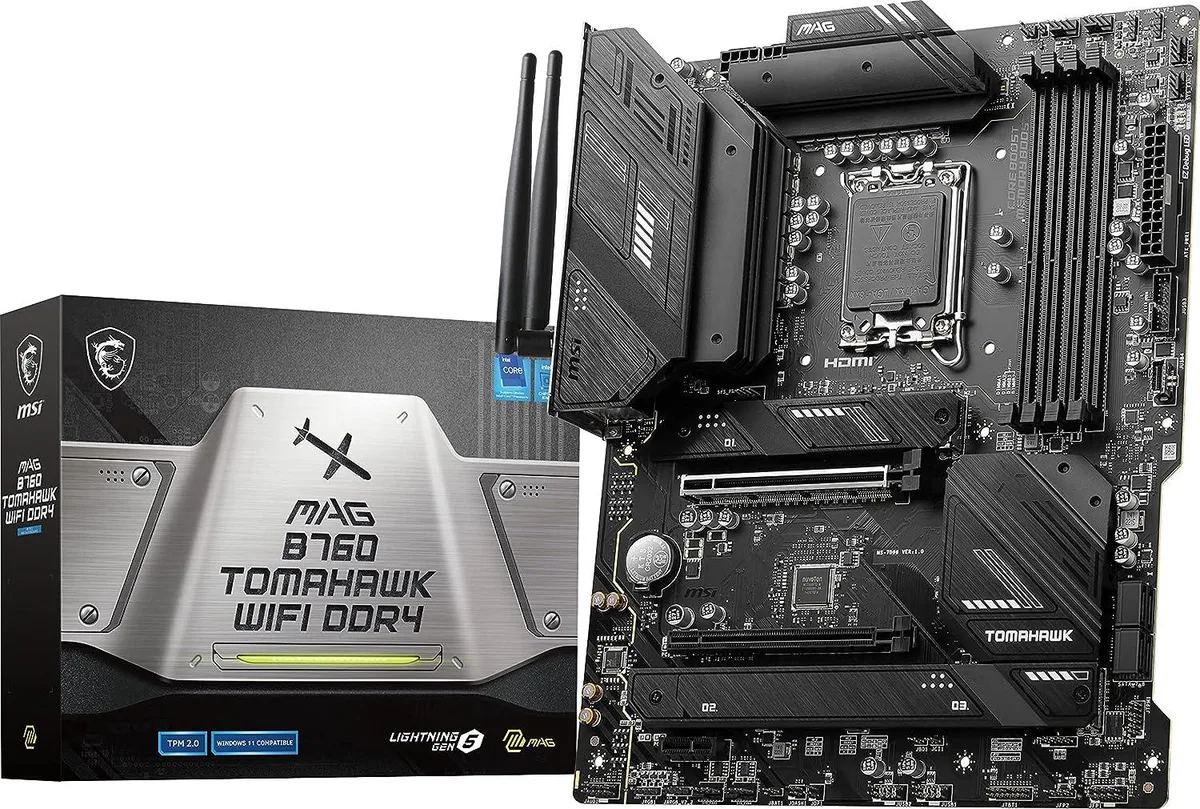

MSI MAG B760 TOMAHAWK WIFI DDR4 Intel motherboard
ATX board for Intel 12th, 13th and 14th Gen CPUs with DDR4 memory, PCIe 5.0 graphics slot, three M.2 sockets, Wi-Fi 6E and 2.5Gb LAN
- CPU Socket TypeLGA 1700
- CPU TypeIntel Core 13th Gen (LGA 1700)
- ChipsetIntel B760
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 3200
- Maximum Memory Supported128GB
- Supports Intel 12th 13th 14th Gen CPUs on LGA 1700 socket
- DDR4 memory overclocks to 5333+ MHz for faster responsiveness
- PCIe 5.0 x16 slot delivers up to 128GB/s bandwidth for graphics
- Wi-Fi 6E with 6 GHz spectrum reaches 2400 Mbps wireless speeds
- 5G LAN plus M.2 Shield FROZR keeps storage cool and networks fast
LGA 1700 DDR4 ATX platform

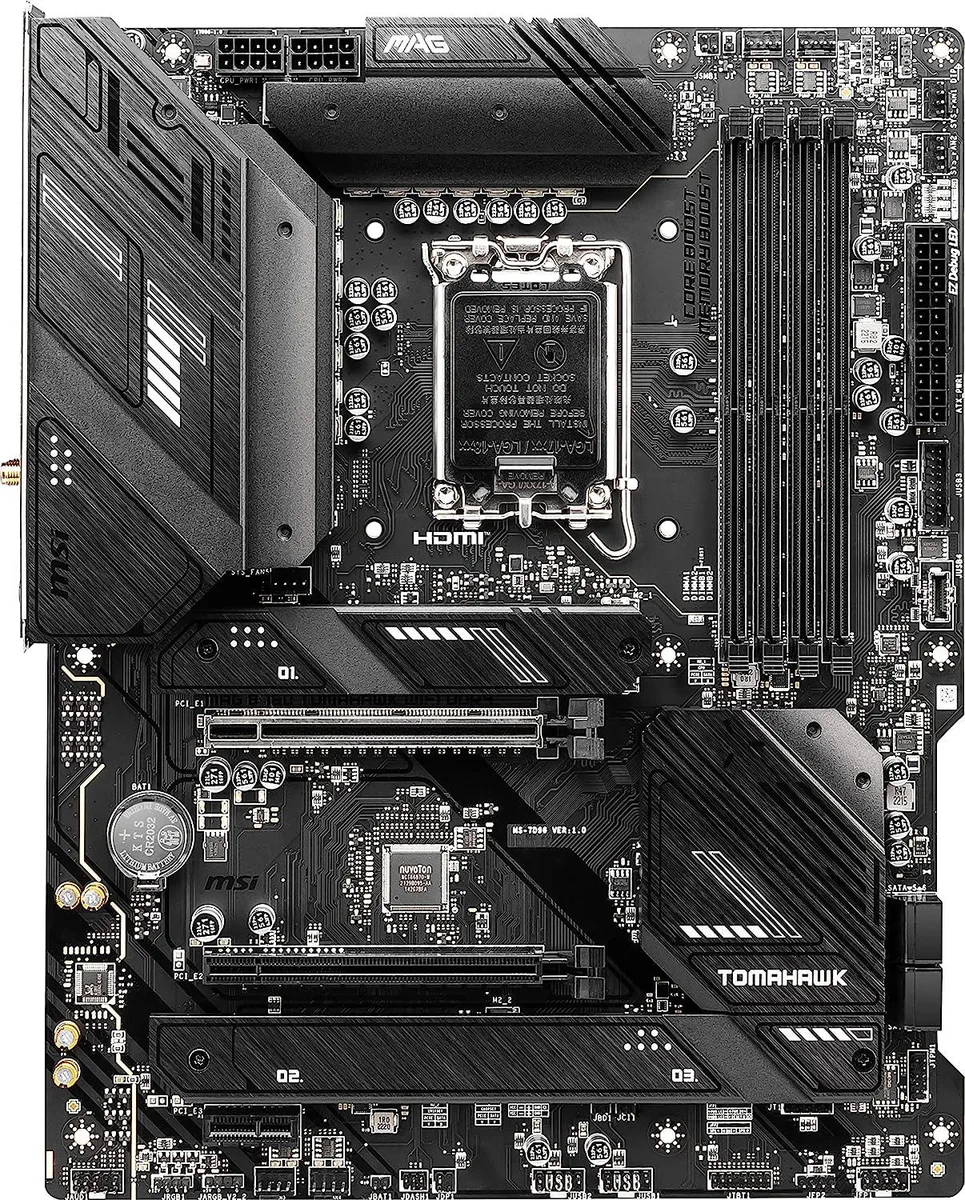

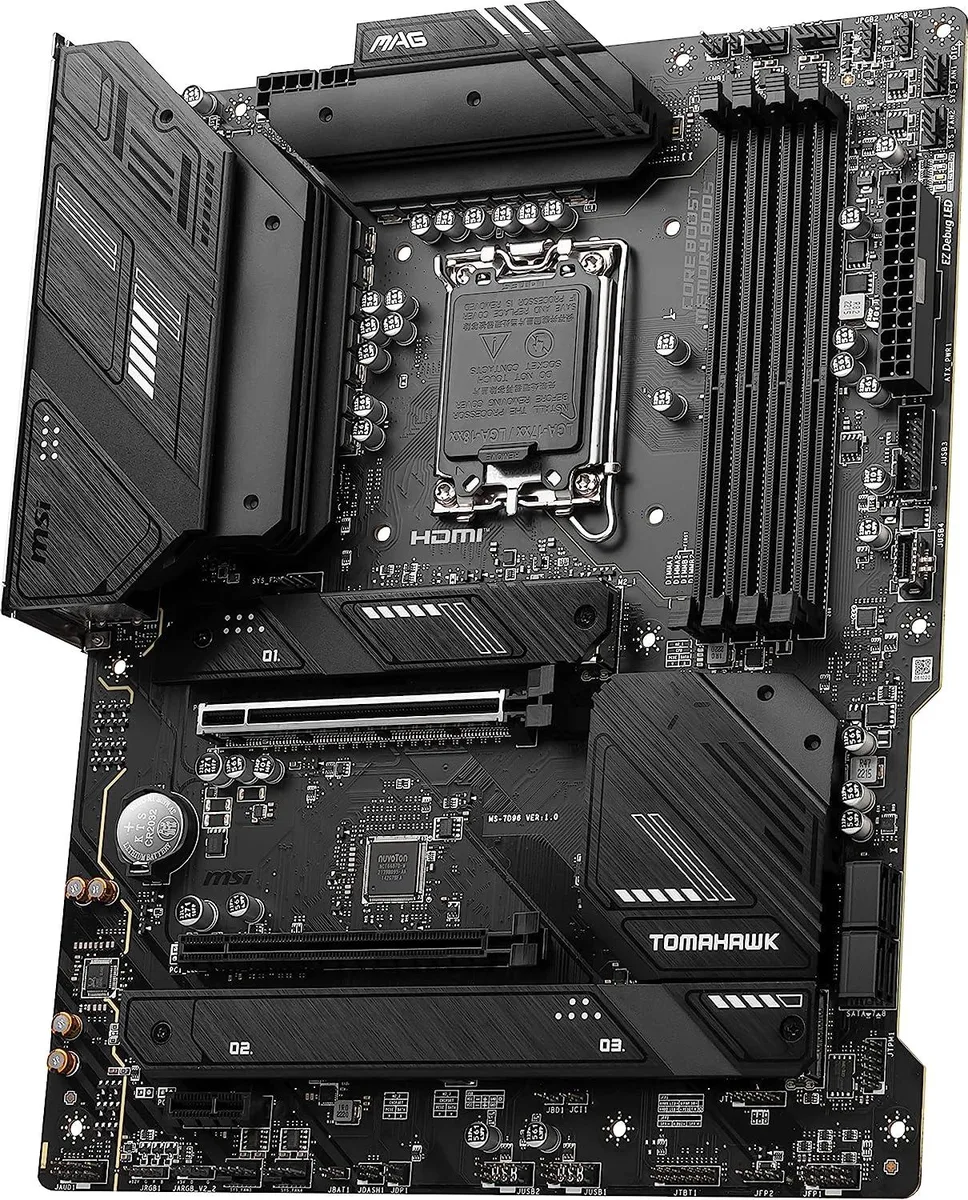

The MSI MAG B760 TOMAHAWK WIFI DDR4 is an ATX motherboard built around the Intel B760 chipset for LGA 1700 processors. It supports 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron CPUs. Four 288‑pin DDR4 slots run at 3200 MHz JEDEC and can be overclocked to 5333+ MHz with a single rank module. Maximum memory capacity is 128 GB in dual channel.
Builders keeping DDR4 kits
This board suits builders who want to reuse existing DDR4 memory while moving to a current Intel platform. It also fits users who need three M.2 slots, 2.5 Gb LAN and Wi‑Fi 6E without paying for a Z series chipset. Overclockers who require CPU multiplier control or enthusiasts needing more than four SATA ports should look at a different chipset.
Three M.2 slots and 128 GB headroom
The primary M.2 slot connects through the CPU and supports PCIe 4.0 x4 drives up to 22110 length. Two chipset‑linked slots add further PCIe 4.0 x4 storage in 2242, 2260 or 2280 sizes. Four SATA 6 Gb/s ports provide additional drive options. Memory scales to 128 GB; beyond that the platform cannot address more. The single PCIe 5.0 x16 slot handles current graphics cards, while the PCIe 3.0 x4 and PCIe 4.0 x1 slots cover add‑in cards.
Highlights
- Supports Intel 12th 13th 14th Gen CPUs on LGA 1700 socket
- DDR4 memory overclocks to 5333+ MHz for faster responsiveness
- PCIe 5.0 x16 slot delivers up to 128GB/s bandwidth for graphics
- Wi-Fi 6E with 6 GHz spectrum reaches 2400 Mbps wireless speeds
- 5G LAN plus M.2 Shield FROZR keeps storage cool and networks fast
Specifications
| Brand | MSI |
|---|---|
| Model | MAG B760 TOMAHAWK WIFI DDR4 |
| CPU Socket Type | LGA 1700 |
| CPU Type | Intel Core 13th Gen (LGA 1700) |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: - 1DPC 1R Max speed up to 5333+ MHz - 1DPC 2R Max speed up to 4800+ MHz - 2DPC 1R Max speed up to 4400+ MHz - 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) * Please refer to www.msi.com for more information on compatible memory |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express x4 | 1 x PCI Express 3.0 x4 |
| PCI Express x1 | 1 x PCI Express 4.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 3 x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From B760 chipset) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280 storage devices M2_3* slot (From B760 chipset) - Supports up to PCIe 4.0 x4 - Supports up to SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices * SATA7 will be unavailable when installing M2.SATA SSD in the M2_3 slot. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| LAN Chipset | Realtek RTL8125BG-CG 2.5Gbps LAN controller |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Back I/O Ports | 4 x USB 2.0 Type-A ports (From Hub GL850G) 1 x DisplayPort port 1 x HDMI port 1 x 2.5Gbps LAN (RJ45) jack 4 x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub) 1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset) 2 x Wi-Fi Antenna connectors 5 x Audio jacks 1 x Optical S/PDIF Out connector |
| Onboard USB | 1 x USB 3.2 Gen 2 10Gbps Type-C port (From B760 chipset) 1 x USB 3.2 Gen 1 5Gbps connector (From B760 chipset) - Support additional 2 USB 3.2 Gen 1 5Gbps ports 2 x USB 2.0 Type-A connectors (From B760 chipset) - Supports additional 4 USB 2.0 ports |
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Tuning Controller connector 1 x TBT connector (Supports RTD3) |
| Windows 11 | Supported |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 2 x 4-pin RGB LED connectors 2 x 3-pin ARGB Gen2 LED connectors 4 x EZ Debug LED |
| Features | MSI Center - Gaming Mode - Smart Priority - Game Highlights - Mystic Light - Ambient Devices - Frozr AI Cooling - User Scenario - True Color - Live Update - Hardware Monitoring - Super Charger - Devices Speed Up - Smart Image Finder - MSI Companion - System Diagnosis Thermal Features - Extended Heatsink Design - M.2 Shield Frozr - K7 MOSFET thermal pad / Extra choke pad - Fan headers Perforrmance - Core Boost - VRM Power Design - Dual CPU Power - Memory Boost - Lightning Gen 4 PCI-E / M.2 Slot - Front USB Type-C - 2oz Copper thickened PCB DIY Friendly - PCI-E Steel Armor - Pre-instal |
Questions about this item
Which DDR4 memory kit do I need to populate the four 288-pin slots on this MAG B760 TOMAHAWK WIFI DDR4?
Install up to 128 GB of DDR4 across the four 288-pin slots; the board runs JEDEC speeds of 2133, 2666 and 3200 MHz and can reach 5333+ MHz with a 1DPC 1R overclocked kit.
Will my existing PCIe 3.0 x4 add-in card work in the second full-length slot of this motherboard?
Yes, the board provides one PCIe 3.0 x4 slot alongside the primary PCIe 5.0 x16 slot, so a PCIe 3.0 x4 card will operate at its native speed.
How can I confirm the Wi-Fi 6E radio is active after I build the system?
In Device Manager the Intel Wi-Fi 6E adapter appears with 6 GHz capability, and a connection to a 6 GHz SSID shows a link speed up to 2400 Mbps.
